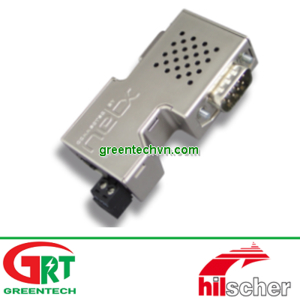

S7-200/300/400 Ethernet programming connector

Monitoring, programming and visualizing S7-PLCs over Ethernet



NL 50-MPI-Image

NL 50-MPI

Active


  • Connects to any free PROFIBUS/MPI/PPI port
  • Cost-effective alternative to original S7 Ethernet CPs
  • Automatic driver integration into any S7 engineering tool
  • Easy PLC to PLC coupling with Ethernet interfaceless PLCs
  • Immediate coupling of S7-compatible HMI devices over Ethernet
  • Effortless access over own applications, e.g. C++, C#









As directly mountable or firmly attachable DIN rail device, the adaptors netLINK-MPI and netTAP-MPI replace expensive CP communication processors. The adaptors allow the programming, the visualization and the control of S7-200®, S7-300® or S7-400® PLCs via Ethernet.

The provided driver integrates into all well-known SIMATIC S7® engineering tools like STEP7® or TIA portal as a PG/PC programming interface. The device is set up with the engineering tool or conventional web browsers via the integrated web configuration pages.

The adaptors are suitable to program or change S7-PLC control programs and may serve to engineer HMI devices with the visualization software WinCC. By supporting the ”ISO on TCP“ RFC1006 Ethernet protocol, any third party or SIMATIC®visualization station can be coupled to the PLC. Once integrated into the office or plant network and connected to the internet, remote maintenance and logging over a router are also possible since plain TCP/IP protocol access mechanisms are used.

Organized in a network, direct communication between two or several PLCs via Ethernet can be realized. Even a coupling of PLCs without Ethernet port is possible using two adapters in conjunction. Fully integrated PROFIBUS diagnostics and Master Class 2 DPV1 services allow the unrestricted DP Slave device configuration and parameterization in STEP7®.

Power is supplied by a 24 V DC connector. If supported by the S7 PLC, the netLINK-MPI adaptor may be powered via the D-Sub9 connector and its extra feed-through D-Sub9 connector allows the connection of further devices to the same MPI/DP network.



Technical Details

Product Product name NL 50-MPI
Part number 1701.430
Brief description S7-200/300/400 Ethernet Programming Connector
Function Monitoring, programming and visualizing S7-PLCs over Ethernet
Communication controller Type netX 50
Integrated Memory RAM 8 MB SDRAM
FLASH 4 MB serial flash, with boot loader, firmware und configuration
Power supply Supply voltage 24 V DC ± 6 V DC
Current (typically) 57 mA (at 24 V), 72 mA (at 18 V), 48 mA (at 30 V)
Connector Connector for power supply from PLC: via D-Sub from PLC, male connector, 9-pin
Connector for external power supply Mini-COMBICON socket, 3.81 mm, 2-pin
Communication interface 1 Communication standard PROFIBUS
Interface type RS-485, non-isolated (for hardware revision 2 and 3), isolated (from hardware revision 4)
Connector D-Sub, male connector, 9-pin; D-Sub, female connector, 9-pin, as interface for a S7 programming tool with 1:1 connection
Communication interface 2 Communication standard Ethernet
Interface type 10BASE-T/100BASE-TX, isolated
Auto negotiation supported
Auto cross over supported
Connector RJ45 socket
Displays LED display SYS, System status
COM, Communication status
LNK, Ethernet link status
ACT, Ethernet activity status
Permitted ambient conditions Operating temperature range 0 °C … +55 °C
Humidity 0 % … 85 % relative humidity (not condensing)
Device Dimensions (L x W x H) 74,3 mm x 40,6 mm x 16,7 mm
Weight approx. 40 g
Protection class IP 20
Mounting/Installation directly on PLC
Configuration Configuration software SyCon MPI or IBHnet-Treiber
Conformity RoHS yes
Conformance with EMC directives CE sign yes
Electrostatic discharge (ESD) according to IEC/EN 61000-4-2:1995 (Air discharge method) 10 kV, Criterion A
Electrostatic discharge (ESD) according to IEC/EN 61000-4-2:1995 (Contact discharge method) 4 kV, Criterion B
Fast transient interferences (Burst), zone B, according to IEC/EN 61000-4-4:1995 1 kV Power supply connectors DC, Criterion B; 1 kV Communication and data lines, Criterion A
Surge voltage, zone B, according to IEC/EN 61000-4-5:1995 1 kV CM, 0,5 kV DM Power supply connectors DC, Criterion B; 1 kV CM Communication and data lines, Criterion B



Ordering information

Product name Part number Brief description
NL 50-MPI 1701.430 S7-200/300/400 Ethernet programming connector
