FX3D-R4 | Dotech FX3D-R4 | Bộ điều khiển nhiệt độ Dotech FX3D-R4 | Temperature Controller Dotech FX3
Dotech: FX3D-R4
Dotech Vietnam
[FX3D] Digital Temp Controller (Relay output 2 points)
- Heating/Cooling Output
- Independent Timer Output
- High/Low Limit Alarm
- Defrost Output
- Sensor Calibration
- Sensor Error Detection
- Automatic Output Cycle after Sensor Error
- Auto Save and Restoration of Parameter Values
- Minimum On/Off Duration Time
- Analog Signal Output(4-20mA)
- Communication via RS485 MODBUS
- Remote Control(FX3D to FX3D)
Heating/Cooling Output
Depending on the purpose, users can select between heating and cooling output.
Independent Timer Output
High/Low Limit Alarm
Defrost Output
Sensor Calibration
Users can calibrate a sensor by adjusting between sensored and actual temperature.
Sensor Error Detection
It detects the sensor errors automatically and alarms immediately.
Automatic Output Cycle after Sensor Error
In terms of risk management, users can configure the automatic output cycle after sensor error.
Auto Save and Restoration of Parameter Values
Parameter values are saved into the nonvolatile memory safely and restored after blackout automatically.
You can always use with peace of mind.
Minimum On/Off Duration Time
Regardless of conditions, it maintains on or off status during the period set by user.
Analog Signal Output(4-20mA)
FX3D transmits the analog signal(4-20mA) to other devices or equipments.
Communication via RS485 MODBUS
It is versatile. Communication via RS485 provides many options to the users
(remote control, remote display, data manipulation, and etc.)
Remote Control(FX3D to FX3D)
Based on master and slave connection, FX3D can remotely control other FX3D via network.
■ Technical Specifications
| FX3D-00 | FX3D-A1 | FX3D-R4 | ||
|---|---|---|---|---|
| Dimensions | 78(W) X 35(H) X 78(D)mm※ Panel Cut-Out Form 71(W) X 29(H)mm | |||
| Power | 100~240Vac, 50/60Hz | |||
| Power Consumption | 4VA | |||
| Connection | Screw Terminal(Up to 1.5㎟ Wire) | |||
| Input/Output | Temperature Sensor Input | 1P | ||
| Analog Input (4-20mA) | 1P(Loop Powered) | |||
| Relay Output | 2P(250Vac/10A) | |||
| Sensor | Temperature | DOTECH Standard NTC sensor DPR-TH01 Type : NTC 5KΩ Range : -50~105℃ Accuracy : ±0.3℃ at 25℃ DOTECH Standard NTC sensor DPR-TH02(Optional) Type : NTC 10KΩ Range : -50~150℃ Accuracy : ±1.5℃ at 25℃ | ||
| Analog Signal Output (4-20mA) | - | OK | - | |
| RS485 Communication (MODBUS RTU/ASCII) | - | - | OK | |
| Operation | Temperature -10~50℃ / Humidity under 90% RH | |||
| Storage | Temperature -20~60℃ / Humidity under 90% RH | |||
■ Accessories
| Category | Model | Specifications |
| Temperature Sensor | DPR-TH01 | Type : NTC 5KΩRange : -50~105℃ Accuracy : ±0.3℃ at 25℃ |
| DPR-TH02 | Type : NTC 10KΩ Range : -40~150℃ Accuracy : ±1.5℃ at 25℃ |

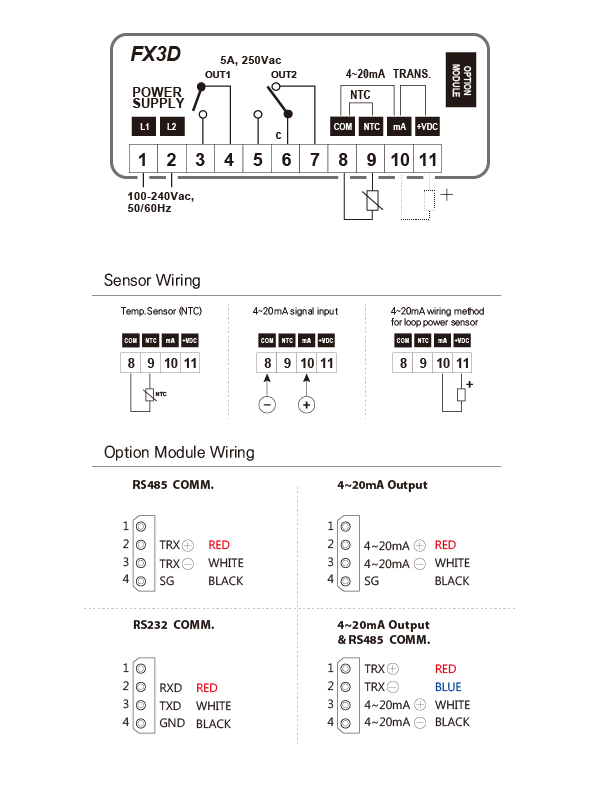

■ Diagram
■ Dimensions
