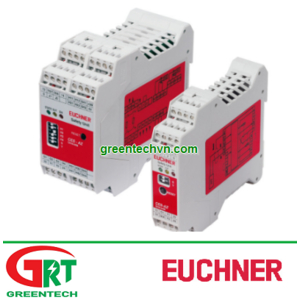

CES-AZ-AES-02B | 104775 | Euchner CES-AZ-AES-02B | Rơ le kỹ thuật số CES-AZ-AES-02B | Euchner Vietnam
CES-AZ-AES-02B | 104775
Schmersal Việt Nam | Greentech Vietnam
12 tháng
CES-AZ-AES-02B | 104775 | Euchner CES-AZ-AES-02B | Rơ le kỹ thuật số CES-AZ-AES-02B | Euchner Vietnam
.
CES-AZ-AES-02B | Euchner CES-AZ-AES-02B | Rơ le kỹ thuật số CES-AZ-AES-02B | Euchner Vietnam
Approvals
Workspace
| Repeat accuracy R | |
| according to EN 60947-5-2 | max. 10 % |
Operating and display elements
| LED display | |
| Safety contacts status | |
| Status LED | |
| Diagnostics LED |
Electrical connection values
| Fuse | |
| external (operating voltage UB) | 0.25 ... 8 A |
| Connection cross section | |
| (plug-in screw/spring terminals) | 0.25 ... 2.5 mm² |
| Operating voltage DC | |
| UB | 21 ... 24 ... 27 V DC regulated, residual ripple<5% |
| EMC protection requirements | Acc. to EN 60947-5-3 |
| Current consumption | |
| (with relay energized) | 150 mA |
| Current via feedback loop | 5 ... 8 ... 10 mA |
| Degree of contamination (external, according to EN 60947-1) | 2 |
| permissible resistance in feedback loop | max. 600 Ω |
| Inputs: start button S, test input TST | |
| Input voltage | |
| HIGH | 15 ... UB V DC |
| LOW | 0 ... 2 V DC |
| Input current | |
| HIGH | 5 ... 8 ... 10 mA |
| Monitoring outputs: diagnostics DIA, door monitoring outputs O1,O2 | |
| Output type | Semiconductor output, p-switching, short circuit-proof |
| Output voltage | 0.8 x UB ... UB V DC |
| Switching current | max. 20 mA |
| Safety contacts 13/14, 23/24 | |
| Fuse | |
| external (safety circuit) according to EN 60269-1 | 6 AgG or 6 A circuit breaker (characteristic B or C) |
| Output type | Relay contacts, floating |
| rated conditional short-circuit current | 100 A |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Discrepancy time | |
| (between the operating points of both relays) | max. 25 ms |
| Utilization category | |
| DC-13 | 24 V 3 A |
| AC-12 | 60 V 0.3 A |
| AC-15 | 230 V 2 A |
| DC-12 | 30 V 6 A |
| DC-12 | 60 V 0.3 A |
| AC-12 | 30 V 6 A |
| Switching load | |
| according to c UL us | Class 2 max. 30 V AC / Class 2 max. 60 V DC; 120 V AC 3 A / 240 V AC 1.5 A |
| Switching current | |
| at switching voltage AC/DC 21 ... 60 V | 1 ... 300 mA |
| at switching voltage AC 5 ... 230 V | 10 ... 2000 mA |
| at switching voltage AC/DC 5 ... 30 V | 10 ... 6000 mA |
Mechanical values and environment
| Connection type | plug-in connection terminals, coded |
| Number of read heads | max. 2 read heads can be connected |
| Ready delay | 10 ... 12 s |
| Switching frequency | max. 0.25 Hz |
| Atmospheric humidity | |
| not condensing | max. 80 % rH |
| Mounting distance | |
| laterally to the neighboring device | min. 10 mm |
| Mounting type | Mounting rail 35 mm according to DIN EN 60715 TH35 |
| Response time | |
| Start button response delay (for Manual start operating mode) | 200 ... 300 ms |
| after change in the actuation status, 2 active actuators | max. 290 ms |
| after change in the actuation status, 1 active actuator | max. 210 ms |
| Start button actuating duration (for Manual Start operating mode) | min. 250 ms |
| Degree of protection | IP20 |
| Ambient temperature | |
| at UB = 24 V DC | -20 ... +55 °C |
| Dwell time | min. 3 s |
| Material | |
| Housing | Plastic PA6.6 |
| Safety contacts 13/14, 23/24 | |
| Number of safety contacts | 2 Relay with internally monitored contacts |
| Mechanical life | |
| Operating cycles (relay) | 10 x 10⁶ |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Number of switching cycles | |
| ≤ 3 A at 24 V DC | max. 34600 1/y |
| ≤ 1 A at 24 V DC | max. 153000 1/y |
| ≤ 0.1 A at 24 V DC | max. 760000 1/y |
| Diagnostic Coverage (DC) | 99 % |
| Mission time | 20 y |
| Monitoring of the guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 1.9 x 10-8 |
Miscellaneous
| The following applies to the approval according to UL | Operation only with UL Class 2 power supply or equivalent measures |
In combination with read head CES-A-LNN-SC-106601, CES-A-LNN-05V-106602, CES-A-LNN-10V-113294, CES-A-LNN-25V-115107 and actuator CES-A-BDN-06-104730
| Switch-on distance | |
| in z direction (with center offset x,y=0), in x direction (with center offset y,z=0) | 19 mm |
| Secured switch-off distance sar | |
| in x or z direction | max. 50 mm |
| in y direction | max. 100 mm |
| Secured switching distance sao | |
| in z direction (with center offset x,y=0), in x direction (with center offset y,z=0) | min. 14 mm |
| Switching hysteresis | 4 mm |
In combination with read head CES-A-LMN-SC and actuator CES-A-BBA-071840
| Switch-on distance | |
| with center offset m=0 | 8 mm A distance of s = 3 mm must be maintained for a side approach direction. |
| Secured switch-off distance sar | |
| with center offset m=0 | max. 25 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 5 mm |
| Switching hysteresis | |
| with center offset m=0 | 1 ... 1.8 mm |
In combination with read head CES-A-LNA-SC-077715, CES-A-LNA-05P-077806, CES-A-LNA-10P-077807, CES-A-LNA-05V-071845, CES-A-LNA-10V-071846, CES-A-LNA-15V-071847, CES-A-LNA-25V-071975, CES-A-LNA-15P-084682, CES-A-LCA-10V
| Mounting distance | |
| neighboring read heads | min. 50 mm |
In combination with read head CES-A-LNN-SC-106601, CES-A-LNN-05V-106602, CES-A-LNN-10V-113294, CES-A-LNN-25V-115107
| Mounting distance | |
| neighboring read heads | min. 160 mm |
In combination with read head CES-A-LQA-SC and actuator CES-A-BQA
| Switch-on distance | |
| for vertical approach direction (center offset m=0) | 23 mm |
| for side approach direction (distance in x direction 10 mm) | +/- 28 mm |
| Secured switch-off distance sar | max. 60 mm |
| Secured switching distance sao | |
| for side approach direction (distance in x direction 10 mm) | min. +/- 24 mm |
| for vertical approach direction (center offset m=0) | min. 16 mm |
| Switching hysteresis | |
| for side approach direction (distance in x direction 10 mm) | 1 ... 1.3 mm |
| for vertical approach direction (center offset m=0) | 2 ... 3 mm |
In combination with read head CES-A-LNN-SC-106601, CES-A-LNN-05V-106602, CES-A-LNN-10V-113294, CES-A-LNN-25V-115107 and actuator CES-A-BBN-106600
| Switch-on distance | |
| in z direction (with center offset x,y=0), in x direction (with center offset y,z=0) | 15 mm |
| Secured switch-off distance sar | |
| in x or z direction | max. 50 mm |
| in y direction | max. 100 mm |
| Secured switching distance sao | |
| in z direction (with center offset x,y=0), in x direction (with center offset y,z=0) | min. 10 mm |
| Switching hysteresis | 1 ... 4 mm |
In combination with read head CES-A-LQA-SC
| Mounting distance | |
| neighboring read heads | min. 80 mm |
In combination with read head CES-A-LNA-SC-077715, CES-A-LNA-05P-077806, CES-A-LNA-10P-077807, CES-A-LNA-05V-071845, CES-A-LNA-10V-071846, CES-A-LNA-15V-071847, CES-A-LNA-25V-071975, CES-A-LNA-15P-084682, CES-A-LCA-10V and actuator CES-A-BBA-071840, CES-A-BCA
| Actuator distance s | |
| Minimum distance for side approach direction | min. 3 mm |
| Switch-on distance | |
| with center offset m=0 | 15 mm |
| Secured switch-off distance sar | max. 26 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 10 mm |
| Switching hysteresis | 0.5 ... 2 mm |
In combination with read head CES-A-LQA-SC and actuator CES-A-BBA-071840, CES-A-BCA
| Switch-on distance | |
| for side approach direction (distance in x direction 8 mm) | +/- 22 mm |
| for vertical approach direction (center offset m=0) | 15 mm |
| Secured switch-off distance sar | max. 47 mm |
| Secured switching distance sao | |
| for vertical approach direction (center offset m=0) | min. 10 mm |
| for side approach direction (distance in x direction 8 mm) | min. +/- 18 mm |
| Switching hysteresis | |
| for vertical approach direction (center offset m=0) | 2 ... 3 mm |
| for side approach direction (distance in x direction 8 mm) | 1 ... 1.8 mm |
In combination with read head CES-A-LNA-SC-077715, CES-A-LNA-05P-077806, CES-A-LNA-10P-077807, CES-A-LNA-05V-071845, CES-A-LNA-10V-071846, CES-A-LNA-15V-071847, CES-A-LNA-25V-071975, CES-A-LNA-15P-084682, CES-A-LCA-10V and actuator CES-A-BDA-18-156935
| Actuator distance s | |
| Minimum distance for side approach direction | min. 5 mm |
| Switch-on distance | |
| with center offset m=0 | 16 mm |
| Secured switch-off distance sar | max. 32 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 10 mm |
| Switching hysteresis | |
| with center offset m=0 | 0.5 ... 1.4 mm |
In combination with read head CES-A-LMN-SC and actuator CES-A-BDA-20
| Switch-on distance | |
| with center offset m=0 | 9 mm A distance of s = 4 mm must be maintained for a side approach direction. |
| Secured switch-off distance sar | |
| with center offset m=0 | max. 26 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 6 mm |
| Switching hysteresis | |
| with center offset m=0 | 1 ... 1.8 mm |
In combination with read head CES-A-LMN-SC and actuator CES-A-BDA-18-156935
| Actuator distance s | |
| Minimum distance for side approach direction | min. 3 mm |
| Switch-on distance | |
| with center offset m=0 | 9 mm |
| Secured switch-off distance sar | max. 21 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 6 mm |
| Switching hysteresis | |
| with center offset m=0 | 0.5 ... 1 mm |
In combination with read head CES-A-LSP-05V-104966, CES-A-LSP-10V-104967, CES-A-LSP-SB-104969, CES-A-LSP-15V-106271 and actuator CES-A-BSP-104970
| Switch-on distance | |
| with center offset m=0 | 20 mm |
| Secured switch-off distance sar | max. 45 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 10 mm |
| Switching hysteresis | 1 ... 4 mm |
In combination with read head CES-A-LMN-SC and actuator CES-A-BMB
| Actuator distance s | |
| Minimum distance | min. 1.2 mm |
| Switch-on distance | |
| with center offset m=0 | 5 mm |
| Secured switch-off distance sar | max. 10 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 3.5 mm |
| Switching hysteresis | 0.1 ... 0.3 mm |
In combination with read head CES-A-LNA-SC-077715, CES-A-LNA-05P-077806, CES-A-LNA-10P-077807, CES-A-LNA-05V-071845, CES-A-LNA-10V-071846, CES-A-LNA-15V-071847, CES-A-LNA-25V-071975, CES-A-LNA-15P-084682, CES-A-LCA-10V and actuator CES-A-BDA-20
| Actuator distance s | |
| Minimum distance for side approach direction | min. 4 mm |
| Switch-on distance | |
| with center offset m=0 | 16 mm |
| Secured switch-off distance sar | max. 33 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 11 mm |
| Switching hysteresis | 0.5 ... 2 mm |
In combination with read head CES-A-LMN-SC
| Mounting distance | |
| neighboring read heads | min. 20 mm |
-
Profile MSK5000:
Max. resolution 1 μm Repeat accuracy ±0.01 mm Repeat accuracy of ±1 increment Status LED display Works with MB500/1 magnetic tape, MR500 magnetic ring, MBR500 magnetic tape ring Reading distance ≤2 mm Max. 200000 pulses/revolution in combination with MR500 or MBR500 (160 poles) Optionally with reference point R or flexible reference marks FR
GREENTECH Việt Nam - Công ty TNHH TM DV GREENTECH là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay
Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.
[ Email ] nhan@greentechvn.com | sales@greentechvn.com | ltnhan.gh@gmail.com
Online contact========
Yahoo: nhan.luongthe
Skype: luongthenhan
===================
Greentech Trading Service Company Limited
[ Main Office ] 33 Street DC5, Son Ky Ward, Tan Phu District, HCM City, Vietnam
[ Branch Office ] 92/8 Huynh Thuc Khang Street, Tam Ky City, Quang Nam Province, Viet Nam
[ Tel & Fax ] + 84 (0) 28 3816 1314
[ Website ] http://greentechvn.com | http://greentechvn.net
[ Face Page ] https://www.facebook.com/greentechvietnam/
-------------------------------
Ø Flow, pressure and level measurement | Temperature and humidity measurement | Position measurement | Force measurement
Ø Optical and acoustic measurement | Electrical measurement | Hydraulics – Pneumatic
Ø Valve - Pipes, tubes and fittings
Ø Building Management System
aØ Smarthome
µ FAST - FLEXIBLE - FLASH µ
-------------------------------------------------------------------
Kikusui Vietnam | Wenglor Vietnam | Sprecher Schuh Vietnam | Pelco Vietnam | Solvac Vietnam | Citizen Vietnam | Pizzato Elettrica Vietnam | Renishaw Vietnam | Di-soric Vietnam | Nemicon Vietnam | Moog Vietnam | DSTI Vietnam | Boll & Kirch Vietnam | Euchner Vietnam | Samson Vietnam | Lafert Vietnam | Sunon Vietnam | Mc Donnell Miller Vietnam | NSD Vietnam| Hitrol Vietnam | LS Vietnam | TDE Macno Vietnam | Parker Vietnam | Metrix Vietnam | SMC Vietnam | Gems Sensor & Control Vietnam | Bacharach Vietnam | Asco Vietnam | Showa Denki Vietnam | Sauter Vietnam | Land Ametek Vietnam | Vaisala Vietnam | Optris Vietnam | Tetra-K Electronic Vietnam | Bionics Vietnam | Bionics Instrument Vietnam | Puls Vietnam | Hager Vietnam | Kava Vietnam | Mitsubishi Vietnam | Siemens Vietnam | Omron Viet Nam | TPM Vietnam | Tecsis Vietnam | Wise Control Vietnam | Micro Process Controls Vietnam | Wika Vietnam | Asahi Gauge Vietnam | TemPress Vietnam | Itec Vietnam | Konics Vietnam | Ashcroft Vietnam | Ametek Vietnam – Afriso Vietnam | LS Industrial Vietnam | RS Automation Vietnam | Balluff Vietnam | Baumer Vietnam | Kuppler Vietnam | Pulsotronics Vietnam | Leuze Vietnam | Microsonic Vietnam | AST Vietnam | Tempsen Vietnam | STS Vietnam | Micro Dectector Vietnam | Proxitron Vietnam | Microsens Vietnam | Towa Seiden Vietnam | Promesstec Vietnam | Ski Vietnam | Eltra Vietnam | Hohner Vietnam | Posital Vietnam | Elap Vietnam | Beisensors Vietnam | Newall Vietnam | Dotech Vietnam | Watlow Vietnam | Bihl Weidemann Vietnam | Prosoft Vietnam | ICP DAS Vietnam | Beckhoff Vietnam | Keller M S R Vietnam | IRCON Vietnam | Raytek Vietnam | Kimo Vietnam | YSI Vietnam | Jenco Vietnam | Tekhne Vietnam | Atago Vietnam | E Instrument Vietnam | IMR Vietnam | Netbiter Viêt Nam | FMS Vietnam | Unipulse Vietnam | Migun Vietnam | Sewha Vietnam | HBM Vietnam | Pilz Vietnam | Dold Vietnam | EBMpapst Vietnam | Puls Vietnam | Microsens Vietnam | Controller Sensor Vietnam | Mark|10 Vietnam | Schmidt Vietnam | Bernstein Vietnam | Celduc Vietnam | Univer Vietnam | Waicom Vietnam | Aignep Vietnam | Top Air Vietnam | Burket Vietnam | Gemu Vietnam | JJ Automation Vietnam | Somas Vietnam | Delta Elektrogas Vietnam | Pentair Vietnam | Auma Vietnam | Sipos Artorik Vietnam | Flowserve Vietnam | Sinbon Vietnam | Setra Vietnam | Yottacontrok Vietnam | Sensor Tival Vietnam | Vaisala Vietnam | Crouzet Vietnam | RheinTacho Vietnam | Cityzen Seimitsu Vietnam | Flowserve Vietnam | Greatork Vietnam | PS Automation Vietnam | Bettis Vietnam | Sinbon Vietnam | Setra Vietnam | Laurel Vietnam | Datapaq Vietnam | EE Electronik Vietnam | Banico Vietnam | Sinfonia Vietnam | Digmesa Vietnam | Alia Vietnam | Flowline Vietnam | Brook Instrument Vietnam | Dakota Instrument Vietnam | Diehl Metering Vietnam | Stego Vietnam | Rotronic Vietnam | Hopeway Vietnam | Beko Vietnam | Matsui Vietnam | Westec Vietnam | Sometech Vietnam | Offshore Vietnam | DCbox Vietnam | Fanuc Vietnam | KollMorgen Vietnam | Endress & Hauser Vietnam | Metso Automation Vietnam | MKS Instruments Vietnam | Teledyne Instruments Vieatnam | Badger Meter Vietnam | Hirschmann Vietnam | Servo Mitsubishi Vietnam | SCR SA Việt Nam | Biotech Flow Meter Việt Nam | Thermo Electric Việt Nam | Siko Việt Nam | Klinger Việt Nam | HK Instrument Việt Nam | Magnetrol Viet Nam | Lika Viet Nam | Setra Viet Nam | Kistler Viet Nam | Renishaw Viet Nam | Mindmen Vietnam | Airtac Vietnam | Gimatic Vietnam | Monarch Instrument Vietnam | Stauff Vietnam | Burster Vietnam | SDT International Vietnam | MTI Instrument Vietnam | Zhuzhou CRRC Vietnam | Sensorex Vietnam | TWK Elektronik Vietnam | ASC Vietnam | Ronds Vietnam | Klaschka Vietnam | Hubner Vietnam | Hainzl Vietnam | Labom Vietnam | Siko Vietnam | Rittmeyer Vietnam | TR Electronic Vietnam | AK Industry Vietnam | Precizika Metrology Vietnam | Dis Sensor Vietnam | Elap Vietnam | Wachendorff Automation Vietnam | Foxboro Vietnam | Fireray Vietnam | Fiessler Elektronik Vietnam | Watt Drive Vietnam | Murr Elektronik Vietnam | Zander Vietnam | Elgo Vietnam | Measurex Vietnam | Saia Burgess Control Vietnam | Cabur Vietnam | Castel Vietnam | Elettromeccanica CDC Vietnam | Piab Vietnam | Coval Vietnam | Fipa Vietnam | Zimmer Vietnam | Vmeca Vietnam | Anver Vietnam | Pentair Vietnam | Aignep Vietnam | Festo Vietnam | Keyence Vietnam | Gessmann Vietnam | Balluff Vietnam | Wohner Vietnam | Wieland Vietnam | Weidmuller Vietnam | Tempatron Vietnam | Telco Sensor Vietnam | TeknoMega Vietnam | Synatel Vietnam | Turck Vietnam | Condor VietNam | SmartScan VietNam | Knick Vietnam | Sera Vietnam | Sera Seybert + Raheir Vietnam | Finder Vietnam | Speck Pumpen Vietnam | Promesstec Vietnam | Infranor Vietnam | Parker SSD Parvex | Pees Component Vietnam | Danfoss VietNam | Ropex Vietnam | Lenord + Bauer Vietnam | Herion Vietnam | Helukabel Vietnam | Burkert Vietnam | Chetronics Vietnam | Megger Vietnam | Systron Donner Vietnam| Waycon Vietnam | Spohn & Burkhardt Vietnam | TRElectronic Vietnam | TWK Elektronik Vietnam | Electro Sensor Vietnam | TRumeter Vietnam | Atek Vietnam | Magnescale Vietnam | Lenord Bauer Vietnam | IPF Electronic Vietnam | Italsensor Vietnam | Nidec Vietnam | Scancon Vietnam | Celesco Vietnam | Carroll & Meynell Vietnam | Suco Vietnam | ADFWeb Vietnam | Dynisco Vietnam | TWK Vietnam
-----------------------------------------------
Bình luận
Sản phẩm cùng loại
