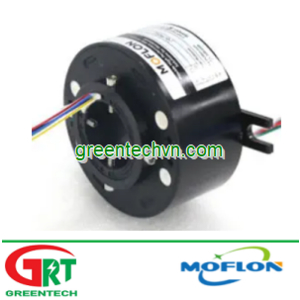

GT2586 series | Electric slip ring | Vòng trượt điện | Moflon Việt Nam
GT2586 series
Moflon Việt Nam
GT2586 series | Electric slip ring | Vòng trượt điện | Moflon Việt Nam
.
CHARACTERISTICS
- Type
- electric
- Construction
- hollow-shaft
- Other characteristics
- standard
- Rotational speed
-
Min.: 1 rpm (6 rad.min-1)
Max.: 1,800 rpm (11,310 rad.min-1)
- Current
-
Min.: 0 A
Max.: 24 A
- Voltage
-
Min.: 0 V
Max.: 690 V
DESCRIPTION
GT2586 series hollow shaft slip rings is standard series with bore size 25.4mm,OD 86mm, standard hollow slip rings can support max 72 rings, can be customized up 200 rings. *Attention:if required through bore <25.4mm,this can be solved by adding a sleeve inside the bore. Working Life - 100 Million Revs Working Temp. - -30℃~80℃ Operating Humidity - 0~85% RH Contact Material - Precious Metal Housing Material - Aluminium Alloy Torque - 0.1N.m;+0.03/6ring Protection grade - IP51
