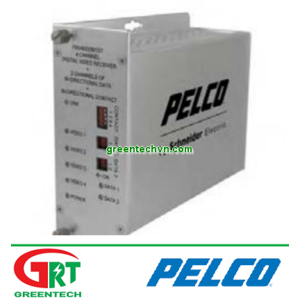

FRV40D2M1ST | Pelco FRV40D2M1ST | Receiver Multimode ST Connector | Bộ chuyển đôỉ quang điện |
FRV40D2M1ST
Pelco Vietnam | Greentech Vietnam
12 tháng
.
FTV40D2/FRV40D2 Fiber Transmitter and Receiver 4-CHANNEL VIDEO WITH BIDIRECTIONAL DATA AND CONTACT CLOSURE
Product Features
• 10-Bit Digitally Encoded Video for High-Quality Transmission over a Single Fiber
• 2 Bidirectional Data Channels Support RS-232, RS-422 and RS-485 (2-wire/4-wire), Manchester, and Bi-Phase Communication
• 1 Bidirectional Contact Closure
• Multimode Fiber Support for Distances up to 2 km (1.2 mi)
• Single-Mode Support for Distances up to 69 km (42.9 mi)
• Exceeds All Requirements for the RS-250C Short-Haul Transmission Specification
• Laser Diode for Transmission of Optical Signals
• Compatible with NTSC, PAL, and SECAM Video Standards
• Designed to Meet NEMA TS 1/TS 2 and Caltrans Traffic Signal Control Equipment Environmental Standards
• Voltage Transient Protection on All Power and Signal Input/Output Lines
• LED Status Indicators for Monitoring All Critical Operating Parameters
• Hot-Swappable Rack Modules
• Stand-Alone or Rack-Mountable Modular Design
The FTV40D2/FRV40D2 fiber transmitter and receiver transmit four channels of unidirectional video, two channels of bidirectional data, and one bidirectional contact closure over one optical fiber in a two-slot wide design. The FTV40D2 transmitter and FRV40D2 receiver are available in multimode and single-mode versions.
The FTV40D2/FRV40D2 plug-and-play design ensures ease of installation and no electrical or optical adjustments are required.
Modular in design, FTV40D2 and FRV40D2 units can be rack-mounted using the EURACK/USRACK chassis, or stand-alone modules can be placed on a desktop or mounted to a wall (wall mount kit not required). For stand-alone and wall mount installations, external power is required for the FTV40D2/FRV40D2 units. The units can be powered with the recommended FEXTPS fiber external power supply
VIDEO/ELECTRICAL Number of Channels 4 Video Input (FTV40D2)/ Video Output (FRV40D2 1.0 Vp-p, 75 ohms; NTSC, PAL, SECAM Overload >1.5 Vp-p Bandwidth 10 to 6.5 MHz per channel Differential Gain <2% Differential Phase <0.7° Tilt <1% Signal-to-Noise Ratio 67 dB at maximum optical loss budget Max. Coaxial Cable (RG59) 100 m (300 ft) camera to fiber optic module to maintain 6 Mhz bandwidth Power Surface Mount 8 to 15 VDC at 4 W Rack Mount Supplied by rack MTBF >100,000 hours LED Indicators Link, Video, Data DATA Number of Channels 2 Data Communication RS-232, RS-422, RS-485 (2-wire or 4-wire), Manchester, and Bi-phase Data Rate 250 Kbps CONTACT CLOSURE Number of Channels 1 Input Dry Output SPST relay, 0.5 contact rating MECHANICAL Connectors Optical ST or FC Power Terminal block Video BNC (gold-plated center pin) Data Terminal block Number of Rack Slots 2 GENERAL Dimensions 15.5 × 13.5 × 5.6 cm (6.1" D × 5.3" W × 2.2" H) Operating Temperature –40° to 75°C (–40° to 167°F) Storage Temperature –40° to 85°C (–40° to 185°F) Relative Humidity 0 to 95%, noncondensing Unit Weight 0.6 kg (1.3 lb) Shipping Weight 0.9 kg (2.0 lb) CERTIFICATIONS/RATINGS* • CE, Class A • FCC, Class A • UL/cUL Listed • C-Tick • Designed to meet NEMA TS 1/TS 2 and Caltrans traffic signal control equipment environmental standards *At the time of this printing, all certifications are pending. Please consult the factory, our Web site (www.pelco.com), or the most recent B.O.S.S.® update for the current status of certifications. RECOMMENDED ACCESSORIES EURACK 4 RU rack accessory with European power supply USRACK 4 RU rack accessory with North American power supply FEXTPS Fiber External Power Supply with multiple plug adaptors (North American, Australian, United Kingdom, and European); 100 to 240 VAC, 50 to 60 Hz input, 9 VDC output
