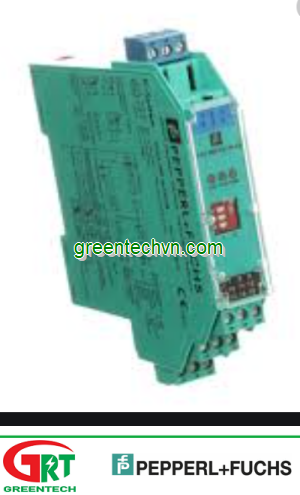

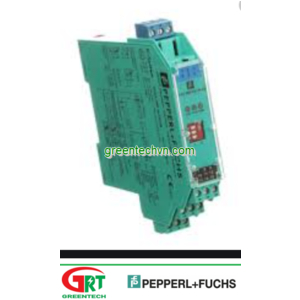

Pepperl Fuchs KFD2-SL2-Ex1.LK | Barrier Pepperl Fuchs KFD2-SL2-Ex1.LK | Bộ cách ly tín hiệu Pepperl
KFD2-SL2-Ex1.LK
Pepperl Fuchs Vietnam | Greentech Vietnam
.
| General specifications | ||
|---|---|---|
| Signal type | Digital Output | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| Supply | ||
| Connection | Power Rail or terminals 14+, 15- | |
| Rated voltage | 19 ... 30 V DC | |
| Power dissipation | max. 1.5 W | |
| Power consumption | max. 2 W at 45 mA output current | |
| Input | ||
| Connection side | control side | |
| Connection | terminals 7, 8 | |
| Input current | approx. 3 mA | |
| Signal level | 1-signal: 16 ... 30 V DC0-signal: 0 ... 5 V DC | |
| Output | ||
| Connection side | field side | |
| Output I | ||
| Connection | terminals 1+, 2- or 3- | |
| Internal resistor | 300 Ω | |
| Current | max. 45 mA | |
| Voltage | min. 10 V | |
| Open loop voltage | min. 23.5 V | |
| Output signal | These values are valid for the rated operating voltage 19 ... 30 V DC. | |
| Energized/De-energized delay | ≤ 20 ms / ≤ 20 ms | |
| Line fault detection | signal at short-circuit RB < 50 Ω, lead breakage RB > 10 kΩ ; test current < 650 µA | |
| Output II | fault signal | |
| Connection | terminals 10, 11, 12 , non-intrinsically safe | |
| Contact loading | 253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load | |
| Mechanical life | 2 x 107 switching cycles | |
| Energized/De-energized delay | ≤ 20 ms / ≤ 20 ms | |
| Galvanic isolation | ||
| Input/power supply | basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff | |
| Output I, II against eachother | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff | |
| Output II/power supply | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff | |
| Indicators/settings | ||
| Display elements | LEDs | |
| Control elements | DIP-switch | |
| Configuration | via DIP switches | |
| Labeling | space for labeling at the front | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) | |
| Low voltage | ||
| Directive 2014/35/EU | EN 61010-1:2010 | |
| Conformity | ||
| Electromagnetic compatibility | NE 21:2007 | |
| Degree of protection | IEC 60529:2001 | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | screw terminals | |
| Mass | approx. 150 g | |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) , housing type B2 | |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 | |
| Data for application in connection with hazardous areas | ||
| EU-Type Examination Certificate | ZELM 99 ATEX 0015 | |
| Marking |
II (1)G [Ex ia Ga] IIC
II (1)D [Ex ia Da] IIIC
I (M1) [Ex ia Ma] I | |
| Output I | Ex ia | |
| Voltage | 26 V | |
| Current | 93 mA | |
| Power | 607 mW (linear characteristic) | |
| Supply | ||
| Maximum safe voltage | 40 V (Attention! The rated voltage can be lower.) | |
| Input | ||
| Maximum safe voltage | 60 V (Attention! The rated voltage can be lower.) | |
| Collective error message | ||
| Maximum safe voltage | 40 V (Attention! The rated voltage can be lower.) | |
| Certificate | TÜV 02 ATEX 1820 X | |
| Marking |
II 3G Ex nA nC IIC T4 Gc | |
| Output II | ||
| Contact loading | 50 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load | |
| Galvanic isolation | ||
| Output I/other circuits | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | |
| Directive conformity | ||
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-26:2007 , EN 50303:2000 | |
| International approvals | ||
| CSA approval | ||
| Control drawing | 116-0362 | |
| IECEx approval | ||
| IECEx certificate | IECEx ZLM 14.0001 | |
| IECEx marking | [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I | |
| General information | ||
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. | |
| Accessories | ||
| Optional accessories | - power feed module KFD2-EB2(.R4A.B)(.SP)- universal power rail UPR-03(-M)(-S)- profile rail K-DUCT-BU(-UPR-03) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 10.0.1 | 27210190 |
| ECLASS 5.1 | 27210121 |
| ECLASS 8.0 | 27210190 |
| ECLASS 9.0 | 27210190 |
| ETIM 5.0 | EC001485 |
| ETIM 6.0 | EC001485 |
| ETIM 7.0 | EC001485 |
| ETIM 8.0 | EC001485 |
| UNSPSC 12.1 | 39121008 |
