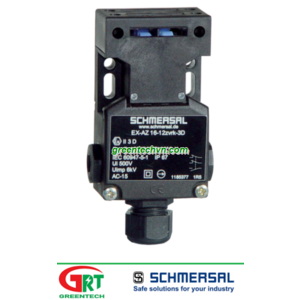

Schmersal EX-AZ16-12ZVRK-3D | Safety Limit Switch Schmersal EX-AZ16-12ZVRK-3D | Công tắc hàng trình

(0 đánh giá)

EX-AZ16-12ZVRK-3D

Schmersal Vietnam | Greentech Vietnam

12 tháng

Schmersal EX-AZ16-12ZVRK-3D | Safety Limit Switch Schmersal EX-AZ16-12ZVRK-3D | Công tắc hàng trình

Ordering data
Product type description
EX-AZ 16-12ZVRK-3D
Article number (order number)
101185377
EAN (European Article Number)
4030661324883
eCl@ss number, Version 9.0
27-27-06-02
Explosion protection
Explosion protection: regulations
EN 60079-0
Explosion protection zones
22
Explosion protection category
3D
Explosion protection designation
 II 3D Ex tc IIIC T90°C Dc X

Manufacturer declaration

ATEX Zone 22
General data
Product name
EX-AZ 16
Coding level according to ISO 14119
Low
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Material of the contacts, electrical
Silver
Gross weight
145 g
General data - Features
higher Latching force
Yes
Number of auxiliary contacts
1
Number of safety contacts
2
Safety appraisal
Standards
ISO 13849-1
Mission Time
20 Year(s)
Safety appraisal - Safety outputs
B10d Normally-closed contact (NC)
2,000,000 Operations
B10d Normally open contact (NO)
1,000,000 Operations
Note (B10d Normally open contact (NO))
at 10% Ie and ohmic load
Mechanical data
Mechanical life, typical
1,000,000 Operations
Latching force
30 N
positive break travel
8 mm
Positive break force, minimum
10 N
Actuating speed, maximum
1 m/s
Mechanical data - Connection technique
Terminal Connector
Screw connection
Cable cross-section of the cable glands, minimum
6 mm
Cable cross-section of the cable glands, maximum
12 mm
Cable section, minimum
0.75 mm²
Cable section, maximum
2.5 mm²
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Mechanical data - Dimensions
Height of sensor
90 mm
Length of sensor
30 mm
Width of sensor
52 mm
Ambient conditions
Protection class
IP 67 to IEC/EN 60529
Ambient temperature, minimum
-20 °C
Ambient temperature, maximum
+70 °C
Ambient conditions - Insulation value
Rated impulse withstand voltage
6 kV
Electrical data
Thermal test current
2.5 A
Utilisation category AC-15
230 VAC
Utilisation category AC-15
2.5 A
Utilisation category DC-13
24 VDC
Utilisation category DC-13
2.5 A
Switching element
NO contact, NC contact
Switching principle
Creep circuit element
Scope of delivery
Included in delivery
Actuators must be ordered separately.
Slot sealing plugs
Including Ex-certified screwed cable gland and screw plug
Notes
Note (General)
Individual coding available on request
