TREXCHPKLWS3 | Emerson | TREX | TREXCHPKLWS3 | Bộ điểu khiển Hart | Emerson Vietnam

(0 đánh giá)

TREXCHPKLWS3

Sor Việt Nam

12 tháng

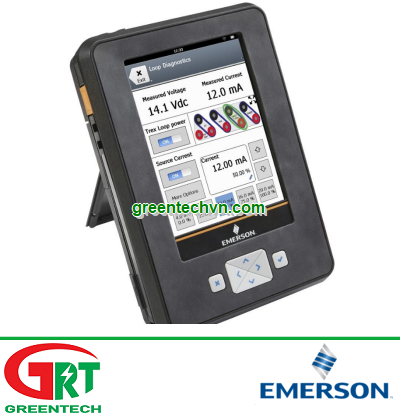

TREXCHPKLWS3 | Emerson | TREX | TREXCHPKLWS3 | Bộ điểu khiển Hart | Emerson Vietnam

Emerson TREX Highlights

  • C - Device Communicator communication module
  • H - HART Application
  • P - Rechargeable Li-Ion Power Module
  • KL - ATEX, CSA (US/Canada) and IECEx Intrinsically Safe (includes FISCO as applicable)
  • W - Wireless - Includes Bluetooth, WiFi, and NFC radios. Available only in countries where spectrum approval has been obtained.
  • S3 - Standard Support (3 Year) - Includes technical support and software updates.
  • Commission and validate devices faster
  • Quickly fix issues in the field with advanced device diagnostics
  • Configure and test valves inline
  • Improve efficiency with a modern, intuitive user interface
  • Intrinsically safe; usable anywhere you need to go

Each TREX Includes

  • AC Adapter
  • USB Cable
  • Lead Set with connectors
  • Hand Strap
  • Quick Start Guide and Resource DVD
  • ValveLink Mobile application available at no charge once Trex unit is activated
Processor, Memory, and Operating System
Microprocessor 800 MHz ARM Cortex A8 / NXP
Memory Internal Flash 2 GB NAND and 32 GB extended flash
Operating System Windows Embedded Compact 2013
RAM 512 MB DDR3 SDRAM
Physical
Weight Approximately 2.9 lbs (1330 grams)
Display 5.7 inch (14.5 cm) color VGA resistive touchscreen
Keypad X button – similar to a Back key
Power Supply / Charger
Battery Rechargeable Lithium-Ion power module
Battery Operating Time 8+ hours of typical use
Charge Time 3 to 4 hours
LEDs 6 LEDs. Five LEDs for indicating the progress of charging. One LED to indicate the AC adapter is charging the power module.
Battery Charger Options Input voltage 90-264 VAC, 47-63 Hz
  Cables included with U.S., Europe, and U.K. plugs
Connections
USB Micro USB Connector. USB 2.0
Remove the USB cable from the Trex unit before connecting to a device.
Battery Charger Barrel Round Plug Tip
Wireless
Wireless Approvals FCC, CE, RED and IC Approvals
Certified for use in over 100 countries
Bluetooth 2.1
Range up to 10 m
Wi-Fi 802.11 b/g
Range up to 33 m
NFC Active NFC
Range up to 20 cm
Communication Modules
Device Communicator Communication Module
HART terminal Enables HART device communication
Connectors: Two Banana Jack Plugs
Optional Internal Resistor: 250 or 500 Ohm
Fieldbus (FF) terminal Foundation Fieldbus device communication
Connectors: Two Banana Jack Plugs
Device Communicator Plus Communication Module
HART terminal Enables HART device communication
Connectors: Two Banana Jack Plugs
Optional Internal Resistor: 250 or 500 Ohm
HART + power terminal Enables HART communication with the Trex unit, and provides power to one HART device in a bench setup.
Connectors: Two Banana Jack Plugs
Includes HART power supply, resistors (167 Ohm), current control, and ammeter
Current Range: 3 -22.5 mA
mA terminal (external ammeter) Measures current on a 4-20 mA current loop.
Connectors: Two Banana Jack Plugs
Current Range: Up to 22.5 mA
Resolution: 0.1 mA
Fieldbus (FF) terminal Enables Foundation Fieldbus device communication
Connectors: Two Banana Jack Plugs
FF + FF pwr terminal Provides power to one Foundation Fieldbus device in a bench setup.
Connector: One Banana Jack Plug (Power conditioner included)
Current Range: 0- 38 mA
Environmental
Usage -20°C to +55°C (-4°F to 131°F).
For IS approval: -20°C to +50°C (-4°F to 122°F)
Charge +10°C to +45°C (50°F to 113°F)
Storage with power module -20°C to +50°C (-4°F to 122°F) (less than 1 month)
Storage without power module -20°C to +60°C (-4 °F to 140°F)
Enclosure Rating IP54
Shock The unit shall survive a 1-meter, all sides and corners drop test onto concrete.
Upgrade Studio Requirements
Installation Windows 7 Professional Service Pack (SP1) 1 (32 and 64-bit)
Windows 10 Professional
512 MB of free disk space
A Windows user account with Administrator privileges
