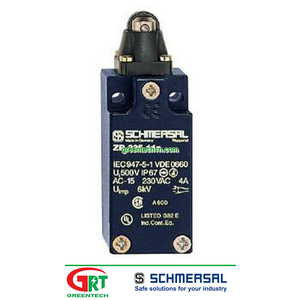

ZK 235-11ZM20 | Position switch ZK 235-11ZM20 | Công tắc vị trí ZK 235-11ZM20 | Schmersal Vietnam

ZK 235-11ZM20

Schmersal Vietnam

ZK 235-11ZM20 | Position switch ZK 235-11ZM20 | Công tắc vị trí ZK 235-11ZM20 | Schmersal Vietnam

  • Datasheet - ZR 235-11Z
    Position switch / 235 Metal enclosure - DIN EN 50047 with Actuator / 235 Roller plunger r

     Preferred typ

    (Minor differences between the printed image and the original product may exist!)

    • Metal enclosure
    • Wide range of alternative actuators
    • Good resistance to oil and petroleum spirit
    • 30 mm x 63,5 mm x 30 mm
    • Snap action with constant contact pressure up to switching point
    • Actuator heads can be repositioned by 4 x 90°
    • Mounting details to EN 50047
    • 1 Cable entry M 20 x 1.5

    Ordering details
    Product type description ZR 235-11Z
    Article number 101152265
    EAN code 4030661165301
    eCl@ss 27-27-26-01

    Approval
    Approval  USA/CAN
     CCC

    Classification
    Standards ISO 13849-1
    B10d Opener (NC) 20.000.000
    Mission time 20 Years
    notice

    Global Properties
    Product name Z 235 Rollendruckbolzen R
    Standards IEC 60947-5-1, ISO 13849-1, BG-GS-ET-15
    Compliance with the Directives (Y/N)  Yes
    Suitable for safety functions (Y/N) Yes
    Actuator type C to EN 50047
    Materials
    - Material of the housings Zink
    - Material of the contacts Silver
    Housing coating painted
    Housing construction form Norm construction design
    Weight 150 g

    Mechanical data
    Design of electrical connection Screw connection
    Cable section
    - Min. Cable section 0,75 mm²
    - Max. Cable section 2.5 mm²
    Mechanical life 20.000.000 operations
    Switching frequency max. 5000 /h
    notice All indications about the cable section are including the conductor ferrules.
    Design of actuating element Roller plunger
    Actuating force min. 9 N
    Bounce duration < 3 ms
    Switchover time > 5.5 ms
    Positive break force 19 N
    Actuating speed with actuating angle 30° to switch axis
    - Min. Actuating speed 20 mm/min
    - Max. Actuating speed 1 m/s

    Ambient conditions
    Ambient temperature
    - Min. environmental temperature −30 °C
    - Max. environmental temperature +80 °C
    Protection class IP67

    Electrical data
    Design of control element Normally open contact (NO), Opener (NC)
    Switching principle Snap switch element
    - positive break NC contact
    Number of auxiliary contacts 1 piece
    Number of safety contacts 1 piece
    Rated impulse withstand voltage Uimp 6 kV
    Rated insulation voltage Ui 500 V
    Thermal test current Ithe 10 A
    Utilisation category AC-15: 230 V / 4 A,
    DC-13: 24 V / 1 A
    Required rated short-circuit current 1000 A
    Max. fuse rating 6 A gG D-fuse

    ATEX
    Explosion protection categories for gases None
    Explosion protected category for dusts None

    Dimensions
    Dimensions of the sensor
    - Width of sensor 30 mm
    - Height of sensor 86 mm
    - Length of sensor 30 mm

    Diagram


    Note Diagram
      positive break NC contact
      active
      no active
      Normally-open contact
      Normally-closed contact

    Switch travel diagram


    Notes Switch travel diagram
      Contact closed
      Contact open
      Setting range
      Break point
      Positive opening sequence/- angle
    VS  adjustable range of NO contact
      adjustable range of NC contact
    N   after travel

    Ordering suffix
    The applicable ordering suffix is added at the end of the part number of the safety switch.
    Order example: ZR 235-11Z-1637
    ...-1637 0,3 µm gold-plated contacts

    ...-NPT Cable entry NPT 1/2“

    ...-ST  M12 connector with A-coding
    Rated impulse withstand voltage Uimp: 0,8 kV
    Rated insulation voltage Ui: 50 V
    Rated operating voltage Ue: 50 V
    Operating current Ie: 4 A
    Caution! The versions with connector may only be used in PELV circuits to EN 60204-1.

    ...-2310  M12 connector with B-coding
    Rated impulse withstand voltage Uimp: 0,8 kV
    Rated insulation voltage Ui: 50 V
    Rated operating voltage Ue: 50 V
    Operating current Ie: 4 A
    Caution! The versions with connector may only be used in PELV circuits to EN 60204-1.

    ...-2574 $missingName$


    Ordering code
    (1)(2) 2(3)5-(4)Z(5)-(6)-(7)-(8)-(9)

    (1)
    Z Snap action
    T Slow action

    (2)
    S Plunger S
    R Roller plunger R
    4S Plunger 4S
    4R Roller plunger 4R
    1R Offset roller lever 1R
    K Offset roller lever K
    3K Angle roller lever 3K
    4K Angle roller lever 4K
    K4 Angle roller lever K4
    1H Roller lever 1H
    7H Roller lever 7H
    10H Rod lever 10H
    12H Roller lever 12H
    14H Roller lever 14H
    AF Spring rod lever AF

    (3)
    3 slim design
    5 large design

    (4)
    02 2 Opener (NC)
    11 1 Normally open contact (NO) / 1 Opener (NC)
    20 2 Normally open contact (NO),(Switch with 2 NO contacts are not for security tasks)

    (5)
    H Slow action with staggered contacts
    UE Slow action with overlapping contacts

    (6)
    without Cable entry M20
    ID IDC method of termination
    NPT cable entry NPT 1/2"
    ST M12 connector with A-coding(Caution! The versions with connector may only be used in PELV circuits to EN 60204-1.)
    ST-2310 M12 connector with B-coding (Caution! The versions with connector may only be used in PELV circuits to EN 60204-1.)

    (7)
    2574

    (8)
    2138 Roller lever 7H for Position switches with safety function

    (9)
    1637 gold-plated contacts


    Documents
    Operating instructions and Declaration of conformity (da) 304 kB, 21.08.2013
    Code: mrl_ZT235_236_da

    Operating instructions and Declaration of conformity (de) 302 kB, 09.03.2016
    Code: mrl_ZT235_236_de

    Operating instructions and Declaration of conformity (en) 334 kB, 09.03.2016
    Code: mrl_ZT235_236_en

    Operating instructions and Declaration of conformity (pl) 358 kB, 16.04.2014
    Code: mrl_ZT235_236_pl

    Operating instructions and Declaration of conformity (pt) 323 kB, 15.07.2014
    Code: mrl_ZT235_236_pt

    Operating instructions and Declaration of conformity (es) 303 kB, 02.01.2013
    Code: mrl_ZT235_236_es

    Operating instructions and Declaration of conformity (it) 300 kB, 16.04.2014
    Code: mrl_ZT235_236_it

    Operating instructions and Declaration of conformity (fr) 321 kB, 16.04.2014
    Code: mrl_ZT235_236_fr

    Operating instructions and Declaration of conformity (jp) 574 kB, 16.04.2014
    Code: mrl_ZT235_236_jp

    Operating instructions and Declaration of conformity (nl) 318 kB, 16.04.2014
    Code: mrl_ZT235_236_nl

    CCC certification (cn) 150 kB, 03.08.2015
    Code: q_235p02

    CCC certification (en) 170 kB, 03.08.2015
    Code: q_235p01

    EAC certification (ru) 844 kB, 05.10.2015
    Code: q_6037p17_ru


    Images
    1_235g01
    Dimensional drawing (basic component)


    1r236g01
    Dimensional drawing (actuator)
