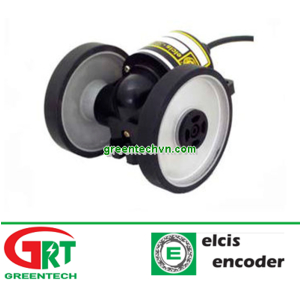

79 | Elcis | Absolute rotary encoder | Bộ mã hóa vòng xoay 79 | Encoder | Elcis Vietnam
79
Elcis Vietnam | Greentech Vietnam | Encoder
12 tháng
.
Characteristics
Description
(I01) "Miniature" Series
| Model 19 Temporally suspended | Dimensions: ø 19x23 Shaft: ø 4x6 Weight: about 30 g | Max pulses/rev: 360÷10000 Max freq.: 160kHz Power supply: 5V |
| Dimensions: ø 27x41 Shaft: ø 6,35x10 Weight: about 90 g | Max pulses/rev: 800 Max freq.: 60kHz Power supply: 5V | ||
| Dimensions: ø 27x41,6 Shaft: ø 3,17x13 Weight: about 90 g | Max pulses/rev: 800 Max freq.: 60kHz Power supply: 5V | ||
| Dimensions: 30x41 Shaft: ø 6,35x8 Weight: about 100 g | Max pulses/rev: 800 Max freq.: 60kHz Power supply: 5V | ||
| Dimensions: ø 30x31,3Shaft: ø 4x11,2 Weight: about 80 g LOW-COST | Max pulses/rev: 100÷1024 Max freq.: 180kHz Power supply: 5 ÷ 24V | |
| Dimensions: ø 38x39,35 Shaft: ø 6,35x14 Weight: about 100 g | Max pulses/rev: 2540 Max freq.: 100kHz Power supply: 5 ÷ 28V | ||
| Dimensions: 38x39,35 Shaft: ø 6,35x14 Weight: about 115 g | Max pulses/rev: 2540 Max freq.: 100kHz Power supply: 5 ÷ 28V | ||
| Dimensions: ø 38x45,5 Shaft: ø 6,35x10 Weight: about 100 g | Max pulses/rev: 2540 Max freq.: 100kHz Power supply: 5 ÷ 28V | ||
| Dimensions: ø 40x36Shaft: ø 6x15 Weight: about 120 g LOW-COST | Max pulses/rev: 2500 Max freq.: 180kHz Power supply: 5 ÷ 24V | |
| Dimensions: 41,5x46 Shaft: ø 6,35x11,7 Weight: about 140 g | Max pulses/rev: 2540 Max freq.: 100kHz Power supply: 5 ÷ 28V | ||
| Dimensions: ø 41,5x42,3 Shaft: ø 6,35x16 Weight: about 120 g | Max pulses/rev: 2540 Max freq.: 100kHz Power supply: 5 ÷ 28V | ||
| Dimensions: 44x63 Shaft: ø 6x12 Weight: about 250 g | Max pulses/rev: 2540 Max freq.: 100kHz Power supply: 5 ÷ 28V | ||
| Dimensions: ø 44x63 Shaft: ø 6x12 Weight: about 230 g | Max pulses/rev: 2540 Max freq.: 100kHz Power supply: 5 ÷ 28V | ||
| Dimensions: 45x18 Shaft: ø 4x8 Weight: about 120 g | Max pulses/rev: 10000 Max freq.: 160kHz Power supply: 5 ÷ 28V |
(A01) "Single turn absolute encoder"
| Dimensions: ø 45x51 Shaft: ø 6 Weight: about 220 g | Max resolution: 256 (8 bits) Codes: Gray, Excess, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: 45x28 Shaft: ø 4 Weight: about 100 g | Max resolution: 256 (8 bits) Codes: Gray, Excess, Custom Power supply: 5 V | ||
| Dimensions: ø 50x63 Shaft: ø 6 Weight: about 220 g | Max resolution: 256 (8 bits) Codes: Gray, Excess, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: 58x65 Shaft: ø 6 Weight: about 330 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 58x66 Shaft: ø 10 Weight: about 320 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 58x68 Shaft: ø 10 Weight: about 170 g LOW-COST | Max resolution: 1024 (10 bits) Codes: Gray, Excess Power supply: 5 ÷ 30V | |
| Dimensions: ø 58x52Shaft: ø 10 Weight: about 200 g Parallel (16 bits) | Max resolution: 65536 (16 bits) Codes: Gray, Binary Power supply: 10 ÷ 30V It replaces mod. 858H | |
| Dimensions: ø 58x52Shaft: ø 10 Weight: about 200 g SSI (16 bits) | Max resolution: 65536 (16 bits) Codes: Gray, Binary Power supply: 10 ÷ 30V It replaces mod. 858HS | |
| Dimensions: ø 58x64 Shaft: ø 6 Weight: about 300 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 58x46Shaft: ø 6 Weight: about 200 g Parallel (16 bits) | Max resolution: 65536 (16 bits) Codes: Gray, Binary Power supply: 10 ÷ 30V It replaces mod. 858S | |
| Dimensions: ø 58x46Shaft: ø 6 Weight: about 200 g SSI (16 bits) | Max resolution: 65536 (16 bits) Codes: Gray, Binary Power supply: 10 ÷ 30V It replaces mod. 858SS | |
| Dimensions: ø 58x65 Shaft: ø 6 Weight: about 520 g Completely stainless steel | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 59x85 Hollow shaft: ø 6÷10 Weight: about 520 g | Max resolution: 2048 (11 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 59x61Hollow shaft: ø 8÷15 Weight: about 200 g Parallel (16 bits) | Max resolution: 65536 (16 bits) Codes: Gray, Binary Power supply: 10 ÷ 30V | |
| Dimensions: ø 59x67 Hollow shaft: ø 6÷16 Weight: about 300 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 59x67 Hollow shaft: ø 6÷15 Weight: about 300 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 59x61Hollow shaft: ø 8÷15 Weight: about 200 g SSI (16 bits) | Max resolution: 65536 (16 bits) Codes: Gray, Binary Power supply: 10 ÷ 30V | |
| Dimensions: ø 59x56,2 Pass through shaft: ø 6÷15 Weight: about 300 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 59x66,2 Pass through shaft: ø 6÷15 Weight: about 320 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 59x70 Pass through shaft: ø 6÷15 Weight: about 320 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 59x56,2 Pass through shaft: ø 6÷15 Weight: about 320 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: 63,5x71 Shaft: ø 9,52 Weight: about 580 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 63,5x67,5Shaft: ø 9,52 Weight: about 180 g LOW-COST | Max resolution: 1024 (10 bits) Codes: Gray, Excess Power supply: 5 ÷ 30V | |
| Dimensions: ø 63,5x71,5 Shaft: ø 9,52 Weight: about 560 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 65x78 Shaft: ø 10 Weight: about 550 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 68x51 Shaft: ø 6 Weight: about 320 g | Max resolution: 2048 (11 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: 80x62 Shaft: ø 8 Weight: about 650 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 80x67,5Shaft: ø 8 Weight: about 200 g LOW-COST | Max resolution: 1024 (10 bits) Codes: Gray, Excess Power supply: 5 ÷ 30V | |
| Dimensions: ø 90x57 Shaft: ø 10 Weight: about 700 g | Max resolution: 16384 (14 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 90x85,5 Shaft: ø 10 Weight: about 700 g | Max resolution: 16384 (14 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 90x76 Insulated pass through shaft: ø 12÷25 Weight: about 700 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 90x145Shaft: ø 6÷10 Weight: about 1300 g SSI (16 bits) | Max resolution: 65536 (16 bits) Codes: Gray, Binary Power supply: 10 ÷ 30V | |
| Dimensions: ø 90x100 Shaft: ø 12 Weight: about 2000 g Completely stainless steel | Max resolution: 16384 (14 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: 92,5x57 Shaft: ø 10 Weight: about 600 g | Max resolution: 16384 (14 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 102x79 Shaft: ø 12 Weight: about 1000 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 115x113,8 Shaft: ø 11 Weight: about 850 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 115x110 Shaft: ø 11 Weight: about 1450 g | Max resolution: 8192 (13 bits) Codes: Gray, Excess, Binary, BCD, Custom Power supply: 5 ÷ 30V | ||
| Dimensions: ø 115x145Shaft: ø 11 Weight: about 1400 g SSI (16 bits) | Max resolution: 65536 (16 bits) Codes: Gray, Binary Power supply: 10 ÷ 30V |
(V01) "Panel" Series
| Knob: ø 60 Flange: - Body: 45x18 | Pulses/rev: 100 with detent at each step or 1÷2500 clutched Power supply: 5 ÷ 30V | ||
| Knob: ø 60 Flange: - Body: ø 50x35 | Pulses/rev: 100 with detent at each step or clutched Power supply: 5 ÷ 30V | ||
| Knob: ø 66 Flange: - Body: ø 50x35 | Pulses/rev: 100 with detent at each step or clutched Power supply: 5 ÷ 30V | ||
| Knob: ø 80 Flange: - Body: ø 59,8x22,8 | Pulses/rev: 100 with detent at each step Power supply: 5 ÷ 24V | |
| Knob: ø 89 Flange: 110 Body: ø 90x53 | Pulses/rev: 100 with detent at each step or 1÷2500 clutched Power supply: 5 ÷ 30V | ||
| Knob: ø 89 Flange: - Body: ø 90x53 | Pulses/rev: 100 with detent at each step or 1÷2500 clutched Power supply: 5 ÷ 30V | ||
| Knob: ø 66 Flange: - Body: 45x18 | Pulses/rev: 1÷2500 with detent at each step or clutched Power supply: 5 ÷ 30V | ||
| Knob: ø 89 Flange: 110 Body: 110x4,5 | Pulses/rev: 100 with detent at each step or clutched Power supply: 5 ÷ 30V |
(V02) "Portable" Series
| Dimensions: 176x80 Counter: 4 digit Power supply: 5 ÷ 30V | Stop control device: Yes Axis/resolution selection: Yes Push buttons: 3 | ||
| Dimensions: 224x106 Counter: 4 digit Power supply: 5 ÷ 30V | Stop control device: Yes Axis/resolution selection: Yes Push buttons: - | ||
| Dimensions: 176x80 Counter: - Power supply: 5 ÷ 30V | Stop control device: Yes Axis/resolution selection: - Push buttons: - | ||
| Dimensions: 176x80 Counter: - Power supply: 5 ÷ 30V | Stop control device: Yes Axis/resolution selection: Yes Push buttons: 4 | ||
| Dimensions: 200x94 Counter: - Power supply: 5 ÷ 28V | Stop control device: Yes Axis/resolution selection: Yes Push buttons: 4 | ||
| Dimensions: 200x94Counter: - Power supply: 5 ÷ 24VLOW-COST | Stop control device: Yes Axis/resolution selection: Yes Push buttons: 4 option | |
| Dimensions: 168x70Counter: - Power supply: 5VLOW-COST | Stop control device: Yes Axis/resolution selection: Yes Push buttons: - |
(L01) "Pinion-Rack" linear trasducers
| Dimensions: 100 mm ÷ 50 m Resolution: 1µm ÷ 1mm Power supply: 5 ÷ 30V | Output: Incremental square wave or sinusoidal wave Rack: stainless steel Precision certificate with laser interferometer: supplied with the trasducer | ||
| Model CR80E
| Dimensions: 100 mm ÷ 50 mResolution: 5µm ÷ 1mm Power supply: 5 ÷ 24V | Output: Incremental square wave Rack: stainless steel Precision certificate with laser interferometer: - |
| Dimensions: 100 mm ÷ 50 m Resolution: 40µm ÷ 1mm Power supply: 5 ÷ 30V | Output: Incremental square wave or sinusoidal wave Rack: steel Precision certificate with laser interferometer: optional |
(L02) "Glass" linear trasducers
| Model RV16 | Dimensions: 120 mm ÷ 1200 mm Resolution: 10µm Power supply: 5 ÷ 15V | Output: Incremental square waveMODEL AVAILABLE ONLY FOR SPARE PARTS | |
| Model RV1846
| Dimensions: 70 mm ÷ 1240 mmResolution: 0,5µm ÷ 5µm Power supply: 5V | Output: Incremental square wave | |
| Model RV1854
| Dimensions: 70 mm ÷ 2440 mmResolution: 0,5µm ÷ 5µm Power supply: 5V | Output: Incremental square wave | |
| Model RV20
| Dimensions: 100 mm ÷ 2350 mmResolution: 5µm; 10µm Power supply: 5V; 12V | Output: Incremental square wave |
(L03) Cable transducers
| Length: from 0 to 750 mmResolutions: infinite Power supply: - Compact and low price | Digital output: Incremental
Potentiometer output: 1kOhm Analogic output: - | |
| Length: from 0 to 750 mmResolutions: infinite Power supply: 5 ÷ 24V Compact and low price | Digital output: - Potentiometer output: 1kOhm Analogic output: 4÷20mA, 0÷10V o 0÷5V | |
| Length: from 0 to 1250 mmResolutions: infinite Power supply: - Compact and low price | Digital output: Incremental, Absolute
Potentiometer output: 1kOhm Analogic output: - | |
| Length: from 0 to 1250 mmResolutions: infinite Power supply: 5 ÷ 24V Compact and low price | Digital output: - Potentiometer output: 1kOhm Analogic output: 4÷20mA, 0÷10V o 0÷5V | |
| Length: from 0 to 1500 mmResolutions: infinite Power supply: - Compact and low price | Digital output: Incremental, Absolute
Potentiometer output: 1kOhm Analogic output: - | |
| Length: from 0 to 1500 mmResolutions: infinite Power supply: 5 ÷ 24V Compact and low price | Digital output: - Potentiometer output: 1kOhm Analogic output: 4÷20mA, 0÷10V o 0÷5V | |
| Length: from 0 to 2000 mmResolutions: infinite Power supply: - Compact and low price | Digital output: Incremental, Absolute
Potentiometer output: 1kOhm Analogic output: - | |
| Length: from 0 to 2000 mmResolutions: infinite Power supply: 5 ÷ 24V Compact and low price | Digital output: - Potentiometer output: 1kOhm Analogic output: 4÷20mA, 0÷10V o 0÷5V | |
| Length: from 0 to 2000 mmResolutions: infinite Power supply: 5 ÷ 24V Compact and low price | Digital output: - Potentiometer output: 2 potentiometers 1kOhm Analogic output: 4÷20mA, 0÷10V o 0÷5V | |
| Length: 1500 mm Resolutions: 0,1mm , 1mm Power supply: 5 ÷ 30V | Digital output: Incremental Potentiometer output: 1kOhm Analogic output: 4÷20mA o 0÷10V | ||
| Length: 1500 mm Resolutions: 0,1mm , 1mm Power supply: 5 ÷ 30V Low price | Digital output: Incremental Potentiometer output: 1kOhm Analogic output: 4÷20mA o 0÷10V | ||
| Length: 2000 mmResolutions: 0,1mm , 1mm Power supply: 5 ÷ 30V Low price | Digital output: Incremental Potentiometer output: 1kOhm Analogic output: 4÷20mA o 0÷10V | |
| Length: 3000 mm Resolutions: 0,1mm , 1mm Power supply: 5 ÷ 30V Low price | Digital output: Incremental Potentiometer output: 1kOhm Analogic output: 4÷20mA o 0÷10V | ||
(pdf only in Italian) | Length: 3000 mm Resolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute CANopen Potentiometer output: - Analogic output: - | |
(pdf only in Italian) | Length: 3000 mm Resolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute DEVICENET Potentiometer output: - Analogic output: - | |
(pdf only in Italian) | Length: 3000 mm Resolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute PROFIBUS-DP Potentiometer output: - Analogic output: - | |
(pdf only in Italian) | Length: 3000 mm Resolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute SSI Potentiometer output: - Analogic output: - | |
| Length: 5000 mm Resolutions: 0,1mm , 1mm Power supply: 5 ÷ 30V | Digital output: Incremental Potentiometer output: 1kOhm Analogic output: 4÷20mA o 0÷10V | ||
| Model AF500 | Length: 5000 mm Resolutions: 0,1mm , 1mm Power supply: 5 ÷ 30V | Digital output: Absolute Potentiometer output: - Analogic output: - |
| Model EFK600 | Length: 6000 mm Resolutions: 0,1mm , 1mm Power supply: 5 ÷ 30V | Digital output: Incremental Potentiometer output: 1kOhm Analogic output: 4÷20mA o 0÷10V |
(pdf only in Italian) | Length: 6000 mm Resolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute CANopen Potentiometer output: - Analogic output: - | |
(pdf only in Italian) | Length: 6000 mm Resolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute DEVICENET Potentiometer output: - Analogic output: - | |
(pdf only in Italian) | Length: 6000 mm Resolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute PROFIBUS-DP Potentiometer output: - Analogic output: - | |
(pdf only in Italian) | Length: 6000 mm Resolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute SSI Potentiometer output: - Analogic output: - | |
| Length: 10000÷30000 mmResolutions: 0,1mm , 1mm Power supply: 5 ÷ 30V | Digital output: Incremental Potentiometer output: 1kOhm Analogic output: 4÷20mA o 0÷10V | |
| Length: 10000÷30000 mmResolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute PROFIBUS-DP Potentiometer output: - Analogic output: - | |
| Length: 10000÷30000 mmResolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute SSI Potentiometer output: - Analogic output: - | |
| Length: 40000÷60000 mmResolutions: 0,1mm , 1mm Power supply: 5 ÷ 30V | Digital output: Incremental Potentiometer output: 1kOhm Analogic output: 4÷20mA o 0÷10V | |
| Length: 40000÷60000 mmResolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute PROFIBUS-DP Potentiometer output: - Analogic output: - | |
| Length: 40000÷60000 mmResolutions: 0,1mm , 1mm Power supply: 10 ÷ 30V | Digital output: Absolute SSI Potentiometer output: - Analogic output: - |
(L04) "Potentiometric" linear transducers
| Dimensions: 10 mm ÷ 450 mmSpeed: 5m/s max Power supply: up to 60V | Resistance: 1kOhm (up to 25mm); 5kOhm (>25mm) Linearity: ±0,05% Resolution: infinite | |
| Dimensions: 50 mm ÷ 900 mmSpeed: 5m/s max Power supply: up to 60V | Resistance: 5kOhm (up to 600mm); 10kOhm (>600mm) Linearity: ±0,05% Resolution: infinite | |
| Dimensions: 50 mm ÷ 1250 mm Speed: 10m/s max Power supply: up to 60V | Resistance: 5kOhm (up to 600mm); 10kOhm (>600mm) Linearity: ±0,05% Resolution: infinite | ||
| Dimensions: 75 mm ÷ 3000 mm Speed: 10m/s max Power supply: up to 60V | Resistance: 5kOhm (up to 600mm); 10kOhm (>600mm) Linearity: ±0,07% (up to 375mm); ±0,05% (>375mm) Resolution: infinite |
(M01) Magnetic transductions
| Model R22MN Temporally suspended | Course: 0,2 m ÷ 4 m Resolutions: 5µm or 0,01mm Power supply: 5V or 24V | Output: Incremental square wave | |
| Model R22MR Temporally suspended | Course: 0,2 m ÷ 4 m Resolutions: 0,05mm or 0, 1mm Power supply: 5V or 24V | Output: Incremental square wave | |
| Model S35MN Temporally suspended | Course: 0,2 m ÷ 90 m Resolutions: 5µm or 0,01mm Power supply: 5V or 24V | Magnetic sensor with: Output: Incremental square waveTo be coupled with N10MN magnetic band | |
| Model S35MR Temporally suspended | Course: 0,2 m ÷ 90 m Resolutions: 0,05mm or 0,1mm Power supply: 5V or 24V | Magnetic sensor with: Output: Incremental square waveTo be coupled with N10MR magnetic band |
(M02) Magnetic incremental encoders
| Model M22 Temporally suspended | Dimensions: ø 22x26 Shaft: ø 4x10 Weight: about 70 g | Max pulses/rev: 128 (1 if sinusoidal) Power supply: 5V | |
| Model M22NC Temporally suspended | Dimensions: ø 22x27 Shaft: ø 4÷10 Weight: about 60 g | Max pulses/rev: 128 (1 if sinusoidal) Power supply: 5V | |
| Dimensions: ø 38x39Shaft: ø 6,35x14 Weight: about 100 g | Max pulses/rev: 2048(mutiplicable x4 by Customer) Power supply: 5÷30V | |
| Dimensions: ø 38x39Shaft: ø 6,35x14 Weight: about 100 g | Max pulses/rev: 2048(mutiplicable x4 by Customer) Power supply: 5÷30V | |
| Dimensions: ø 38x45,5Shaft: ø 6,35x10 Weight: about 100 g | Max pulses/rev: 2048(mutiplicable x4 by Customer) Power supply: 5÷30V | |
| Dimensions: ø 38x30,5Shaft: ø 4÷10 Weight: about 180 g | Max pulses/rev: 2048(mutiplicable x4 by Customer) Power supply: 5÷30V | |
| Dimensions: 41,5x46Shaft: ø 6,35x11,7 Weight: about 120 g | Max pulses/rev: 2048(mutiplicable x4 by Customer) Power supply: 5÷30V | |
| Dimensions: ø 41,5x42,3Shaft: ø 6,35x17,3 Weight: about 120 g | Max pulses/rev: 2048(mutiplicable x4 by Customer) Power supply: 5÷30V | |
| Dimensions: 44,5x63Shaft: ø 6x12 Weight: about 230 g | Max pulses/rev: 2048(mutiplicable x4 by Customer) Power supply: 5÷30V | |
| Dimensions: ø 44x63Shaft: ø 6x12 Weight: about 230 g | Max pulses/rev: 2048(mutiplicable x4 by Customer) Power supply: 5÷30V | |
| Dimensions: ø 45x13Shaft: ø 4÷10 Weight: about 150 g | Max pulses/rev: 2048(mutiplicable x4 by Customer) Power supply: 5÷30V |
(M03) Magnetic absolute encoders
| Model M322 Temporally suspended | Dimensions: ø 22x26 Shaft: ø 4x10 Weight: about 70 g | Max resolution: 512 (9 bits) Codes: Binary Power supply: 5V |
| Model M322NC Temporally suspended | Dimensions: ø 22x27 Shaft: ø 4÷10 Weight: about 60 g | Max resolution: 512 (9 bits) Codes: Binary Power supply: 5V |
| Dimensions: ø 38x39Shaft: ø 6,35x14 Weight: about 100 g | Max resolution: 8192 (13 bits) Codes: Binary Power supply: 5÷30V | |
| Dimensions: ø 38x39Shaft: ø 6,35x14 Weight: about 100 g | Max resolution: 8192 (13 bits) Codes: Binary Power supply: 5÷30V | |
| Dimensions: ø 38x45,5Shaft: ø 6,35x10 Weight: about 100 g | Max resolution: 8192 (13 bits) Codes: Binary Power supply: 5÷30V | |
| Dimensions: ø 38x30,5Shaft: ø 4÷10 Weight: about 180 g | Max resolution: 8192 (13 bits) Codes: Binary Power supply: 5÷30V | |
| Dimensions: 41,5x46Shaft: ø 6,35x11,7 Weight: about 120 g | Max resolution: 8192 (13 bits) Codes: Binary Power supply: 5÷30V | |
| Dimensions: ø 41,5x42,3Shaft: ø 6,35x17,3 Weight: about 120 g | Max resolution: 8192 (13 bits) Codes: Binary Power supply: 5÷30V | |
| Dimensions: 44,5x63Shaft: ø 6x12 Weight: about 230 g | Max resolution: 8192 (13 bits) Codes: Binary Power supply: 5÷30V | |
| Dimensions: ø 44x63Shaft: ø 6x12 Weight: about 230 g | Max resolution: 8192 (13 bits) Codes: Binary Power supply: 5÷30V | |
| Dimensions: ø 45x13Shaft: ø 4÷10 Weight: about 150 g | Max resolution: 8192 (13 bits) Codes: Binary Power supply: 5÷30V |
(M04) Magnetic potentiometers
| Model PM25
| Dimensions: ø 25x17,5Shaft: ø 6x10 Weight: about 25 g INCREMENTAL | Max pulses/rev: 256 Max freq.: 10kHz Power supply: 5V |
| Model PM325
| Dimensions: ø 25x17,5Shaft: ø 6x10 Weight: about 25 g ABSOLUTE SSI (10 bits) | Max resolution: 1024 (10 bit) Codes: Binary Power supply: 5V |
- là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay
Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.
[ Email ] | |
Online contact========
Yahoo: nhan.luongthe
Skype: luongthenhan
===================
Greentech Trading Service Company Limited
[ Main Office ] 104/15 Street 18, Binh Hung Hoa Ward, Binh Tan Dist, HCMC, Viet Nam
[ Brand Office ] 92/8 Huynh Thuc Khang Street, Tam Ky City, Quang Nam Province, Viet Nam
[ Tel & Fax ] + 84 (0) 8 3620 4585
[ Website ] |
[ Face Page ]
-------------------------------
Ø Flow, pressure and level measurement | Temperature and humidity measurement | Position measurement | Force measurement
Ø Optical and acoustic measurement | Electrical measurement | Hydraulics – Pneumatic
Ø Valve - Pipes, tubes and fittings
Ø Building Management System
aØ Smarthome
µ FAST - FLEXIBLE - FLASH µ
-------------------------------------------------------------------
Pelco Vietnam | Solvac Vietnam | Citizen Vietnam | | Renishaw Vietnam | Di-soric Vietnam | | | | Bacharach Vietnam | | Showa Denki Vietnam | S | | | | Tetra-K Electronic Vietnam | | | | | | Mitsubishi Vietnam | Siemens Vietnam | Omron Viet Nam | TPM Vietnam | Tecsis Vietnam | Wise Control Vietnam | Micro Process Controls Vietnam | Wika Vietnam | Asahi Gauge Vietnam | TemPress Vietnam | Itec Vietnam | Konics Vietnam | Ashcroft Vietnam | Ametek Vietnam – Afriso Vietnam | LS Industrial Vietnam | RS Automation Vietnam | Balluff Vietnam | Baumer Vietnam | Kuppler Vietnam | Pulsotronics Vietnam | Leuze Vietnam | Microsonic Vietnam | AST Vietnam | Tempsen Vietnam | STS Vietnam | Micro Dectector Vietnam | Proxitron Vietnam | Microsens Vietnam | Towa Seiden Vietnam | Promesstec Vietnam | Ski Vietnam | Eltra Vietnam | Hohner Vietnam | Posital Vietnam | Elap Vietnam | Beisensors Vietnam | Newall Vietnam | Dotech Vietnam | Watlow Vietnam | Bihl Weidemann Vietnam | Prosoft Vietnam | ICP DAS Vietnam | Beckhoff Vietnam | Keller M S R Vietnam | IRCON Vietnam | Raytek Vietnam | Kimo Vietnam | YSI Vietnam | Jenco Vietnam | Tekhne Vietnam | Atago Vietnam | E Instrument Vietnam | IMR Vietnam | Netbiter Viêt Nam | FMS Vietnam | Unipulse Vietnam | Migun Vietnam | Sewha Vietnam | HBM Vietnam | Pilz Vietnam | Dold Vietnam | | Puls Vietnam | Microsens Vietnam | Controller Sensor Vietnam | Mark|10 Vietnam | Schmidt Vietnam | Bernstein Vietnam | Celduc Vietnam | Univer Vietnam | Waicom Vietnam | Aignep Vietnam | Top Air Vietnam | Burket Vietnam | | JJ Automation Vietnam | Somas Vietnam | Delta Elektrogas Vietnam | Pentair Vietnam | Auma Vietnam | Sipos Artorik Vietnam | Flowserve Vietnam | Sinbon Vietnam | Setra Vietnam | Yottacontrok Vietnam | Sensor Tival Vietnam | Vaisala Vietnam | Crouzet Vietnam | RheinTacho Vietnam | Cityzen Seimitsu Vietnam | Flowserve Vietnam | Greatork Vietnam | PS Automation Vietnam | Bettis Vietnam | Sinbon Vietnam | Setra Vietnam | Laurel Vietnam | Datapaq Vietnam | EE Electronik Vietnam | Banico Vietnam | Sinfonia Vietnam | Digmesa Vietnam | Alia Vietnam | Flowline Vietnam | Brook Instrument Vietnam | Dakota Instrument Vietnam | Diehl Metering Vietnam | Stego Vietnam | Rotronic Vietnam | Hopeway Vietnam | Beko Vietnam | Matsui Vietnam | Westec Vietnam | Sometech Vietnam | Offshore Vietnam | DCbox Vietnam | Fanuc Vietnam | KollMorgen Vietnam | Endress & Hauser Vietnam | Metso Automation Vietnam | MKS Instruments Vietnam | Teledyne Instruments Vieatnam | Badger Meter Vietnam | Hirschmann Vietnam | Servo Mitsubishi Vietnam | SCR SA Việt Nam | Biotech Flow Meter Việt Nam | Thermo Electric Việt Nam | Siko Việt Nam | Klinger Việt Nam | HK Instrument Việt Nam | Magnetrol Viet Nam | Lika Viet Nam | Setra Viet Nam | Kistler Viet Nam | Renishaw Viet Nam | Mindmen Vietnam | | Gimatic Vietnam | Monarch Instrument Vietnam | Stauff Vietnam | Burster Vietnam | SDT International Vietnam | MTI Instrument Vietnam | Zhuzhou CRRC Vietnam | Sensorex Vietnam | TWK Elektronik Vietnam | ASC Vietnam | Ronds Vietnam | Klaschka Vietnam | Hubner Vietnam | Hainzl Vietnam | Labom Vietnam | Siko Vietnam | Rittmeyer Vietnam | TR Electronic Vietnam | AK Industry Vietnam | Precizika Metrology Vietnam | Dis Sensor Vietnam | Elap Vietnam | Wachendorff Automation Vietnam | Foxboro Vietnam | Fireray Vietnam | Fiessler Elektronik Vietnam | Watt Drive Vietnam | Murr Elektronik Vietnam | Zander Vietnam | Elgo Vietnam
Bình luận
Sản phẩm cùng loại
