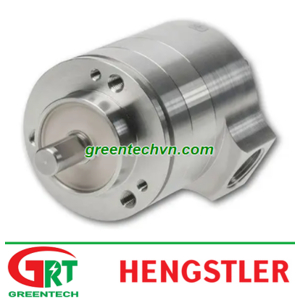

Absolute rotary encoder ACURO AX65 | Hengstler | Bộ mã hoá quay ACURO AX65 | Hengstler Vietnam
ACURO AX65
Hengstler Viet Nam
12 tháng
.
ATEX and IECEx certification for Gas, Dust and Mining Most compact design of its class: 59 mm housing diameter / 70 mm mounting depth Extreme robust design 300 N axial and radial load 200 g shock resistance / 30 g vibrations resistance Protection class up to IP66 / IP67 Easy field installation terminal box with cage clamp technology Interfaces: SSI and CANopen There are some encoder applications that are just demanding. Incredibly challenging. Among these are applications where the encoder has to be explosion-proof due to the dangerous atmosphere in which it operates. Or those that involve continual exposure to salt water. Or where it experiences huge shock loads of over 100 G. Or shaft loads of hundreds of Newtons. But the MOST demanding applications are those where the encoder must meet ALL these requirements. Certified explosion-proof, built with marine-grade stainless steel, with a shock rating of 200 G and shaft load of 300 N, the AX65 is one tough encoder. The most compact absolute encoder in its class, its shallow depth and body diameter of only 59 mm allow it to fit where other explosion-proof encoders can’t. The explosion-proof certification makes it ideal for offshore oil platforms, mines, chemical plants, etc., as does the marine grade stainless steel of which it’s built. The shaft load rating eliminates the need for load modules, reducing costs. The AX65 can be installed quickly and easily due to its flexible, quick-connect terminal system. Rounding out the AX65 is the choice of SSI or CANopen interface, which can save wiring costs by allowing a ring network configuration.
- Type
- absolute
- Technology
- magnetic
- Output signal
- CANopen, SSI
- Construction
- solid-shaft, multi-turn
- Protection level
- explosion-proof, robust, IECEx, ATEX, IP67, IP66
- Other characteristics
- compact, stainless steel, for high shaft loads
- Applications
- industrial, for harsh environments, marine, for the food and beverage industry, exterior, gas and oilfield
- Housing diameter
-
59 mm (2 in)
