| Travel speed Vmax [m/s] | ||||||
|---|---|---|---|---|---|---|
| Resolution [µm] | 1 | 4.00 | 1.60 | 0.72 | 0.32 | 0.12 |
| 5 | 8.00 | 8.00 | 3.60 | 1.60 | 0.62 | |
| 10 | 8.00 | 8.00 | 7.20 | 3.20 | 1.25 | |
| 12.5 | 8.00 | 8.00 | 8.00 | 4.00 | 1.60 | |
| Pulse interval [μs] | 0.2 | 0.5 | 1.1 | 2.5 | 6.3 | |
| Counting frequency [kHz] | 1250.00 | 500.00 | 230.00 | 100.00 | 40.00 | |
Hổ trợ trực tuyến
Technical - Mr. Nhân: 0935 04 1313 - nhan@greentechvn.com
Sales - Mr. Nhân: 0935 04 1313 - sales@greentechvn.com
HCM Sale - Ms. Thủy: 079 664 0303 - thuy@greentechvn.com
HCM Sale - Mr. Sơn: 0903 392 551 - son@greentechvn.com
HCM Sale - Mr. Tân: 0903 355 926 - sale05@greentechvn.com
HCM Sale : 0903 355 093 - sale01@greentechvn.com
HCM Sale - 0903 355 609 - sale03@greentechvn.com
HCM Sale - sale04@greentechvn.com
CN Hà Nội - Mr. Thái: 0987040968 - thai@greentechvn.com
Danh mục sản phẩm
Tin tức cần biết
Sản phầm bán chạy
Fanpage Facebook
Liên kết website
Thống kê
- Đang online 0
- Hôm nay 0
- Hôm qua 0
- Trong tuần 0
- Trong tháng 0
- Tổng cộng 0
ASA510H-0017 | Siko ASA510H-0017 Cảm biến từ đo vị trí | Siko Vietnam
ASA510H-0017
Siko Vietnam
Siko Vietnam
ASA510H-0017 | Siko ASA510H-0017 Cảm biến từ đo vị trí | Siko Vietnam
.

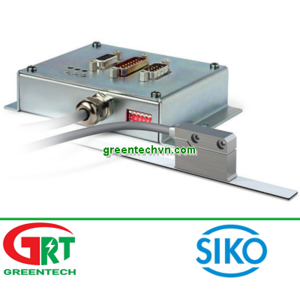

Translation module ASA510H
Quasi-absolute, battery-buffered translation module
Profile ASA510H:
- Max. resolution 1 μm (LD)
- Repeat accuracy ±0.005 mm
- SSI or RS485 interface
- Scale MB500/1
- Reading distance ≤2 mm
- Compact, absolutely measuring unit with hard-wired sensor
- Max. measuring length ±655 m (RS485)
- Maintenance-free backup battery
- Option: digital LD interface
- Option: analog 1 VSS or 2.2 VSS interfaces (5 mm period length)
ADD TO LEAFLET
- TECHNICAL DATA
- TECHNICAL DRAWING
- ADDITIONAL INFORMATION
- ORDERING TABLE
Mechanical data
| Feature | Technical data | Additional information |
|---|---|---|
| Housing | steel sheet | electrogalvanized |
| zinc die-cast | sensor | |
| Cable length | ≤6 m | |
| Cable sheath | PVC suitable for drag-chain use | ≥1.000.000 with bending radius = 8x cable diameter and 20 °C |
L‘électronique interne d‘évaluation est capable de générer des impulsions de comptage dont la longueur est limitée par l‘intervalle d‘impulsions. L‘électronique en aval doit être réglée en conséquence. Le cas échéant, sélectionner d‘abord l‘intervalle d‘i
Electrical data
| Feature | Technical data | Additional information |
|---|---|---|
| Operating voltage | 24 V DC ±20 % | reverse polarity protected |
| Current consumption | <150 mA | |
| Battery service life | 10 year(s) | at TU = 20 °C, according to manufacturer specification |
System data
| Feature | Technical data | Additional information |
|---|---|---|
| Resolution | 5 µm or 10 µm | SSI, selectable via DIP switch |
| ≤1 µm | LD | |
| 5 mmperiod length | 1Vss | |
| System accuracy | ±(0.025 + 0.01 x L) mm, L in m | at TU = 20 °C (L = length per meter or part thereof) |
| Repeat accuracy | ±1 increment(s) | (5 µm / 10 µm) |
| Measuring range | ±655000 mm | |
| Travel speed | ≤5 m/s | SSI absolute value |
| ≤8 m/s |
Ambient conditions
| Feature | Technical data | Additional information |
|---|---|---|
| Ambient temperature | 0 … 60 °C | |
| Storage temperature | -20 … 70 °C | |
| Relative humidity | ≤95 % | translation module, condensation inadmissible |
| ≤100 % | sensor, condensation admissible | |
| EMC | EN 61000-6-2 | interference resistance / immission |
| EN 61000-6-4 | emitted interference / emission | |
| Protection category | IP20 | EN 60529 (translation module) |
| IP67 | EN 60529 (sensor) |
- SYSTEM COMPONENTS
- ACCESSORIES
- RELATED PRODUCTS
ASA510H
MB500/1
