F028 | F038 | F056 | Vành trượt chống nước chống bụi | F series Dustproog&waterproof Slip Rings | Se
F028 | F038 | F056
Senring Vietnam | Greentech Vietnam
12 tháng
.

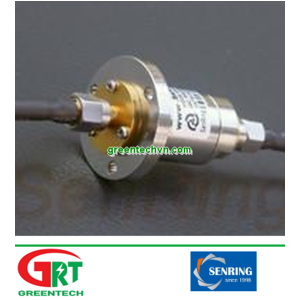

F series Dustproog&waterproof Slip Rings(IP65/IP68)
- Senring's F028 and F038series Dustproof&waterproof Slip Rings, IP68,can work underwater 300M， mainly applied to ships and oil wells
- F075 series, mainly applied production equipments such as beer machine,liquid filling machine
- Static sealing with O-ring and dynamic sealing of rotation position with abrasion resistant &anti-corrosion Glyd ring for longer life
- Current from 2A to 50A for your different demands
- Standard product,stock available
- Anti-corrosion stainless steel housing for better protection
- Integrated structure, easy installation
| Model# | OD | Circuits | IP grade | Voltage | Max Speed | More | |
| 28mm | 3X20A | IP68 | 250V | 300RPM | |||
| 38mm | 4X30A | IP68 | 250V | 300RPM | |||
| 56mm | 2~24 | IP65 | 440V | 800RPM | |||
| 75mm | 2~24 | IP65 | 440V | 300RPM | |||
| 86mm | 2~48 | IP65 | 440V | 300RPM | |||
| 120mm | 2~96 | IP65 | 440V | 300RPM | |||
| 38.1mm | 2~48 | IP65 | 440V | 300RPM |
SNH through hole slip ring series
- Through hole slip ring (through bore slip ring) is specially designed through bore for hydraulic or pneumatic rotating shaft installation
- Advanced multi-points contact ensures reliable operation with low friction
- Through hole size is optional from 5mm to 300mm
- Current from 2A to 300A to meet different application
- Standard product,stock available
- Metal housing for better protection
- Integrated structure, easy installation
| Model# | through hole size(mm) | OD*Length (mm) | Current/Ring | Voltage (VAC/VDC) | Working speed | More | |
| 12.7mm | 56mm | 250V | 1000RPM | ||||
| 25.4mm | 86mm | 440V | 600RPM | ||||
| 30mm | 99mm | 440V | 600RPM | ||||
| 38.1mm | 99mm | 440V | 500RPM | ||||
| 50mm | 120mm | 600V | 300RPM | ||||
| 60mm | 130mm | 600V | 300RPM | ||||
| 70mm | 140mm | 600V | 250RPM | ||||
| 80mm | 158mm | 600V | 250RPM | ||||
| 90mm | 185mm | 600V | 250RPM | ||||
| 100mm | 185mm | 600V | 250RPM | ||||
| 120mm | 215mm | 600V | 150RPM | ||||
| 150mm | 248mm | 600V | 150RPM | ||||
| 180mm | 298mm | 600V | 150RPM | ||||
| 200mm | 320mm | 600V | 150RPM | ||||
| 250mm | 396mm | 600V | 150RPM | ||||
| 300mm | 430mm | 600V | 100RPM |
| Model# | through hole size(mm) | OD*Length (mm) | Current/Ring | Voltage (VAC/VDC) | Working speed | More | |
| 5mm | 22mm | Signal(2A)@ 6.12.18.24 | 250V | 250RPM | |||
| 12.7mm | 35mm | Signal(2A) @ 6.12.18.24 | 250V | 250RPM | |||
| 15mm | 31.8mm | Signal(2A) @ 12.24 | 250V | 250RPM | |||
| 20mm | 42mm | Signal(2A)@ 12 | 250V | 250RPM |
SNM series capsule slip ring
- Designed for date and video signals transmission of small and medium-size equipment
- High speed,cameras/security industry used,also widely used revolving stage of lights
- Outside diameter series : 7.9mm、12.5mm、15.5mm、22mm、25mm
- Signals can be combined ,such as video.control,ethernet,servo motor and so on
- 360-degree video signal even HD signal transmission
- Contact material used military hard gold plated which ensure low resistance fluctuation and long work life
- SenRing's capsule slip ring support combined transmission for signal and power
- Low torque,low loss and maintenance,low electrical noise
- Circuits.housing material,protection grade,high speed,lead wire length,terminal connector,special lead wire,dust-proof,working temperature,and the shell can be followed requirement for customization
| Model# | Circuits | OD(mm) | Current/Circuits | Voltage (VAC/VDC) | Working speed | More | |
| 4、6、12、18 | 12.5mm | 2A | 250V | 250RPM | |||
| 24 | 15.5mm | 2A | 250V | 250RPM | |||
| 6、12、18、24、36 | 22mm | 2A | 250V | 250RPM | |||
| 56 | 25mm | 2A | 250V | 250RPM | |||
| 4、6 | 7.9mm | 1A | 250V | 150RPM | |||
| 2-36 circuits options | 12.5-30mm | 5A-50A Options | 440V | 250RPM |
Mercury slip ring A series (mercury rotary joint)
- Anti-interference, low cost
- Contact resistance is less than the 1mΩ
- No maintenance, better reliability than traditional slip ring
- Suitable for signal and power transmitting of any rotating devices
- Mercury slip ring is used with special sealing materials,insulation and conductive technology production
- Housing material is made of aluminum alloy or stainless steel
- Applied for any rotating objects of signal transmitting such as：tiny voltage¤t,EMF,thermocouple,strain gauge,audio and video signals, high frequency,computer signal and electric power connections；
| Model# | Poles | Current(A)/Poles | Dielectric Strength AC/DCAC/DC(V) | Max Frequency(MHZ) | Contact Resistance | Max Speed | Work Temperature Max/Min ℃ | Torque (x10-3Nm) | Insulation Resistance | |
| 1 pole | 250 | -- | 200 | <1mΩ | 1200 | -29℃~60℃ | 250 | -- | ||
| 1 pole | 350 | -- | 200 | <1mΩ | 800 | -29℃~60℃ | 300 | -- | ||
| 1 pole | 250 | -- | 200 | <1mΩ | 1200 | -29℃~60℃ | 250 | -- | ||
| 1 pole | 650 | -- | 200 | <1mΩ | 200 | -29℃~60℃ | 1000 | -- | ||
| 1 pole | 1500 | -- | 200 | <1mΩ | 100 | -29℃~60℃ | 2000 | -- | ||
| 2 pole | 30A | 250 | 200 | <1mΩ | 1800 | -29℃~60℃ | 200 | >25MΩ | ||
| 3 pole | 30A | 250 | 200 | <1mΩ | 1200 | -29℃~60℃ | 400 | >25MΩ | ||
| 4 pole | 30A/4 | 250 | 200 | <1mΩ | 1200 | -29℃~60℃ | 400 | >25MΩ | ||
| 6 pole | 30A/4 | 30A/4 | 100 | <1mΩ | 300 | -29℃~60℃ | 700 | >25MΩ | ||
| 8 pole | 30A/6 | 250 | 100 | <1mΩ | 200 | -29℃~60℃ | 1000 | >25MΩ | ||
| 10 pole | 30A/8 | 250 | 100 | <1mΩ | 100 | -29℃~60℃ | 1500 | >25MΩ | ||
| 12 pole | 30A/10 | 250 | 100 | <1mΩ | 60 | -29℃~60℃ | 2000 | >25MΩ | ||
| 1 pole | 10A | -- | 200 | <1mΩ | 3600 | -29℃~60℃ | 35 | >25MΩ | ||
| 1 pole | 20A | -- | 200 | <1mΩ | 2000 | -29℃~60℃ | 50 | -- | ||
| 1 pole | 50A | -- | 200 | <1mΩ | 1800 | -29℃~60℃ | 70 | -- | ||
| 2 pole | 4A | 250 | 200 | <1mΩ | 2000 | -29℃~60℃ | 75 | >25MΩ | ||
| 3 pole | 4A | 250 | 200 | <1mΩ | 1800 | -29℃~60℃ | 100 | >25MΩ | ||
| 4 pole | 30A | 250 | 100 | <1mΩ | 100 | -29℃~60℃ | 2000 | >25MΩ
|
SNQ series（pneumatic，hydraulic-Electrical slip rings/rotary joints）
- Senring electronics developed the production of SNQ series（pneumatic，hydraulic-Electrical slip rings/rotary joints）can be rotated 360 degrees while Transmit power,control signal,switch signal,micro signal+fiber+mercury+servo motor signal of instruments and computer automatic control
- Transmit hydraulic,more channels optional
- 1、2、3、4、6、8、12 channnels optional
- 360°transmit compressed air,negative pressure,positive pressure,cooling water,hot oil
- 360-degree video signal even HD signal transmission
- Through bore or solid optional
- Main applications:high-tech auto-equipments,packing machine
- 50% Ethernet slip rings are customized；
| Model# | Pneumatic/Hydraulic@channels | Elctric@ Circuits | tube siz | |
| 1 channel | 1~96 | 4mm-50mm | ||
| 2 channel | 1~96 | 4mm-25mm | ||
| 3 channel | 1~96 | 4mm-25mm | ||
| 4 channel | 1~48 | 4mm-25mm | ||
| 6 channel | 1~48 | 4mm-15mm | ||
| 8 channel | 1~48 | 4mm-10mm | ||
| 12 channel | 1~48 | 4mm-8mm |
