| EW007 | EW009 | EW012 |
|
|
|
| EW016 | EW020 | EW020 |
| References* | EW007 | EW009 | EW012 | EW016 | EW020 | EW025 | ||
|
|
|
|
|
| |||
| Main contact | ||||||||
| Rated insulation voltage Ui (V) | 660 | 660 | 660 | 660 | 660 | 660 | ||
| Rated operational voltage Ue (V) | 660 | 660 | 660 | 660 | 660 | 660 | ||
| Thermal current Ith AC1 (A) | 20 | 20 | 25 | 25 | 32 | 35 | ||
| Main contact rated operational Ie | Single pole | 110V | 8A / 0,37 kW | 10.5A / 0.55kW | 10.5A / 0.55kW | 13.5A / 0.75 kW | 19.5A / 1.1kW | 25.5A / 1,5kW |
| current AC-3 | 220V | 7A / 0.75kW | 10A / 1.1kW | 10A / 1.1kW | 14A / 1.5kW | 20.5A / 2.2kW | 26A / 3kW | |
| Three pole | 220/230V | 7.5A / 1.5kW | 10.1A / 2.2kW | 12A / 3kW | 16A / 4kW | 23A / 5.5kW | 27A / 7,5kW | |
| 380/400V | 7A /3kW | 9A / 4kW | 12A / 5.5kW | 16A /7.5kW | 22A / 11kW | 26A / 11kW | ||
| 415/440V | 6.5A / 3kW | 8.5A / 4kW | 11A / 5.5kW | 15A / 7.5kW | 21A / 11kW | 21A / 11kW | ||
| 500V | 5A / 3kW | 6.5A / 4kW | 9A / 5.5kW | 13A / 7.5kW | 19A / 11kW | 21A / 11kW | ||
| 660V | 4A / 3kW | 5A / 4kW | 7A / 5.5kW | 10A / 7.5kW | 14A / 11kW | 19A / 11kW | ||
| Auxiliary contact | ||||||||
| Rated insulation voltage Ui (V) | 690 | 690 | 690 | 690 | 690 | 690 | ||
| Rated operational voltage Ue (V) | 600 | 600 | 600 | 600 | 600 | 600 | ||
| Thermal current Ith AC/DC (A) | 10/2.5 | 10/2.5 | 10/2.5 | 10/2.5 | 10/2.5 | 10/2.5 | ||
| Auxiliary contact rated current Ie | AC 15 | 120V | 6 | 6 | 6 | 6 | 6 | 6 |
| 240V | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 380V | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | ||
| 480V | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| DC 13 | 125V | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |
| 250V | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | ||
| Contactor life | ||||||||
| Operation frequency (cycles/hour) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | ||
| Electrical lifespan (cycles) | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | ||
| Mechanical lifespan (cycles) | 10,000,000 | 10,000,000 | 10,000,000 | 10,000,000 | 10,000,000 | 10,000,000 | ||
| Others | ||||||||
| Type of auxiliary contact | NO | 1 | 1 | 1 | 1 | 1 | 1 | |
| NC | 0 | 0 | 0 | 0 | 1 | 1 | ||
| Weight (kg) | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | ||
| Dimensions (mm) | ||||||||
| a | 45 | 45 | 45 | 45 | 55 | 55 | |
| b | 70 | 70 | 70 | 70 | 72 | 72 | ||
| c | 82 | 82 | 82 | 82 | 92 | 92 | ||
| d | 35 | 35 | 35 | 35 | 45 | 45 | ||
| e | 55 | 55 | 55 | 55 | 55 | 55 | ||
|
|
|
| EW032 | EW038 | EW040 |
|
|
|
| EW050 | EW063 | EW070 |
| References* | EW032 | EW038 | EW040 | EW050 | EW063 | EW070 | ||
|
|
|
|
|
| |||
| Main contact | ||||||||
| Rated insulation voltage Ui (V) | 1000 | 1000 | 1000 | 660 | 660 | 660 | ||
| Rated operational voltage Ue (V) | 690 | 690 | 690 | 660 | 660 | 660 | ||
| Thermal current Ith AC1 (A) | 60 | 60 | 60 | 70 | 80 | 100 | ||
| Main contact rated operational Ie | Single pole | 110V | 35A / 1.5kW | 39A / 2.2kW | 37A / 2.2kW | – | 50A / 3kW | 60A / 4kW |
| current AC-3 | 220V | 35A / 3.73kW | 39A / 5kW | 33A / 4kW | – | 45A / 6kW | 55A / 7.5kW | |
| Three pole | 220/230V | 35A / 9kW | 39A / 11kW | 44A / 11kW | 55A / 15kW | 65A / 18.5kW | 75A / 22kW | |
| 380/400V | 32A / 15kW | 38A / 18.5kW | 40A / 20kW | 55A / 25kW | 64A / 30kW | 72A / 37kW | ||
| 415/440V | 32A / 15kW | 38A / 22kW | 40A / 22kW | 52A / 30kW | 64A / 37kW | 70A / 40kW | ||
| 500V | 30A / 18.5kW | 33A / 22kW | 35A / 22kW | 45A / 30kW | 55A / 37kW | 65A / 45kW | ||
| 660V | 23A / 18.5kW | 25.2A / 22kW | 26A / 22kW | 35A / 30kW | 45A / 37kW | 60A / 45kW | ||
| Auxiliary contact | ||||||||
| Rated insulation voltage Ui (V) | 690 | 690 | 690 | 660 | 660 | 660 | ||
| Rated operational voltage Ue (V) | 660 | 660 | 600 | 600 | 600 | 600 | ||
| Thermal current Ith AC/DC (A) | 10/2.5 | 10/2.5 | 10/2.5 | 10/2.5 | 10/2.5 | 10/2.5 | ||
| Auxiliary contact rated current Ie | AC 15 | 120V | 6 | 6 | 6 | 6 | 6 | 6 |
| 240V | 3 | 3 | 3 | 3 | 3 | 3 | ||
| 380V | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | ||
| 480V | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| DC 13 | 125V | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |
| 250V | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | ||
| Contactor life | ||||||||
| Operation frequency (cycles/hour) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | ||
| Electrical lifespan (cycles) | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | ||
| Mechanical lifespan (cycles) | 10,000,000 | 10,000,000 | 10,000,000 | 10,000,000 | 10,000,000 | 10,000,000 | ||
| Others | ||||||||
| Type of auxiliary contact | NO | 1 | 1 | 1 | 2 | 2 | 2 | |
| NC | 0 | 0 | 0 | 2 | 2 | 2 | ||
| Weight (kg) | 0.7 | 0.7 | 0.8 | 1.3 | 1.3 | 1.3 | ||
| Dimensions (mm) | ||||||||
| a | 55 | 58 | 69 | 93.5 | 93.5 | 93.5 | |
| b | 72 | 94.5 | 99 | 116 | 116 | 150 (with Cu terminals) | ||
| c | 92 | 111.7 | 111.7 | 123 | 123 | 123 | ||
| d | 45 | 50 | 60 | 80 | 80 | 80 | ||
| e | 55 | 75 | 80 | 90 | 90 | 90 | ||
|
|
|
| EW090 | EW115 | EW138 |
|
|
|
| EW150 | EW180 | EW220 |
| References* | EW090 | EW115 | EW138 | EW150 | EW180 | EW220 | ||
|
|
|
|
|
| |||
| Main contact | ||||||||
| Rated insulation voltage Ui (V) | 660 | 1000 | 1000 | 1000 | 1000 | 1000 | ||
| Rated operational voltage Ue (V) | 660 | 690 | 690 | 660 | 660 | 660 | ||
| Thermal current Ith AC1 (A) | 135 | 135 | 150 | 200 | 240 | 260 | ||
| Main contact rated operational Ie | Single pole | 110V | – | – | – | – | – | – |
| current AC-3 | 220V | – | – | – | – | – | – | |
| Three pole | 220/230V | 85A / 25kW | 115A / 30kW | 138A / 40kW | 150A / 45kW | 182A / 55kW | 225A / 65kW | |
| 380/400V | 85A /45kW | 115A / 60kW | 138A / 75kW | 147A / 80kW | 179A / 95kW | 225A / 120kW | ||
| 415/440V | 85A / 51kW | 105A / 60kW | 135A / 75kW | 131A / 80kW | 178A / 100kW | 220A / 132kW | ||
| 500V | 80A / 55kW | 93A / 65kW | 105A / 75kW | 129A / 90kW | 156A / 110kW | 190A / 132kW | ||
| 660V | 65A / 55kW | 75A / 65kW | 85A / 75kW | 107A / 100kW | 118A / 110kW | 140A / 132kW | ||
| Auxiliary contact | ||||||||
| Rated insulation voltage Ui (V) | 660 | 660 | 660 | 660 | 660 | 660 | ||
| Rated operational voltage Ue (V) | 600 | 660 | 660 | 660 | 660 | 660 | ||
| Thermal current Ith AC/DC (A) | 10/2.5 | 10/2.5 | 10/2.5 | 10/2.5 | 10/2.5 | 10/2.5 | ||
| Auxiliary contact rated | AC 15 | 120V | 6 | 6 | 6 | 6 | 6 | 6 |
| current Ie | 240V | 3 | 3 | 3 | 3 | 3 | 3 | |
| 380V | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | ||
| 480V | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| DC 13 | 125V | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |
| 250V | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | ||
| Contactor life | ||||||||
| Operation frequency (cycles/hour) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | ||
| Electrical lifespan (cycles) | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | 1,000,000 | ||
| Mechanical lifespan (cycles) | 10,000,000 | 10,000,000 | 10,000,000 | 10,000,000 | 10,000,000 | 10,000,000 | ||
| Others | ||||||||
| Type of auxiliary contact | NO | 2 | 2 | 2 | 2 | 2 | 2 | |
| NC | 2 | 2 | 2 | 2 | 2 | 2 | ||
| Weight (kg) | 1.3 | 1.9 | 1.9 | 4.1 | 4.1 | 6.7 | ||
| Dimensions (mm) | ||||||||
| a | 93.5 | 100 | 100 | 130 | 130 | 146 | |
| b | 150 (with Cu terminals) | 139 | 139 | 180 | 180 | 210 | ||
| c | 123 | 133 | 133 | 157.2 | 157.2 | 183.2 | ||
| d | 80 | 83 | 83 | 100 | 100 | 133 | ||
| e | 90 | 110 | 110 | 130 | 130 | 150 | ||
| ||
| EW300 |
| References* | EW300 | ||
| |||
| Main contact | |||
| Rated insulation voltage Ui (V) | 1000 | ||
| Rated operational voltage Ue (V) | 690 | ||
| Thermal current Ith AC1 (A) | 350 | ||
| Main contact rated operational Ie | Single pole | 110V | – |
| current AC-3 | 220V | – | |
| Three pole | 220/230V | 300A / 90kW | |
| 380/400V | 300A / 160kW | ||
| 415/440V | 300A / 160kW | ||
| 500V | 250A / 160kW | ||
| 660V | 220A / 220kW | ||
| Auxiliary contact | |||
| Rated insulation voltage Ui (V) | 660 | ||
| Rated operational voltage Ue (V) | 660 | ||
| Thermal current Ith AC/DC (A) | 10/2.5 | ||
| Auxiliary contact rated current Ie | AC 15 | 120V | 6 |
| 240V | 3 | ||
| 380V | 1.9 | ||
| 480V | 1.5 | ||
| DC 13 | 125V | 0.55 | |
| 250V | 0.27 | ||
| Contactor life | |||
| Operation frequency (cycles/hour) | 1200 | ||
| Electrical lifespan (cycles) | 1,000,000 | ||
| Mechanical lifespan (cycles) | 10,000,000 | ||
| Others | |||
| Type of auxiliary contact | NO | 2 | |
| NC | 2 | ||
| Weight (kg) | 6.7 | ||
| Dimensions (mm) | |||
| a | 146 | |
| b | 210 | ||
| c | 183.2 | ||
| d | 133 | ||
| e | 150 | ||
* Note: Control circuit rated operational voltage
C: 220V AC 50/60Hz (EW007_C ~ EW300_C)
D: 380V AC 50/60Hz (EW007_D ~ EW300_D)
H: 110V AC 50/60Hz (EW007_H ~ EW090_H)
J: 230V AC 50Hz (EW007_H ~ EW300_J)
K: 380V AC 50Hz (EW007_K ~ EW300_K)
L: 400V AC 50Hz (EW007_M ~ EW090_L)
M: 415V AC 50Hz (EW007_M ~ EW090_M)
Contactors Accessories
| Designation | Characteristics | Cat. Ref. | |
| Thermal overload relays | Setting range: | |
| – for EW007 to EW032 | 0.1 – 0.16A | EWT001B | |
| 0.16 – 0.25A | EWT002B | ||
| 0.25 – 0.4A | EWT004B | ||
| 0.35 – 0.5A | EWT005B | ||
| 0.45 – 0.63A | EWT006B | ||
| 0.55 – 0.8A | EWT008B | ||
| EWT…B | 0.75 – 1A | EWT010B | |
| 0.9 – 1.3A | EWT013B | ||
| 1.1 – 1.6A | EWT016B | ||
| 1.4 – 2A | EWT020B | ||
| 1.8 – 2.5A | EWT025B | ||
| 2.3 – 3.2A | EWT032B | ||
| 2.9 – 4A | EWT040B | ||
| 3.5 – 4.8A | EWT048B | ||
| 4.5 – 6.3A | EWT063B | ||
| 5.5 – 7.5A | EWT075B | ||
| 7.2 – 10A | EWT100B | ||
| 9 – 12.5A | EWT125B | ||
| 11.3 – 16A | EWT160B | ||
| 15 – 20A | EWT200B | ||
| 17.5 – 21.5A | EWT215B | ||
| 21 – 25A | EWT250B | ||
| 24.5 – 30A | EWT300B | |
| – for EW038 | 15 – 20A | EWT200C | |
| 17.5 – 21.5A | EWT215C | ||
| 21 – 25A | EWT250C | ||
| 24.5 – 30A | EWT300C | ||
| 29 – 36A | EWT360C | ||
| EWT…E | 33 – 38A | EWT380C | |
| – for EW020 to EW032 | 17 – 25A | EW250D | |
| – for EW040 | 17 – 25A | EW250E | |
| 24.5 – 36A | EW360E | ||
| 35 – 47A | EW470E | |
| – for EW050 to EW090 | 24,5 – 36A | EWT360G | |
| 35 – 47A | EWT470G | ||
| 45 – 60A | EWT600G | ||
| 58-75A | EWT750G | ||
| 72 – 90A | EWT900G | ||
| EWT…G | – for EW038 | 17 – 25A | EWT250H |
| 24.5 – 36A | EWT360H | ||
| 35 – 47A | EWT470H | ||
| Separated thermal overload relays | Setting range: | ||
| connection with wires | 17 – 25A | EWT250F |
| 24.5 – 36A | EWT360F | ||
| 35 – 47A | EWT470F | ||
| 45 – 60A | EWT600F | ||
| 58 – 75A | EWT750F | ||
| 72 – 90A | EWT900F | ||
| Current transformers | Ratio: | ||

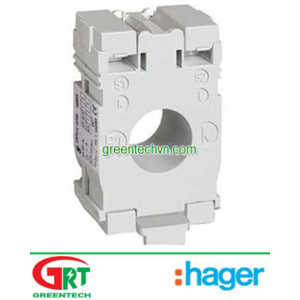

| EWT…F | 150A / 5A | EWA601 | |
| 250A / 5A | EWA602 | |
| 350A / 5A | EWA603 | ||
| External mounting block | for EWT…B series | EWA501 | |
| EWA601 | for thermal relays assembly | ||
| |||
| EWA501 | |||
| Auxiliary contacts | ||
| – for EW007 to EW090 | 1NO + 1NC | EWA001 | |
| installation on the top | 2NO | EWA002 | |
| 2NC | EWA003 | ||
| 4NO | EWA004 | ||
| EWA001 | 4NC | EWA005 | |
| 3NO + 1NC | EWA006 | |
| 2NO + 2NC | EWA007 | ||
| 1NO + 3NC | EWA008 | ||
| – for EW007 to EW040 | 1 NO + 1NC | EWA009 | |
| EWA007 | installation on the side | ||
| |||
| – for EW007 to EW040 | 1 NO + 1NC | EWA010 | |
| installation on the side | |||
| EWA009 | |||
| Interlocks | ||
| – for EW007 to EW032 | mechanical | EWA101 | |
| mechanical and electrical | EWA102 | ||
| EWA101 | |||
| – for EW038 to EW090 | mechanical | EWA103 |
| – for EW100 to EW300 | mechanical | EWA104 | |
| EWA102 | |||
| Surge supressors | |||
| for EW007 to EW090 | voltage: 24V | EWA401 |
| rheostat type | current rating: 28.5 – 38.5mA | ||
| drop-out time < 40ms | |||
| voltage: 48V | EWA402 | ||
| current rating: 56.5 – 76.5mA | |||
| EWA104 | |||
| |||
| voltage: 110V | EWA403 | ||
| current rating: 36.1 – 48.9mA | |||
| voltage: 220V | EWA404 | ||
| current rating: 23.1 – 31.1mA | |||
| EWA401 | |||
Product combination
| Setting range | Current transformer | Base | Thermal overload relay | |
| 87 – 120A | EWA601 | EWA501 | EWT040B |
| 105 – 144A | EWA601 | EWA501 | EWT048B | |
| 135 – 150A | EWA601 | EWA501 | EWT063B | |
| 175 – 240A | EWA602 | EWA501 | EWT048B | |
| 225 – 250A | EWA602 | EWA501 | EWT063B | |
| 245 – 336A | EWA603 | EWA501 | EWT048B | |
