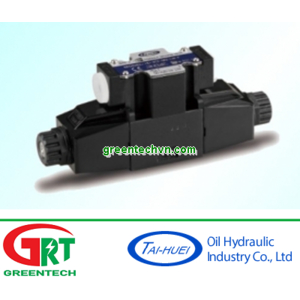

HD-2D2-G02 | TaiHuei HD-***-G02-LW-*-*-AC | VAn điện từ 220VAC | TaiHuei Vietnam
HD-2D2-G02
Tai Huei Viet Nam
.
High efficiency and low current value of the electromagnetic directional valveHD-G02-B / E Series
Catalog Description
| HD | *** | G02 | LW / DL | |
|---|---|---|---|---|
| Direction switching valve | Axis loop types | Body diameter size | Wiring type code | |
| Oil solenoid valve direction | See " " axis of the table attached file | 1/4 G02 " (D03) (NG6) | LW: junction box form | DL: male |
| B / E | AC / DC / RF | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Family code | Voltage | ||||||||||
| B series of high efficiency and low current solenoid operated directional valve | E-Series large flow direction solenoid valve | AC110 | AC220 | DC12 | DC24 | RF110 | RF220 | ||||
| frequency | |||||||||||
| 50 | 60 | 50/60 | |||||||||
Remarks:
- Electromagnetic coil voltage types, please refer to the following "common solenoid models feature table."
- When the oil hole throttling resistance sub purchase, please indicate the orifice aperture size (mm).
- A, B, please reference manual positioning adjustable buy the series schedules and instructions.
- B valve can have a low current, low power consumption, high power and other characteristics, cost-effective.
- B solenoid valve to maintain the same output with the E-type and the use of pressure.
- B-type solenoid valve temperature rise, in line with the machine, the hydraulic system needs.
- To increase the pore size of the original full range, greatly improve the flow passing through the original aperture.
- B-type and E-type dimensions are in line with international standards, there is absolutely interchangeable.
Common characteristics of the solenoid models table
| Modelparameters | AC | DC | RF | ||||||
| HD-G02 | |||||||||
| Voltage (V) | 110 | 220 | 12 | twenty four | 110 | 220 | |||
| 50 | 60 | 50 | 60 | ||||||
| Hold Current (A) | Type B | 0.43 | 0.43 | 0.22 | 0.22 | 1.72 | 1.05 | 0.38 | 0.19 |
| E -type | 0.60 | 0.60 | 0.30 | 0.30 | 2.60 | 1.30 | |||
| Starting current (A) | B type | 1.45 | 1.47 | 0.89 | 1.01 | ||||
| E -type | 2.36 | 2.26 | 1.33 | 1.23 | |||||
| Protection class | IP65 | ||||||||
| Use grade copper coils | PEWH level | ||||||||
| Coil degree temperature | 180 ° C | ||||||||
Remarks:
- Full range of ± 10% using a voltage operating range.
- The company with the other coil voltage supply.
B type VS.E electromagnetic coil temperature performance
- Pressure test of the coil temperature is 100kgf / cm².
- This coil temperature test at a constant temperature of about 25 ° lab
- In Case AC220V coil.
Advantages B Series, E Series solenoid valves
- Double body taken back to the oil groove design, each increase oil groove, passed through the flow to increase and improve the use of pressure.
- Mining increased axial design to increase the flow rate through the shaft hole, reducing the internal resistance and increase the allowable backpressure.
- Coil using the latest special design, can effectively achieve low power consumption, high efficiency and reduce the current value of the solenoid valve E can provide the same type of output and the use of pressure, see the pressure curve table.
- Mounting dimensions and appearance and size are all the same as the E-type solenoid valve.
- The company B solenoid valve premise, not only for your company to improve product quality and standards, but also improve the quality of the preferred competitiveness.
Pressure curve table
| model | Pressure curve table | Maximum allowable backpressure | ||||
| P → A | B → T | P → B | A → T | P → T | kgf / cm² | |
| HD-2B2-G02 | (5) | (5) | (2) | (2) | - | 120 |
| HD-2B3-G02 | (4) | (4) | (2) | (1) | - | 120 |
| HD-2B8-G02 | (2) | - | (2) | - | - | 100 |
| HD-3C2-G02 | (2) | (2) | (2) | (2) | - | 110 |
| HD-3C3-G02 | (1) | (1) | (1) | (1) | (3) | 130 |
| HD-3C4-G02 | (2) | (1) | (2) | (2) | - | 100 |
| HD-3C40-G02 | (2) | (2) | (2) | (2) | - | 80 |
| HD-3C60-G02 | (6) | (6) | (6) | (6) | (3) | 90 |
| HD-3C9-G02 | (1) | (2) | (1) | (1) | - | 100 |
| HD-3C10-G02 | (2) | (1) | (2) | (2) | - | 100 |
| HD-3C11-G02 | (1) | (2) | (2) | (2) | - | 100 |
| HD-3C12-G02 | (2) | (2) | (2) | (2) | - | 100 |
| HD-2D2-G02 | (2) | (5) | (2) | (2) | - | 110 |
Features Table
| Valve Size | HD-G02 | |||||
| parameter | The maximum working pressure (kgf / cm² ) | Allowed back pressure (kgf / cm² ) | Maximum flow rate (L / min) | Switching frequency (Cycle / min) | Hydraulic fluid temperature range (° C) | Hydraulic oil viscosity range (cst) |
| 315 | 70 to 160 | 60 | AC, DC type: 240 the RF type-the NS: 120 | -15 ~ + 70 | 10 ~ 400 (ISO VG46,68) | |
Remarks:
Maximum flow, maximum pressure permissible back pressure varies with the loop.
Precautions:
- No spring return type (2D2 and 2D2D type) horizontal installation better.
- Please keep the mounting surface of the surface roughness 3.2z below.
- All our products are not recommended to replace parts on their own.
- Different axial dimensions, are not interchangeable.
annex:
- G02: valve body fixed SHCS M5x45Lx4 branch.
- DL-type coil terminals are attached to the cover.
- Attach the valve body to protect the floor.
Dimensions and exploded view
