LA 50 series

TR-Electronic Vietnam | Greentech Vietnam

12 tháng

LA 50 series | Ecoder TR-Electronic LA 50 series | cảm biến vòng quay | TR-Electronic Vietnam

.

CHARACTERISTICS

Type
absolute
Technology
magnetostrictive
Construction
non-contact
Output signal
analog, SSI
Material
plastic
Protection level
standard
Applications
industrial
Length

Min.: 30 mm (1.181 in)

Max.: 2,900 mm (114.173 in)

DESCRIPTION

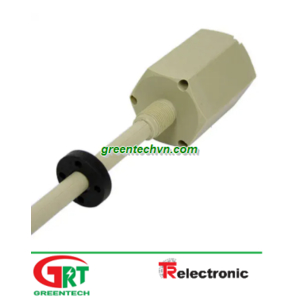

Linear absolute encoders for touchless measurement (based on magnetostriction) sense linear absolute movements without wear or tear. For especially aggressive surroundings, TR provides the series LA 50 and 80 in plastic housing. The full measurement system is housed in Polypropylene (PP) or, on request, in Polytetrafluorethylene (PTFE). These materials withstand most liquids in industrial applications. Series LA 50 is optimized for liquid level measurement. It is mounted with a tube thread acc. DIN 259 (Size R2) inserted into process vessels. The float cannot be lost due to a mechanical block at the end of the tube. The Series LA 50 can be used similarly to the standard range LA 46. With different magnets available, it can be used for precise position measurement in aggressive surroundings. Liquid level- and position measurement Plastic housing version of industrial standard L__46 Advantages _ Adjustment via set-inputs _ Customer-specific solutions _ Further interfaces available _ Measures linear movements _ Wear-free detection _ Withstands aggressive media Advanced data for product Linear-Transducer LA50 - A Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 100 mA Measuring principle magnetostrictive Measuring length, standard 100…1000 mm, in steps Resolution 0.001 mm Linearity deviation ± 0.10 mm 1500 mm Reproducibility 0.005 mm Hysteresis 0.02 mm 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 40 ppm/°C FS - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions
