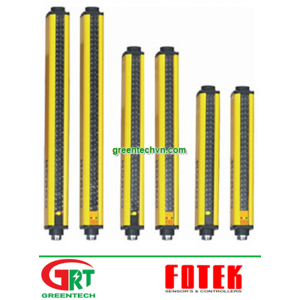

LC-12E | Fotek LC-12E | Hàng rào điện tử LC-12E | Fotek Vietnam

LC-12E | Fotek LC-12E | Hàng rào điện tử LC-12E | Fotek Vietnam

(1 đánh giá)

LC-12E | Fotek LC-12

Fotek Vietnam | Greentech Vietnam

12 tháng

LC-12E | Fotek LC-12E | Hàng rào điện tử LC-12E | Fotek Vietnam

.

ModelLC-04E

LC-08E

LC-12E

LC-16E

LC-24E

Beams

4

8

12

16

24

Sensing Height

75mm

175mm

275mm

375mm

575mm

Beam Pitch

25mm

Setting Distance

0.5m~6.0m

Sensible Object

Opaque Object 30φ min.

Operating Voltage

24±20%VDC ; Ripple±20% P-P Max.

Current Consumption

8.0 mA/ beam max.

Output Method

NPN NO & NPN NC two way output

Output Current

100mA max.

Output Status

All light channel light NO

Protection Circuit

Short circuit & polarity reversed protection

Residual voltage

0.8 V max.

Leakage Current

0.8mA max.

Indicator

Yellow: power ; Green: clear condition ; Red: break

Response Time

10ms max.

Reset Time

Output reset time<200ms

Illumination

Lamp<10,000LUX ; Sunlight<20,000LUX

Protection Class

IP-65

Connection method

M12×1.0 connector四芯接頭

Housing Material

Housing: aluminum ; End cap: PBT ; Front cover: ACRYLIC

Circumstance

0°C ~50°C ; 25%~85% RH

Vibration Resistance

10~55HZ / 1.5mm , 2小時 / X.Y.Z方向

Classification

CE Mark

EMC Standard

ESD: 8KV air charge (level3) / EN-61000-4-2

RF Interference: 10V / M / ENV50140

Burst test: 2KV / EN61000-4-4
