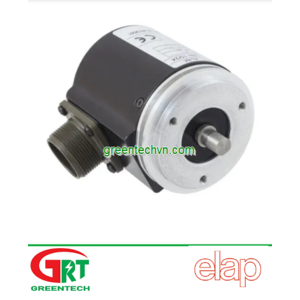

REV series| Incremental Rotary encoder | Bộ mã hóa quay tăng dần | Elap Việt Nam

REV series| Incremental Rotary encoder | Bộ mã hóa quay tăng dần | Elap Việt Nam

(1 đánh giá)

REV series

Elap Vietnam | Greentech Vietnam

12 tháng

REV series| Incremental Rotary encoder | Bộ mã hóa quay tăng dần | Elap Việt Nam

.

CHARACTERISTICS

Type
incremental
Technology
optical
Construction
flange
Protection level
IP65, IP66
Other characteristics
high-resolution
Applications
industrial
Housing diameter

Max.: 10 mm (0 in)

Min.: 6 mm (0 in)

DESCRIPTION

Distributed by ELAP, the incremental encoders series REV were designed to achieve reading accuracy and signal stability. Their aluminum housing protects them from environmental agents and enables them to work in hash environments. Encoders series REV can be supplied with 58-mm diameter round flange (types REV520 & REV540) or 63.5-mm square flange (REV620), with shaft diameter 6, 8 or 10 mm, axial or radial cable outlet or connector; available output signals: push-pull and TTL/HTL line-driver, voltage supply 5/28 Vdc. TECHNICAL SPECIFICATIONS Glass disc Aluminium housing Supply voltage 5/28 Vdc Power consumption 30/65 mA Max frequency 200/400 KHz Axial or radial connector or cable outlet (cable length: push-pull 3 m, line-driver 1 m) Output signals: push-pull, line driver, 5 Vdc line driver Protection against short circuit and polarity reversal Protection degree: IP65 (optional IP66 with o-ring mounted on the shaft) Number of pulses/revolution: 1000 to 36000
