TM1 | novotechnik | Cảm biến vị trí tuyến tính | Linear position sensor | NOVOViệtNam

TM1 | novotechnik | Cảm biến vị trí tuyến tính | Linear position sensor | NOVOViệtNam

(1 đánh giá)

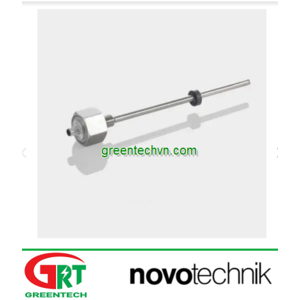

TM1

NOVO Viet Nam | Greentech Vietnam

12 tháng

TM1 | novotechnik | Cảm biến vị trí tuyến tính | Linear position sensor | NOVOViệtNam

.

CHARACTERISTICS

Type
linear
Contact / non-contact
contactless
Technology
magnetostrictive
Output signal
analog, CANopen
Other characteristics
precision, IP67, IP69
Applications
industrial, for hydraulic applications, for mobile hydraulics
Measuring range

Min.: 50 mm (1.969 in)

Max.: 2,000 mm (78.74 in)

DESCRIPTION

The absolute position transducer can be used directly in-cylinder and thus enables a compact and cost-effective position measurement. The sensor consists of a stainless steel flange welded to a pressure tight rod and can therefore be used in harsh environments. The magnetostrictive measuring technology offers excellent accuracy for measuring lengths up to 2000 mm. The passive ring-shaped position marker allows a mechanically decoupled measurement. Special Features • For integration in pneumatic and hydraulic cylinders • Touchless magnetostrictive measurement technology • Operating pressure up to 350 bar, peaks up to 450 bar • Ring-shaped position marker does not contact sensor • Unlimited mechanical life • No velocity limit for position marker • Absolute output • Outstanding accuracy performance up to 0.04 % • Wide range of supply voltage • Optimized for use in mobile applications with highest EMC requirements such as ISO pulses and high interferences to ISO 11452, exceeds E1 requirements Applications Hydraulic or pneumatic cylinders in • Agricultural and forestry machinery • Construction machines • Vehicles with loading and unloading devices • Vehicles with extension arms
