| ZCode-LR RFID | |
|---|---|
| Applications | High requirements on manipulation (high anti-tamper level), suitable for small and poorly aligned guard doors, sliding guards or protective covers |
| Semiconductor outputs | 2 contactless safety outputs, 1 auxiliary outputs |
| Auxiliary contacts | 1 |
| Contact rating (safe- & auxiliary outputs) | DC 24 V, max. 200 mA, short circuit proof |
| Power supply | DC 24 V; +/- 15 %, max. 50 mA |
| Switching distance | 5 mm, 10 mm close / 20 mm open |
| Base material | Red PES (Polyester) |
| Ambient temperature | -25 °C to +80 °C |
| PL; Cat.; SILCL (EN ISO 13849-1; EN 62061) | PL e; Cat.4; SILCL3* |
| Vibration- , shock resistance | 10-55 Hz / 1 mm, 1 ms / 30 g |
| Weight, dimensions | 200 g, 88 x 25 x 13 mm |
| Order No. with 5 m cable, mastercode, incl. actuator | 941144 |
| Order No. with M12 connector, mastercode, incl. actuator | 941145 |
| Order No. with 5 m cable, unicode, incl. actuator | 941154 |
| Order No. with M12 connector, unicode, incl. actuator | 941155 |
| Order No. spare actuator | 941149 (Mastercode) |
Hổ trợ trực tuyến
Technical - Mr. Nhân: 0935 04 1313 - nhan@greentechvn.com
Sales - Mr. Nhân: 0935 04 1313 - sales@greentechvn.com
HCM Sale - Ms. Thủy: 079 664 0303 - thuy@greentechvn.com
HCM Sale - Mr. Sơn: 0903 392 551 - son@greentechvn.com
HCM Sale 01: 0903 355 093 - sale01@greentechvn.com
HCM Sale 04: 0903 355 609 - sale04@greentechvn.com
HCM Sale 05: 0903 355 926 - sale05@greentechvn.com
CN Hà Nội - Mr. Thái: 0987040968 - thai@greentechvn.com
Danh mục sản phẩm
Tin tức cần biết
Sản phầm bán chạy
Fanpage Facebook
Liên kết website
Thống kê
- Đang online 0
- Hôm nay 0
- Hôm qua 0
- Trong tuần 0
- Trong tháng 0
- Tổng cộng 0
ZCode-LR RFID | Safety Switch ZCode-LR RFID | Công tắc cửa an toàn | Zander Vietnam

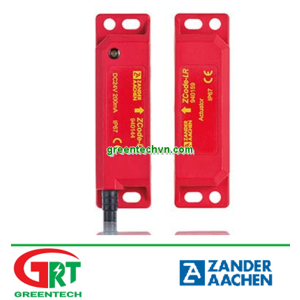

ZCode-LR RFID
Zander Vietnam | Greentech Vietnam
12 tháng
ZCode-LR RFID | Safety Switch ZCode-LR RFID | Công tắc cửa an toàn | Zander Vietnam
.
Downloads:
ZCode-LR and ZCode-PR are tamper-proof, non-contact safety switches with magnetic as well as RFID technology for the use in the area of mechanical and plant engineering. This dual-channel and diverse principle once again increases safety. Activation is possible as unicode, i.e. only by a assigned actuator, or as mastercode, i.e. an actuator of the PR, LR series activates every switch of the ZCode-PR, LR series.
Up to 20 ZCode-PR, LR modules can be connected in series to the ZANDER safety relays or to a ZANDER safety controller.
The switching status is indicated by a LED. All the ZCode-PR, LR are dust- and water-proof (IP67) and have an additional indicator contact.
Non-Contact Safety Sensors
ZCode Series
Non-Contact safety switches are designed for the use on safety doors, safety guards or safety covers that are used in several applications, e.g. on machine tools or in the food industry. If the door is opened, the plant is automatically shut down safely.
An important advantage as compared to mechanical safety relays is easy assembly, compact design and high degree of safety against contamination and moisture. Besides, they are wear-resistant, which reduces the maintenance cost.
ZANDER safety switches feature high degree of manipulation safety. They are TÜV-approved and can be used up to the highest safety level. Stainless steel models are available for application in the food industry or applications at high temperatures.
Effective safety of the employees and plants at optimum cost - ZANDER AACHEN
ZANDER safety technology offers their customers a comprehensive range of tried and tested switchgear. They all have one common denominator: Risks are minimised effectively and economically. Both man and machine are afforded optimum protection!
Whether it be a safety switch, non-contact safety sensors, guard locking switches, safety rope switches, safety relays or safety control units – providing safe working conditions during every technical phase is the crucial function of each and every one of our products. This is coupled with economic advantages: ZANDER safety switchgear is constructed such that long lasting periods of loss of production and cost-intensive downtime is prevented.
Our service: Upon request we will integrate comprehensive diagnostic tools and control functions or embed our components into existing hardware and software systems solutions.
All ZANDER safety switchgear is of course certified by accredited inspection institutes like TÜV, UL or GL.
