4414 FNH | 4414 FNN 4414 FNN | | EBMPapst | Quạt tản nhiệt | DC axial compact fan | EBMPapst vietnam
4414 FNH | 4414 FNN
EBMPapst Vietnam | Greentech Viet Nam
12 tháng
4414 FNH | 4414 FNN 4414 FNN | | EBMPapst | Quạt tản nhiệt | DC axial compact fan | EBMPapst vietnam
.

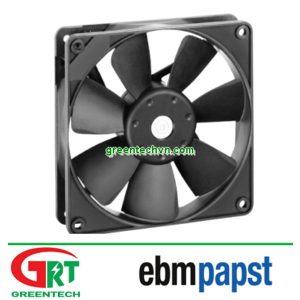

4414 F
DC axial compact fan
| Technical description | |
|---|---|
| Weight | 0.175 kg |
| Dimensions | 119 x 119 x 25 mm |
| Impeller material | glass-fiber reinforced PA plastic |
| Housing material | glass-fiber reinforced PBT plastic |
| Airflow direction | Exhaust over struts |
| Direction of rotation | Counterclockwise, viewed toward rotor |
| Storage | Ball bearing |
| Service life L10 at 40 °C | 60000 h |
| Service life L10 at maximum temperature | 37500 h |
| Cable | Leads AWG 24, TR 64, stripped and tin-plated. |
| Motor protection | Protection against reverse polarity and blocked rotor. |
| Locked-rotor protection | Locked-rotor and overload protection |
| Approval | VDE, CSA, UL, CE |
| Option | Speed signal, alarm signal |
| Type | |||||||
|---|---|---|---|---|---|---|---|
| in m³/h | in V | in Hz | in mm | in dB(A) | in Bel | ||
| 940 | 16 .. 36 | DC | 220 x 200 x 51 | 66 | 7.4 | ||
| 790 | 16 .. 30 | DC | 220 x 200 x 51 | 62 | 7.1 | ||
| 1220 | 36 .. 72 | DC | 220 x 200 x 51 | 72 | 8.2 | ||
| 940 | 36 .. 72 | DC | 220 x 200 x 51 | 66 | 7.4 | ||
| 790 | 36 .. 57 | DC | 220 x 200 x 51 | 62 | 7.1 | ||
| 4.6 | 10 .. 14 | DC | 25 x 25 x 8 | 23 | 4.4 | ||
| 3.4 | 10 .. 14 | DC | 25 x 25 x 8 | 15 | |||
| 4.6 | 4.5 .. 5.5 | DC | 25 x 25 x 8 | 23 | 4.4 | ||
| 2.3 | 4.5 .. 5.5 | DC | 25 x 25 x 8 | 5 | |||
| 3.5 | 4.5 .. 5.5 | DC | 25 x 25 x 8 | 16 | |||
| 146 | 7 .. 15 | DC | 92 x 92 x 38 | 55 | 6.4 | ||
| 237 | 6 .. 13.8 | DC | 92 x 92 x 38 | 69 | 7.8 | ||
| 280 | 6 .. 13.8 | DC | 92 x 92 x 38 | 73 | 8.2 | ||
| 130 | 7 .. 13.8 | DC | 92 x 92 x 38 | 51 | 6.1 | ||
| 146 | 12 .. 30 | DC | 92 x 92 x 38 | 55 | 6.4 | ||
| 237 | 12 .. 27.6 | DC | 92 x 92 x 38 | 69 | 7.8 | ||
| 280 | 12 .. 27.6 | DC | 92 x 92 x 38 | 73 | 8.2 | ||
| 130 | 11 .. 28 | DC | 92 x 92 x 38 | 51 | 6.1 | ||
| 146 | 36 .. 53 | DC | 92 x 92 x 38 | 55 | 6.4 | ||
| 237 | 20 .. 58 | DC | 92 x 92 x 38 | 69 | 7.8 | ||
| 280 | 20 .. 58 | DC | 92 x 92 x 38 | 73 | 8.2 | ||
| 130 | 36 .. 56 | DC | 92 x 92 x 38 | 51 | 6.1 | ||
| 270 | 7 .. 13,2 | DC | 92 x 92 x 38 | 64 | 7.6 | ||
| 270 | 14 .. 26,4 | DC | 92 x 92 x 38 | 64 | 7.6 | ||
| 270 | 36 .. 56 | DC | 92 x 92 x 38 | 64 | 7.6 | ||
| 235 | 36 .. 56 | DC | 92 x 92 x 38 | 59 | 7 | ||
| 93 | 6 .. 15 | DC | 92 x 92 x 32 | 38 | 5.1 | ||
| 133 | 6 .. 14 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 133 | 7 .. 13,2 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 107 | 6 .. 15 | DC | 92 x 92 x 32 | 42 | 5.4 | ||
| 56 | 6 .. 15 | DC | 92 x 92 x 32 | 24 | 4.1 | ||
| 68 | 6 .. 15 | DC | 92 x 92 x 32 | 29 | 4.3 | ||
| 80 | 6 .. 15 | DC | 92 x 92 x 32 | 35 | 4.7 | ||
| 93 | 12 .. 28 | DC | 92 x 92 x 32 | 38 | 5.1 | ||
| 133 | 12 .. 28 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 133 | 14 .. 26,4 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 107 | 12 .. 28 | DC | 92 x 92 x 32 | 42 | 5.4 | ||
| 56 | 12 .. 28 | DC | 24 | 4.1 | |||
| 68 | 12 .. 28 | DC | 92 x 92 x 32 | 29 | 4.3 | ||
| 80 | 12 .. 28 | DC | 92 x 92 x 32 | 35 | 4.7 | ||
| 80 | 36 .. 60 | DC | 92 x 92 x 32 | 37 | 5.2 | ||
| 93 | 36 .. 60 | DC | 92 x 92 x 32 | 38 | 5.1 | ||
| 133 | 36 .. 58 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 133 | 36 .. 56 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 107 | 36 .. 60 | DC | 92 x 92 x 32 | 42 | 5.4 | ||
| 80 | 36 .. 60 | DC | 92 x 92 x 32 | 35 | 4.7 | ||
| 84 | 8 .. 15 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 84 | 8 .. 15 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 94 | 8 .. 15 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 8 .. 13.2 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 8 .. 15 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 8 .. 15 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 72 | 8 .. 14 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 84 | 8 .. 12.6 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 94 | 8 .. 15 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 8 .. 13.2 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 102 | 8 .. 15 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 8 .. 15 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 8 .. 15 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 84 | 18 .. 28 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 84 | 18 .. 28 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 94 | 18 .. 26 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 18 .. 26 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 102 | 18 .. 28 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 18 .. 28 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 18 .. 28 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 94 | 18 .. 26 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 18 .. 26 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 102 | 18 .. 28 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 18 .. 28 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 18 .. 28 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 84 | 36 .. 56 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 10 | 4.5 .. 5.5 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 73 | 115 | 60 | AC | 92 x 92 x 38 | 35 | 4.6 | |
| 73 | 115 | 60 | AC | 92 x 92 x 38 | 36 | 4.7 | |
| 67 | 230 | 50 | AC | 92 x 92 x 38 | 32 | 4.4 | |
| 67 | 230 | 50 | AC | 92 x 92 x 38 | 33 | 4.5 | |
| 89 | 115 | 60 | AC | 92 x 92 x 38 | 41 | 5.1 | |
| 89 | 115 | 60 | AC | 92 x 92 x 38 | 42 | 5.2 | |
| 75 | 230 | 50 | AC | 92 x 92 x 38 | 36 | 4.8 | |
| 75 | 230 | 50 | AC | 92 x 92 x 38 | 37 | 4.9 | |
| 54 | 115 | 60 | AC | 92 x 92 x 38 | 26 | 3.9 | |
| 60 | 115 | 60 | AC | 92 x 92 x 38 | 29 | 4.2 | |
| 49 | 230 | 50 | AC | 92 x 92 x 38 | 24 | 3.7 | |
| 54 | 230 | 50 | AC | 92 x 92 x 38 | 26 | 3.9 | |
| 70 | 115 | 60 | AC | 92 x 92 x 25 | 40 | 5.1 | |
| 39 | 115 | 60 | AC | 92 x 92 x 25 | 27 | 4 | |
| 53 | 115 | 60 | AC | 92 x 92 x 25 | 34 | 4.6 | |
| 70 | 115 | 60 | AC | 92 x 92 x 25 | 40 | 5.1 | |
| 39 | 115 | 60 | AC | 92 x 92 x 25 | 27 | 4 | |
| 53 | 115 | 60 | AC | 92 x 92 x 25 | 34 | 4.6 | |
| 59 | 230 | 50 | AC | 92 x 92 x 25 | 35 | 4.7 | |
| 31 | 230 | 50 | AC | 92 x 92 x 25 | 24 | 3.8 | |
| 45 | 230 | 50 | AC | 92 x 92 x 25 | 29 | 4.2 | |
| 59 | 230 | 50 | AC | 92 x 92 x 25 | 35 | 4.7 | |
| 31 | 230 | 50 | AC | 92 x 92 x 25 | 24 | 3.8 | |
| 45 | 230 | 50 | AC | 92 x 92 x 25 | 29 | 4.2 | |
| 8 | 4.5 .. 5.5 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 9 | 4.5 .. 5.5 | DC | 40 x 40 x 10 | 26 | 4.6 | ||
| 310 | 9 .. 15 | DC | 119 x 119 x 38 | 65 | 7.2 | ||
| 355 | 9 .. 14 | DC | 119 x 119 x 38 | 67 | 7.4 | ||
| 260 | 9 .. 15 | DC | 119 x 119 x 38 | 60 | 6.8 | ||
| 500 | 16 .. 30 | DC | 119 x 119 x 38 | 76 | 8.5 | ||
| 570 | 16 .. 30 | DC | 119 x 119 x 38 | 78 | 8.9 | ||
| 310 | 16 .. 30 | DC | 119 x 119 x 38 | 65 | 7.2 | ||
| 355 | 16 .. 30 | DC | 119 x 119 x 38 | 67 | 7.4 | ||
| 390 | 16 .. 30 | DC | 119 x 119 x 38 | 70 | 7.6 | ||
| 440 | 16 .. 30 | DC | 119 x 119 x 38 | 73 | 8.1 | ||
| 260 | 16 .. 30 | DC | 119 x 119 x 38 | 60 | 6.8 | ||
| 500 | 36 .. 60 | DC | 119 x 119 x 38 | 76 | 8.5 | ||
| 570 | 36 .. 60 | DC | 119 x 119 x 38 | 78 | 8.9 | ||
| 310 | 36 .. 60 | DC | 119 x 119 x 38 | 65 | 7.2 | ||
| 355 | 36 .. 60 | DC | 119 x 119 x 38 | 67 | 7.4 | ||
| 390 | 36 .. 60 | DC | 119 x 119 x 38 | 70 | 7.6 | ||
| 440 | 36 .. 60 | DC | 119 x 119 x 38 | 73 | 8.1 | ||
| 260 | 36 .. 60 | DC | 119 x 119 x 38 | 60 | 6.8 | ||
| 10 | 10 .. 14 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 8 | 10 .. 14 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 8 | 10 .. 14 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 9 | 10 .. 14 | DC | 40 x 40 x 10 | 26 | 4.6 | ||
| 9 | 10 .. 14 | DC | 40 x 40 x 10 | 26 | 4.6 | ||
| 6 | 10 .. 14 | DC | 40 x 40 x 10 | 17 | 3.8 | ||
| 6 | 10 .. 14 | DC | 40 x 40 x 10 | 17 | 3.8 | ||
| 13.5 | 10 .. 14 | DC | 40 x 40 x 20 | 29 | 4.7 | ||
| 19 | 8 .. 14 | DC | 40 x 40 x 25 | 39 | 5.5 | ||
| 22 | 8 .. 13.5 | DC | 40 x 40 x 25 | 43 | 5.8 | ||
| 24 | 8 .. 13.5 | DC | 40 x 40 x 25 | 46 | 6.1 | ||
| 10 | 10 .. 14 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 10 | 20 .. 28 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 8 | 20 .. 28 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 9 | 21.6 .. 26.4 | DC | 40 x 40 x 10 | 26 | 4.4 | ||
| 13.5 | 20 .. 26.5 | DC | 40 x 40 x 20 | 29 | 4.7 | ||
| 19 | 18 .. 27 | DC | 40 x 40 x 25 | 39 | 5.5 | ||
| 22 | 18 .. 27 | DC | 40 x 40 x 25 | 43 | 5.8 | ||
| 24 | 18 .. 27 | DC | 40 x 40 x 25 | 46 | 6.1 | ||
| 160 | 6 .. 15 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 180 | 6 .. 15 | DC | 119 x 119 x 38 | 49 | 5.7 | ||
| 237 | 7 .. 14 | DC | 119 x 119 x 38 | 57 | 6.5 | ||
| 160 | 12 .. 31,5 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 180 | 12 .. 31,5 | DC | 119 x 119 x 38 | 49 | 5.7 | ||
| 237 | 12 .. 28 | DC | 119 x 119 x 38 | 57 | 6.5 | ||
| 160 | 12 .. 31,5 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 160 | 36 .. 60 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 160 | 36 .. 60 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 38 | 8 .. 13,8 | DC | 40 x 40 x 28 | 54 | 6.6 | ||
| 24 | 8 .. 13,8 | DC | 40 x 40 x 28 | 42 | 5.5 | ||
| 31 | 8 .. 13,8 | DC | 40 x 40 x 28 | 48 | 6 | ||
| 38 | 16 .. 26,4 | DC | 40 x 40 x 28 | 54 | 6.6 | ||
| 24 | 16 .. 28 | DC | 40 x 40 x 28 | 42 | 5.5 | ||
| 31 | 16 .. 28 | DC | 40 x 40 x 28 | 48 | 6 | ||
| 170 | 6 .. 15 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 170 | 6 .. 15 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 95 | 6 .. 15 | DC | 119 x 119 x 32 | 30 | 4.3 | ||
| 140 | 6 .. 15 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 95 | 6 .. 15 | DC | 119 x 119 x 32 | 30 | 4.3 | ||
| 140 | 6 .. 15 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 138 | 8 .. 15 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| DC | 119 x 119 x 32 | ||||||
| 220 | 6 .. 15 | DC | 119 x 119 x 32 | 47 | 5.8 | ||
| 285 | 7 .. 13,2 | DC | 119 x 119 x 32 | 55 | 6.6 | ||
| 250 | 6 .. 14,4 | DC | 119 x 119 x 32 | 51 | 6.2 | ||
| DC | 119 x 119 x 32 | ||||||
| 150 | 6 .. 15 | DC | 119 x 119 x 32 | 36 | 4.7 | ||
| 190 | 6 .. 15 | DC | 119 x 119 x 32 | 43 | 5.4 | ||
| 170 | 8 .. 13.2 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 180 | 6 .. 15 | DC | 119 x 119 x 32 | 47 | 6.1 | ||
| 204 | 6 .. 13.2 | DC | 119 x 119 x 32 | 51 | 6.4 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 95 | 12 .. 28 | DC | 119 x 119 x 32 | 30 | 4.3 | ||
| 140 | 12 .. 28 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 220 | 12 .. 28 | DC | 119 x 119 x 32 | 47 | 5.8 | ||
| 285 | 14 .. 26,4 | DC | 119 x 119 x 32 | 55 | 6.6 | ||
| 250 | 12 .. 27 | DC | 119 x 119 x 32 | 51 | 6.2 | ||
| 100 | 12 .. 28 | DC | 119 x 119 x 32 | 25 | 3.9 | ||
| 150 | 12 .. 28 | DC | 119 x 119 x 32 | 36 | 4.7 | ||
| 190 | 12 .. 28 | DC | 119 x 119 x 32 | 41 | 5.5 | ||
| 170 | 18 .. 32 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 170 | 21 .. 27 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 180 | 12 .. 28 | DC | 119 x 119 x 32 | 47 | 6.1 | ||
| 204 | 12 .. 26.5 | DC | 119 x 119 x 32 | 51 | 6.4 | ||
| 170 | 36 .. 53 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 140 | 36 .. 56 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 220 | 36 .. 60 | DC | 119 x 119 x 32 | 47 | 5.8 | ||
| 285 | 36 .. 52,8 | DC | 119 x 119 x 32 | 55 | 6.6 | ||
| 190 | 36 .. 60 | DC | 119 x 119 x 32 | 43 | 5.4 | ||
| 170 | 40 .. 53 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 285 | 7 .. 14.5 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 170 | 8 .. 12.6 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 170 | 8 .. 12.6 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 94 | 7 .. 14 | DC | 119 x 119 x 25 | 26 | 3.9 | ||
| 91 | 7 .. 15 | DC | 127 x 127 | 26 | 3.9 | ||
| 140 | 7 .. 12.6 | DC | 119 x 119 x 25 | 38 | 4.8 | ||
| 114 | 7 .. 12.6 | DC | 119 x 119 x 25 | 32 | 4.3 | ||
| 140 | 7 .. 12.6 | DC | 119 x 119 x 25 | 38 | 4.8 | ||
| 114 | 7 .. 12.6 | DC | 119 x 119 x 25 | 32 | 4.3 | ||
| 225 | 9 .. 13.2 | DC | 119 x 119 x 25 | 55 | 6.7 | ||
| 240 | 7 .. 14 | DC | 119 x 119 x 38 | 50 | 6 | ||
| 150 | 7 .. 14 | DC | 119 x 119 x 38 | 37 | 5 | ||
| 184 | 7 .. 14 | DC | 119 x 119 x 38 | 42 | 5.3 | ||
| 168 | 7 .. 15 | DC | 119 x 119 x 38 | 40 | 5.1 | ||
| 205 | 7 .. 14 | DC | 119 x 119 x 38 | 46 | 5.6 | ||
| 285 | 18 .. 28 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 94 | 18 .. 28 | DC | 119 x 119 x 25 | 26 | 3.9 | ||
| 140 | 12 .. 28 | DC | 119 x 119 x 25 | 38 | 4.8 | ||
| 225 | 18 .. 26.4 | DC | 119 x 119 x 25 | 55 | 6.7 | ||
| 200 | 14 .. 28 | DC | 119 x 119 x 25 | 52 | 6.5 | ||
| 240 | 18 .. 28 | DC | 119 x 119 x 38 | 50 | 6 | ||
| 285 | 16 .. 28 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 150 | 18 .. 28 | DC | 119 x 119 x 38 | 37 | 5 | ||
| 100 | 12 .. 28 | DC | 119 x 119 x 38 | 26 | 4 | ||
| DC | 119 x 119 x 38 | ||||||
| 184 | 18 .. 28 | DC | 119 x 119 x 38 | 42 | 5.3 | ||
| 168 | 12 .. 28 | DC | 119 x 119 x 38 | 40 | 5.1 | ||
| 205 | 18 .. 28 | DC | 119 x 119 x 38 | 46 | 5.6 | ||
| 285 | 36 .. 60 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 170 | 28 .. 53 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 170 | 28 .. 53 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 225 | 36 .. 53 | DC | 119 x 119 x 25 | 55 | 6.7 | ||
| 240 | 36 .. 60 | DC | 119 x 119 x 38 | 50 | 6 | ||
| 150 | 36 .. 60 | DC | 119 x 119 x 38 | 37 | 5 | ||
| 184 | 36 .. 60 | DC | 119 x 119 x 38 | 42 | 5.3 | ||
| 168 | 36 .. 60 | DC | 119 x 119 x 38 | 40 | 5.1 | ||
| 205 | 36 .. 60 | DC | 119 x 119 x 38 | 46 | 5.6 | ||
| 169 | 115 | 60 | AC | 119 x 119 x 38 | 48 | 5.7 | |
| 151 | 115 | 60 | AC | 119 x 119 x 38 | 45 | 5.4 | |
| 120 | 115 | 60 | AC | 119 x 119 x 38 | 32 | 4.4 | |
| 120 | 115 | 60 | AC | 119 x 119 x 38 | 32 | 4.4 | |
| 145 | 230 | 50 | AC | 119 x 119 x 38 | 44 | 5.4 | |
| 123 | 230 | 50 | AC | 119 x 119 x 38 | 41 | 5.2 | |
| 115 | 230 | 50 | AC | 119 x 119 x 38 | 30 | 4.3 | |
| 115 | 230 | 50 | AC | 119 x 119 x 38 | 30 | 4.3 | |
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 50 | 5.7 | |
| 140 | 115 | 60 | AC | 108 Ø x 37 | 45 | ||
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 45 | 5.6 | |
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 51 | 5.8 | |
| 147 | 115 | 60 | AC | 113 Ø x 37 | 44 | ||
| 140 | 115 | 60 | AC | 108 Ø x 37 | 45 | ||
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 45 | 5.6 | |
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 46 | 5.4 | |
| 138 | 230 | 50 | AC | 113 Ø x 37 | 41 | ||
| 125 | 230 | 50 | AC | 108 Ø x 37 | 42 | ||
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 40 | 5.3 | |
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 47 | 5.5 | |
| 138 | 230 | 50 | AC | 113 Ø x 37 | 42 | ||
| 125 | 230 | 50 | AC | 108 Ø x 37 | 42 | ||
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 40 | 5.3 | |
| 97 | 115 | 60 | AC | 119 x 119 x 38 | 32 | 4.3 | |
| 105 | 115 | 60 | AC | 119 x 119 x 38 | 28 | 4.1 | |
| 105 | 115 | 60 | AC | 119 x 119 x 38 | 28 | 4.1 | |
| 85 | 115 | 60 | AC | 119 x 119 x 38 | 26 | 4.1 | |
| 100 | 230 | 50 | AC | 119 x 119 x 38 | 32 | 4.4 | |
| 100 | 230 | 50 | AC | 119 x 119 x 38 | 26 | 4 | |
| 100 | 230 | 50 | AC | 119 x 119 x 38 | 26 | 4 | |
| 80 | 230 | 50 | AC | 119 x 119 x 38 | 25 | 4 | |
| 260 | 6 .. 15 | DC | 135 x 135 x 38 | 48 | 6.1 | ||
| 260 | 12 .. 30 | DC | 135 x 135 x 38 | 48 | 6.1 | ||
| 260 | 24 .. 60 | DC | 135 x 135 x 38 | 48 | 6.1 | ||
| 122 | 24 .. 60 | DC | 135 x 135 x 38 | 28 | 4.1 | ||
| 20 | 10.8 .. 13.2 | DC | 50 x 50 x 15 | 30 | 4.5 | ||
| 20 | 10.8 .. 13.2 | DC | 50 x 50 x 15 | 30 | 4.5 | ||
| 11 | 11.5 .. 13.2 | DC | 50 x 50 x 15 | 18 | 3.7 | ||
| 20 | 21.6 .. 26.4 | DC | 50 x 50 x 15 | 30 | 4.5 | ||
| 252 | 7 .. 14 | DC | 127 x 127 x 38 | 51 | 6 | ||
| 340 | 9 .. 15 | DC | 127 x 127 x 38 | 58 | 6.6 | ||
| 187 | 7 .. 14.5 | DC | 127 x 127 x 38 | 43 | 5.3 | ||
| 216 | 7 .. 14 | DC | 127 x 127 x 38 | 46 | 5.6 | ||
| 252 | 12 .. 28 | DC | 127 x 127 x 38 | 51 | 6 | ||
| 340 | 16 .. 30 | DC | 127 x 127 x 38 | 58 | 6.6 | ||
| 187 | 12 .. 28 | DC | 127 x 127 x 38 | 43 | 5.3 | ||
| 216 | 12 .. 28 | DC | 127 x 127 x 38 | 46 | 5.6 | ||
| 252 | 36 .. 56 | DC | 127 x 127 x 38 | 51 | 6 | ||
| 340 | 36 .. 60 | DC | 127 x 127 x 38 | 58 | 6.6 | ||
| 187 | 36 .. 56 | DC | 127 x 127 x 38 | 43 | 5.3 | ||
| 216 | 36 .. 56 | DC | 127 x 127 x 38 | 46 | 5.6 | ||
| 410 | 8 .. 16 | DC | 140 x 140 x 51 | 70 | 7.7 | ||
| 410 | 16 .. 36 | DC | 140 x 140 x 51 | 70 | 7.7 | ||
| 340 | 16 .. 28 | DC | 140 x 140 x 51 | 64 | 7.2 | ||
| 490 | 16 .. 36 | DC | 140 x 140 x 51 | 75 | 8.1 | ||
| 670 | 36 .. 72 | DC | 140 x 140 x 51 | 79 | 8.8 | ||
| 490 | 36 .. 72 | DC | 140 x 140 x 51 | 75 | 8.1 | ||
| 410 | 36 .. 72 | DC | 140 x 140 x 51 | 70 | 7.7 | ||
| 340 | 36 .. 72 | DC | 140 x 140 x 51 | 64 | 7.2 | ||
| 270 | 115 | 60 | AC | 135 x 135 x 38 | 50 | 6.2 | |
| 235 | 230 | 50 | AC | 135 x 135 x 38 | 46 | 5.9 | |
| 206 | 115 | 60 | AC | 127 x 127 x 38 | 46 | 5.7 | |
| 206 | 115 | 60 | AC | 127 x 127 x 38 | 47 | 5.8 | |
| 162 | 115 | 60 | AC | 127 x 127 x 38 | 40 | 4.9 | |
| 180 | 230 | 50 | AC | 127 x 127 x 38 | 43 | 5.4 | |
| 180 | 230 | 50 | AC | 127 x 127 x 38 | 44 | 5.5 | |
| 150 | 230 | 50 | AC | 127 x 127 x 38 | 37 | 4.9 | |
| 440 | 115 | 60 | AC | 172 Ø x 51 | 60 | 6.4 | |
| 500 | 115 | 60 | AC | 172 Ø x 51 | 58 | 6.7 | |
| 29 | 4.5 .. 5.2 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 375 | 230 | 50 | AC | 172 Ø x 51 | 55 | 5.9 | |
| 420 | 230 | 50 | AC | 172 Ø x 51 | 54 | 6.3 | |
| 29 | 10.8 .. 13.2 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 29 | 10.8 .. 12.6 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 33 | 10 .. 13.2 | DC | 60 x 60 x 15 | 31 | 4.8 | ||
| 19 | 11.5 .. 13.2 | DC | 60 x 60 x 15 | 16 | 3.6 | ||
| 19 | 11.5 .. 14 | DC | 60 x 60 x 15 | 16 | 3.6 | ||
| 70 | 7 .. 13.6 | DC | 60 x 60 x 32 | 53 | 6.4 | ||
| 21 | 8 .. 15 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 8 .. 15 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 35 | 8 .. 12.6 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 8 .. 15 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 41 | 8 .. 12.6 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 41 | 8 .. 12.6 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 43 | 8 .. 15 | DC | 60 x 60 x 25 | 37 | 5.3 | ||
| 56 | 8 .. 15 | DC | 60 x 60 x 25 | 41 | 5.7 | ||
| 21 | 8 .. 15 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 8 .. 15 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 35 | 8 .. 12.6 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 8 .. 15 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 42 | 8 .. 15 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 41 | 8 .. 12.6 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 29 | 21.6 .. 26.4 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 33 | 16 .. 28 | DC | 60 x 60 x 15 | 31 | 4.8 | ||
| 82 | 18 .. 30 | DC | 60 x 60 x 32 | 62 | 7.6 | ||
| 70 | 14 .. 26.4 | DC | 60 x 60 x 32 | 53 | 6.4 | ||
| 21 | 18 .. 28 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 18 .. 28 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 18 .. 28 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 43 | 18 .. 26 | DC | 60 x 60 x 25 | 37 | 5.3 | ||
| 56 | 18 .. 26 | DC | 60 x 60 x 25 | 41 | 5.7 | ||
| 56 | 18 .. 28 | DC | 60 x 60 x 25 | 41 | 5.7 | ||
| 21 | 18 .. 28 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 18 .. 28 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 18 .. 28 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 42 | 18 .. 28 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 82 | 38 .. 58 | DC | 60 x 60 x 32 | 62 | 7.6 | ||
| 70 | 36 .. 56 | DC | 60 x 60 x 32 | 53 | 6.4 | ||
| 35 | 36 .. 56 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 42 | 36 .. 56 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 67 | 8 .. 13.2 | DC | 60 x 60 x 25 | 48 | 5.9 | ||
| 46 | 8 .. 15 | DC | 60 x 60 x 25 | 39 | 5.1 | ||
| 56 | 8 .. 15 | DC | 60 x 60 x 25 | 43 | 5.6 | ||
| 30 | 8 .. 15 | DC | 60 x 60 x 25 | 29 | 4.3 | ||
| 30 | 8 .. 15 | DC | 60 x 60 x 25 | 29 | 4.3 | ||
| 40 | 8 .. 15 | DC | 60 x 60 x 25 | 35 | 4.7 | ||
| 46 | 18 .. 28 | DC | 60 x 60 x 25 | 39 | 5.1 | ||
| 56 | 18 .. 28 | DC | 60 x 60 x 25 | 43 | 5.6 | ||
| 21 | 18 .. 28 | DC | 60 x 60 x 25 | 20 | 3.7 | ||
| 30 | 12 .. 28 | DC | 60 x 60 x 25 | 29 | 4.3 | ||
| 40 | 12 .. 28 | DC | 60 x 60 x 25 | 35 | 4.7 | ||
| 56 | 36 .. 60 | DC | 60 x 60 x 25 | 43 | 5.6 | ||
| 600 | 8 .. 16 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 610 | 8 .. 16 | DC | 172 Ø x 51 | ||||
| 600 | 16 .. 36 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 710 | 16 .. 36 | DC | 172 Ø x 51 | 69 | 7.9 | ||
| 545 | 16 .. 30 | DC | 172 Ø x 51 | 58 | 6.9 | ||
| 395 | 16 .. 30 | DC | 172 Ø x 51 | 51 | 6 | ||
| 470 | 16 .. 30 | DC | 172 Ø x 51 | 56 | 6.5 | ||
| 930 | 16 .. 36 | DC | 172 Ø x 51 | 75 | 8.4 | ||
| 710 | 16 .. 36 | DC | 172 x 160 x 51 | 69 | 7.9 | ||
| 600 | 16 .. 30 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 540 | 16 .. 36 | DC | 172 Ø x 51 | 6.9 | |||
| 970 | 16 .. 36 | DC | 172 Ø x 51 | 8.3 | |||
| 930 | 36 .. 72 | DC | 172 Ø x 51 | 75 | 8.4 | ||
| 710 | 36 .. 72 | DC | 172 Ø x 51 | 69 | 7.9 | ||
| 600 | 36 .. 72 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 545 | 36 .. 72 | DC | 172 Ø x 51 | 58 | 6.9 | ||
| 930 | 36 .. 72 | DC | 172 x 160 x 51 | 75 | 8.4 | ||
| 600 | 36 .. 60 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 685 | 36 .. 72 | DC | 172 Ø x 51 | 7.5 | |||
| 1030 | 36 .. 72 | DC | 172 Ø x 51 | 83 | 8.4 | ||
| 44 | 10,8 .. 13,2 | DC | 60 x 60 x 25 | 35 | 5.4 | ||
| 40 | 6 .. 15 | DC | 60 x 60 x 25 | 33 | 5.2 | ||
| 58 | 18 .. 28 | DC | 60 x 60 x 25 | 44 | 6.1 | ||
| 40 | 12 .. 30 | DC | 60 x 60 x 25 | 34 | 5.1 | ||
| 58 | 18 .. 28 | DC | 60 x 60 x 25 | 44 | 6.1 | ||
| 44 | 40 .. 60 | DC | 60 x 60 x 25 | 35 | 5.4 | ||
| 350 | 8 .. 15 | DC | 172 x 150 x 51 | 52 | 6 | ||
| 410 | 12 .. 28 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 480 | 12 .. 28 | DC | 172 x 150 x 51 | 63 | 7.1 | ||
| 350 | 12 .. 32 | DC | 172 x 150 x 51 | 52 | 6 | ||
| 410 | 12 .. 28 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 600 | 16 .. 28 | DC | 172 x 150 x 51 | 65 | 7.4 | ||
| 410 | 28 .. 60 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 480 | 28 .. 60 | DC | 172 x 150 x 51 | 63 | 7.1 | ||
| 350 | 28 .. 60 | DC | 172 x 150 x 51 | 52 | 6 | ||
| 410 | 28 .. 60 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 600 | 40 .. 55 | DC | 172 x 150 x 72 | 65 | 7.4 | ||
| 900 | 36 .. 72 | DC | 172 x 150 x 51 | 78 | 8.6 | ||
| 380 | 115 | 60 | AC | 150 x 172 x 38 | 56 | 6.8 | |
| 320 | 230 | 50 | AC | 150 x 172 x 38 | 51 | 6.4 | |
| 308 | 6 .. 15 | DC | 150 Ø x 38 | 53 | 6.2 | ||
| 308 | 12 .. 30 | DC | 150 Ø x 38 | 53 | 6.2 | ||
| 360 | 12 .. 26.5 | DC | 150 Ø x 38 | 58 | 6.7 | ||
| 308 | 24 .. 60 | DC | 150 Ø x 38 | 53 | 6.2 | ||
| 44 | 8 .. 13.8 | DC | 70 x 70 x 15 | 38 | 5.3 | ||
| 28 | 8 .. 13.8 | DC | 70 x 70 x 15 | 25 | 4.7 | ||
| 36 | 8 .. 13.8 | DC | 70 x 70 x 15 | 32 | 5 | ||
| 44 | 18 .. 28 | DC | 70 x 70 x 15 | 38 | 5.3 | ||
| 360 | 6 .. 15 | DC | 150 Ø x 55 | 53 | 6.2 | ||
| 360 | 12 .. 30 | DC | 150 Ø x 55 | 53 | 6.2 | ||
| 360 | 24 .. 60 | DC | 150 Ø x 55 | 53 | 6.2 | ||
| 425 | 115 | 60 | AC | 150 Ø x 55 | 62 | 6.9 | |
| 380 | 230 | 50 | AC | 150 Ø x 55 | 60 | 6.8 | |
| 380 | 115 | 60 | AC | 150 Ø x 55 | 53 | 6.4 | |
| 380 | 115 | 60 | AC | 150 Ø x 55 | 53 | 6.4 | |
| 325 | 230 | 50 | AC | 150 Ø x 55 | 49 | 6 | |
| 325 | 230 | 50 | AC | 150 Ø x 55 | 49 | 6 | |
| 190 | 6 .. 13.8 | DC | 80 x 80 x 38 | 66 | 7.3 | ||
| 222 | 6 .. 13.8 | DC | 80 x 80 x 38 | 71 | 7.8 | ||
| 132 | 7 .. 13.8 | DC | 80 x 80 x 38 | 55 | 6.6 | ||
| 190 | 12 .. 27.6 | DC | 80 x 80 x 38 | 66 | 7.3 | ||
| 222 | 12 .. 27.6 | DC | 80 x 80 x 38 | 71 | 7.8 | ||
| 132 | 18 .. 26.4 | DC | 80 x 80 x 38 | 55 | 6.6 | ||
| 190 | 36 .. 53 | DC | 80 x 80 x 38 | 66 | 7.3 | ||
| 222 | 20 .. 58 | DC | 80 x 80 x 38 | 71 | 7.8 | ||
| 132 | 36 .. 53 | DC | 80 x 80 x 38 | 55 | 6.6 | ||
| 54 | 6 .. 15 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 48 | 6 .. 15 | DC | 80 x 80 x 32 | 34 | 5 | ||
| 80 | 6 .. 12.6 | DC | 80 x 80 x 32 | 48 | 6.2 | ||
| 67 | 6 .. 15 | DC | 80 x 80 x 32 | 43 | 5.8 | ||
| 32 | 6 .. 15 | DC | 80 x 80 x 32 | 24 | 4 | ||
| 48 | 6 .. 15 | DC | 80 x 80 x 32 | 34 | 5 | ||
| 54 | 12 .. 31,5 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 54 | 12 .. 28 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 80 | 6 .. 12,6 | DC | 80 x 80 x 32 | 48 | 6.2 | ||
| 67 | 12 .. 31,5 | DC | 80 x 80 x 32 | 43 | 5.8 | ||
| 32 | 12 .. 31,5 | DC | 80 x 80 x 32 | 24 | 4 | ||
| 48 | 12 .. 31,5 | DC | 80 x 80 x 32 | 34 | 5 | ||
| 54 | 36 .. 56 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 80 | 36 .. 56 | DC | 80 x 80 x 32 | 48 | 6.2 | ||
| 67 | 36 .. 56 | DC | 80 x 80 x 32 | 43 | 5.8 | ||
| 69 | 8 .. 15 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 69 | 8 .. 15 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 33 | 8 .. 15 | DC | 80 x 80 x 25 | 12 | 3.5 | ||
| 33 | 10 .. 14 | DC | 80 x 80 x 25 | 12 | 3.5 | ||
| 58 | 8 .. 15 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 58 | 8 .. 14 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 45 | 8 .. 15 | DC | 80 x 80 x 25 | 19 | 3.9 | ||
| 45 | 8 .. 14 | DC | 80 x 80 x 25 | 19 | 3.9 | ||
| 58 | 8 .. 14 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 79 | 8 .. 13.2 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 79 | 8 .. 15 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 33 | 8 .. 15 | DC | 80 x 80 x 25 | 17 | 3.7 | ||
| 58 | 8 .. 15 | DC | 80 x 80 x 25 | 27 | 4.4 | ||
| 45 | 8 .. 15 | DC | 80 x 80 x 25 | 21 | 4 | ||
| 69 | 18 .. 28 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 69 | 18 .. 28 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 33 | 18 .. 28 | DC | 80 x 80 x 25 | 12 | 3.5 | ||
| 58 | 18 .. 28 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 45 | 18 .. 28 | DC | 80 x 80 x 25 | 19 | 3.9 | ||
| 79 | 18 .. 26 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 79 | 18 .. 28 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 33 | 18 .. 28 | DC | 80 x 80 x 25 | 17 | 3.7 | ||
| 58 | 18 .. 28 | DC | 80 x 80 x 25 | 27 | 4.4 | ||
| 45 | 18 .. 28 | DC | 80 x 80 x 25 | 21 | 4 | ||
| 69 | 36 .. 56 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 117 | 8 .. 15 | DC | 80 x 80 x 25 | 50 | 6.4 | ||
| 83 | 10.8 .. 13.2 | DC | 80 x 80 x 25 | 42 | 5.5 | ||
| 75 | 10.8 .. 13.2 | DC | 80 x 80 x 25 | 38 | 5.3 | ||
| 32 | 8 .. 15 | DC | 80 x 80 x 25 | 14 | 3.3 | ||
| 58 | 8 .. 15 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 68 | 8 .. 15 | DC | 80 x 80 x 25 | 36 | 5 | ||
| 117 | 20 .. 26,4 | DC | 80 x 80 x 25 | 50 | 6.4 | ||
| 57 | 115 | 60 | AC | 80 x 80 x 38 | 41 | 5.5 | |
| 61 | 115 | 60 | AC | 80 x 80 x 38 | 34 | 4.8 | |
| 45 | 115 | 60 | AC | 76 Ø x 37 | 30 | ||
| 47 | 115 | 60 | AC | 76 Ø x 37 | 32 | ||
| 57 | 115 | 60 | AC | 80 x 80 x 38 | 42 | 5.7 | |
| 61 | 115 | 60 | AC | 80 x 80 x 38 | 35 | 5 | |
| 45 | 115 | 60 | AC | 76 Ø x 37 | 31 | ||
| 47 | 115 | 60 | AC | 76 Ø x 37 | 33 | ||
| 48 | 230 | 50 | AC | 80 x 80 x 38 | 36 | 5 | |
| 50 | 230 | 50 | AC | 80 x 80 x 38 | 30 | 4.4 | |
| 38 | 230 | 50 | AC | 76 Ø x 37 | 25 | ||
| 40 | 230 | 50 | AC | 76 Ø x 37 | 27 | ||
| 48 | 230 | 50 | AC | 80 x 80 x 38 | 37 | 5.1 | |
| 50 | 230 | 50 | AC | 80 x 80 x 38 | 31 | 4.5 | |
| 38 | 230 | 50 | AC | 76 Ø x 37 | 26 | ||
| 40 | 230 | 50 | AC | 76 Ø x 37 | 28 | ||
| 45 | 115 | 60 | AC | 80 x 80 x 38 | 34 | 4.8 | |
| 47 | 115 | 60 | AC | 80 x 80 x 38 | 28 | 4.3 | |
| 34 | 115 | 60 | AC | 76 Ø x 37 | 23 | ||
| 36 | 115 | 60 | AC | 76 Ø x 37 | 24 | ||
| 34 | 115 | 60 | AC | 80 x 80 x 38 | 29 | 4.3 | |
| 36 | 115 | 60 | AC | 80 x 80 x 38 | 21 | 3.7 | |
| 26 | 115 | 60 | AC | 76 Ø x 37 | 18 | ||
| 27 | 115 | 60 | AC | 76 Ø x 37 | 18 | ||
| 36 | 230 | 50 | AC | 80 x 80 x 38 | 31 | 4.6 | |
| 37 | 230 | 50 | AC | 80 x 80 x 38 | 24 | 3.9 | |
| 30 | 230 | 50 | AC | 76 Ø x 37 | 19 | ||
| 31 | 230 | 50 | AC | 76 Ø x 37 | 20 | ||
| 29 | 230 | 50 | AC | 80 x 80 x 38 | 26 | 4.1 | |
| 30 | 230 | 50 | AC | 80 x 80 x 38 | 18 | 3.3 | |
| 23 | 230 | 50 | AC | 76 Ø x 37 | 15 | ||
| 24 | 230 | 50 | AC | 76 Ø x 37 | 15 | ||
| 135 | 115 | 60 | AC | 119 x 119 x 25 | 42 | 5.4 | |
| 135 | 115 | 60 | AC | 119 x 119 x 25 | 42 | 5.4 | |
| 100 | 115 | 60 | AC | 119 x 119 x 25 | 34 | 4.6 | |
| 111 | 115 | 60 | AC | 119 x 119 x 25 | 37 | 5 | |
| 117 | 230 | 50 | AC | 119 x 119 x 25 | 37 | 5 | |
| 117 | 230 | 50 | AC | 119 x 119 x 25 | 37 | 5 | |
| 84 | 230 | 50 | AC | 119 x 119 x 25 | 29 | 4.4 | |
| 104 | 230 | 50 | AC | 119 x 119 x 25 | 35 | 4.7 | |
| 55 | 50/60 | DC | 98.50 x 130 | 33 | 4.5 | ||
| 53 | 50/60 | DC | 98.5 x 130 | 33 | 4.4 | ||
| 144 | 115 | 50 | AC | 92 x 92 x 38 | 55 | 6.4 | |
| 204 | 115 | 50 | AC | 119 x 119 x 32 | 51 | 6.4 | |
| 205 | 115 | 50 | AC | 119 x 119 x 25 | 53 | 6.2 | |
| 350 | 115 | 50 | AC | 172 Ø x 51 | 50 | 5.7 | |
| 80 | 115 | 50 | AC | 80 x 80 x 32 | 48 | 6.2 | |
| 80 | 85 .. 265 | 50/60 | DC | 98.5 x 130 | 35 | 4.7 | |
| 78 | DC | 119x119x38 | 23 | 3.7 | |||
| 175 | 85 .. 132 | AC | 119 x 119 x 38 | 42 | 5.3 | ||
| 160 | 195 .. 265 | AC | 119 x 119 x 38 | 39 | 5.1 | ||
| 175 | 195 .. 265 | AC | 119 x 119 x 38 | 42 | 5.3 | ||
| 100 | 195 .. 265 | AC | 119 x 119 x 38 | 25 | 4.1 | ||
| 147 | 195 .. 265 | AC | 119 x 119 x 38 | 36 | 4.9 | ||
| 240 | 230 | 50/60 | AC | 130 | |||
| 275 | 230 | 50/60 | AC | 130 | |||
| 210 | 115 | 50/60 | AC | 130 | |||
| 275 | 115 | 50/60 | AC | 130 | |||
| 1090 | 36 .. 57 | - | DC | 200 | 60 | ||
| 1090 | 16 .. 28 | DC | 200 | 60 | |||
| 1920 | 16 .. 28 | DC | 250 | 70 | |||
| 1920 | 36 .. 57 | DC | 250 | 70 | |||
| 880 | 230 | 50 | AC | 200 | 58 | ||
| 1000 | 230 | 60 | AC | 200 | 61 | ||
| 925 | 115 | 50 | AC | 200 | 59 | ||
| 1030 | 115 | 60 | AC | 200 | 61 | ||
| 1865 | 230 | 50 | AC | 250 | 69 | ||
| 1970 | 230 | 60 | AC | 250 | 70 | ||
| 450 | 230 | 50 | AC | 200 | 40 | ||
| 525 | 230 | 60 | AC | 200 | 44 |
Legend
qV = Air flow
UN = Nominal voltage (range)
f = Frequency
UN = Nominal voltage (range)
f = Frequency
AC/DC = Type of voltage
Dimensions = Dimensions / Size
LpA = Sound pressure level
Dimensions = Dimensions / Size
LpA = Sound pressure level
LwA = Sound power level
| Type | |||||||
|---|---|---|---|---|---|---|---|
| in m³/h | in V | in Hz | in mm | in dB(A) | in Bel | ||
| 940 | 16 .. 36 | DC | 220 x 200 x 51 | 66 | 7.4 | ||
| 790 | 16 .. 30 | DC | 220 x 200 x 51 | 62 | 7.1 | ||
| 1220 | 36 .. 72 | DC | 220 x 200 x 51 | 72 | 8.2 | ||
| 940 | 36 .. 72 | DC | 220 x 200 x 51 | 66 | 7.4 | ||
| 790 | 36 .. 57 | DC | 220 x 200 x 51 | 62 | 7.1 | ||
| 4.6 | 10 .. 14 | DC | 25 x 25 x 8 | 23 | 4.4 | ||
| 3.4 | 10 .. 14 | DC | 25 x 25 x 8 | 15 | |||
| 4.6 | 4.5 .. 5.5 | DC | 25 x 25 x 8 | 23 | 4.4 | ||
| 2.3 | 4.5 .. 5.5 | DC | 25 x 25 x 8 | 5 | |||
| 3.5 | 4.5 .. 5.5 | DC | 25 x 25 x 8 | 16 | |||
| 146 | 7 .. 15 | DC | 92 x 92 x 38 | 55 | 6.4 | ||
| 237 | 6 .. 13.8 | DC | 92 x 92 x 38 | 69 | 7.8 | ||
| 280 | 6 .. 13.8 | DC | 92 x 92 x 38 | 73 | 8.2 | ||
| 130 | 7 .. 13.8 | DC | 92 x 92 x 38 | 51 | 6.1 | ||
| 146 | 12 .. 30 | DC | 92 x 92 x 38 | 55 | 6.4 | ||
| 237 | 12 .. 27.6 | DC | 92 x 92 x 38 | 69 | 7.8 | ||
| 280 | 12 .. 27.6 | DC | 92 x 92 x 38 | 73 | 8.2 | ||
| 130 | 11 .. 28 | DC | 92 x 92 x 38 | 51 | 6.1 | ||
| 146 | 36 .. 53 | DC | 92 x 92 x 38 | 55 | 6.4 | ||
| 237 | 20 .. 58 | DC | 92 x 92 x 38 | 69 | 7.8 | ||
| 280 | 20 .. 58 | DC | 92 x 92 x 38 | 73 | 8.2 | ||
| 130 | 36 .. 56 | DC | 92 x 92 x 38 | 51 | 6.1 | ||
| 270 | 7 .. 13,2 | DC | 92 x 92 x 38 | 64 | 7.6 | ||
| 270 | 14 .. 26,4 | DC | 92 x 92 x 38 | 64 | 7.6 | ||
| 270 | 36 .. 56 | DC | 92 x 92 x 38 | 64 | 7.6 | ||
| 235 | 36 .. 56 | DC | 92 x 92 x 38 | 59 | 7 | ||
| 93 | 6 .. 15 | DC | 92 x 92 x 32 | 38 | 5.1 | ||
| 133 | 6 .. 14 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 133 | 7 .. 13,2 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 107 | 6 .. 15 | DC | 92 x 92 x 32 | 42 | 5.4 | ||
| 56 | 6 .. 15 | DC | 92 x 92 x 32 | 24 | 4.1 | ||
| 68 | 6 .. 15 | DC | 92 x 92 x 32 | 29 | 4.3 | ||
| 80 | 6 .. 15 | DC | 92 x 92 x 32 | 35 | 4.7 | ||
| 93 | 12 .. 28 | DC | 92 x 92 x 32 | 38 | 5.1 | ||
| 133 | 12 .. 28 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 133 | 14 .. 26,4 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 107 | 12 .. 28 | DC | 92 x 92 x 32 | 42 | 5.4 | ||
| 56 | 12 .. 28 | DC | 24 | 4.1 | |||
| 68 | 12 .. 28 | DC | 92 x 92 x 32 | 29 | 4.3 | ||
| 80 | 12 .. 28 | DC | 92 x 92 x 32 | 35 | 4.7 | ||
| 80 | 36 .. 60 | DC | 92 x 92 x 32 | 37 | 5.2 | ||
| 93 | 36 .. 60 | DC | 92 x 92 x 32 | 38 | 5.1 | ||
| 133 | 36 .. 58 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 133 | 36 .. 56 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 107 | 36 .. 60 | DC | 92 x 92 x 32 | 42 | 5.4 | ||
| 80 | 36 .. 60 | DC | 92 x 92 x 32 | 35 | 4.7 | ||
| 84 | 8 .. 15 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 84 | 8 .. 15 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 94 | 8 .. 15 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 8 .. 13.2 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 8 .. 15 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 8 .. 15 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 72 | 8 .. 14 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 84 | 8 .. 12.6 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 94 | 8 .. 15 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 8 .. 13.2 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 102 | 8 .. 15 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 8 .. 15 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 8 .. 15 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 84 | 18 .. 28 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 84 | 18 .. 28 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 94 | 18 .. 26 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 18 .. 26 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 102 | 18 .. 28 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 18 .. 28 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 18 .. 28 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 94 | 18 .. 26 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 18 .. 26 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 102 | 18 .. 28 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 18 .. 28 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 18 .. 28 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 84 | 36 .. 56 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 10 | 4.5 .. 5.5 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 73 | 115 | 60 | AC | 92 x 92 x 38 | 35 | 4.6 | |
| 73 | 115 | 60 | AC | 92 x 92 x 38 | 36 | 4.7 | |
| 67 | 230 | 50 | AC | 92 x 92 x 38 | 32 | 4.4 | |
| 67 | 230 | 50 | AC | 92 x 92 x 38 | 33 | 4.5 | |
| 89 | 115 | 60 | AC | 92 x 92 x 38 | 41 | 5.1 | |
| 89 | 115 | 60 | AC | 92 x 92 x 38 | 42 | 5.2 | |
| 75 | 230 | 50 | AC | 92 x 92 x 38 | 36 | 4.8 | |
| 75 | 230 | 50 | AC | 92 x 92 x 38 | 37 | 4.9 | |
| 54 | 115 | 60 | AC | 92 x 92 x 38 | 26 | 3.9 | |
| 60 | 115 | 60 | AC | 92 x 92 x 38 | 29 | 4.2 | |
| 49 | 230 | 50 | AC | 92 x 92 x 38 | 24 | 3.7 | |
| 54 | 230 | 50 | AC | 92 x 92 x 38 | 26 | 3.9 | |
| 70 | 115 | 60 | AC | 92 x 92 x 25 | 40 | 5.1 | |
| 39 | 115 | 60 | AC | 92 x 92 x 25 | 27 | 4 | |
| 53 | 115 | 60 | AC | 92 x 92 x 25 | 34 | 4.6 | |
| 70 | 115 | 60 | AC | 92 x 92 x 25 | 40 | 5.1 | |
| 39 | 115 | 60 | AC | 92 x 92 x 25 | 27 | 4 | |
| 53 | 115 | 60 | AC | 92 x 92 x 25 | 34 | 4.6 | |
| 59 | 230 | 50 | AC | 92 x 92 x 25 | 35 | 4.7 | |
| 31 | 230 | 50 | AC | 92 x 92 x 25 | 24 | 3.8 | |
| 45 | 230 | 50 | AC | 92 x 92 x 25 | 29 | 4.2 | |
| 59 | 230 | 50 | AC | 92 x 92 x 25 | 35 | 4.7 | |
| 31 | 230 | 50 | AC | 92 x 92 x 25 | 24 | 3.8 | |
| 45 | 230 | 50 | AC | 92 x 92 x 25 | 29 | 4.2 | |
| 8 | 4.5 .. 5.5 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 9 | 4.5 .. 5.5 | DC | 40 x 40 x 10 | 26 | 4.6 | ||
| 310 | 9 .. 15 | DC | 119 x 119 x 38 | 65 | 7.2 | ||
| 355 | 9 .. 14 | DC | 119 x 119 x 38 | 67 | 7.4 | ||
| 260 | 9 .. 15 | DC | 119 x 119 x 38 | 60 | 6.8 | ||
| 500 | 16 .. 30 | DC | 119 x 119 x 38 | 76 | 8.5 | ||
| 570 | 16 .. 30 | DC | 119 x 119 x 38 | 78 | 8.9 | ||
| 310 | 16 .. 30 | DC | 119 x 119 x 38 | 65 | 7.2 | ||
| 355 | 16 .. 30 | DC | 119 x 119 x 38 | 67 | 7.4 | ||
| 390 | 16 .. 30 | DC | 119 x 119 x 38 | 70 | 7.6 | ||
| 440 | 16 .. 30 | DC | 119 x 119 x 38 | 73 | 8.1 | ||
| 260 | 16 .. 30 | DC | 119 x 119 x 38 | 60 | 6.8 | ||
| 500 | 36 .. 60 | DC | 119 x 119 x 38 | 76 | 8.5 | ||
| 570 | 36 .. 60 | DC | 119 x 119 x 38 | 78 | 8.9 | ||
| 310 | 36 .. 60 | DC | 119 x 119 x 38 | 65 | 7.2 | ||
| 355 | 36 .. 60 | DC | 119 x 119 x 38 | 67 | 7.4 | ||
| 390 | 36 .. 60 | DC | 119 x 119 x 38 | 70 | 7.6 | ||
| 440 | 36 .. 60 | DC | 119 x 119 x 38 | 73 | 8.1 | ||
| 260 | 36 .. 60 | DC | 119 x 119 x 38 | 60 | 6.8 | ||
| 10 | 10 .. 14 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 8 | 10 .. 14 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 8 | 10 .. 14 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 9 | 10 .. 14 | DC | 40 x 40 x 10 | 26 | 4.6 | ||
| 9 | 10 .. 14 | DC | 40 x 40 x 10 | 26 | 4.6 | ||
| 6 | 10 .. 14 | DC | 40 x 40 x 10 | 17 | 3.8 | ||
| 6 | 10 .. 14 | DC | 40 x 40 x 10 | 17 | 3.8 | ||
| 13.5 | 10 .. 14 | DC | 40 x 40 x 20 | 29 | 4.7 | ||
| 19 | 8 .. 14 | DC | 40 x 40 x 25 | 39 | 5.5 | ||
| 22 | 8 .. 13.5 | DC | 40 x 40 x 25 | 43 | 5.8 | ||
| 24 | 8 .. 13.5 | DC | 40 x 40 x 25 | 46 | 6.1 | ||
| 10 | 10 .. 14 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 10 | 20 .. 28 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 8 | 20 .. 28 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 9 | 21.6 .. 26.4 | DC | 40 x 40 x 10 | 26 | 4.4 | ||
| 13.5 | 20 .. 26.5 | DC | 40 x 40 x 20 | 29 | 4.7 | ||
| 19 | 18 .. 27 | DC | 40 x 40 x 25 | 39 | 5.5 | ||
| 22 | 18 .. 27 | DC | 40 x 40 x 25 | 43 | 5.8 | ||
| 24 | 18 .. 27 | DC | 40 x 40 x 25 | 46 | 6.1 | ||
| 160 | 6 .. 15 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 180 | 6 .. 15 | DC | 119 x 119 x 38 | 49 | 5.7 | ||
| 237 | 7 .. 14 | DC | 119 x 119 x 38 | 57 | 6.5 | ||
| 160 | 12 .. 31,5 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 180 | 12 .. 31,5 | DC | 119 x 119 x 38 | 49 | 5.7 | ||
| 237 | 12 .. 28 | DC | 119 x 119 x 38 | 57 | 6.5 | ||
| 160 | 12 .. 31,5 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 160 | 36 .. 60 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 160 | 36 .. 60 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 38 | 8 .. 13,8 | DC | 40 x 40 x 28 | 54 | 6.6 | ||
| 24 | 8 .. 13,8 | DC | 40 x 40 x 28 | 42 | 5.5 | ||
| 31 | 8 .. 13,8 | DC | 40 x 40 x 28 | 48 | 6 | ||
| 38 | 16 .. 26,4 | DC | 40 x 40 x 28 | 54 | 6.6 | ||
| 24 | 16 .. 28 | DC | 40 x 40 x 28 | 42 | 5.5 | ||
| 31 | 16 .. 28 | DC | 40 x 40 x 28 | 48 | 6 | ||
| 170 | 6 .. 15 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 170 | 6 .. 15 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 95 | 6 .. 15 | DC | 119 x 119 x 32 | 30 | 4.3 | ||
| 140 | 6 .. 15 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 95 | 6 .. 15 | DC | 119 x 119 x 32 | 30 | 4.3 | ||
| 140 | 6 .. 15 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 138 | 8 .. 15 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| DC | 119 x 119 x 32 | ||||||
| 220 | 6 .. 15 | DC | 119 x 119 x 32 | 47 | 5.8 | ||
| 285 | 7 .. 13,2 | DC | 119 x 119 x 32 | 55 | 6.6 | ||
| 250 | 6 .. 14,4 | DC | 119 x 119 x 32 | 51 | 6.2 | ||
| DC | 119 x 119 x 32 | ||||||
| 150 | 6 .. 15 | DC | 119 x 119 x 32 | 36 | 4.7 | ||
| 190 | 6 .. 15 | DC | 119 x 119 x 32 | 43 | 5.4 | ||
| 170 | 8 .. 13.2 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 180 | 6 .. 15 | DC | 119 x 119 x 32 | 47 | 6.1 | ||
| 204 | 6 .. 13.2 | DC | 119 x 119 x 32 | 51 | 6.4 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 95 | 12 .. 28 | DC | 119 x 119 x 32 | 30 | 4.3 | ||
| 140 | 12 .. 28 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 220 | 12 .. 28 | DC | 119 x 119 x 32 | 47 | 5.8 | ||
| 285 | 14 .. 26,4 | DC | 119 x 119 x 32 | 55 | 6.6 | ||
| 250 | 12 .. 27 | DC | 119 x 119 x 32 | 51 | 6.2 | ||
| 100 | 12 .. 28 | DC | 119 x 119 x 32 | 25 | 3.9 | ||
| 150 | 12 .. 28 | DC | 119 x 119 x 32 | 36 | 4.7 | ||
| 190 | 12 .. 28 | DC | 119 x 119 x 32 | 41 | 5.5 | ||
| 170 | 18 .. 32 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 170 | 21 .. 27 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 180 | 12 .. 28 | DC | 119 x 119 x 32 | 47 | 6.1 | ||
| 204 | 12 .. 26.5 | DC | 119 x 119 x 32 | 51 | 6.4 | ||
| 170 | 36 .. 53 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 140 | 36 .. 56 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 220 | 36 .. 60 | DC | 119 x 119 x 32 | 47 | 5.8 | ||
| 285 | 36 .. 52,8 | DC | 119 x 119 x 32 | 55 | 6.6 | ||
| 190 | 36 .. 60 | DC | 119 x 119 x 32 | 43 | 5.4 | ||
| 170 | 40 .. 53 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 285 | 7 .. 14.5 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 170 | 8 .. 12.6 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 170 | 8 .. 12.6 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 94 | 7 .. 14 | DC | 119 x 119 x 25 | 26 | 3.9 | ||
| 91 | 7 .. 15 | DC | 127 x 127 | 26 | 3.9 | ||
| 140 | 7 .. 12.6 | DC | 119 x 119 x 25 | 38 | 4.8 | ||
| 114 | 7 .. 12.6 | DC | 119 x 119 x 25 | 32 | 4.3 | ||
| 140 | 7 .. 12.6 | DC | 119 x 119 x 25 | 38 | 4.8 | ||
| 114 | 7 .. 12.6 | DC | 119 x 119 x 25 | 32 | 4.3 | ||
| 225 | 9 .. 13.2 | DC | 119 x 119 x 25 | 55 | 6.7 | ||
| 240 | 7 .. 14 | DC | 119 x 119 x 38 | 50 | 6 | ||
| 150 | 7 .. 14 | DC | 119 x 119 x 38 | 37 | 5 | ||
| 184 | 7 .. 14 | DC | 119 x 119 x 38 | 42 | 5.3 | ||
| 168 | 7 .. 15 | DC | 119 x 119 x 38 | 40 | 5.1 | ||
| 205 | 7 .. 14 | DC | 119 x 119 x 38 | 46 | 5.6 | ||
| 285 | 18 .. 28 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 94 | 18 .. 28 | DC | 119 x 119 x 25 | 26 | 3.9 | ||
| 140 | 12 .. 28 | DC | 119 x 119 x 25 | 38 | 4.8 | ||
| 225 | 18 .. 26.4 | DC | 119 x 119 x 25 | 55 | 6.7 | ||
| 200 | 14 .. 28 | DC | 119 x 119 x 25 | 52 | 6.5 | ||
| 240 | 18 .. 28 | DC | 119 x 119 x 38 | 50 | 6 | ||
| 285 | 16 .. 28 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 150 | 18 .. 28 | DC | 119 x 119 x 38 | 37 | 5 | ||
| 100 | 12 .. 28 | DC | 119 x 119 x 38 | 26 | 4 | ||
| DC | 119 x 119 x 38 | ||||||
| 184 | 18 .. 28 | DC | 119 x 119 x 38 | 42 | 5.3 | ||
| 168 | 12 .. 28 | DC | 119 x 119 x 38 | 40 | 5.1 | ||
| 205 | 18 .. 28 | DC | 119 x 119 x 38 | 46 | 5.6 | ||
| 285 | 36 .. 60 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 170 | 28 .. 53 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 170 | 28 .. 53 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 225 | 36 .. 53 | DC | 119 x 119 x 25 | 55 | 6.7 | ||
| 240 | 36 .. 60 | DC | 119 x 119 x 38 | 50 | 6 | ||
| 150 | 36 .. 60 | DC | 119 x 119 x 38 | 37 | 5 | ||
| 184 | 36 .. 60 | DC | 119 x 119 x 38 | 42 | 5.3 | ||
| 168 | 36 .. 60 | DC | 119 x 119 x 38 | 40 | 5.1 | ||
| 205 | 36 .. 60 | DC | 119 x 119 x 38 | 46 | 5.6 | ||
| 169 | 115 | 60 | AC | 119 x 119 x 38 | 48 | 5.7 | |
| 151 | 115 | 60 | AC | 119 x 119 x 38 | 45 | 5.4 | |
| 120 | 115 | 60 | AC | 119 x 119 x 38 | 32 | 4.4 | |
| 120 | 115 | 60 | AC | 119 x 119 x 38 | 32 | 4.4 | |
| 145 | 230 | 50 | AC | 119 x 119 x 38 | 44 | 5.4 | |
| 123 | 230 | 50 | AC | 119 x 119 x 38 | 41 | 5.2 | |
| 115 | 230 | 50 | AC | 119 x 119 x 38 | 30 | 4.3 | |
| 115 | 230 | 50 | AC | 119 x 119 x 38 | 30 | 4.3 | |
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 50 | 5.7 | |
| 140 | 115 | 60 | AC | 108 Ø x 37 | 45 | ||
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 45 | 5.6 | |
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 51 | 5.8 | |
| 147 | 115 | 60 | AC | 113 Ø x 37 | 44 | ||
| 140 | 115 | 60 | AC | 108 Ø x 37 | 45 | ||
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 45 | 5.6 | |
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 46 | 5.4 | |
| 138 | 230 | 50 | AC | 113 Ø x 37 | 41 | ||
| 125 | 230 | 50 | AC | 108 Ø x 37 | 42 | ||
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 40 | 5.3 | |
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 47 | 5.5 | |
| 138 | 230 | 50 | AC | 113 Ø x 37 | 42 | ||
| 125 | 230 | 50 | AC | 108 Ø x 37 | 42 | ||
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 40 | 5.3 | |
| 97 | 115 | 60 | AC | 119 x 119 x 38 | 32 | 4.3 | |
| 105 | 115 | 60 | AC | 119 x 119 x 38 | 28 | 4.1 | |
| 105 | 115 | 60 | AC | 119 x 119 x 38 | 28 | 4.1 | |
| 85 | 115 | 60 | AC | 119 x 119 x 38 | 26 | 4.1 | |
| 100 | 230 | 50 | AC | 119 x 119 x 38 | 32 | 4.4 | |
| 100 | 230 | 50 | AC | 119 x 119 x 38 | 26 | 4 | |
| 100 | 230 | 50 | AC | 119 x 119 x 38 | 26 | 4 | |
| 80 | 230 | 50 | AC | 119 x 119 x 38 | 25 | 4 | |
| 260 | 6 .. 15 | DC | 135 x 135 x 38 | 48 | 6.1 | ||
| 260 | 12 .. 30 | DC | 135 x 135 x 38 | 48 | 6.1 | ||
| 260 | 24 .. 60 | DC | 135 x 135 x 38 | 48 | 6.1 | ||
| 122 | 24 .. 60 | DC | 135 x 135 x 38 | 28 | 4.1 | ||
| 20 | 10.8 .. 13.2 | DC | 50 x 50 x 15 | 30 | 4.5 | ||
| 20 | 10.8 .. 13.2 | DC | 50 x 50 x 15 | 30 | 4.5 | ||
| 11 | 11.5 .. 13.2 | DC | 50 x 50 x 15 | 18 | 3.7 | ||
| 20 | 21.6 .. 26.4 | DC | 50 x 50 x 15 | 30 | 4.5 | ||
| 252 | 7 .. 14 | DC | 127 x 127 x 38 | 51 | 6 | ||
| 340 | 9 .. 15 | DC | 127 x 127 x 38 | 58 | 6.6 | ||
| 187 | 7 .. 14.5 | DC | 127 x 127 x 38 | 43 | 5.3 | ||
| 216 | 7 .. 14 | DC | 127 x 127 x 38 | 46 | 5.6 | ||
| 252 | 12 .. 28 | DC | 127 x 127 x 38 | 51 | 6 | ||
| 340 | 16 .. 30 | DC | 127 x 127 x 38 | 58 | 6.6 | ||
| 187 | 12 .. 28 | DC | 127 x 127 x 38 | 43 | 5.3 | ||
| 216 | 12 .. 28 | DC | 127 x 127 x 38 | 46 | 5.6 | ||
| 252 | 36 .. 56 | DC | 127 x 127 x 38 | 51 | 6 | ||
| 340 | 36 .. 60 | DC | 127 x 127 x 38 | 58 | 6.6 | ||
| 187 | 36 .. 56 | DC | 127 x 127 x 38 | 43 | 5.3 | ||
| 216 | 36 .. 56 | DC | 127 x 127 x 38 | 46 | 5.6 | ||
| 410 | 8 .. 16 | DC | 140 x 140 x 51 | 70 | 7.7 | ||
| 410 | 16 .. 36 | DC | 140 x 140 x 51 | 70 | 7.7 | ||
| 340 | 16 .. 28 | DC | 140 x 140 x 51 | 64 | 7.2 | ||
| 490 | 16 .. 36 | DC | 140 x 140 x 51 | 75 | 8.1 | ||
| 670 | 36 .. 72 | DC | 140 x 140 x 51 | 79 | 8.8 | ||
| 490 | 36 .. 72 | DC | 140 x 140 x 51 | 75 | 8.1 | ||
| 410 | 36 .. 72 | DC | 140 x 140 x 51 | 70 | 7.7 | ||
| 340 | 36 .. 72 | DC | 140 x 140 x 51 | 64 | 7.2 | ||
| 270 | 115 | 60 | AC | 135 x 135 x 38 | 50 | 6.2 | |
| 235 | 230 | 50 | AC | 135 x 135 x 38 | 46 | 5.9 | |
| 206 | 115 | 60 | AC | 127 x 127 x 38 | 46 | 5.7 | |
| 206 | 115 | 60 | AC | 127 x 127 x 38 | 47 | 5.8 | |
| 162 | 115 | 60 | AC | 127 x 127 x 38 | 40 | 4.9 | |
| 180 | 230 | 50 | AC | 127 x 127 x 38 | 43 | 5.4 | |
| 180 | 230 | 50 | AC | 127 x 127 x 38 | 44 | 5.5 | |
| 150 | 230 | 50 | AC | 127 x 127 x 38 | 37 | 4.9 | |
| 440 | 115 | 60 | AC | 172 Ø x 51 | 60 | 6.4 | |
| 500 | 115 | 60 | AC | 172 Ø x 51 | 58 | 6.7 | |
| 29 | 4.5 .. 5.2 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 375 | 230 | 50 | AC | 172 Ø x 51 | 55 | 5.9 | |
| 420 | 230 | 50 | AC | 172 Ø x 51 | 54 | 6.3 | |
| 29 | 10.8 .. 13.2 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 29 | 10.8 .. 12.6 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 33 | 10 .. 13.2 | DC | 60 x 60 x 15 | 31 | 4.8 | ||
| 19 | 11.5 .. 13.2 | DC | 60 x 60 x 15 | 16 | 3.6 | ||
| 19 | 11.5 .. 14 | DC | 60 x 60 x 15 | 16 | 3.6 | ||
| 70 | 7 .. 13.6 | DC | 60 x 60 x 32 | 53 | 6.4 | ||
| 21 | 8 .. 15 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 8 .. 15 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 35 | 8 .. 12.6 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 8 .. 15 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 41 | 8 .. 12.6 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 41 | 8 .. 12.6 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 43 | 8 .. 15 | DC | 60 x 60 x 25 | 37 | 5.3 | ||
| 56 | 8 .. 15 | DC | 60 x 60 x 25 | 41 | 5.7 | ||
| 21 | 8 .. 15 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 8 .. 15 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 35 | 8 .. 12.6 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 8 .. 15 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 42 | 8 .. 15 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 41 | 8 .. 12.6 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 29 | 21.6 .. 26.4 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 33 | 16 .. 28 | DC | 60 x 60 x 15 | 31 | 4.8 | ||
| 82 | 18 .. 30 | DC | 60 x 60 x 32 | 62 | 7.6 | ||
| 70 | 14 .. 26.4 | DC | 60 x 60 x 32 | 53 | 6.4 | ||
| 21 | 18 .. 28 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 18 .. 28 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 18 .. 28 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 43 | 18 .. 26 | DC | 60 x 60 x 25 | 37 | 5.3 | ||
| 56 | 18 .. 26 | DC | 60 x 60 x 25 | 41 | 5.7 | ||
| 56 | 18 .. 28 | DC | 60 x 60 x 25 | 41 | 5.7 | ||
| 21 | 18 .. 28 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 18 .. 28 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 18 .. 28 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 42 | 18 .. 28 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 82 | 38 .. 58 | DC | 60 x 60 x 32 | 62 | 7.6 | ||
| 70 | 36 .. 56 | DC | 60 x 60 x 32 | 53 | 6.4 | ||
| 35 | 36 .. 56 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 42 | 36 .. 56 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 67 | 8 .. 13.2 | DC | 60 x 60 x 25 | 48 | 5.9 | ||
| 46 | 8 .. 15 | DC | 60 x 60 x 25 | 39 | 5.1 | ||
| 56 | 8 .. 15 | DC | 60 x 60 x 25 | 43 | 5.6 | ||
| 30 | 8 .. 15 | DC | 60 x 60 x 25 | 29 | 4.3 | ||
| 30 | 8 .. 15 | DC | 60 x 60 x 25 | 29 | 4.3 | ||
| 40 | 8 .. 15 | DC | 60 x 60 x 25 | 35 | 4.7 | ||
| 46 | 18 .. 28 | DC | 60 x 60 x 25 | 39 | 5.1 | ||
| 56 | 18 .. 28 | DC | 60 x 60 x 25 | 43 | 5.6 | ||
| 21 | 18 .. 28 | DC | 60 x 60 x 25 | 20 | 3.7 | ||
| 30 | 12 .. 28 | DC | 60 x 60 x 25 | 29 | 4.3 | ||
| 40 | 12 .. 28 | DC | 60 x 60 x 25 | 35 | 4.7 | ||
| 56 | 36 .. 60 | DC | 60 x 60 x 25 | 43 | 5.6 | ||
| 600 | 8 .. 16 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 610 | 8 .. 16 | DC | 172 Ø x 51 | ||||
| 600 | 16 .. 36 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 710 | 16 .. 36 | DC | 172 Ø x 51 | 69 | 7.9 | ||
| 545 | 16 .. 30 | DC | 172 Ø x 51 | 58 | 6.9 | ||
| 395 | 16 .. 30 | DC | 172 Ø x 51 | 51 | 6 | ||
| 470 | 16 .. 30 | DC | 172 Ø x 51 | 56 | 6.5 | ||
| 930 | 16 .. 36 | DC | 172 Ø x 51 | 75 | 8.4 | ||
| 710 | 16 .. 36 | DC | 172 x 160 x 51 | 69 | 7.9 | ||
| 600 | 16 .. 30 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 540 | 16 .. 36 | DC | 172 Ø x 51 | 6.9 | |||
| 970 | 16 .. 36 | DC | 172 Ø x 51 | 8.3 | |||
| 930 | 36 .. 72 | DC | 172 Ø x 51 | 75 | 8.4 | ||
| 710 | 36 .. 72 | DC | 172 Ø x 51 | 69 | 7.9 | ||
| 600 | 36 .. 72 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 545 | 36 .. 72 | DC | 172 Ø x 51 | 58 | 6.9 | ||
| 930 | 36 .. 72 | DC | 172 x 160 x 51 | 75 | 8.4 | ||
| 600 | 36 .. 60 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 685 | 36 .. 72 | DC | 172 Ø x 51 | 7.5 | |||
| 1030 | 36 .. 72 | DC | 172 Ø x 51 | 83 | 8.4 | ||
| 44 | 10,8 .. 13,2 | DC | 60 x 60 x 25 | 35 | 5.4 | ||
| 40 | 6 .. 15 | DC | 60 x 60 x 25 | 33 | 5.2 | ||
| 58 | 18 .. 28 | DC | 60 x 60 x 25 | 44 | 6.1 | ||
| 40 | 12 .. 30 | DC | 60 x 60 x 25 | 34 | 5.1 | ||
| 58 | 18 .. 28 | DC | 60 x 60 x 25 | 44 | 6.1 | ||
| 44 | 40 .. 60 | DC | 60 x 60 x 25 | 35 | 5.4 | ||
| 350 | 8 .. 15 | DC | 172 x 150 x 51 | 52 | 6 | ||
| 410 | 12 .. 28 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 480 | 12 .. 28 | DC | 172 x 150 x 51 | 63 | 7.1 | ||
| 350 | 12 .. 32 | DC | 172 x 150 x 51 | 52 | 6 | ||
| 410 | 12 .. 28 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 600 | 16 .. 28 | DC | 172 x 150 x 51 | 65 | 7.4 | ||
| 410 | 28 .. 60 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 480 | 28 .. 60 | DC | 172 x 150 x 51 | 63 | 7.1 | ||
| 350 | 28 .. 60 | DC | 172 x 150 x 51 | 52 | 6 | ||
| 410 | 28 .. 60 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 600 | 40 .. 55 | DC | 172 x 150 x 72 | 65 | 7.4 | ||
| 900 | 36 .. 72 | DC | 172 x 150 x 51 | 78 | 8.6 | ||
| 380 | 115 | 60 | AC | 150 x 172 x 38 | 56 | 6.8 | |
| 320 | 230 | 50 | AC | 150 x 172 x 38 | 51 | 6.4 | |
| 308 | 6 .. 15 | DC | 150 Ø x 38 | 53 | 6.2 | ||
| 308 | 12 .. 30 | DC | 150 Ø x 38 | 53 | 6.2 | ||
| 360 | 12 .. 26.5 | DC | 150 Ø x 38 | 58 | 6.7 | ||
| 308 | 24 .. 60 | DC | 150 Ø x 38 | 53 | 6.2 | ||
| 44 | 8 .. 13.8 | DC | 70 x 70 x 15 | 38 | 5.3 | ||
| 28 | 8 .. 13.8 | DC | 70 x 70 x 15 | 25 | 4.7 | ||
| 36 | 8 .. 13.8 | DC | 70 x 70 x 15 | 32 | 5 | ||
| 44 | 18 .. 28 | DC | 70 x 70 x 15 | 38 | 5.3 | ||
| 360 | 6 .. 15 | DC | 150 Ø x 55 | 53 | 6.2 | ||
| 360 | 12 .. 30 | DC | 150 Ø x 55 | 53 | 6.2 | ||
| 360 | 24 .. 60 | DC | 150 Ø x 55 | 53 | 6.2 | ||
| 425 | 115 | 60 | AC | 150 Ø x 55 | 62 | 6.9 | |
| 380 | 230 | 50 | AC | 150 Ø x 55 | 60 | 6.8 | |
| 380 | 115 | 60 | AC | 150 Ø x 55 | 53 | 6.4 | |
| 380 | 115 | 60 | AC | 150 Ø x 55 | 53 | 6.4 | |
| 325 | 230 | 50 | AC | 150 Ø x 55 | 49 | 6 | |
| 325 | 230 | 50 | AC | 150 Ø x 55 | 49 | 6 | |
| 190 | 6 .. 13.8 | DC | 80 x 80 x 38 | 66 | 7.3 | ||
| 222 | 6 .. 13.8 | DC | 80 x 80 x 38 | 71 | 7.8 | ||
| 132 | 7 .. 13.8 | DC | 80 x 80 x 38 | 55 | 6.6 | ||
| 190 | 12 .. 27.6 | DC | 80 x 80 x 38 | 66 | 7.3 | ||
| 222 | 12 .. 27.6 | DC | 80 x 80 x 38 | 71 | 7.8 | ||
| 132 | 18 .. 26.4 | DC | 80 x 80 x 38 | 55 | 6.6 | ||
| 190 | 36 .. 53 | DC | 80 x 80 x 38 | 66 | 7.3 | ||
| 222 | 20 .. 58 | DC | 80 x 80 x 38 | 71 | 7.8 | ||
| 132 | 36 .. 53 | DC | 80 x 80 x 38 | 55 | 6.6 | ||
| 54 | 6 .. 15 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 48 | 6 .. 15 | DC | 80 x 80 x 32 | 34 | 5 | ||
| 80 | 6 .. 12.6 | DC | 80 x 80 x 32 | 48 | 6.2 | ||
| 67 | 6 .. 15 | DC | 80 x 80 x 32 | 43 | 5.8 | ||
| 32 | 6 .. 15 | DC | 80 x 80 x 32 | 24 | 4 | ||
| 48 | 6 .. 15 | DC | 80 x 80 x 32 | 34 | 5 | ||
| 54 | 12 .. 31,5 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 54 | 12 .. 28 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 80 | 6 .. 12,6 | DC | 80 x 80 x 32 | 48 | 6.2 | ||
| 67 | 12 .. 31,5 | DC | 80 x 80 x 32 | 43 | 5.8 | ||
| 32 | 12 .. 31,5 | DC | 80 x 80 x 32 | 24 | 4 | ||
| 48 | 12 .. 31,5 | DC | 80 x 80 x 32 | 34 | 5 | ||
| 54 | 36 .. 56 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 80 | 36 .. 56 | DC | 80 x 80 x 32 | 48 | 6.2 | ||
| 67 | 36 .. 56 | DC | 80 x 80 x 32 | 43 | 5.8 | ||
| 69 | 8 .. 15 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 69 | 8 .. 15 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 33 | 8 .. 15 | DC | 80 x 80 x 25 | 12 | 3.5 | ||
| 33 | 10 .. 14 | DC | 80 x 80 x 25 | 12 | 3.5 | ||
| 58 | 8 .. 15 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 58 | 8 .. 14 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 45 | 8 .. 15 | DC | 80 x 80 x 25 | 19 | 3.9 | ||
| 45 | 8 .. 14 | DC | 80 x 80 x 25 | 19 | 3.9 | ||
| 58 | 8 .. 14 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 79 | 8 .. 13.2 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 79 | 8 .. 15 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 33 | 8 .. 15 | DC | 80 x 80 x 25 | 17 | 3.7 | ||
| 58 | 8 .. 15 | DC | 80 x 80 x 25 | 27 | 4.4 | ||
| 45 | 8 .. 15 | DC | 80 x 80 x 25 | 21 | 4 | ||
| 69 | 18 .. 28 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 69 | 18 .. 28 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 33 | 18 .. 28 | DC | 80 x 80 x 25 | 12 | 3.5 | ||
| 58 | 18 .. 28 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 45 | 18 .. 28 | DC | 80 x 80 x 25 | 19 | 3.9 | ||
| 79 | 18 .. 26 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 79 | 18 .. 28 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 33 | 18 .. 28 | DC | 80 x 80 x 25 | 17 | 3.7 | ||
| 58 | 18 .. 28 | DC | 80 x 80 x 25 | 27 | 4.4 | ||
| 45 | 18 .. 28 | DC | 80 x 80 x 25 | 21 | 4 | ||
| 69 | 36 .. 56 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 117 | 8 .. 15 | DC | 80 x 80 x 25 | 50 | 6.4 | ||
| 83 | 10.8 .. 13.2 | DC | 80 x 80 x 25 | 42 | 5.5 | ||
| 75 | 10.8 .. 13.2 | DC | 80 x 80 x 25 | 38 | 5.3 | ||
| 32 | 8 .. 15 | DC | 80 x 80 x 25 | 14 | 3.3 | ||
| 58 | 8 .. 15 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 68 | 8 .. 15 | DC | 80 x 80 x 25 | 36 | 5 | ||
| 117 | 20 .. 26,4 | DC | 80 x 80 x 25 | 50 | 6.4 | ||
| 57 | 115 | 60 | AC | 80 x 80 x 38 | 41 | 5.5 | |
| 61 | 115 | 60 | AC | 80 x 80 x 38 | 34 | 4.8 | |
| 45 | 115 | 60 | AC | 76 Ø x 37 | 30 | ||
| 47 | 115 | 60 | AC | 76 Ø x 37 | 32 | ||
| 57 | 115 | 60 | AC | 80 x 80 x 38 | 42 | 5.7 | |
| 61 | 115 | 60 | AC | 80 x 80 x 38 | 35 | 5 | |
| 45 | 115 | 60 | AC | 76 Ø x 37 | 31 | ||
| 47 | 115 | 60 | AC | 76 Ø x 37 | 33 | ||
| 48 | 230 | 50 | AC | 80 x 80 x 38 | 36 | 5 | |
| 50 | 230 | 50 | AC | 80 x 80 x 38 | 30 | 4.4 | |
| 38 | 230 | 50 | AC | 76 Ø x 37 | 25 | ||
| 40 | 230 | 50 | AC | 76 Ø x 37 | 27 | ||
| 48 | 230 | 50 | AC | 80 x 80 x 38 | 37 | 5.1 | |
| 50 | 230 | 50 | AC | 80 x 80 x 38 | 31 | 4.5 | |
| 38 | 230 | 50 | AC | 76 Ø x 37 | 26 | ||
| 40 | 230 | 50 | AC | 76 Ø x 37 | 28 | ||
| 45 | 115 | 60 | AC | 80 x 80 x 38 | 34 | 4.8 | |
| 47 | 115 | 60 | AC | 80 x 80 x 38 | 28 | 4.3 | |
| 34 | 115 | 60 | AC | 76 Ø x 37 | 23 | ||
| 36 | 115 | 60 | AC | 76 Ø x 37 | 24 | ||
| 34 | 115 | 60 | AC | 80 x 80 x 38 | 29 | 4.3 | |
| 36 | 115 | 60 | AC | 80 x 80 x 38 | 21 | 3.7 | |
| 26 | 115 | 60 | AC | 76 Ø x 37 | 18 | ||
| 27 | 115 | 60 | AC | 76 Ø x 37 | 18 | ||
| 36 | 230 | 50 | AC | 80 x 80 x 38 | 31 | 4.6 | |
| 37 | 230 | 50 | AC | 80 x 80 x 38 | 24 | 3.9 | |
| 30 | 230 | 50 | AC | 76 Ø x 37 | 19 | ||
| 31 | 230 | 50 | AC | 76 Ø x 37 | 20 | ||
| 29 | 230 | 50 | AC | 80 x 80 x 38 | 26 | 4.1 | |
| 30 | 230 | 50 | AC | 80 x 80 x 38 | 18 | 3.3 | |
| 23 | 230 | 50 | AC | 76 Ø x 37 | 15 | ||
| 24 | 230 | 50 | AC | 76 Ø x 37 | 15 | ||
| 135 | 115 | 60 | AC | 119 x 119 x 25 | 42 | 5.4 | |
| 135 | 115 | 60 | AC | 119 x 119 x 25 | 42 | 5.4 | |
| 100 | 115 | 60 | AC | 119 x 119 x 25 | 34 | 4.6 | |
| 111 | 115 | 60 | AC | 119 x 119 x 25 | 37 | 5 | |
| 117 | 230 | 50 | AC | 119 x 119 x 25 | 37 | 5 | |
| 117 | 230 | 50 | AC | 119 x 119 x 25 | 37 | 5 | |
| 84 | 230 | 50 | AC | 119 x 119 x 25 | 29 | 4.4 | |
| 104 | 230 | 50 | AC | 119 x 119 x 25 | 35 | 4.7 | |
| 55 | 50/60 | DC | 98.50 x 130 | 33 | 4.5 | ||
| 53 | 50/60 | DC | 98.5 x 130 | 33 | 4.4 | ||
| 144 | 115 | 50 | AC | 92 x 92 x 38 | 55 | 6.4 | |
| 204 | 115 | 50 | AC | 119 x 119 x 32 | 51 | 6.4 | |
| 205 | 115 | 50 | AC | 119 x 119 x 25 | 53 | 6.2 | |
| 350 | 115 | 50 | AC | 172 Ø x 51 | 50 | 5.7 | |
| 80 | 115 | 50 | AC | 80 x 80 x 32 | 48 | 6.2 | |
| 80 | 85 .. 265 | 50/60 | DC | 98.5 x 130 | 35 | 4.7 | |
| 78 | DC | 119x119x38 | 23 | 3.7 | |||
| 175 | 85 .. 132 | AC | 119 x 119 x 38 | 42 | 5.3 | ||
| 160 | 195 .. 265 | AC | 119 x 119 x 38 | 39 | 5.1 | ||
| 175 | 195 .. 265 | AC | 119 x 119 x 38 | 42 | 5.3 | ||
| 100 | 195 .. 265 | AC | 119 x 119 x 38 | 25 | 4.1 | ||
| 147 | 195 .. 265 | AC | 119 x 119 x 38 | 36 | 4.9 | ||
| 240 | 230 | 50/60 | AC | 130 | |||
| 275 | 230 | 50/60 | AC | 130 | |||
| 210 | 115 | 50/60 | AC | 130 | |||
| 275 | 115 | 50/60 | AC | 130 | |||
| 1090 | 36 .. 57 | - | DC | 200 | 60 | ||
| 1090 | 16 .. 28 | DC | 200 | 60 | |||
| 1920 | 16 .. 28 | DC | 250 | 70 | |||
| 1920 | 36 .. 57 | DC | 250 | 70 | |||
| 880 | 230 | 50 | AC | 200 | 58 | ||
| 1000 | 230 | 60 | AC | 200 | 61 | ||
| 925 | 115 | 50 | AC | 200 | 59 | ||
| 1030 | 115 | 60 | AC | 200 | 61 | ||
| 1865 | 230 | 50 | AC | 250 | 69 | ||
| 1970 | 230 | 60 | AC | 250 | 70 | ||
| 450 | 230 | 50 | AC | 200 | 40 | ||
| 525 | 230 | 60 | AC | 200 | 44 |
Legend
qV = Air flow
UN = Nominal voltage (range)
f = Frequency
UN = Nominal voltage (range)
f = Frequency
AC/DC = Type of voltage
Dimensions = Dimensions / Size
LpA = Sound pressure level
Dimensions = Dimensions / Size
LpA = Sound pressure level
LwA = Sound power level
- là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay
Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.
[ Email ] | |
Online contact========
Yahoo: nhan.luongthe
Skype: luongthenhan
===================
Greentech Trading Service Company Limited
[ Main Office ] 104/15 Street 18, Binh Hung Hoa Ward, Binh Tan Dist, HCMC, Viet Nam
[ Brand Office ] 92/8 Huynh Thuc Khang Street, Tam Ky City, Quang Nam Province, Viet Nam
[ Tel & Fax ] + 84 (0) 8 3620 4585
[ Website ] |
[ Face Page ]
-------------------------------
Ø Flow, pressure and level measurement | Temperature and humidity measurement | Position measurement | Force measurement
Ø Optical and acoustic measurement | Electrical measurement | Hydraulics – Pneumatic
Ø Valve - Pipes, tubes and fittings
Ø Building Management System
Ø Smarthome
µ FAST - FLEXIBLE - FLASH µ
-------------------------------------------------------------------
Pelco Vietnam | Solvac Vietnam | Citizen Vietnam | | Renishaw Vietnam | Di-soric Vietnam | | | | Bacharach Vietnam | | Showa Denki Vietnam | S | | | | Tetra-K Electronic Vietnam | | | | | | Mitsubishi Vietnam | Siemens Vietnam | Omron Viet Nam | TPM Vietnam | Tecsis Vietnam | Wise Control Vietnam | Micro Process Controls Vietnam | Wika Vietnam | Asahi Gauge Vietnam | TemPress Vietnam | Itec Vietnam | Konics Vietnam | Ashcroft Vietnam | Ametek Vietnam – Afriso Vietnam | LS Industrial Vietnam | RS Automation Vietnam | Balluff Vietnam | Baumer Vietnam | Kuppler Vietnam | Pulsotronics Vietnam | Leuze Vietnam | Microsonic Vietnam | AST Vietnam | Tempsen Vietnam | STS Vietnam | Micro Dectector Vietnam | Proxitron Vietnam | Microsens Vietnam | Towa Seiden Vietnam | Promesstec Vietnam | Ski Vietnam | Eltra Vietnam | Hohner Vietnam | Posital Vietnam | Elap Vietnam | Beisensors Vietnam | Newall Vietnam | Dotech Vietnam | Watlow Vietnam | Bihl Weidemann Vietnam | Prosoft Vietnam | ICP DAS Vietnam | Beckhoff Vietnam | Keller M S R Vietnam | IRCON Vietnam | Raytek Vietnam | Kimo Vietnam | YSI Vietnam | Jenco Vietnam | Tekhne Vietnam | Atago Vietnam | E Instrument Vietnam | IMR Vietnam | Netbiter Viêt Nam | FMS Vietnam | Unipulse Vietnam | Migun Vietnam | Sewha Vietnam | HBM Vietnam | Pilz Vietnam | Dold Vietnam | | Puls Vietnam | Microsens Vietnam | Controller Sensor Vietnam | Mark|10 Vietnam | Schmidt Vietnam | Bernstein Vietnam | Celduc Vietnam | Univer Vietnam | Waicom Vietnam | Aignep Vietnam | Top Air Vietnam | Burket Vietnam | | JJ Automation Vietnam | Somas Vietnam | Delta Elektrogas Vietnam | Pentair Vietnam | Auma Vietnam | Sipos Artorik Vietnam | Flowserve Vietnam | Sinbon Vietnam | Setra Vietnam | Yottacontrok Vietnam | Sensor Tival Vietnam | Vaisala Vietnam | Crouzet Vietnam | RheinTacho Vietnam | Cityzen Seimitsu Vietnam | Flowserve Vietnam | Greatork Vietnam | PS Automation Vietnam | Bettis Vietnam | Sinbon Vietnam | Setra Vietnam | Laurel Vietnam | Datapaq Vietnam | EE Electronik Vietnam | Banico Vietnam | Sinfonia Vietnam | Digmesa Vietnam | Alia Vietnam | Flowline Vietnam | Brook Instrument Vietnam | Dakota Instrument Vietnam | Diehl Metering Vietnam | Stego Vietnam | Rotronic Vietnam | Hopeway Vietnam | Beko Vietnam | Matsui Vietnam | Westec Vietnam | Sometech Vietnam | Offshore Vietnam | DCbox Vietnam | Fanuc Vietnam | KollMorgen Vietnam | Endress & Hauser Vietnam | Metso Automation Vietnam | MKS Instruments Vietnam | Teledyne Instruments Vieatnam | Badger Meter Vietnam | Hirschmann Vietnam | Servo Mitsubishi Vietnam | SCR SA Việt Nam | Biotech Flow Meter Việt Nam | Thermo Electric Việt Nam | Siko Việt Nam | Klinger Việt Nam | HK Instrument Việt Nam | Magnetrol Viet Nam | Lika Viet Nam | Setra Viet Nam | Kistler Viet Nam | Renishaw Viet Nam | Mindmen Vietnam | | Gimatic Vietnam | Monarch Instrument Vietnam | Stauff Vietnam | Burster Vietnam | SDT International Vietnam | MTI Instrument Vietnam | Zhuzhou CRRC Vietnam | Sensorex Vietnam | TWK Elektronik Vietnam | ASC Vietnam | Ronds Vietnam | Klaschka Vietnam | Hubner Vietnam | Hainzl Vietnam | Labom Vietnam | Siko Vietnam | Rittmeyer Vietnam | TR Electronic Vietnam | AK Industry Vietnam | Precizika Metrology Vietnam | Dis Sensor Vietnam | Elap Vietnam | Wachendorff Automation Vietnam | Foxboro Vietnam | Fireray Vietnam
Bình luận
Sản phẩm cùng loại
