9956 | 9956 L | 9956 M | EBMPapst | Quạt tản nhiệt | AC Axial compact fan| | EBMPapst vietnam

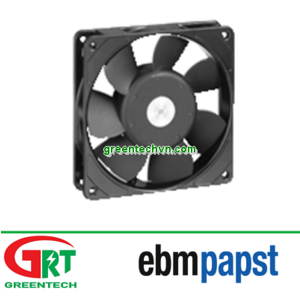

9956
EBM Papst Vietnam | Greentech Viet Nam
.
9956
AC axial compact fan
| Technical description | |
|---|---|
| Weight | 0.325 kg |
| Dimensions | 119 x 119 x 25 mm |
| Impeller material | Mineral-reinforced PA plastic |
| Housing material | Die-cast aluminum |
| Airflow direction | Exhaust over struts |
| Direction of rotation | Counterclockwise, viewed toward rotor |
| Storage | Ball bearing |
| Service life L10 at 40 °C | 47500 h |
| Service life L10 at maximum temperature | 22500 h |
| Cable | 2 flat plugs 2.8 x 0.5 mm Grounding lug for M4 |
| Motor protection | Protected from overload by impedance protection |
| Approval | VDE, CSA, UL, CE |
| Type | ||||||||
|---|---|---|---|---|---|---|---|---|
| in m³/h | in Hz | in V | in min-1 | in Pa | ||||
| 1020 | - | 16 .. 28 | 1580 | DC | ||||
| 1020 | - | 36 .. 57 | 1580 | DC | ||||
| 435 | 1~ | 50 | 230 | 1950 | AC | 0 | ||
| 410 | 1~ | 60 | 230 | 1850 | AC | 0 | ||
| 300 | 1~ | 50 | 230 | 1350 | AC | 0 | ||
| 280 | 1~ | 60 | 230 | 1250 | AC | 0 | ||
| 180 | 1~ | 50 | 230 | 1550 | AC | 0 | ||
| 170 | 1~ | 60 | 230 | 1450 | AC | 0 | ||
| 685 | 1~ | 50 | 230 | 1500 | AC | 0 | ||
| 420 | 1~ | 50 | 230 | 2400 | AC | 200 | ||
| 510 | 1~ | 60 | 230 | 1800 | AC | 100 | ||
| 700 | 1~ | 50 | 230 | 1700 | AC | 50 | ||
| 500 | 1~ | 60 | 230 | 2100 | AC | 200 | ||
| 750 | 1~ | 50 | 230 | 1650 | AC | 100 | ||
| 465 | 1~ | 60 | 230 | 2200 | AC | 250 | ||
| 470 | 1~ | 50 | 230 | 1150 | AC | 0 | ||
| 430 | 1~ | 60 | 230 | 1050 | AC | 0 | ||
| 935 | 1~ | 50 | 230 | 1650 | AC | 100 | ||
| 690 | 1~ | 60 | 230 | 2100 | AC | 250 | ||
| 935 | 1~ | 50 | 230 | 1650 | AC | 100 | ||
| 690 | 1~ | 60 | 230 | 2100 | AC | 250 | ||
| 970 | 1~ | 50 | 230 | 2050 | AC | 200 | ||
| 690 | 1~ | 60 | 230 | 2550 | AC | 400 | ||
| 755 | 1~ | 50 | 230 | 1350 | AC | 0 | ||
| 580 | 1~ | 60 | 230 | 1750 | AC | 150 | ||
| 1060 | 1~ | 50 | 230 | 1850 | AC | 0 | ||
| 875 | 1~ | 60 | 230 | 2100 | AC | 200 | ||
| 520 | 1~ | 50 | 230 | 1350 | AC | 50 | ||
| 375 | 1~ | 60 | 230 | 1400 | AC | 100 | ||
| 890 | 1~ | 50/60 | 230 | 1260 | AC | |||
| 1123 | 1~ | 50 | 200 .. 277 | 1700 | AC | |||
| 1123 | 1~ | 50 | 200 .. 277 | 1700 | AC | |||
| 1150 | 1~ | 50/60 | 230 | 1550 | AC | 0 | ||
| 1255 | 1~ | 50/60 | 200 .. 277 | 1370 | AC | |||
| 1600 | 1~ | 50/60 | 200 .. 277 | 1130 | AC | |||
| 2150 | 1~ | 50/60 | 207 .. 253 | 1640 | AC | 225 | ||
| 2300 | 1~ | 50/60 | 230 | 1200 | AC | 150 | ||
| 2765 | 1~ | 50/60 | 230 | 1085 | AC | 100 | ||
| 3257 | 1~ | 50/60 | 200 .. 277 | 1270 | AC | 100 | ||
| 3750 | 3~ | 50/60 | 380 .. 480 | 1500 | AC | 100 | ||
| 1~ | 50/60 | 200 .. 277 | 1030 | AC | 150 | |||
| 3970 | 3~ | 380 .. 480 | 1220 | AC | 270 | |||
| 4915 | 3~ | 50/60 | 380 .. 480 | 880 | AC | 100 | ||
| 3760 | 1~ | 50/60 | 200 .. 277 | 960 | AC | 260 | ||
| 4700 | 1~ | 50/60 | 200 .. 277 | 850 | AC | 150 | ||
| 5330 | 3~ | 50/60 | 380 .. 480 | 880 | AC | 150 | ||
| 1880 | D | 3~ | 50 | 230 | 1050 | AC | 0 | |
| 1860 | D | 3~ | 60 | 230 | 1030 | AC | 0 | |
| 1880 | Y | 3~ | 50 | 400 | 1050 | AC | 0 | |
| 1860 | Y | 3~ | 60 | 400 | 1030 | AC | 0 | |
| 2550 | D | 3~ | 50 | 230 | 1080 | AC | 0 | |
| 2220 | D | 3~ | 60 | 230 | 1200 | AC | 100 | |
| 2550 | Y | 3~ | 50 | 400 | 1080 | AC | 0 | |
| 2220 | Y | 3~ | 60 | 400 | 1200 | AC | 100 | |
| 3050 | D | 3~ | 50 | 230 | 1040 | AC | 80 | |
| 2530 | D | 3~ | 60 | 230 | 1170 | AC | 200 | |
| 3050 | Y | 3~ | 50 | 400 | 1040 | AC | 80 | |
| 2530 | Y | 3~ | 60 | 400 | 1170 | AC | 200 | |
| 3870 | Y | 3~ | 50 | 400 | 1300 | AC | 0 | |
| 4030 | Y | 3~ | 60 | 400 | 1350 | AC | 0 | |
| 4350 | Y | 3~ | 60 | 440 | 1410 | AC | 0 | |
| 4400 | Y | 3~ | 50 | 400 | 1230 | AC | 0 | |
| 3940 | Y | 3~ | 60 | 400 | 1360 | AC | 150 | |
| 3790 | Y | 3~ | 50 | 400 | 1240 | AC | 0 | |
| 3340 | Y | 3~ | 60 | 400 | 1410 | AC | 250 | |
| 4040 | Y | 3~ | 50 | 400 | 1200 | AC | 50 | |
| 3250 | Y | 3~ | 60 | 400 | 1410 | AC | 350 | |
| 520 | 1~ | 50 | 230 | 1150 | AC | |||
| 550 | 1~ | 60 | 230 | 1240 | AC | |||
| 670 | 1~ | 50 | 230 | 1080 | AC | 0 | ||
| 675 | 1~ | 60 | 230 | 1100 | AC | 0 | ||
| 770 | 1~ | 50 | 230 | 1200 | AC | 0 | ||
| 760 | 1~ | 60 | 230 | 1180 | AC | 0 | ||
| 835 | 1~ | 50 | 230 | 1000 | AC | 0 | ||
| 765 | 1~ | 60 | 230 | 950 | AC | 0 | ||
| 565 | 1~ | 50 | 230 | 780 | AC | 0 | ||
| 510 | 1~ | 60 | 230 | 710 | AC | 0 | ||
| 900 | 1~ | 50 | 230 | 1200 | AC | 0 | ||
| 860 | 1~ | 60 | 230 | 1200 | AC | 0 | ||
| 1240 | 1~ | 50 | 230 | 1300 | AC | 0 | ||
| 1250 | 1~ | 60 | 230 | 1350 | AC | 0 | ||
| 1310 | 1~ | 50 | 230 | 1350 | AC | 0 | ||
| 1410 | 1~ | 60 | 230 | 1450 | AC | 0 | ||
| 1900 | 1~ | 50 | 230 | 1300 | AC | 0 | ||
| 2040 | 1~ | 60 | 230 | 1360 | AC | 0 | ||
| 2110 | 1~ | 50 | 230 | 1250 | AC | 0 | ||
| 2125 | 1~ | 60 | 230 | 1280 | AC | 0 | ||
| 2380 | 1~ | 50 | 230 | 1100 | AC | 50 | ||
| 2050 | 1~ | 60 | 230 | 1250 | AC | 200 | ||
| 2600 | 1~ | 50 | 230 | 1100 | AC | 60 | ||
| 2650 | 1~ | 50 | 230 | 1150 | AC | 100 | ||
| 3700 | 1~ | 50 | 230 | 1230 | AC | 100 | ||
| 3200 | 1~ | 60 | 230 | 1370 | AC | 250 | ||
| 3730 | 1~ | 50 | 230 | 1230 | AC | 0 | ||
| 3140 | 1~ | 60 | 230 | 1410 | AC | 200 | ||
| 3490 | 1~ | 50 | 230 | 1300 | AC | 0 | ||
| 3390 | 1~ | 60 | 230 | 1310 | AC | 50 | ||
| 3730 | 1~ | 50 | 230 | 1210 | AC | 0 | ||
| 3220 | 1~ | 60 | 230 | 1460 | AC | 300 | ||
| 3770 | 1~ | 50 | 230 | 1200 | AC | 100 | ||
| 3310 | 1~ | 60 | 230 | 1400 | AC | 350 | ||
| 1180 | 1~ | 50 | 230 | 750 | AC | 0 | ||
| 1000 | 1~ | 50 | 230 | 2300 | AC | |||
| 1000 | 1~ | 50 | 230 | 2300 | AC | |||
| 280 | 1~ | 50 | 230 | 1550 | AC | |||
| 210 | 1~ | 50 | 230 | 2150 | AC | |||
| 210 | 1~ | 50 | 230 | 2150 | AC | |||
| 235 | 1~ | 50 | 230 | 2250 | AC | |||
| 235 | 1~ | 50 | 230 | 2250 | AC | |||
| 125 | 1~ | 50 | 230 | 2500 | AC | |||
| 125 | 1~ | 50 | 230 | 2500 | AC | |||
| 230 | 1~ | 50 | 230 | 2400 | AC | |||
| 230 | 1~ | 50 | 230 | 2400 | AC |
D/Y = Connection
~ = Phase
UN = Nominal voltage
n = Speed
p = Min. back pressure
| Type | |||||||
|---|---|---|---|---|---|---|---|
| in m³/h | in V | in Hz | in mm | in dB(A) | in Bel | ||
| 940 | 16 .. 36 | DC | 220 x 200 x 51 | 66 | 7.4 | ||
| 790 | 16 .. 30 | DC | 220 x 200 x 51 | 62 | 7.1 | ||
| 1220 | 36 .. 72 | DC | 220 x 200 x 51 | 72 | 8.2 | ||
| 940 | 36 .. 72 | DC | 220 x 200 x 51 | 66 | 7.4 | ||
| 790 | 36 .. 57 | DC | 220 x 200 x 51 | 62 | 7.1 | ||
| 4.6 | 10 .. 14 | DC | 25 x 25 x 8 | 23 | 4.4 | ||
| 3.4 | 10 .. 14 | DC | 25 x 25 x 8 | 15 | |||
| 4.6 | 4.5 .. 5.5 | DC | 25 x 25 x 8 | 23 | 4.4 | ||
| 2.3 | 4.5 .. 5.5 | DC | 25 x 25 x 8 | 5 | |||
| 3.5 | 4.5 .. 5.5 | DC | 25 x 25 x 8 | 16 | |||
| 146 | 7 .. 15 | DC | 92 x 92 x 38 | 55 | 6.4 | ||
| 237 | 6 .. 13.8 | DC | 92 x 92 x 38 | 69 | 7.8 | ||
| 280 | 6 .. 13.8 | DC | 92 x 92 x 38 | 73 | 8.2 | ||
| 130 | 7 .. 13.8 | DC | 92 x 92 x 38 | 51 | 6.1 | ||
| 146 | 12 .. 30 | DC | 92 x 92 x 38 | 55 | 6.4 | ||
| 237 | 12 .. 27.6 | DC | 92 x 92 x 38 | 69 | 7.8 | ||
| 280 | 12 .. 27.6 | DC | 92 x 92 x 38 | 73 | 8.2 | ||
| 130 | 11 .. 28 | DC | 92 x 92 x 38 | 51 | 6.1 | ||
| 146 | 36 .. 53 | DC | 92 x 92 x 38 | 55 | 6.4 | ||
| 237 | 20 .. 58 | DC | 92 x 92 x 38 | 69 | 7.8 | ||
| 280 | 20 .. 58 | DC | 92 x 92 x 38 | 73 | 8.2 | ||
| 130 | 36 .. 56 | DC | 92 x 92 x 38 | 51 | 6.1 | ||
| 270 | 7 .. 13,2 | DC | 92 x 92 x 38 | 64 | 7.6 | ||
| 270 | 14 .. 26,4 | DC | 92 x 92 x 38 | 64 | 7.6 | ||
| 270 | 36 .. 56 | DC | 92 x 92 x 38 | 64 | 7.6 | ||
| 235 | 36 .. 56 | DC | 92 x 92 x 38 | 59 | 7 | ||
| 93 | 6 .. 15 | DC | 92 x 92 x 32 | 38 | 5.1 | ||
| 133 | 6 .. 14 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 133 | 7 .. 13,2 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 107 | 6 .. 15 | DC | 92 x 92 x 32 | 42 | 5.4 | ||
| 56 | 6 .. 15 | DC | 92 x 92 x 32 | 24 | 4.1 | ||
| 68 | 6 .. 15 | DC | 92 x 92 x 32 | 29 | 4.3 | ||
| 80 | 6 .. 15 | DC | 92 x 92 x 32 | 35 | 4.7 | ||
| 93 | 12 .. 28 | DC | 92 x 92 x 32 | 38 | 5.1 | ||
| 133 | 12 .. 28 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 133 | 14 .. 26,4 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 107 | 12 .. 28 | DC | 92 x 92 x 32 | 42 | 5.4 | ||
| 56 | 12 .. 28 | DC | 24 | 4.1 | |||
| 68 | 12 .. 28 | DC | 92 x 92 x 32 | 29 | 4.3 | ||
| 80 | 12 .. 28 | DC | 92 x 92 x 32 | 35 | 4.7 | ||
| 80 | 36 .. 60 | DC | 92 x 92 x 32 | 37 | 5.2 | ||
| 93 | 36 .. 60 | DC | 92 x 92 x 32 | 38 | 5.1 | ||
| 133 | 36 .. 58 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 133 | 36 .. 56 | DC | 92 x 92 x 32 | 50 | 6 | ||
| 107 | 36 .. 60 | DC | 92 x 92 x 32 | 42 | 5.4 | ||
| 80 | 36 .. 60 | DC | 92 x 92 x 32 | 35 | 4.7 | ||
| 84 | 8 .. 15 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 84 | 8 .. 15 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 94 | 8 .. 15 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 8 .. 13.2 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 8 .. 15 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 8 .. 15 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 72 | 8 .. 14 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 84 | 8 .. 12.6 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 94 | 8 .. 15 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 8 .. 13.2 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 102 | 8 .. 15 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 8 .. 15 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 8 .. 15 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 84 | 18 .. 28 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 84 | 18 .. 28 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 94 | 18 .. 26 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 18 .. 26 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 102 | 18 .. 28 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 18 .. 28 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 18 .. 28 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 94 | 18 .. 26 | DC | 92 x 92 x 25 | 36 | 5 | ||
| 102 | 18 .. 26 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 102 | 18 .. 28 | DC | 92 x 92 x 25 | 39 | 5.1 | ||
| 61 | 18 .. 28 | DC | 92 x 92 x 25 | 23 | 4 | ||
| 72 | 18 .. 28 | DC | 92 x 92 x 25 | 28 | 4.3 | ||
| 84 | 36 .. 56 | DC | 92 x 92 x 25 | 32 | 4.7 | ||
| 10 | 4.5 .. 5.5 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 73 | 115 | 60 | AC | 92 x 92 x 38 | 35 | 4.6 | |
| 73 | 115 | 60 | AC | 92 x 92 x 38 | 36 | 4.7 | |
| 67 | 230 | 50 | AC | 92 x 92 x 38 | 32 | 4.4 | |
| 67 | 230 | 50 | AC | 92 x 92 x 38 | 33 | 4.5 | |
| 89 | 115 | 60 | AC | 92 x 92 x 38 | 41 | 5.1 | |
| 89 | 115 | 60 | AC | 92 x 92 x 38 | 42 | 5.2 | |
| 75 | 230 | 50 | AC | 92 x 92 x 38 | 36 | 4.8 | |
| 75 | 230 | 50 | AC | 92 x 92 x 38 | 37 | 4.9 | |
| 54 | 115 | 60 | AC | 92 x 92 x 38 | 26 | 3.9 | |
| 60 | 115 | 60 | AC | 92 x 92 x 38 | 29 | 4.2 | |
| 49 | 230 | 50 | AC | 92 x 92 x 38 | 24 | 3.7 | |
| 54 | 230 | 50 | AC | 92 x 92 x 38 | 26 | 3.9 | |
| 70 | 115 | 60 | AC | 92 x 92 x 25 | 40 | 5.1 | |
| 39 | 115 | 60 | AC | 92 x 92 x 25 | 27 | 4 | |
| 53 | 115 | 60 | AC | 92 x 92 x 25 | 34 | 4.6 | |
| 70 | 115 | 60 | AC | 92 x 92 x 25 | 40 | 5.1 | |
| 39 | 115 | 60 | AC | 92 x 92 x 25 | 27 | 4 | |
| 53 | 115 | 60 | AC | 92 x 92 x 25 | 34 | 4.6 | |
| 59 | 230 | 50 | AC | 92 x 92 x 25 | 35 | 4.7 | |
| 31 | 230 | 50 | AC | 92 x 92 x 25 | 24 | 3.8 | |
| 45 | 230 | 50 | AC | 92 x 92 x 25 | 29 | 4.2 | |
| 59 | 230 | 50 | AC | 92 x 92 x 25 | 35 | 4.7 | |
| 31 | 230 | 50 | AC | 92 x 92 x 25 | 24 | 3.8 | |
| 45 | 230 | 50 | AC | 92 x 92 x 25 | 29 | 4.2 | |
| 8 | 4.5 .. 5.5 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 9 | 4.5 .. 5.5 | DC | 40 x 40 x 10 | 26 | 4.6 | ||
| 310 | 9 .. 15 | DC | 119 x 119 x 38 | 65 | 7.2 | ||
| 355 | 9 .. 14 | DC | 119 x 119 x 38 | 67 | 7.4 | ||
| 260 | 9 .. 15 | DC | 119 x 119 x 38 | 60 | 6.8 | ||
| 500 | 16 .. 30 | DC | 119 x 119 x 38 | 76 | 8.5 | ||
| 570 | 16 .. 30 | DC | 119 x 119 x 38 | 78 | 8.9 | ||
| 310 | 16 .. 30 | DC | 119 x 119 x 38 | 65 | 7.2 | ||
| 355 | 16 .. 30 | DC | 119 x 119 x 38 | 67 | 7.4 | ||
| 390 | 16 .. 30 | DC | 119 x 119 x 38 | 70 | 7.6 | ||
| 440 | 16 .. 30 | DC | 119 x 119 x 38 | 73 | 8.1 | ||
| 260 | 16 .. 30 | DC | 119 x 119 x 38 | 60 | 6.8 | ||
| 500 | 36 .. 60 | DC | 119 x 119 x 38 | 76 | 8.5 | ||
| 570 | 36 .. 60 | DC | 119 x 119 x 38 | 78 | 8.9 | ||
| 310 | 36 .. 60 | DC | 119 x 119 x 38 | 65 | 7.2 | ||
| 355 | 36 .. 60 | DC | 119 x 119 x 38 | 67 | 7.4 | ||
| 390 | 36 .. 60 | DC | 119 x 119 x 38 | 70 | 7.6 | ||
| 440 | 36 .. 60 | DC | 119 x 119 x 38 | 73 | 8.1 | ||
| 260 | 36 .. 60 | DC | 119 x 119 x 38 | 60 | 6.8 | ||
| 10 | 10 .. 14 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 8 | 10 .. 14 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 8 | 10 .. 14 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 9 | 10 .. 14 | DC | 40 x 40 x 10 | 26 | 4.6 | ||
| 9 | 10 .. 14 | DC | 40 x 40 x 10 | 26 | 4.6 | ||
| 6 | 10 .. 14 | DC | 40 x 40 x 10 | 17 | 3.8 | ||
| 6 | 10 .. 14 | DC | 40 x 40 x 10 | 17 | 3.8 | ||
| 13.5 | 10 .. 14 | DC | 40 x 40 x 20 | 29 | 4.7 | ||
| 19 | 8 .. 14 | DC | 40 x 40 x 25 | 39 | 5.5 | ||
| 22 | 8 .. 13.5 | DC | 40 x 40 x 25 | 43 | 5.8 | ||
| 24 | 8 .. 13.5 | DC | 40 x 40 x 25 | 46 | 6.1 | ||
| 10 | 10 .. 14 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 10 | 20 .. 28 | DC | 40 x 40 x 20 | 18 | 3.8 | ||
| 8 | 20 .. 28 | DC | 40 x 40 x 10 | 22.1 | 4.4 | ||
| 9 | 21.6 .. 26.4 | DC | 40 x 40 x 10 | 26 | 4.4 | ||
| 13.5 | 20 .. 26.5 | DC | 40 x 40 x 20 | 29 | 4.7 | ||
| 19 | 18 .. 27 | DC | 40 x 40 x 25 | 39 | 5.5 | ||
| 22 | 18 .. 27 | DC | 40 x 40 x 25 | 43 | 5.8 | ||
| 24 | 18 .. 27 | DC | 40 x 40 x 25 | 46 | 6.1 | ||
| 160 | 6 .. 15 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 180 | 6 .. 15 | DC | 119 x 119 x 38 | 49 | 5.7 | ||
| 237 | 7 .. 14 | DC | 119 x 119 x 38 | 57 | 6.5 | ||
| 160 | 12 .. 31,5 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 180 | 12 .. 31,5 | DC | 119 x 119 x 38 | 49 | 5.7 | ||
| 237 | 12 .. 28 | DC | 119 x 119 x 38 | 57 | 6.5 | ||
| 160 | 12 .. 31,5 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 160 | 36 .. 60 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 160 | 36 .. 60 | DC | 119 x 119 x 38 | 44 | 5.3 | ||
| 38 | 8 .. 13,8 | DC | 40 x 40 x 28 | 54 | 6.6 | ||
| 24 | 8 .. 13,8 | DC | 40 x 40 x 28 | 42 | 5.5 | ||
| 31 | 8 .. 13,8 | DC | 40 x 40 x 28 | 48 | 6 | ||
| 38 | 16 .. 26,4 | DC | 40 x 40 x 28 | 54 | 6.6 | ||
| 24 | 16 .. 28 | DC | 40 x 40 x 28 | 42 | 5.5 | ||
| 31 | 16 .. 28 | DC | 40 x 40 x 28 | 48 | 6 | ||
| 170 | 6 .. 15 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 170 | 6 .. 15 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 95 | 6 .. 15 | DC | 119 x 119 x 32 | 30 | 4.3 | ||
| 140 | 6 .. 15 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 95 | 6 .. 15 | DC | 119 x 119 x 32 | 30 | 4.3 | ||
| 140 | 6 .. 15 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 138 | 8 .. 15 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| DC | 119 x 119 x 32 | ||||||
| 220 | 6 .. 15 | DC | 119 x 119 x 32 | 47 | 5.8 | ||
| 285 | 7 .. 13,2 | DC | 119 x 119 x 32 | 55 | 6.6 | ||
| 250 | 6 .. 14,4 | DC | 119 x 119 x 32 | 51 | 6.2 | ||
| DC | 119 x 119 x 32 | ||||||
| 150 | 6 .. 15 | DC | 119 x 119 x 32 | 36 | 4.7 | ||
| 190 | 6 .. 15 | DC | 119 x 119 x 32 | 43 | 5.4 | ||
| 170 | 8 .. 13.2 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 180 | 6 .. 15 | DC | 119 x 119 x 32 | 47 | 6.1 | ||
| 204 | 6 .. 13.2 | DC | 119 x 119 x 32 | 51 | 6.4 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 95 | 12 .. 28 | DC | 119 x 119 x 32 | 30 | 4.3 | ||
| 140 | 12 .. 28 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 220 | 12 .. 28 | DC | 119 x 119 x 32 | 47 | 5.8 | ||
| 285 | 14 .. 26,4 | DC | 119 x 119 x 32 | 55 | 6.6 | ||
| 250 | 12 .. 27 | DC | 119 x 119 x 32 | 51 | 6.2 | ||
| 100 | 12 .. 28 | DC | 119 x 119 x 32 | 25 | 3.9 | ||
| 150 | 12 .. 28 | DC | 119 x 119 x 32 | 36 | 4.7 | ||
| 190 | 12 .. 28 | DC | 119 x 119 x 32 | 41 | 5.5 | ||
| 170 | 18 .. 32 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 170 | 21 .. 27 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 180 | 12 .. 28 | DC | 119 x 119 x 32 | 47 | 6.1 | ||
| 204 | 12 .. 26.5 | DC | 119 x 119 x 32 | 51 | 6.4 | ||
| 170 | 36 .. 53 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 140 | 36 .. 56 | DC | 119 x 119 x 32 | 39 | 5.3 | ||
| 220 | 36 .. 60 | DC | 119 x 119 x 32 | 47 | 5.8 | ||
| 285 | 36 .. 52,8 | DC | 119 x 119 x 32 | 55 | 6.6 | ||
| 190 | 36 .. 60 | DC | 119 x 119 x 32 | 43 | 5.4 | ||
| 170 | 40 .. 53 | DC | 119 x 119 x 32 | 45 | 5.8 | ||
| 285 | 7 .. 14.5 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 170 | 8 .. 12.6 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 170 | 8 .. 12.6 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 94 | 7 .. 14 | DC | 119 x 119 x 25 | 26 | 3.9 | ||
| 91 | 7 .. 15 | DC | 127 x 127 | 26 | 3.9 | ||
| 140 | 7 .. 12.6 | DC | 119 x 119 x 25 | 38 | 4.8 | ||
| 114 | 7 .. 12.6 | DC | 119 x 119 x 25 | 32 | 4.3 | ||
| 140 | 7 .. 12.6 | DC | 119 x 119 x 25 | 38 | 4.8 | ||
| 114 | 7 .. 12.6 | DC | 119 x 119 x 25 | 32 | 4.3 | ||
| 225 | 9 .. 13.2 | DC | 119 x 119 x 25 | 55 | 6.7 | ||
| 240 | 7 .. 14 | DC | 119 x 119 x 38 | 50 | 6 | ||
| 150 | 7 .. 14 | DC | 119 x 119 x 38 | 37 | 5 | ||
| 184 | 7 .. 14 | DC | 119 x 119 x 38 | 42 | 5.3 | ||
| 168 | 7 .. 15 | DC | 119 x 119 x 38 | 40 | 5.1 | ||
| 205 | 7 .. 14 | DC | 119 x 119 x 38 | 46 | 5.6 | ||
| 285 | 18 .. 28 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 170 | 12 .. 28 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 94 | 18 .. 28 | DC | 119 x 119 x 25 | 26 | 3.9 | ||
| 140 | 12 .. 28 | DC | 119 x 119 x 25 | 38 | 4.8 | ||
| 225 | 18 .. 26.4 | DC | 119 x 119 x 25 | 55 | 6.7 | ||
| 200 | 14 .. 28 | DC | 119 x 119 x 25 | 52 | 6.5 | ||
| 240 | 18 .. 28 | DC | 119 x 119 x 38 | 50 | 6 | ||
| 285 | 16 .. 28 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 150 | 18 .. 28 | DC | 119 x 119 x 38 | 37 | 5 | ||
| 100 | 12 .. 28 | DC | 119 x 119 x 38 | 26 | 4 | ||
| DC | 119 x 119 x 38 | ||||||
| 184 | 18 .. 28 | DC | 119 x 119 x 38 | 42 | 5.3 | ||
| 168 | 12 .. 28 | DC | 119 x 119 x 38 | 40 | 5.1 | ||
| 205 | 18 .. 28 | DC | 119 x 119 x 38 | 46 | 5.6 | ||
| 285 | 36 .. 60 | DC | 119 x 119 x 38 | 55 | 6.4 | ||
| 170 | 28 .. 53 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 170 | 28 .. 53 | DC | 119 x 119 x 25 | 43 | 5.3 | ||
| 225 | 36 .. 53 | DC | 119 x 119 x 25 | 55 | 6.7 | ||
| 240 | 36 .. 60 | DC | 119 x 119 x 38 | 50 | 6 | ||
| 150 | 36 .. 60 | DC | 119 x 119 x 38 | 37 | 5 | ||
| 184 | 36 .. 60 | DC | 119 x 119 x 38 | 42 | 5.3 | ||
| 168 | 36 .. 60 | DC | 119 x 119 x 38 | 40 | 5.1 | ||
| 205 | 36 .. 60 | DC | 119 x 119 x 38 | 46 | 5.6 | ||
| 169 | 115 | 60 | AC | 119 x 119 x 38 | 48 | 5.7 | |
| 151 | 115 | 60 | AC | 119 x 119 x 38 | 45 | 5.4 | |
| 120 | 115 | 60 | AC | 119 x 119 x 38 | 32 | 4.4 | |
| 120 | 115 | 60 | AC | 119 x 119 x 38 | 32 | 4.4 | |
| 145 | 230 | 50 | AC | 119 x 119 x 38 | 44 | 5.4 | |
| 123 | 230 | 50 | AC | 119 x 119 x 38 | 41 | 5.2 | |
| 115 | 230 | 50 | AC | 119 x 119 x 38 | 30 | 4.3 | |
| 115 | 230 | 50 | AC | 119 x 119 x 38 | 30 | 4.3 | |
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 50 | 5.7 | |
| 140 | 115 | 60 | AC | 108 Ø x 37 | 45 | ||
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 45 | 5.6 | |
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 51 | 5.8 | |
| 147 | 115 | 60 | AC | 113 Ø x 37 | 44 | ||
| 140 | 115 | 60 | AC | 108 Ø x 37 | 45 | ||
| 180 | 115 | 60 | AC | 119 x 119 x 38 | 45 | 5.6 | |
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 46 | 5.4 | |
| 138 | 230 | 50 | AC | 113 Ø x 37 | 41 | ||
| 125 | 230 | 50 | AC | 108 Ø x 37 | 42 | ||
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 40 | 5.3 | |
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 47 | 5.5 | |
| 138 | 230 | 50 | AC | 113 Ø x 37 | 42 | ||
| 125 | 230 | 50 | AC | 108 Ø x 37 | 42 | ||
| 160 | 230 | 50 | AC | 119 x 119 x 38 | 40 | 5.3 | |
| 97 | 115 | 60 | AC | 119 x 119 x 38 | 32 | 4.3 | |
| 105 | 115 | 60 | AC | 119 x 119 x 38 | 28 | 4.1 | |
| 105 | 115 | 60 | AC | 119 x 119 x 38 | 28 | 4.1 | |
| 85 | 115 | 60 | AC | 119 x 119 x 38 | 26 | 4.1 | |
| 100 | 230 | 50 | AC | 119 x 119 x 38 | 32 | 4.4 | |
| 100 | 230 | 50 | AC | 119 x 119 x 38 | 26 | 4 | |
| 100 | 230 | 50 | AC | 119 x 119 x 38 | 26 | 4 | |
| 80 | 230 | 50 | AC | 119 x 119 x 38 | 25 | 4 | |
| 260 | 6 .. 15 | DC | 135 x 135 x 38 | 48 | 6.1 | ||
| 260 | 12 .. 30 | DC | 135 x 135 x 38 | 48 | 6.1 | ||
| 260 | 24 .. 60 | DC | 135 x 135 x 38 | 48 | 6.1 | ||
| 122 | 24 .. 60 | DC | 135 x 135 x 38 | 28 | 4.1 | ||
| 20 | 10.8 .. 13.2 | DC | 50 x 50 x 15 | 30 | 4.5 | ||
| 20 | 10.8 .. 13.2 | DC | 50 x 50 x 15 | 30 | 4.5 | ||
| 11 | 11.5 .. 13.2 | DC | 50 x 50 x 15 | 18 | 3.7 | ||
| 20 | 21.6 .. 26.4 | DC | 50 x 50 x 15 | 30 | 4.5 | ||
| 252 | 7 .. 14 | DC | 127 x 127 x 38 | 51 | 6 | ||
| 340 | 9 .. 15 | DC | 127 x 127 x 38 | 58 | 6.6 | ||
| 187 | 7 .. 14.5 | DC | 127 x 127 x 38 | 43 | 5.3 | ||
| 216 | 7 .. 14 | DC | 127 x 127 x 38 | 46 | 5.6 | ||
| 252 | 12 .. 28 | DC | 127 x 127 x 38 | 51 | 6 | ||
| 340 | 16 .. 30 | DC | 127 x 127 x 38 | 58 | 6.6 | ||
| 187 | 12 .. 28 | DC | 127 x 127 x 38 | 43 | 5.3 | ||
| 216 | 12 .. 28 | DC | 127 x 127 x 38 | 46 | 5.6 | ||
| 252 | 36 .. 56 | DC | 127 x 127 x 38 | 51 | 6 | ||
| 340 | 36 .. 60 | DC | 127 x 127 x 38 | 58 | 6.6 | ||
| 187 | 36 .. 56 | DC | 127 x 127 x 38 | 43 | 5.3 | ||
| 216 | 36 .. 56 | DC | 127 x 127 x 38 | 46 | 5.6 | ||
| 410 | 8 .. 16 | DC | 140 x 140 x 51 | 70 | 7.7 | ||
| 410 | 16 .. 36 | DC | 140 x 140 x 51 | 70 | 7.7 | ||
| 340 | 16 .. 28 | DC | 140 x 140 x 51 | 64 | 7.2 | ||
| 490 | 16 .. 36 | DC | 140 x 140 x 51 | 75 | 8.1 | ||
| 670 | 36 .. 72 | DC | 140 x 140 x 51 | 79 | 8.8 | ||
| 490 | 36 .. 72 | DC | 140 x 140 x 51 | 75 | 8.1 | ||
| 410 | 36 .. 72 | DC | 140 x 140 x 51 | 70 | 7.7 | ||
| 340 | 36 .. 72 | DC | 140 x 140 x 51 | 64 | 7.2 | ||
| 270 | 115 | 60 | AC | 135 x 135 x 38 | 50 | 6.2 | |
| 235 | 230 | 50 | AC | 135 x 135 x 38 | 46 | 5.9 | |
| 206 | 115 | 60 | AC | 127 x 127 x 38 | 46 | 5.7 | |
| 206 | 115 | 60 | AC | 127 x 127 x 38 | 47 | 5.8 | |
| 162 | 115 | 60 | AC | 127 x 127 x 38 | 40 | 4.9 | |
| 180 | 230 | 50 | AC | 127 x 127 x 38 | 43 | 5.4 | |
| 180 | 230 | 50 | AC | 127 x 127 x 38 | 44 | 5.5 | |
| 150 | 230 | 50 | AC | 127 x 127 x 38 | 37 | 4.9 | |
| 440 | 115 | 60 | AC | 172 Ø x 51 | 60 | 6.4 | |
| 500 | 115 | 60 | AC | 172 Ø x 51 | 58 | 6.7 | |
| 29 | 4.5 .. 5.2 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 375 | 230 | 50 | AC | 172 Ø x 51 | 55 | 5.9 | |
| 420 | 230 | 50 | AC | 172 Ø x 51 | 54 | 6.3 | |
| 29 | 10.8 .. 13.2 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 29 | 10.8 .. 12.6 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 33 | 10 .. 13.2 | DC | 60 x 60 x 15 | 31 | 4.8 | ||
| 19 | 11.5 .. 13.2 | DC | 60 x 60 x 15 | 16 | 3.6 | ||
| 19 | 11.5 .. 14 | DC | 60 x 60 x 15 | 16 | 3.6 | ||
| 70 | 7 .. 13.6 | DC | 60 x 60 x 32 | 53 | 6.4 | ||
| 21 | 8 .. 15 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 8 .. 15 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 35 | 8 .. 12.6 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 8 .. 15 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 41 | 8 .. 12.6 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 41 | 8 .. 12.6 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 43 | 8 .. 15 | DC | 60 x 60 x 25 | 37 | 5.3 | ||
| 56 | 8 .. 15 | DC | 60 x 60 x 25 | 41 | 5.7 | ||
| 21 | 8 .. 15 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 8 .. 15 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 35 | 8 .. 12.6 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 8 .. 15 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 42 | 8 .. 15 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 41 | 8 .. 12.6 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 29 | 21.6 .. 26.4 | DC | 60 x 60 x 15 | 27 | 4.4 | ||
| 33 | 16 .. 28 | DC | 60 x 60 x 15 | 31 | 4.8 | ||
| 82 | 18 .. 30 | DC | 60 x 60 x 32 | 62 | 7.6 | ||
| 70 | 14 .. 26.4 | DC | 60 x 60 x 32 | 53 | 6.4 | ||
| 21 | 18 .. 28 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 18 .. 28 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 18 .. 28 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 43 | 18 .. 26 | DC | 60 x 60 x 25 | 37 | 5.3 | ||
| 56 | 18 .. 26 | DC | 60 x 60 x 25 | 41 | 5.7 | ||
| 56 | 18 .. 28 | DC | 60 x 60 x 25 | 41 | 5.7 | ||
| 21 | 18 .. 28 | DC | 60 x 60 x 25 | 16 | 3.6 | ||
| 35 | 18 .. 28 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 25 | 18 .. 28 | DC | 60 x 60 x 25 | 19 | 3.9 | ||
| 42 | 18 .. 28 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 82 | 38 .. 58 | DC | 60 x 60 x 32 | 62 | 7.6 | ||
| 70 | 36 .. 56 | DC | 60 x 60 x 32 | 53 | 6.4 | ||
| 35 | 36 .. 56 | DC | 60 x 60 x 25 | 28 | 4.6 | ||
| 42 | 36 .. 56 | DC | 60 x 60 x 25 | 35 | 5 | ||
| 67 | 8 .. 13.2 | DC | 60 x 60 x 25 | 48 | 5.9 | ||
| 46 | 8 .. 15 | DC | 60 x 60 x 25 | 39 | 5.1 | ||
| 56 | 8 .. 15 | DC | 60 x 60 x 25 | 43 | 5.6 | ||
| 30 | 8 .. 15 | DC | 60 x 60 x 25 | 29 | 4.3 | ||
| 30 | 8 .. 15 | DC | 60 x 60 x 25 | 29 | 4.3 | ||
| 40 | 8 .. 15 | DC | 60 x 60 x 25 | 35 | 4.7 | ||
| 46 | 18 .. 28 | DC | 60 x 60 x 25 | 39 | 5.1 | ||
| 56 | 18 .. 28 | DC | 60 x 60 x 25 | 43 | 5.6 | ||
| 21 | 18 .. 28 | DC | 60 x 60 x 25 | 20 | 3.7 | ||
| 30 | 12 .. 28 | DC | 60 x 60 x 25 | 29 | 4.3 | ||
| 40 | 12 .. 28 | DC | 60 x 60 x 25 | 35 | 4.7 | ||
| 56 | 36 .. 60 | DC | 60 x 60 x 25 | 43 | 5.6 | ||
| 600 | 8 .. 16 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 610 | 8 .. 16 | DC | 172 Ø x 51 | ||||
| 600 | 16 .. 36 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 710 | 16 .. 36 | DC | 172 Ø x 51 | 69 | 7.9 | ||
| 545 | 16 .. 30 | DC | 172 Ø x 51 | 58 | 6.9 | ||
| 395 | 16 .. 30 | DC | 172 Ø x 51 | 51 | 6 | ||
| 470 | 16 .. 30 | DC | 172 Ø x 51 | 56 | 6.5 | ||
| 930 | 16 .. 36 | DC | 172 Ø x 51 | 75 | 8.4 | ||
| 710 | 16 .. 36 | DC | 172 x 160 x 51 | 69 | 7.9 | ||
| 600 | 16 .. 30 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 540 | 16 .. 36 | DC | 172 Ø x 51 | 6.9 | |||
| 970 | 16 .. 36 | DC | 172 Ø x 51 | 8.3 | |||
| 930 | 36 .. 72 | DC | 172 Ø x 51 | 75 | 8.4 | ||
| 710 | 36 .. 72 | DC | 172 Ø x 51 | 69 | 7.9 | ||
| 600 | 36 .. 72 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 545 | 36 .. 72 | DC | 172 Ø x 51 | 58 | 6.9 | ||
| 930 | 36 .. 72 | DC | 172 x 160 x 51 | 75 | 8.4 | ||
| 600 | 36 .. 60 | DC | 172 Ø x 51 | 60 | 7.3 | ||
| 685 | 36 .. 72 | DC | 172 Ø x 51 | 7.5 | |||
| 1030 | 36 .. 72 | DC | 172 Ø x 51 | 83 | 8.4 | ||
| 44 | 10,8 .. 13,2 | DC | 60 x 60 x 25 | 35 | 5.4 | ||
| 40 | 6 .. 15 | DC | 60 x 60 x 25 | 33 | 5.2 | ||
| 58 | 18 .. 28 | DC | 60 x 60 x 25 | 44 | 6.1 | ||
| 40 | 12 .. 30 | DC | 60 x 60 x 25 | 34 | 5.1 | ||
| 58 | 18 .. 28 | DC | 60 x 60 x 25 | 44 | 6.1 | ||
| 44 | 40 .. 60 | DC | 60 x 60 x 25 | 35 | 5.4 | ||
| 350 | 8 .. 15 | DC | 172 x 150 x 51 | 52 | 6 | ||
| 410 | 12 .. 28 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 480 | 12 .. 28 | DC | 172 x 150 x 51 | 63 | 7.1 | ||
| 350 | 12 .. 32 | DC | 172 x 150 x 51 | 52 | 6 | ||
| 410 | 12 .. 28 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 600 | 16 .. 28 | DC | 172 x 150 x 51 | 65 | 7.4 | ||
| 410 | 28 .. 60 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 480 | 28 .. 60 | DC | 172 x 150 x 51 | 63 | 7.1 | ||
| 350 | 28 .. 60 | DC | 172 x 150 x 51 | 52 | 6 | ||
| 410 | 28 .. 60 | DC | 172 x 150 x 51 | 57 | 6.4 | ||
| 600 | 40 .. 55 | DC | 172 x 150 x 72 | 65 | 7.4 | ||
| 900 | 36 .. 72 | DC | 172 x 150 x 51 | 78 | 8.6 | ||
| 380 | 115 | 60 | AC | 150 x 172 x 38 | 56 | 6.8 | |
| 320 | 230 | 50 | AC | 150 x 172 x 38 | 51 | 6.4 | |
| 308 | 6 .. 15 | DC | 150 Ø x 38 | 53 | 6.2 | ||
| 308 | 12 .. 30 | DC | 150 Ø x 38 | 53 | 6.2 | ||
| 360 | 12 .. 26.5 | DC | 150 Ø x 38 | 58 | 6.7 | ||
| 308 | 24 .. 60 | DC | 150 Ø x 38 | 53 | 6.2 | ||
| 44 | 8 .. 13.8 | DC | 70 x 70 x 15 | 38 | 5.3 | ||
| 28 | 8 .. 13.8 | DC | 70 x 70 x 15 | 25 | 4.7 | ||
| 36 | 8 .. 13.8 | DC | 70 x 70 x 15 | 32 | 5 | ||
| 44 | 18 .. 28 | DC | 70 x 70 x 15 | 38 | 5.3 | ||
| 360 | 6 .. 15 | DC | 150 Ø x 55 | 53 | 6.2 | ||
| 360 | 12 .. 30 | DC | 150 Ø x 55 | 53 | 6.2 | ||
| 360 | 24 .. 60 | DC | 150 Ø x 55 | 53 | 6.2 | ||
| 425 | 115 | 60 | AC | 150 Ø x 55 | 62 | 6.9 | |
| 380 | 230 | 50 | AC | 150 Ø x 55 | 60 | 6.8 | |
| 380 | 115 | 60 | AC | 150 Ø x 55 | 53 | 6.4 | |
| 380 | 115 | 60 | AC | 150 Ø x 55 | 53 | 6.4 | |
| 325 | 230 | 50 | AC | 150 Ø x 55 | 49 | 6 | |
| 325 | 230 | 50 | AC | 150 Ø x 55 | 49 | 6 | |
| 190 | 6 .. 13.8 | DC | 80 x 80 x 38 | 66 | 7.3 | ||
| 222 | 6 .. 13.8 | DC | 80 x 80 x 38 | 71 | 7.8 | ||
| 132 | 7 .. 13.8 | DC | 80 x 80 x 38 | 55 | 6.6 | ||
| 190 | 12 .. 27.6 | DC | 80 x 80 x 38 | 66 | 7.3 | ||
| 222 | 12 .. 27.6 | DC | 80 x 80 x 38 | 71 | 7.8 | ||
| 132 | 18 .. 26.4 | DC | 80 x 80 x 38 | 55 | 6.6 | ||
| 190 | 36 .. 53 | DC | 80 x 80 x 38 | 66 | 7.3 | ||
| 222 | 20 .. 58 | DC | 80 x 80 x 38 | 71 | 7.8 | ||
| 132 | 36 .. 53 | DC | 80 x 80 x 38 | 55 | 6.6 | ||
| 54 | 6 .. 15 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 48 | 6 .. 15 | DC | 80 x 80 x 32 | 34 | 5 | ||
| 80 | 6 .. 12.6 | DC | 80 x 80 x 32 | 48 | 6.2 | ||
| 67 | 6 .. 15 | DC | 80 x 80 x 32 | 43 | 5.8 | ||
| 32 | 6 .. 15 | DC | 80 x 80 x 32 | 24 | 4 | ||
| 48 | 6 .. 15 | DC | 80 x 80 x 32 | 34 | 5 | ||
| 54 | 12 .. 31,5 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 54 | 12 .. 28 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 80 | 6 .. 12,6 | DC | 80 x 80 x 32 | 48 | 6.2 | ||
| 67 | 12 .. 31,5 | DC | 80 x 80 x 32 | 43 | 5.8 | ||
| 32 | 12 .. 31,5 | DC | 80 x 80 x 32 | 24 | 4 | ||
| 48 | 12 .. 31,5 | DC | 80 x 80 x 32 | 34 | 5 | ||
| 54 | 36 .. 56 | DC | 80 x 80 x 32 | 36 | 5.2 | ||
| 80 | 36 .. 56 | DC | 80 x 80 x 32 | 48 | 6.2 | ||
| 67 | 36 .. 56 | DC | 80 x 80 x 32 | 43 | 5.8 | ||
| 69 | 8 .. 15 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 69 | 8 .. 15 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 33 | 8 .. 15 | DC | 80 x 80 x 25 | 12 | 3.5 | ||
| 33 | 10 .. 14 | DC | 80 x 80 x 25 | 12 | 3.5 | ||
| 58 | 8 .. 15 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 58 | 8 .. 14 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 45 | 8 .. 15 | DC | 80 x 80 x 25 | 19 | 3.9 | ||
| 45 | 8 .. 14 | DC | 80 x 80 x 25 | 19 | 3.9 | ||
| 58 | 8 .. 14 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 79 | 8 .. 13.2 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 79 | 8 .. 15 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 33 | 8 .. 15 | DC | 80 x 80 x 25 | 17 | 3.7 | ||
| 58 | 8 .. 15 | DC | 80 x 80 x 25 | 27 | 4.4 | ||
| 45 | 8 .. 15 | DC | 80 x 80 x 25 | 21 | 4 | ||
| 69 | 18 .. 28 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 69 | 18 .. 28 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 33 | 18 .. 28 | DC | 80 x 80 x 25 | 12 | 3.5 | ||
| 58 | 18 .. 28 | DC | 80 x 80 x 25 | 26 | 4.3 | ||
| 45 | 18 .. 28 | DC | 80 x 80 x 25 | 19 | 3.9 | ||
| 79 | 18 .. 26 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 79 | 18 .. 28 | DC | 80 x 80 x 25 | 37 | 5 | ||
| 33 | 18 .. 28 | DC | 80 x 80 x 25 | 17 | 3.7 | ||
| 58 | 18 .. 28 | DC | 80 x 80 x 25 | 27 | 4.4 | ||
| 45 | 18 .. 28 | DC | 80 x 80 x 25 | 21 | 4 | ||
| 69 | 36 .. 56 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 117 | 8 .. 15 | DC | 80 x 80 x 25 | 50 | 6.4 | ||
| 83 | 10.8 .. 13.2 | DC | 80 x 80 x 25 | 42 | 5.5 | ||
| 75 | 10.8 .. 13.2 | DC | 80 x 80 x 25 | 38 | 5.3 | ||
| 32 | 8 .. 15 | DC | 80 x 80 x 25 | 14 | 3.3 | ||
| 58 | 8 .. 15 | DC | 80 x 80 x 25 | 32 | 4.7 | ||
| 68 | 8 .. 15 | DC | 80 x 80 x 25 | 36 | 5 | ||
| 117 | 20 .. 26,4 | DC | 80 x 80 x 25 | 50 | 6.4 | ||
| 57 | 115 | 60 | AC | 80 x 80 x 38 | 41 | 5.5 | |
| 61 | 115 | 60 | AC | 80 x 80 x 38 | 34 | 4.8 | |
| 45 | 115 | 60 | AC | 76 Ø x 37 | 30 | ||
| 47 | 115 | 60 | AC | 76 Ø x 37 | 32 | ||
| 57 | 115 | 60 | AC | 80 x 80 x 38 | 42 | 5.7 | |
| 61 | 115 | 60 | AC | 80 x 80 x 38 | 35 | 5 | |
| 45 | 115 | 60 | AC | 76 Ø x 37 | 31 | ||
| 47 | 115 | 60 | AC | 76 Ø x 37 | 33 | ||
| 48 | 230 | 50 | AC | 80 x 80 x 38 | 36 | 5 | |
| 50 | 230 | 50 | AC | 80 x 80 x 38 | 30 | 4.4 | |
| 38 | 230 | 50 | AC | 76 Ø x 37 | 25 | ||
| 40 | 230 | 50 | AC | 76 Ø x 37 | 27 | ||
| 48 | 230 | 50 | AC | 80 x 80 x 38 | 37 | 5.1 | |
| 50 | 230 | 50 | AC | 80 x 80 x 38 | 31 | 4.5 | |
| 38 | 230 | 50 | AC | 76 Ø x 37 | 26 | ||
| 40 | 230 | 50 | AC | 76 Ø x 37 | 28 | ||
| 45 | 115 | 60 | AC | 80 x 80 x 38 | 34 | 4.8 | |
| 47 | 115 | 60 | AC | 80 x 80 x 38 | 28 | 4.3 | |
| 34 | 115 | 60 | AC | 76 Ø x 37 | 23 | ||
| 36 | 115 | 60 | AC | 76 Ø x 37 | 24 | ||
| 34 | 115 | 60 | AC | 80 x 80 x 38 | 29 | 4.3 | |
| 36 | 115 | 60 | AC | 80 x 80 x 38 | 21 | 3.7 | |
| 26 | 115 | 60 | AC | 76 Ø x 37 | 18 | ||
| 27 | 115 | 60 | AC | 76 Ø x 37 | 18 | ||
| 36 | 230 | 50 | AC | 80 x 80 x 38 | 31 | 4.6 | |
| 37 | 230 | 50 | AC | 80 x 80 x 38 | 24 | 3.9 | |
| 30 | 230 | 50 | AC | 76 Ø x 37 | 19 | ||
| 31 | 230 | 50 | AC | 76 Ø x 37 | 20 | ||
| 29 | 230 | 50 | AC | 80 x 80 x 38 | 26 | 4.1 | |
| 30 | 230 | 50 | AC | 80 x 80 x 38 | 18 | 3.3 | |
| 23 | 230 | 50 | AC | 76 Ø x 37 | 15 | ||
| 24 | 230 | 50 | AC | 76 Ø x 37 | 15 | ||
| 135 | 115 | 60 | AC | 119 x 119 x 25 | 42 | 5.4 | |
| 135 | 115 | 60 | AC | 119 x 119 x 25 | 42 | 5.4 | |
| 100 | 115 | 60 | AC | 119 x 119 x 25 | 34 | 4.6 | |
| 111 | 115 | 60 | AC | 119 x 119 x 25 | 37 | 5 | |
| 117 | 230 | 50 | AC | 119 x 119 x 25 | 37 | 5 | |
| 117 | 230 | 50 | AC | 119 x 119 x 25 | 37 | 5 | |
| 84 | 230 | 50 | AC | 119 x 119 x 25 | 29 | 4.4 | |
| 104 | 230 | 50 | AC | 119 x 119 x 25 | 35 | 4.7 | |
| 55 | 50/60 | DC | 98.50 x 130 | 33 | 4.5 | ||
| 53 | 50/60 | DC | 98.5 x 130 | 33 | 4.4 | ||
| 144 | 115 | 50 | AC | 92 x 92 x 38 | 55 | 6.4 | |
| 204 | 115 | 50 | AC | 119 x 119 x 32 | 51 | 6.4 | |
| 205 | 115 | 50 | AC | 119 x 119 x 25 | 53 | 6.2 | |
| 350 | 115 | 50 | AC | 172 Ø x 51 | 50 | 5.7 | |
| 80 | 115 | 50 | AC | 80 x 80 x 32 | 48 | 6.2 | |
| 80 | 85 .. 265 | 50/60 | DC | 98.5 x 130 | 35 | 4.7 | |
| 78 | DC | 119x119x38 | 23 | 3.7 | |||
| 175 | 85 .. 132 | AC | 119 x 119 x 38 | 42 | 5.3 | ||
| 160 | 195 .. 265 | AC | 119 x 119 x 38 | 39 | 5.1 | ||
| 175 | 195 .. 265 | AC | 119 x 119 x 38 | 42 | 5.3 | ||
| 100 | 195 .. 265 | AC | 119 x 119 x 38 | 25 | 4.1 | ||
| 147 | 195 .. 265 | AC | 119 x 119 x 38 | 36 | 4.9 | ||
| 240 | 230 | 50/60 | AC | 130 | |||
| 275 | 230 | 50/60 | AC | 130 | |||
| 210 | 115 | 50/60 | AC | 130 | |||
| 275 | 115 | 50/60 | AC | 130 | |||
| 1090 | 36 .. 57 | - | DC | 200 | 60 | ||
| 1090 | 16 .. 28 | DC | 200 | 60 | |||
| 1920 | 16 .. 28 | DC | 250 | 70 | |||
| 1920 | 36 .. 57 | DC | 250 | 70 | |||
| 880 | 230 | 50 | AC | 200 | 58 | ||
| 1000 | 230 | 60 | AC | 200 | 61 | ||
| 925 | 115 | 50 | AC | 200 | 59 | ||
| 1030 | 115 | 60 | AC | 200 | 61 | ||
| 1865 | 230 | 50 | AC | 250 | 69 | ||
| 1970 | 230 | 60 | AC | 250 | 70 | ||
| 450 | 230 | 50 | AC | 200 | 40 | ||
| 525 | 230 | 60 | AC | 200 | 44 |
UN = Nominal voltage (range)
f = Frequency
Dimensions = Dimensions / Size
LpA = Sound pressure level
- là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay
Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.
[ Email ] | |
Online contact========
Yahoo: nhan.luongthe
Skype: luongthenhan
===================
Greentech Trading Service Company Limited
[ Main Office ] 104/15 Street 18, Binh Hung Hoa Ward, Binh Tan Dist, HCMC, Viet Nam
[ Brand Office ] 92/8 Huynh Thuc Khang Street, Tam Ky City, Quang Nam Province, Viet Nam
[ Tel & Fax ] + 84 (0) 8 3620 4585
[ Website ] |
[ Face Page ]
-------------------------------
Ø Flow, pressure and level measurement | Temperature and humidity measurement | Position measurement | Force measurement
Ø Optical and acoustic measurement | Electrical measurement | Hydraulics – Pneumatic
Ø Valve - Pipes, tubes and fittings
Ø Building Management System
Ø Smarthome
µ FAST - FLEXIBLE - FLASH µ
-------------------------------------------------------------------
Pelco Vietnam | Solvac Vietnam | Citizen Vietnam | | Renishaw Vietnam | Di-soric Vietnam | | | | Bacharach Vietnam | | Showa Denki Vietnam | S | | | | Tetra-K Electronic Vietnam | | | | | | Mitsubishi Vietnam | Siemens Vietnam | Omron Viet Nam | TPM Vietnam | Tecsis Vietnam | Wise Control Vietnam | Micro Process Controls Vietnam | Wika Vietnam | Asahi Gauge Vietnam | TemPress Vietnam | Itec Vietnam | Konics Vietnam | Ashcroft Vietnam | Ametek Vietnam – Afriso Vietnam | LS Industrial Vietnam | RS Automation Vietnam | Balluff Vietnam | Baumer Vietnam | Kuppler Vietnam | Pulsotronics Vietnam | Leuze Vietnam | Microsonic Vietnam | AST Vietnam | Tempsen Vietnam | STS Vietnam | Micro Dectector Vietnam | Proxitron Vietnam | Microsens Vietnam | Towa Seiden Vietnam | Promesstec Vietnam | Ski Vietnam | Eltra Vietnam | Hohner Vietnam | Posital Vietnam | Elap Vietnam | Beisensors Vietnam | Newall Vietnam | Dotech Vietnam | Watlow Vietnam | Bihl Weidemann Vietnam | Prosoft Vietnam | ICP DAS Vietnam | Beckhoff Vietnam | Keller M S R Vietnam | IRCON Vietnam | Raytek Vietnam | Kimo Vietnam | YSI Vietnam | Jenco Vietnam | Tekhne Vietnam | Atago Vietnam | E Instrument Vietnam | IMR Vietnam | Netbiter Viêt Nam | FMS Vietnam | Unipulse Vietnam | Migun Vietnam | Sewha Vietnam | HBM Vietnam | Pilz Vietnam | Dold Vietnam | | Puls Vietnam | Microsens Vietnam | Controller Sensor Vietnam | Mark|10 Vietnam | Schmidt Vietnam | Bernstein Vietnam | Celduc Vietnam | Univer Vietnam | Waicom Vietnam | Aignep Vietnam | Top Air Vietnam | Burket Vietnam | | JJ Automation Vietnam | Somas Vietnam | Delta Elektrogas Vietnam | Pentair Vietnam | Auma Vietnam | Sipos Artorik Vietnam | Flowserve Vietnam | Sinbon Vietnam | Setra Vietnam | Yottacontrok Vietnam | Sensor Tival Vietnam | Vaisala Vietnam | Crouzet Vietnam | RheinTacho Vietnam | Cityzen Seimitsu Vietnam | Flowserve Vietnam | Greatork Vietnam | PS Automation Vietnam | Bettis Vietnam | Sinbon Vietnam | Setra Vietnam | Laurel Vietnam | Datapaq Vietnam | EE Electronik Vietnam | Banico Vietnam | Sinfonia Vietnam | Digmesa Vietnam | Alia Vietnam | Flowline Vietnam | Brook Instrument Vietnam | Dakota Instrument Vietnam | Diehl Metering Vietnam | Stego Vietnam | Rotronic Vietnam | Hopeway Vietnam | Beko Vietnam | Matsui Vietnam | Westec Vietnam | Sometech Vietnam | Offshore Vietnam | DCbox Vietnam | Fanuc Vietnam | KollMorgen Vietnam | Endress & Hauser Vietnam | Metso Automation Vietnam | MKS Instruments Vietnam | Teledyne Instruments Vieatnam | Badger Meter Vietnam | Hirschmann Vietnam | Servo Mitsubishi Vietnam | SCR SA Việt Nam | Biotech Flow Meter Việt Nam | Thermo Electric Việt Nam | Siko Việt Nam | Klinger Việt Nam | HK Instrument Việt Nam | Magnetrol Viet Nam | Lika Viet Nam | Setra Viet Nam | Kistler Viet Nam | Renishaw Viet Nam | Mindmen Vietnam | | Gimatic Vietnam | Monarch Instrument Vietnam | Stauff Vietnam | Burster Vietnam | SDT International Vietnam | MTI Instrument Vietnam | Zhuzhou CRRC Vietnam | Sensorex Vietnam | TWK Elektronik Vietnam | ASC Vietnam | Ronds Vietnam | Klaschka Vietnam | Hubner Vietnam | Hainzl Vietnam | Labom Vietnam | Siko Vietnam | Rittmeyer Vietnam | TR Electronic Vietnam | AK Industry Vietnam | Precizika Metrology Vietnam | Dis Sensor Vietnam | Elap Vietnam | Wachendorff Automation Vietnam | Foxboro Vietnam | Fireray Vietnam
Bình luận
Sản phẩm cùng loại
