A1H150PS | Senring | Vành trượt điện động lực | Mercury slip ring | Senring Vietnam
A1H150PS
Senring Vietnam | Greentech Vietnam
12 tháng
.

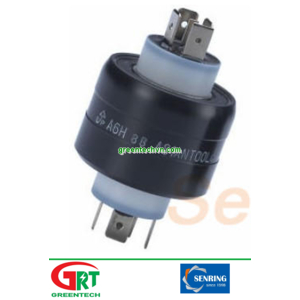

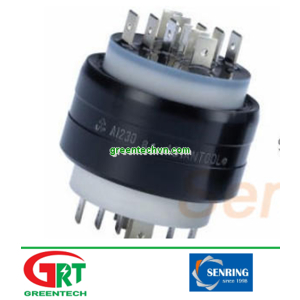

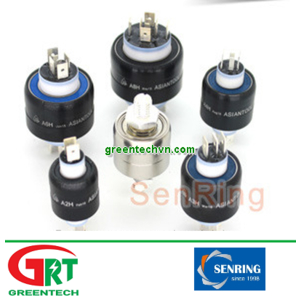

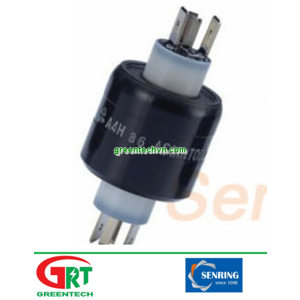

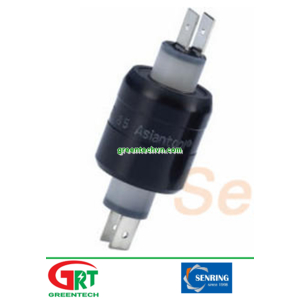

Mercury slip ring A series (mercury rotary joint)
- Anti-interference, low cost
- Contact resistance is less than the 1mΩ
- No maintenance, better reliability than traditional slip ring
- Suitable for signal and power transmitting of any rotating devices
- Mercury slip ring is used with special sealing materials,insulation and conductive technology production
- Housing material is made of aluminum alloy or stainless steel
- Applied for any rotating objects of signal transmitting such as：tiny voltage¤t,EMF,thermocouple,strain gauge,audio and video signals, high frequency,computer signal and electric power connections；
| Model# | Poles | Current(A)/Poles | Dielectric Strength AC/DCAC/DC(V) | Max Frequency(MHZ) | Contact Resistance | Max Speed | Work Temperature Max/Min ℃ | Torque (x10-3Nm) | Insulation Resistance | |
| 1 pole | 250 | -- | 200 | <1mΩ | 1200 | -29℃~60℃ | 250 | -- | ||
| 1 pole | 350 | -- | 200 | <1mΩ | 800 | -29℃~60℃ | 300 | -- | ||
| 1 pole | 250 | -- | 200 | <1mΩ | 1200 | -29℃~60℃ | 250 | -- | ||
| 1 pole | 650 | -- | 200 | <1mΩ | 200 | -29℃~60℃ | 1000 | -- | ||
| 1 pole | 1500 | -- | 200 | <1mΩ | 100 | -29℃~60℃ | 2000 | -- | ||
| 2 pole | 30A | 250 | 200 | <1mΩ | 1800 | -29℃~60℃ | 200 | >25MΩ | ||
| 3 pole | 30A | 250 | 200 | <1mΩ | 1200 | -29℃~60℃ | 400 | >25MΩ | ||
| 4 pole | 30A/4 | 250 | 200 | <1mΩ | 1200 | -29℃~60℃ | 400 | >25MΩ | ||
| 6 pole | 30A/4 | 30A/4 | 100 | <1mΩ | 300 | -29℃~60℃ | 700 | >25MΩ | ||
| 8 pole | 30A/6 | 250 | 100 | <1mΩ | 200 | -29℃~60℃ | 1000 | >25MΩ | ||
| 10 pole | 30A/8 | 250 | 100 | <1mΩ | 100 | -29℃~60℃ | 1500 | >25MΩ | ||
| 12 pole | 30A/10 | 250 | 100 | <1mΩ | 60 | -29℃~60℃ | 2000 | >25MΩ | ||
| 1 pole | 10A | -- | 200 | <1mΩ | 3600 | -29℃~60℃ | 35 | >25MΩ | ||
| 1 pole | 20A | -- | 200 | <1mΩ | 2000 | -29℃~60℃ | 50 | -- | ||
| 1 pole | 50A | -- | 200 | <1mΩ | 1800 | -29℃~60℃ | 70 | -- | ||
| 2 pole | 4A | 250 | 200 | <1mΩ | 2000 | -29℃~60℃ | 75 | >25MΩ | ||
| 3 pole | 4A | 250 | 200 | <1mΩ | 1800 | -29℃~60℃ | 100 | >25MΩ | ||
| 4 pole | 30A | 250 | 100 | <1mΩ | 100 | -29℃~60℃ | 2000 | >25MΩ
|
Mercury slip ring A series (mercury rotary joint)
- Anti-interference, low cost
- Contact resistance is less than the 1mΩ
- No maintenance, better reliability than traditional slip ring
- Suitable for signal and power transmitting of any rotating devices
- Mercury slip ring is used with special sealing materials,insulation and conductive technology production
- Housing material is made of aluminum alloy or stainless steel
- Applied for any rotating objects of signal transmitting such as：tiny voltage¤t,EMF,thermocouple,strain gauge,audio and video signals, high frequency,computer signal and electric power connections；
| Model# | Poles | Current(A)/Poles | Dielectric Strength AC/DCAC/DC(V) | Max Frequency(MHZ) | Contact Resistance | Max Speed | Work Temperature Max/Min ℃ | Torque (x10-3Nm) | Insulation Resistance | |
| 1 pole | 250 | -- | 200 | <1mΩ | 1200 | -29℃~60℃ | 250 | -- | ||
| 1 pole | 350 | -- | 200 | <1mΩ | 800 | -29℃~60℃ | 300 | -- | ||
| 1 pole | 250 | -- | 200 | <1mΩ | 1200 | -29℃~60℃ | 250 | -- | ||
| 1 pole | 650 | -- | 200 | <1mΩ | 200 | -29℃~60℃ | 1000 | -- | ||
| 1 pole | 1500 | -- | 200 | <1mΩ | 100 | -29℃~60℃ | 2000 | -- | ||
| 2 pole | 30A | 250 | 200 | <1mΩ | 1800 | -29℃~60℃ | 200 | >25MΩ | ||
| 3 pole | 30A | 250 | 200 | <1mΩ | 1200 | -29℃~60℃ | 400 | >25MΩ | ||
| 4 pole | 30A/4 | 250 | 200 | <1mΩ | 1200 | -29℃~60℃ | 400 | >25MΩ | ||
| 6 pole | 30A/4 | 30A/4 | 100 | <1mΩ | 300 | -29℃~60℃ | 700 | >25MΩ | ||
| 8 pole | 30A/6 | 250 | 100 | <1mΩ | 200 | -29℃~60℃ | 1000 | >25MΩ | ||
| 10 pole | 30A/8 | 250 | 100 | <1mΩ | 100 | -29℃~60℃ | 1500 | >25MΩ | ||
| 12 pole | 30A/10 | 250 | 100 | <1mΩ | 60 | -29℃~60℃ | 2000 | >25MΩ | ||
| 1 pole | 10A | -- | 200 | <1mΩ | 3600 | -29℃~60℃ | 35 | >25MΩ | ||
| 1 pole | 20A | -- | 200 | <1mΩ | 2000 | -29℃~60℃ | 50 | -- | ||
| 1 pole | 50A | -- | 200 | <1mΩ | 1800 | -29℃~60℃ | 70 | -- | ||
| 2 pole | 4A | 250 | 200 | <1mΩ | 2000 | -29℃~60℃ | 75 | >25MΩ | ||
| 3 pole | 4A | 250 | 200 | <1mΩ | 1800 | -29℃~60℃ | 100 | >25MΩ | ||
| 4 pole | 30A | 250 | 100 | <1mΩ | 100 | -29℃~60℃ | 2000 | >25MΩ
|

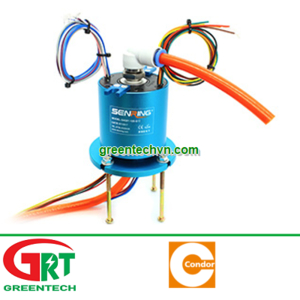

SNQ series（pneumatic，hydraulic-Electrical slip rings/rotary joints）
- Senring electronics developed the production of SNQ series（pneumatic，hydraulic-Electrical slip rings/rotary joints）can be rotated 360 degrees while Transmit power,control signal,switch signal,micro signal+fiber+mercury+servo motor signal of instruments and computer automatic control
- Transmit hydraulic,more channels optional
- 1、2、3、4、6、8、12 channnels optional
- 360°transmit compressed air,negative pressure,positive pressure,cooling water,hot oil
- 360-degree video signal even HD signal transmission
- Through bore or solid optional
- Main applications:high-tech auto-equipments,packing machine
- 50% Ethernet slip rings are customized；
| Model# | Pneumatic/Hydraulic@channels | Elctric@ Circuits | tube siz | |
| 1 channel | 1~96 | 4mm-50mm | ||
| 2 channel | 1~96 | 4mm-25mm | ||
| 3 channel | 1~96 | 4mm-25mm | ||
| 4 channel | 1~48 | 4mm-25mm | ||
| 6 channel | 1~48 | 4mm-15mm | ||
| 8 channel | 1~48 | 4mm-10mm | ||
| 12 channel | 1~48 | 4mm-8mm |
