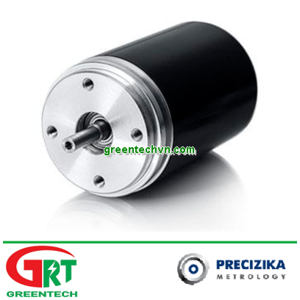

AK36 | Precizika MetrologyAK36 | Bộ mã hóa vòng xoay | Absolute rotary encoder | Precizika Metrology

Characteristics

  • Type:

    absolute, multi-turn, single-turn

  • Technology:

    optical, photoelectric

  • Construction:

    solid-shaft

  • Output signal:

    BiSS-C, with SSI interface, with serial interface

  • Protection level:

    IP54, IP64

Description

Absolute singleturn and multiturn (battery buffered) solid shaft rotary encoders are used for generation of coded output signals which provide information about controlled object absolute position.

In singleturn version rotary encoder AK36 has resolution from 9 up to 21 bit per revolution. Output signals interface is BiSS C or SSI. Operating principle is photoelectrical.

In multiturn version AK36 has singleturn resolution from 9 up to 21 bit per revolution with 12/16/20/24 bit resolution of multiturn counter on BiSS C interface. With SSI interface the encoder AK36 has resolution from 9 up to 21 bit per revolution with 9 up to 40 bit resolution of multiturn counter. Battery is placed inside of encoder. Operating principle is photoelectrical and magnetic.

Absolute encoder is intended to use in robotics industry, automated and automatizated lines in industry, control devices of equipment and machines, various control systems, precise machine tools and others.


Maximum shaft speed: 10,000 rpm

Maximum shaft load:
- axial: 5 N
- radial: 10 N

Starting torque 20°C temperature: ≤ 0.002 Nm

Rotor moment of inertia: < 2 cm²

Protection (IEC 529):
- standard: IP54
- optional: IP64

Maximum weight without cable 0.1 kg

Operating temperature:
singleturn: -20...+80°C
multiturn: -10...+70°C

Storage temperature:
singleturn: -30...+90°C
multiturn: -20...+80°C

Maximum humidity: 98%

Permissible vibration (55 to 2000 Hz) : ≤ 100 m/s²

Permissible shock (11 ms): ≤ 300 m/s²

  •
