Bơm hóa chất ly tâm | Nikkiso MONOFLEX | Dosing Pump MONOFLEX | Nikkiso Vietnam

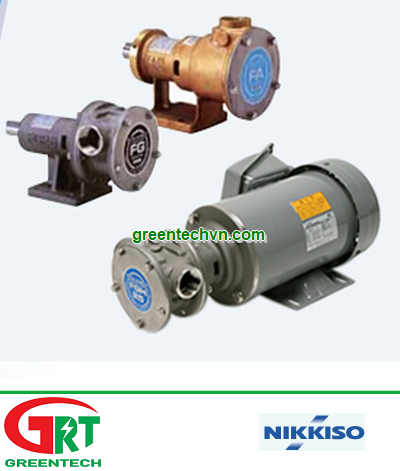

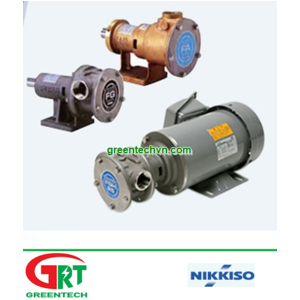

MONOFLEX® Pump

モノフレックスポンプは、ゴムインペラポンプの世界標準を目指しています。

Features

Superior self-priming capabilities

Suction time of 1 meter per 1 second, without the need to prime water.

Wide range of flow rate

This small pump body can discharge high volume stream.

Simple design

Reducting the maintenance downtime.

Compact space

The small lightweight body provide an easy work.
There are some options, with truck or handle.

Aplication

Ship and Marine

Bilge, sprinkle warter, cooling water circulation, cooling of engine.

Food and Bevarage

Transferring milk, beer, shochu, wine and various raw materials like raw bean paste.

Water treatment

Transferring polimer or sludge.

Other

If you consider all of the features this pump has,
there are a huge variety of applications.



Specifications

Total head & Flow

Please refer to the performance curve in the eCatalog.

For details, please contact us.

Casing material Bronze, Stainless Steel
Impeller material CR(Chloroprene), NBR(Nitrile butadiene rubber)
Port Size 08、10、15、20、25、40、50、65、80
Shaft sealing Oil seal, Mechanical seal

Series

FG Series (Stainless Steel)

FGシリーズ(ステンレス)
Integrated Cam using the latest processing technology!
Port Size: FG Series 10, 15, 20, 25, 40, 50, 65
Casing material: Stainless Steel (SCS13)
Impeller material: CR(Chloroprene), NBR(Nitrile butadiene rubber)
Drive system: Direct coupled connection with AC motor

  •

FA/FB Series (Bronze model)

FA/FBシリーズ(ブロンズモデル)
Port Size
FA Series: 08, 10, 15, 20, 25, 40, 50, 65 (Standard impeller)
FB Series: 25, 40 (Inclined impeller)
Casing material: Bronze (BC6)
Impeller material: CR(Chloroprene), NBR(Nitrile butadiene rubber)
Drive system: Electromag-clutch (For models 25 to 65) With speed changer  or Direct coupled connection with AC motor

  •

FGH Series (Stainless Steel/AC motor, multi-task pump)

FGHシリーズ (ステンレス・ACモータ マルチポンプ)
Port Size: FGH Series: 15, 20, 25
Casing material: Stainless Steel (SUS304, SCS13)
Impeller material: CR (Chloroprene)
Drive system: Direct connection with AC motor







FS Series (Stainless Steel / Sanitary model)

FGHシリーズ (ステンレス・ACモータ マルチポンプ)
Port Size: FS Series: 40, 50
Casing material: Stainless Steel (SCS13)
Impeller material: CRF (Chloroprene for food)
Drive system: Direct coupled connection with AC motor






FH Series (AC motor, handy type)

FHシリーズ (ACモータ ハンディタイプ)
Port Size: FH Series: 10, 15, 40, 50
Casing material: Stainless Steel (SCS13), Bronze (BC6)
Impeller material: CR(Chloroprene), NBR(Nitrile butadiene rubber)
Drive system: AC motor, handy type
Voltage: FH10, 15: Single phase 100V
     FH40, 50: Three phase 200V


FD Series (DC motor, handy type)

FDシリーズ(DCモータ ハンディタイプ)
Perfect for marine bilges,
marine plumbing and in-car plumbing.
Port Size: FD Series: 10, 25, 40
Casing material: Bronze (BC6)
Impeller material: CR(Chloroprene), NBR(Nitrile butadiene rubber)
Drive system: DC motor, handy type
FD10: DC12V/24V
FD25, 40: DC24V


FY Series (Large port, Large capacity model)

FYシリーズ (大口径/大容量モデル)
Used actively in the fish processing
(Transporting seaweed) field.
Port Size: FY Series: 80
Casing material: Bronze (BC6)
Impeller material: CR(Chloroprene)Split impeller
Drive system: Electromag-clutch
Direct coupled connection with AC motor

  • Please feel free to contact us for inquiries and requests
