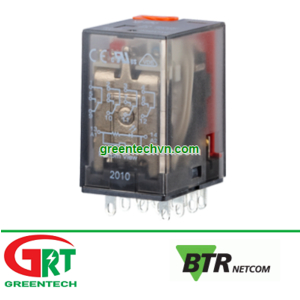

Compact, pluggable relay for industrial use.
- Socket pins as soldering lugs
- Mechanical switch position display
- With manual test button
- Cadmium-free contacts
| Operating voltage | 24 V AC, 24 V DC, 230 V AC |
| Current consumption 24 V AC | 50 mA |
| Current consumption 24 V DC | 36.9 mA |
| Current consumption 230 V AC | 5.21 mA |
| Continuous current | 5 A |
| Output / contact | 4 changeover contacts (4PST) |
| Output / contact material | Au |
| Output / switching capacity | 1100 VA / 150 W |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Display | LED and mechanical |
| Dimensions (W x H x D) | 21.5 x 35 x 28 mm |
| Weight | 37 g |
| Operating temperature range | 0 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
