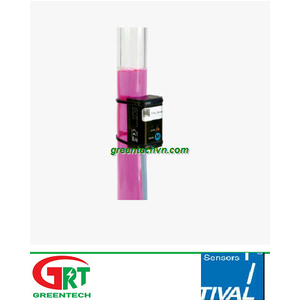

Capacitive level limit switch TS-KGS-25 | Tival Công tắc giới hạn điện dung | Tival Sensor Việt Nam
Công tắc điện dung
Tival Vietnam | Greentech Vietnam
12 tháng
.
Product description Capacitive level limit switch TS-KGS-25
- Level limit monitoring for liquids in non-conductive sight tubes and plastic or glass vessels
- Polypropylen-housing, IP67
- Simple mounting and fast sensor configuration
- LED status indicator
- Ambient temperature -20 ... +80° C
- Configurable as NO or NC contact
The capacitive limit switches TS-KGS are designed to monitor level limits of liquids in non-conductive sight tubes and plastic or glass vessels. Depending on the selected design, the sensor will be installed directly on the sight tube by plastic straps or on the vessel wall with a self adhesive layer. The installation position on the sight tube or on the vessel wall is the height of the level limit which is to be monitored. The maximum possible thickness of the vessel wall is depending on the permittivity ε (dielectric conductivity) of the filling medium. The Configuration of the capacitive level limit switch TS-KGS takes place fast and simple by using the magnetic pen MP8, which is included in the delivery. The TS-KGS-25 is available with a PNP transistor output with open collector or a two wire electronic switch. The two wire electronic switch design can be attached directly to a relay or a control with binary inlet.
| Technical data type TS-KGS-25 | ||
| Current supply (static state) | PNP transistor outputtwo-wire electronic switch | max. 0,6 / 7 mA (ON / OFF state)max. 0,6 mA (OFF state) |
| Switching current (min. / max.) | PNP-Transistor outputtwo-wire electronic switch | 100 mA3,3 mA / 40 mA |
| Remanent voltage in switched on state | PNP-Transistor outputtwo-wire electronic switch | 1,8V6,0V |
| Maximum switching frequency | 1 Hz | |
| Ambient temperature range | -20 ... +80 °C | |
| Temperature range at the tube or vessel surface | -20 ... +90 °C | |
| Temperature range when installed with self adhesive layer | -20 ... +60 °C | |
| Max. thickness of the vessel wallDielectric conductive liquids ( εr > 10)Dielectric non-conductive liquids (εr< 10) | 8 mm3 mm | |
| Protection class | IP 67 | |
| Housing material | Polypropylen (PP) | |
| Connection cable type | PVC 2 x 0,34 mm2 bzw. 3 x 0,34 mm2 (PNP output) | |
| Weight (including 2 m cable) | ~ 60 g | |
| Electrical safety and electromagnetic compatibility: The capacitive level switch TS-KGS-25 is protected against reverse polarity, overvoltage and overload. Electromagnetic compatibility according to directive: EN55022 / B, EN 61326-1, EN61000-4-2, -3, -4, -6. | ||
