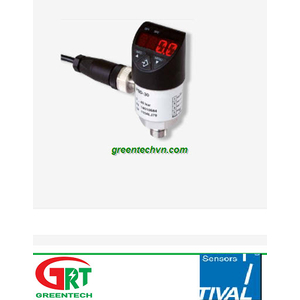

Công tắc áp suất điện tử TST-PSD 30 | Tival Electronic pressure switch TST | Tival Sensor Việt Nam
Công tắc áp suất
Tival Vietnam | Greentech Vietnam
12 tháng
.
Product description Electronic pressure switch TST-PSD 30
The electronic pressure switch TST-PSD 30 is designed for flexible use in a wide variety of applications, such as mechanical engineering, hydraulics, pneumatics or pumps and compressors. The TST-PSD 30 has an easy-to-read and robust 14-segment LED display, user-friendly 3-button operation and easy menu navigation according to the VDMA standard.
During commissioning, the PSD 30 can be flexibly adapted to any installation situation. The lower housing part of the stainless steel sensor and the display part made of glass-fiber reinforced PBT plastic are double-rotatable. The display and the electrical M12x1 connection can be rotated independently of each other by more than 300°. Therefore the display can always be aligned in the direction of the operator and the M12x1 connector according to the desired cable routing. If the device is to be installed overhead, the displayed value can be rotated electronically by 180°. Housing and threaded connection of the electrical connector are made of stainless steel. Over-tightening or tearing off the plug is almost impossible.
The electronic pressure switch TST-PSD 30 is available with different process connection types (G 1/4 "A, G 1/4" B, G 1/4 " female thread, G 1/2" A, G 1/2 "B, 1/4 NPT or 1/2 NPT) and output configurations. The TST-PSD 30 can be equipped with one or two PNP or NPN switching outputs, and an additional 4 ... 20 mA or 0 ... 10 V DC analog output. All the above combinations are optionally available with additional IO-Link.
Further details on the electronic pressure switch TST-PSD 30 can be found in the data sheet.
The TST-PSD 30 is available in the following standard pressure ranges, individual measuring ranges on request.
| Standard pressure ranges Electronic pressure switch TST-PSD 30 | |||||||||
| Gauge Pressure | |||||||||
| Measuring range | P(bar) | 0,6 | 1 | 1,6 | 2,5 | 4 | 6 | 10 | 16 |
| Overpressure | P(bar) | 1,2 | 2 | 3,2 | 5 | 8 | 12 | 20 | 32 |
| Bursting pressure | P(bar) | 3 | 5 | 10 | 10 | 17 | 34 | 34 | 100 |
| Measuring range | P(bar) | 25 | 40 | 60 | 100 | 160 | 250 | 400 | 600 |
| Overpressure | P(bar) | 50 | 80 | 120 | 200 | 320 | 500 | 800 | 1200 |
| Bursting pressure | P(bar) | 100 | 400 | 550 | 800 | 1000 | 1200 | 1700 | 2400 |
| Absolute pressure | |||||||||
| Measuring range | P(bar) | 1 | 1,6 | 2,5 | 4 | 6 | 10 | 16 | 25 |
| Overpressure | P(bar) | 2 | 3,2 | 5 | 8 | 12 | 20 | 32 | 50 |
| Bursting pressure | P(bar) | 5 | 10 | 10 | 17 | 34 | 34 | 100 | 100 |
| Vacuum measure ranges | |||||||||
| Measuring range | P(bar) | -1 ... 0 | -1 ... +0,6 | -1 ... +1,5 | -1 ... +3 | -1 ... +5 | -1 ... +9 | -1 ... +15 | -1 ... +24 |
| Overpressure | P(bar) | 2 | 2 | 3 | 6 | 10 | 18 | 30 | 50 |
| Bursting pressure | P(bar) | 5 | 5 | 10 | 10 | 17 | 32 | 100 | 100 |
