Digital Temperature Indicaing Contoller
DCN-100 (Discontinued)

Discontinued Products


-Thumbwheel makes operation easy
-Digital PV display

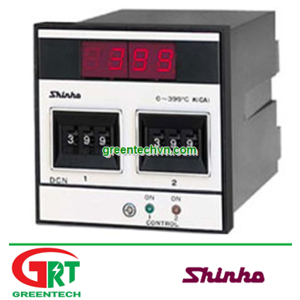

DCN-100_photo



Spec

Model

DCN-1
- R/ DCN-100 (W96 x H96mm)
Control action 1       ON/OFF action
2       PD action
Alarm output 0     No alarm action
1     Alarm action (High limit or low limit action)
Control output R   Relay contact: 1c
Input E Thermocouple: K, J, R (customer specified)
R RTD: Pt100
Specify one from the  columns.

Rated scale

Input type Scale
Thermocouple K 0 to 399
0 to 999
0 to 1200
J 0 o 399
R 600 to 1600
RTD Pt100 -99.9 to 99.9
0 to 199.9
0 to 399
( ): One division of the setting unit

TOP

Specifications

Display PV----- Red, 3 or 4-digit, character size: 10.2 x 6.6mm (H x W)
Setting unit SV-------- Digital setting unit (thumbwheel switch)
RESET----- Analog setting unit (potentiometer)
ALARM----- Analog setting unit (potentiometer)
Input Types (Customer specified)
-Thermocouple-- K, J, R, External resistance: 100 or less
-RTD---------- Pt100, 3-wire system (Resistance: 4 or less per wire)
Scale---------- Refer to the Rated scale.
Resolution------ 1 or 0.1
Setting accuracy Within 0.5%FS (0 to 399: Within 1%FS)
Indicating accuracy Within 0.5%FS1digit (0 to 399: Within 1%FS1digit)
Action system Double integral system (A/D conversion)
Input sampling period 0.4sec
Control action Customer specified
-PD action
Proportonal band (P)------ 2.5%
Proportonal cycle-------- 30sec
Reset range------------- 1.25%
-ON/OFF action
Control sensitivity-------- 0.3% (600 to 1600: 2.5)
Hysteresis-------------- 0.6% (600 to 1600: 5)
Control output -Relay contact----- 1c 5A 220V AC (resistance load), 2A 220V AC (inductive load cos =0.4)
Alarm output Appicable to only DCN-11
Output action-------- High limit action (deviation setting) or low limit setting (deviation setting)
Setting accuracy------ Within 1.5%FS
Action-------------- ON/OFF action
Control sensitivity---- 0.3% (600 to 1600: 2.5)
Hysteresis----------- 0.6% (600 to 1600: 5)
Output-------------- Relay contact 1c 5A 220V AC(resistive load), 2A 220V AC (inductive load cos =0.4)
Power supply 100/200V AC 50/60Hz
Allowable voltage fluctuation range: 90 to 120V AC or 180 to 240V AC
Power consumption Approx. 5VA
Insulation resistance 10M or more, at 500V DC
Dielectric strength Input terminal-Ground ------------- 500V AC for 1min
Power terminal-Ground------------ 1.5kV AC for 1min
Output terminal-Ground, Output terminal-Power terminal--- 1.5kV AC for 1min
Environment Ambient temperature: 0 to 55 Ambient humidity: 35 to 85%RH (non-condensing)
Material, Color Resin, Dark gray
Mounting Flush
Setting Thumbwheel switch
Dimensions W96 x H96 x D135mm
Weight Approx. 670g
Attached functions Automatic cold junction temperature compensation (thermocouple), Burnout (thermocouple)

TOP
Terminal Arrangement
Terminal arrangement
  DCN-100_Terminal_arrangement
-R/: Relay contact output

TOP
Dimensions
External dimensions (Scale: mm)
  DCN-100_External_dimensions

Panel cutout (Scale: mm)

DCN-100_Panel_cutout

TOP
Names of Sections
Names of Sections

DCN-100_Section_names_1
DCN-100_Section_names_2
1: Digital PV display
2: Digital SV setting unit
3: Manual reset
4: Indicator, Green (When control ouput is ON)
5: Indicator, Red (When control ouput is OFF)
6: Indicator, Green (When control ouput is ON)
7: Indicator, Red (When alarm output is ON)
8: Alarm setter
