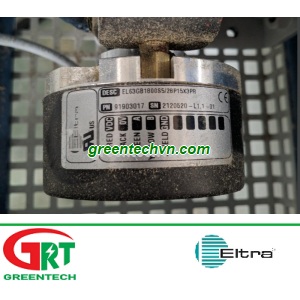

Eltra EL63GB1800S5/28P15X3PR | Bộ phát xung | Encoder EL63GB1800S5/28P15X3PR | Eltra Việt Nam
EL63GB1800S5/28P15X3
Eltra Vietnam | Greentech Vietnam
12 tháng
.
- Principle of operationincremental
- Shaft typeblind hollow shaft
- Mounting typeanti-rotation pin
- Electronic interfacepush pull
- Resolution, ppr1800
- Zero pulse-
- Power supply, V DC5…28
- Bore diameter, mm15
- Enclosure ratingIP66
- Max Rotation speed, rpm3000
- Output typecable
- Direction typeradial
- Construction size (diam.), mm63,5
- Max output frequency300 kHz
- Operating temperature , °C-10…+60
- Operating temperature , °F+14…+140
- Cable lenth, m1,5
- Measurement typerotary
- Type of sensoroptical
- Weight, g350
Compact size encoder for small AC motors.
With blind hollow shaft.
Mounting by anti-rotation pin.
PUSH-PULL electrical interface. Due to complementary transistor it is possible to use encoder with longer cable connections and optimal data trasmission even at high working speed.
Without zero pulse.
10 mm hollow bore encoder (diameter).
Shaft fixing by collar clamping.
Ball bearings from EN-AW 2011 aluminium. Glass fiber housing.
