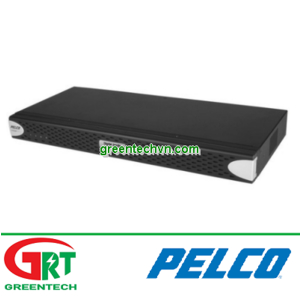

ENC5516 | Pelco ENC5516 | Bô mã hóa 16 kênh | 6-Channel H.264 Direct-Attached Encoder Pelco Vietnam
ENC5516
Pelco Vietnam
12 tháng
.
The ENC5516 16-Channel H.264 Direct-Attached Video Encoder from Pelco is built to provide direct-attached support for analog cameras on the Digital Sentry network video recorder (NVR) platform. It also provides support for IP migration. The encoder unit is a convenient replacement for existing DVRs and lets customers leverage their existing analog wiring infrastructure.
The encoder is used for capturing the BNC connections from other recording systems. Directly attach up to four ENC5516s through supplied cables to one DSSRV to accommodate up to 64 analog cameras. Addition of ENC5516 encoder to your DSSRV gives an integrated, high-performance IP migration platform.
Note: The encoder requires an ENC5400-4PORT capture card (sold separately).
- Provides direct-attached video support for Digital Sentry Network Video Recorder (sold separately)
- Supports 16 channels per encoder
- Provides 16 looping, auto-terminating video outputs
- H.264 hardware compression
- Up to 30/25 (NTSC/PAL) ips at CIF, 2CIF, and D1 per input
- Frame rates and resolutions configurable per channel
- 16 audio inputs, 16 alarm inputs, and 4 relay outputs
| Super Dynamic (SD5) Day/Night Wide Dynamic Range Models:- 650 TV lines, typical (color mode), 700 TV lines or more (B-W)- 0.1 lux (color), 0.003 lux (sensitivity up x32), 0.01 lux (B-W mode), 0.0003 lux (sensitivity up x32)- Dynamic Range: 54 dB/128X- Day/Night Type: IR filter removal- Focal Length: 3.8 ~ 8.0 mm | ||
| IS50 Series Camclosure 2 System Outdoor (Smoke bubble)- 1/3" CCD Sensor, 540 TVL (Color), 570 TVL (B/W)- 0.06lux (Color mode), 0.05 lux (B-W mode)- Signal to Noise Ratio 50dB, Focal length: 2.8-10.0mm- Construction Aluminum die cast, 12VDC, 280mA PSU Flush mount type | ||
| IS50 Series Camclosure 2 System Outdoor (Smoke bubble)- 1/3" CCD Sensor, 540 TVL (Color), 570 TVL (B/W)- , 0.6lux (Color mode), 0.4\ lux (B-W mode)- Signal to Noise Ratio 50dB, Focal length: 2.8-10.0mm- Construction Aluminum die cast, 12VDC, 280mA PSU, Flush mount type | ||
| IS50 Series Camclosure 2 System Outdoor (Smoke bubble)- 1/3" CCD Sensor, 540 TVL (Color), 570 TVL (B/W)- , 0.6lux (Color mode), 0.4\ lux (B-W mode)- Signal to Noise Ratio 50dB, Focal length: 2.8-10.0mm- Construction Aluminum die cast, 12VDC, 280mA PSU, Surface mount type | ||
| Compact wall mount, light gray finish; can be used with IS50-P for wall-mount installations; can also be adapted for corner or poleapplications | ||
| FD1 Series Entry-Level Indoor Fixed Dome- 540 TV Lines, 0.2 Lux Sensitivity- Sony® 1/3-Inch Super HAD CCD II™- NextChip Digital Signal Processor (DSP)– Color Indoor Dome, Diversified Fixed 3.6mm lens- Shipped Completely Assembled, Easy to Install- 12 VDC Power with Internal Synchronization | ||
| FD1 Series Entry-Level Indoor Fixed Dome- 540 TV Lines, 0.2 Lux Sensitivity (No IR), Zero Lux (with IR)- Sony® 1/3-Inch Super HAD CCD II™- NextChip Digital Signal Processor (DSP)– IR Illumination Day/Night Indoor Dome- Diversified Fixed 3.6mm lens- Shipped Completely Assembled, Easy to Install- 12 VDC Power with Internal Synchronization | ||
| Dome camera, Indoor, Entry level 540TVL,with IR illumination,Varifocal lens 3mm-9mm | ||
| Dome camera, Indoor, Standard level 650TVL, ICR Day/Nightswitch, varifocal lens 2.8mm-10.5mm | ||
| Dome camera, Indoor, Standard level 650TVL, with IR illimination,varifocal 2.8mm-10.5mm | ||
| Dome camera, Indoor, Standard level 650TVL, ICR Day/nightswitch, WDR, varifocal 2.8mm-10.5mm | ||
| Dome camera, Outdoor, Standard level 650TVL, ICR Day/nightswitch, varifocal lens 2.8mm-10.5mm | ||
| Dome camera, Outdoor, Standard level 650TVL, with IRillumination, varifocal lens 2.8mm-10.5mm, outdoor | ||
| , zoom 23x, Day/Night 540TVL, Day/Night 0.12 lux at 1/50 Sec, pan 360 continuous, Pan Speed 0 to 150/s, Pelco D, RS-485 | ||
| , light grey back box and smoked bubble. NTSC/PAL. Consists of the following Pelco components: DD423, BB4-PG, LD53PB-0. | ||
| Speed Dome: 540TVL, zoom 23x (3.6mm-82.8mm), 0.12 lux at 1/50 Sec, SN > 50dB, 256 presets, 400°/sec Pan Preset Speed and 200°/sec Tilt Preset Speed, 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters Each or Set to Output Blank Video, Pan Motion Allows 0.1 to 150°/sec Pan Speed, IP66Spectra® IV consists of the following Pelco models: DD4CBW23-X, BB4-PG-E, LD53PB-1. | ||
| ExSite®Fixed Series Explosionproof Camera SystemElectropolished 316L Stainless Steel Construction• Upright or Inverted Installation• Manual 200° Pan and 180° Tilt Adjustments• Receiver and Enclosure with Integrated Optics Package (IOP)• For Use in a Variety of Harsh and/or Hazardous Environments,including Marine Environments, Color 22X EXview HAD• Meets NEMA Type 4X and IP66 Standards | ||
|
|
|
|
|
|
||
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Wiring kit to attach a KBD300A to a USB port on either the |
||
|
|
||
|
|
|
|
|
|
||
|
|
||
| Super Dynamic (SD5) Day/Night Wide Dynamic Range Models:- 650 TV lines, typical (color mode), 700 TV lines or more (B-W)- 0.1 lux (color), 0.003 lux (sensitivity up x32), 0.01 lux (B-W mode), 0.0003 lux (sensitivity up x32)- Dynamic Range: 54 dB/128X- Day/Night Type: IR filter removal- Focal Length: 3.8 ~ 8.0 mm | ||
| IS50 Series Camclosure 2 System Outdoor (Smoke bubble)- 1/3" CCD Sensor, 540 TVL (Color), 570 TVL (B/W)- 0.06lux (Color mode), 0.05 lux (B-W mode)- Signal to Noise Ratio 50dB, Focal length: 2.8-10.0mm- Construction Aluminum die cast, 12VDC, 280mA PSU Flush mount type | ||
| IS50 Series Camclosure 2 System Outdoor (Smoke bubble)- 1/3" CCD Sensor, 540 TVL (Color), 570 TVL (B/W)- , 0.6lux (Color mode), 0.4\ lux (B-W mode)- Signal to Noise Ratio 50dB, Focal length: 2.8-10.0mm- Construction Aluminum die cast, 12VDC, 280mA PSU, Flush mount type | ||
| IS50 Series Camclosure 2 System Outdoor (Smoke bubble)- 1/3" CCD Sensor, 540 TVL (Color), 570 TVL (B/W)- , 0.6lux (Color mode), 0.4\ lux (B-W mode)- Signal to Noise Ratio 50dB, Focal length: 2.8-10.0mm- Construction Aluminum die cast, 12VDC, 280mA PSU, Surface mount type | ||
| Compact wall mount, light gray finish; can be used with IS50-P for wall-mount installations; can also be adapted for corner or poleapplications | ||
| FD1 Series Entry-Level Indoor Fixed Dome- 540 TV Lines, 0.2 Lux Sensitivity- Sony® 1/3-Inch Super HAD CCD II™- NextChip Digital Signal Processor (DSP)– Color Indoor Dome, Diversified Fixed 3.6mm lens- Shipped Completely Assembled, Easy to Install- 12 VDC Power with Internal Synchronization | ||
| FD1 Series Entry-Level Indoor Fixed Dome- 540 TV Lines, 0.2 Lux Sensitivity (No IR), Zero Lux (with IR)- Sony® 1/3-Inch Super HAD CCD II™- NextChip Digital Signal Processor (DSP)– IR Illumination Day/Night Indoor Dome- Diversified Fixed 3.6mm lens- Shipped Completely Assembled, Easy to Install- 12 VDC Power with Internal Synchronization | ||
| Dome camera, Indoor, Entry level 540TVL,with IR illumination,Varifocal lens 3mm-9mm | ||
| Dome camera, Indoor, Standard level 650TVL, ICR Day/Nightswitch, varifocal lens 2.8mm-10.5mm | ||
| Dome camera, Indoor, Standard level 650TVL, with IR illimination,varifocal 2.8mm-10.5mm | ||
| Dome camera, Indoor, Standard level 650TVL, ICR Day/nightswitch, WDR, varifocal 2.8mm-10.5mm | ||
| Dome camera, Outdoor, Standard level 650TVL, ICR Day/nightswitch, varifocal lens 2.8mm-10.5mm | ||
| Dome camera, Outdoor, Standard level 650TVL, with IRillumination, varifocal lens 2.8mm-10.5mm, outdoor | ||
| , zoom 23x, Day/Night 540TVL, Day/Night 0.12 lux at 1/50 Sec, pan 360 continuous, Pan Speed 0 to 150/s, Pelco D, RS-485 | ||
| , light grey back box and smoked bubble. NTSC/PAL. Consists of the following Pelco components: DD423, BB4-PG, LD53PB-0. | ||
| Speed Dome: 540TVL, zoom 23x (3.6mm-82.8mm), 0.12 lux at 1/50 Sec, SN > 50dB, 256 presets, 400°/sec Pan Preset Speed and 200°/sec Tilt Preset Speed, 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters Each or Set to Output Blank Video, Pan Motion Allows 0.1 to 150°/sec Pan Speed, IP66Spectra® IV consists of the following Pelco models: DD4CBW23-X, BB4-PG-E, LD53PB-1. | ||
| ExSite®Fixed Series Explosionproof Camera SystemElectropolished 316L Stainless Steel Construction• Upright or Inverted Installation• Manual 200° Pan and 180° Tilt Adjustments• Receiver and Enclosure with Integrated Optics Package (IOP)• For Use in a Variety of Harsh and/or Hazardous Environments,including Marine Environments, Color 22X EXview HAD• Meets NEMA Type 4X and IP66 Standards | ||
|
|
|
|
|
|
||
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Wiring kit to attach a KBD300A to a USB port on either the |
||
|
|
||
|
|
|
|
|
|
||
|
|
||
