EVC series | Rotary vane vacuum pump | Bơm chân không cánh quay | Eurovacuum Việt Nam
EVC series
Eurovacuum Việt Nam
EVC series | Rotary vane vacuum pump | Bơm chân không cánh quay | Eurovacuum Việt Nam
.
CHARACTERISTICS
- Technology
- rotary vane
- Lubrication
- dry
- Number of stages
- single-stage
- Other characteristics
- compact, air-cooled, direct-drive
- Flow rate
-
Min.: 65 m³/h (2,295.45 ft³/h)
Max.: 950 m³/h (33,548.93 ft³/h)
- Ultimate vacuum
-
10 mbar, 50 mbar, 150 mbar, 180 mbar (0.15 psi)
DESCRIPTION

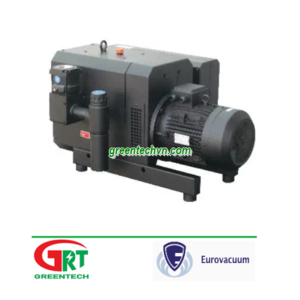

EVC series The EVC-series Dry Running Claw Vacuum Pumps are used for applications with high airflow. Eurovacuum’s Dry Running Claw Vacuum Pumps operates according to the Single Stage Claw principal. Two in oposite direction rotating claws run within a housing. The shape of the claws allows the air to be sucked inside the pump and to be compressed towards the exhaust side, so the gas exits under pressure. The in the inlet mounted anti-suckback valves prevents air flowing back to the vacuum chamber when the pump has been switched off. The two claws are synchronised by gears and the flanged motor is direct driven. Features Eurovacuum’s EVC pump has an Oil Free Compression, Single Stage, Air-Cooled and Direct Driven. Compact Design- Reliability & Durability- Easy to maintain and operate. Simple installation- Air-Cooled, No water required direct driven- standard design requires no belts. Integral anti-suckback valve and pressure regulate valve. Applications Eurovacuum EVC pumps are designed to be used in the following applications: Pick & Place, Packaging, CNC Routing, Wood Works, Pneumatic Conveying, Vacuum Lifting, Central Vacuum Systems, Milking machines and General Vacuum.
