LFC220 | Dotech LFC220 | Bộ điều khiển FFU Dotech LFC220 | FFU Controller | Dotech Vietnam
LFC2200
Dotech Vietnam

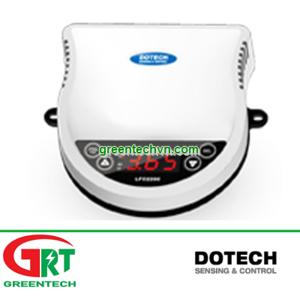

[LFC2200] FFU Controller AC220V 3STEP(4STEP)
- Built-in digital motor protection function of digital types
- Can check motor current and cause of failure via data display
- Has a variety of protective elements (overheating, overcurrent, undercurrent, Lock protection function)
- Be easy to check the cause of failure by storing the last one
- Built-in switching type power supply (Light weight and energy saving by low power consumption)
- Built-in open type standard communication protoco
.
.jpg)
A 2012 model for FFU controller which is equipped with motor protection function of digital type
LFC2200 | a poweful solution for clean room system !
- Built-in digital motor protection function of digital types
- Can check motor current and cause of failure via data display
- Has a variety of protective elements (overheating, overcurrent, undercurrent, Lock protection function)
- Be easy to check the cause of failure by storing the last one
- Built-in switching type power supply (Light weight and energy saving by low power consumption)
- Built-in open type standard communication protocols (MODBUS RTU)
- Built-in fuse disconnection detection function
※ digital motor protection: FFU controller built-in feature you need to be equipped to protect motors from overcurrent
DOTECH special clean room to ensure the stability of the technology.
■ Ordering Information
LFC2200: basic types of single-phase FFU CONTROLLER
■ Specifications
Dimensions: 148 (W) x 132 (H) x 43 (D)
Perforated Dimensions: 135mm Hole 4.5 Ø
Power: Single phase 100V ~ 240V both 50Hz and 60Hz
Rated current consumption: 2W
Connectors: Motor - CHD1140-08 / Communication - RJ11-6P4C
Communication Specifications : RS485 / 2 Wire (Multidrop, MODBUS RTU)
Simultaneous use of DOTECH's standard protocol and MODBUS RTU protocol
Communications environment: 9600BPS, Non-parity, 8-Data bit, 1-Stop bit
Address setting: 1 to 255
Operating Conditions: -10 ... 50degC
Storage conditions: -30 ... 60degC
■ Dimensions
