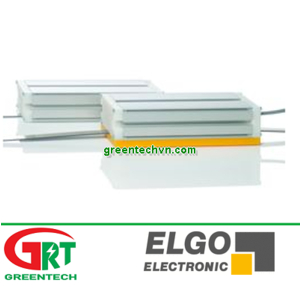

LIMAX1 | Elgo | Magnetic length measuring system | Cảm biến thước từ LIMAX | Elgo Electronic Vietnam
LIMAX1 | Elgo | Magn
Elgo Vietnam | Greentech Vietnam
12-24 tháng
.
LIMAX1
Absolute magnetic length measuring system for industrial applications in a horizontal position
- Absolute measurement up to 1000 meter length
- Resolution of 1 mm
- No gauging necessary
- Inured to dust and dirt
- Simple installation
- Various mechanical accessories available
- The magnetic tape can be installed free hanging, vertically or horizontally
- Wear-free, contactless and noiseless measuring principle
Technical Specifications LIMAX1
| Mechanical Data | |
| Measuring principle | absolute |
| Repeat accuracy | +/- 1 mm |
| System accuracy in µm at 20 °C | +/- (1000 + 20 x L)L = effective measuring length in meter |
| Max. distance from sensor to magnetic tape | 1.5 mm |
| Basic pole pitch | 4 mm |
| Material sensor housing | aluminium |
| Dimensions sensor housing | L x W x H = 180 x 55 x 40 mm (unguided)L x W x H = 180 x 55 x 48 mm (guided) |
| Necessary magnetic tape | AB20-40-10-1-R-18 |
| Max. Measuring length | 1000 m |
| Cable connection | open cable end |
| Weight | ca. 320 g without cable, unguidedca. 440 g without cable, guidedcable: ca. 60 g per meter |
| Enviromental specifications | |
| Storage temperature | -25 ... +85 °C |
| Operating temperature | -10 ... +70 °C (-25 ... +85 °C on request) |
| Protection class | IP50 |
| Electrical Data | |
| Power supply | 10 ... 30 VDC |
| Periodic and random deviation | 10 - 30 V: < 10% |
| Max. current consumption | 0.2 A |
| Interfaces | SSI, CANopen (DS406) |
| Resolution | 1 mm |
| Max. movement speed | 16 m/s |
| Sensor cable | 3 m standard cable length,others on request,drag chain compliant |
