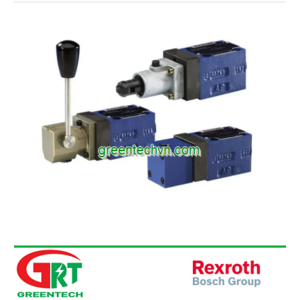

M-.SMM

Rexroth Viet Nam | Greentech Vietnam

12 tháng

M-.SMM | Rexroth | Van điều khiển | control valve | Rexroth ViệtNam

.

CHARACTERISTICS

Type
seat
Actuating method
manual, direct-operated, mechanically-operated
Ports/positions
4/2-way, 3/2-way, 2/2-way
Other characteristics
standard, pressure-compensated
Flow rate

40 l/min (11 us gal/min)

Operating pressure

420 bar, 630 bar (6,092 psi)

DESCRIPTION

• - Size 10, 6 • - Component series 3X • - Maximum operating pressure 420 / 630 bar • - Maximum flow 40 l/min Features • - Direct operated directional seat valve with manual actuation • - Porting pattern according to DIN24340, form A (without locating hole) • - Safe switching also with longer standstill periods under pressure • - Operating methods: manual (hand lever) • - Inductive position switch (contactless), optional Product description 2/2 and 3/2 directional seat valve General The directional valve of the M-.SMM type is a directional seat valve with manual, mechanical operation. It controls start, stop and direction of flow and basically comprises of the housing (1), type of actuation (2), the hardened valve system (3) as well as the ball/the spool (4) as closing element. Basic principle In the initial position, the ball/the spool (4) is pressed onto the seat by the spring (7), and by the relevant type of actuation (2) in the switching position. The actuation force acts via the ball (5) on the actuating plunger (6) that is sealed on two sides. The chamber between the two sealing elements is connected to port P. Therefore, the valve system (3) is pressure-compensated in relation to the actuating forces (actuation or return spring). Therefore, the valves can be used up to 630 bar. Notice! 3/2-directional seat valves feature "negative spool overlap". Therefore, port T must always be connected. That means that during the switching process – from the start of the opening of one valve seat to the closure of the other valve seat – ports P–A–T are connected with each other.
