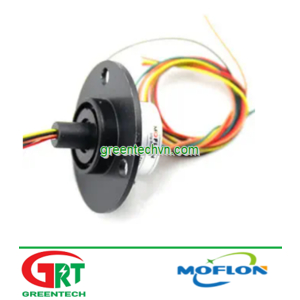

MC190 series | Capsule slip ring | Vòng trượt viên nang | Moflon Việt Nam
MC190 series
Moflon Việt Nam
MC190 series | Capsule slip ring | Vòng trượt viên nang | Moflon Việt Nam
.
CHARACTERISTICS
- Construction
- capsule
- Applications
- military
- Material
- metal, gold, alloy
- Other characteristics
- compact, standard
- Rotational speed
-
250 rpm, 1,000 rpm (1,571 rad.min-1)
- Current
-
2 A, 6 A
- Voltage
-
Min.: 0 V
Max.: 220 V
DESCRIPTION
6 wires slip rings, OD 22mm MC190 is economical 6 wires slip ring with compact OD 22mm, signal(2A)/ring. MC190 is standard capsule slip rings with gold-gold contacts,which ensured the stabilty of the signal transmission and working life, mainly used for civilian, commercial areas. MC1909 is the high-end version corresponding to MC190, ultra-thick gold-plated, imported bearings, rare metal alloy brushes, mainly used for military, defense and other non-civilian areas. Working Life - See Prod Quality Level Rotating Speed - See Prod Quality Level Working Temp. - -30℃~80℃ Operating Humidity - 0~85% RH Contact Material - See Prod Quality Level Housing Material - See Prod Quality Level Torque - 0.05N.m˙+0.01/1ring Protection grade - IP51
