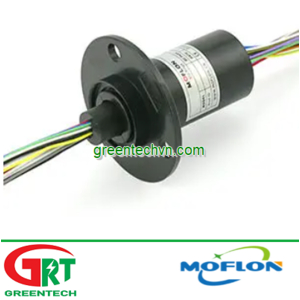

MC400 series | Capsule slip ring | Vòng trượt viên nang | Moflon Việt Nam
MC400 series
Moflon Việt Nam
MC400 series | Capsule slip ring | Vòng trượt viên nang | Moflon Việt Nam
.
CHARACTERISTICS
- Construction
- capsule
- Applications
- military
- Material
- metal, gold, alloy, plastic
- Other characteristics
- compact, standard, custom, miniature
- Rotational speed
-
250 rpm, 1,000 rpm (1,571 rad.min-1)
- Current
-
Min.: 0 A
Max.: 24 A
- Voltage
-
Min.: 0 V
Max.: 220 V
- Number of channels
-
Min.: 2 unit
Max.: 24 unit
DESCRIPTION
OD 22mm, 2~24 rings MC400 is economical 24 wires slip ring with compact OD 22mm, signal(2A)/ring, with gold-gold contacts,which ensured the stabilty of the signal transmission and working life, mainly used for civilian, commercial areas. slip ring capsule can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transferring power and / or data. Miniature slip ring capsule assemblies economically address both critical space and weight limitations. Each assembly includes the rotor, brush blocks, frame, ball bearings and dust cover. Existing designs are available or we can custom design slip rings to meet your specific requirement. MC4009 is the high-end version corresponding to MC400, ultra-thick gold-plated,imported bearings, rare metal alloy brushes, mainly used for military, defense and other non-civilian areas. Working Life - See Prod Quality Level Rotating Speed - See Prod Quality Level Working Temp. - -30℃~80℃ Operating Humidity - 0~85% RH Contact Material - See Prod Quality Level Housing Material - See Prod Quality Level Torque - 0.05N.m˙+0.01/1ring Protection grade - IP51
