US 12 M 200 G3-B4| Ultrasonic sensor | cảm biến US 12 M 200 G3-B4| Di-Soric việt nam

US 12 M 200 G3-B4| Ultrasonic sensor | cảm biến US 12 M 200 G3-B4| Di-Soric việt nam

(1 đánh giá)

US 12 M 200 G3-B4

Di-Soric | Greentech Vietnam

12 tháng

US 12 M 200 G3-B4| Ultrasonic sensor | cảm biến US 12 M 200 G3-B4| Di-Soric việt nam

.

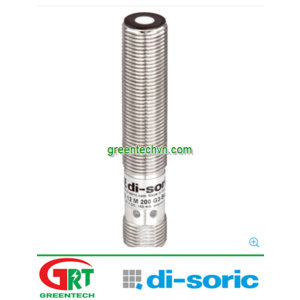

The US-M12 is the compact ultrasonic sensor in the M12 housing. Via IO-Link, it can be operated in a switching or measuring manner. The sensitivity can also be set via teach-in, so the sensor is thus operational within a few seconds.
  • IO-Link
  • Configurable as an ultrasonic sensor or barrier
  • 3 different teach modes
  • Working range adjustable
  • Very narrow detection beam / small blind zone
  • Switching functions: Closer/opener, window function teachable
  • Resistant to dirt
  • Small design
  • Robust metal housing
  • High protection type IP 67
Service voltage
18 … 30 V DC
No-load current (max.)
35 mA (24 V DC)
Inverse polarity protection
Yes
Short-circuit protection
Yes
Insulation voltage endurance
500 V
Mechanical features
Thread
M12 x 1
Transmission exit
axial
Assembly distance (sensor to sensor)
60 mm
Housing material
Brass (CuZn, nickel-plated)
Material
Epoxy resin, PUR (Transducer surface)
Certifications, approvals
Protection class
III, operation on protective low voltage
General features
Operating principle
Ultrasonic sensor, Ultrasonic sensor
Evaluation
digital (With IO-Link)
Design
Thread
Characteristics
IO-Link
Functional scope
Scope of delivery
2 x M12 nuts
Output, input, interface
Switching output
Push-pull, 150 mA, NO/NC, switchable
Max. switch current
150 mA
Voltage drop (max.)
2,0 V
Interface
IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Detection range, measuring range, tolerance limits
Nominal switching distance (Sn)
200 mm
Range
20 … 200 mm
Adjustment range
20 … 200 mm (Teach in)
Resolution
1,0 mm
Standardized measuring plate
20 x 20 mm
Switching hysteresis (max.)
2 … 20 mm (Adjustable up to 20 mm via IO-Link)
Reproducibility
< 0,5 mm
Linearity error
± 0,4 %
Display, operation
Sensitivity adjustment
Remote teach
Display
LED 1x Green - Status, 1x yellow - Switching output
Time behavior
Switching frequency
400 kHz
Switching frequency
20 Hz
Readiness delay (max.)
300 ms
Ambient conditions
Shock/vibration load
10 … 55 Hz / 0,5 mm / 30 g
Ambient temperature during operation
-25 … +70 °C
Temperature drift
0,2 %/K (uncompensated)
Protection type
IP 67
Electrical connection
Connection
Connector, M12, 4-pin
