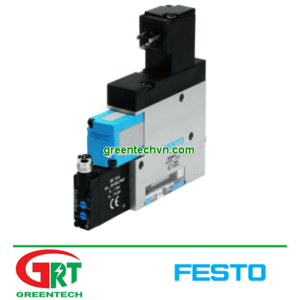

VADM-300-P(162522) | Festo VADM-300-P(162522) | Van điện từ | Vacuum generator | Festo Vietnam

VADM-300-P(162522) | Festo VADM-300-P(162522) | Van điện từ | Vacuum generator | Festo Vietnam

(1 đánh giá)

VADM-300-P(162522)

Festo Vietnam

12 tháng

VADM-300-P(162522) | Festo VADM-300-P(162522) | Van điện từ | Vacuum generator | Festo Vietnam

.





Featurevalues
Shipping date

 View

Nominal size, Laval nozzle 3 mm
Grid dimension 22 mm
Design, silencer closed
Assembly position Any
Ejector characteristic High vacuum
Grade of filtration <= 40 µm
Manual override Pushing
Integrated function Ejector pulse valve, electricalFlow control valve

Electrical on-off valve

Filter

Non-return valve

Vacuum switch

Measured variable Relative pressure
Measuring principle Piezoresistive
Switching element function Normally open contact
Switching function Threshold value comparator
Valve function closed
Polarity protected for all electrical connections
Type of display LED
Threshold setting range -0.9 ... 0 bar
Hysteresis adjustment range [bar] -0.5 ... -0.05 bar
Setting options Potentiometer
Operating status display Optical
Operating pressure 2 ... 8 bar
Max. vacuum 85 %
Nominal operating pressure 6 bar
Air supply time at nominal operating pressure 0.26 s
Operating voltage range DC 21.6 ... 26.4 V
Duty cycle 100%
Switch output PNP
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation not possible
CE mark (see declaration of conformity) to EU directive for EMC
Corrosion resistance classification CRC 2
Medium temperature 0 ... 60 °C
Protection class IP65
Ambient temperature 0 ... 50 °C
Authorisation RCM Mark

c UL us - Recognized (OL)

Product weight 350 g
Pressure measuring range 0 ... 1 bar
Electrical connection Plug

M8x1

4-pin

Mounting type Optional

with through hole

with internal (female) thread

Pneumatic connection, port 1 G1/4
Pneumatic connection, port 3 Integrated silencer
Vacuum connection G3/8
Materials note Free of copper and PTFE
Materials information for seals NBR
Material information, collector nozzle Nickel-plated brass
Materials information for filter PA
Material information, filter housing PC
Materials information, housing Wrought Aluminium alloy
Material information, silencer PE

POM

Materials information for piston POM
Material information, jet nozzle Nickel-plated brass
