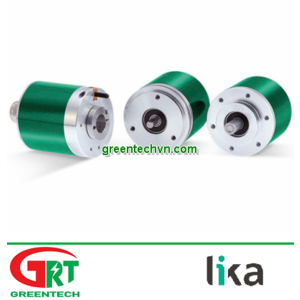

AS58 A, AM58 A | Lika | Bộ mã hóa vòng xoay | Multi-turn rotary encoder / absolute /hollow-shaft
AS58 A, AM58 A
Lika Vietnam | Greentech Vietnam
12 tháng
AS58 A, AM58 A | Lika | Bộ mã hóa vòng xoay | Multi-turn rotary encoder / absolute /hollow-shaft
.
Description
Products list
Group items by:
I28
Technical data
Dimension
Ø 28 mm
Shaft Ø max
5 mm
Resolution
up to 2048 PPR
Output circuit
NPN, Push-Pull, Line Driver, Universal Circuit
Miniature incremental encoder, Ø 28 mm
Robust metal housing
Resolution up to 2048 pulses/rev.
For office equipment, electromedical and light industrial applications
Robust metal housing
Resolution up to 2048 pulses/rev.
For office equipment, electromedical and light industrial applications
Download
(90 Kb)
(516 Kb)
Certifications
MI36
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
up to 2048 PPR
Output circuit
NPN, Push-Pull, Line Driver
Compact magnetic incremental encoder
Resolution up to 2048 pulses/rev.
IP67 with sealed circuits (optional)
Resolution up to 2048 pulses/rev.
IP67 with sealed circuits (optional)
Download
(115 Kb)
(423 Kb)
Certifications
MI36K
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
up to 2048 PPR
Output circuit
NPN, Push-Pull, Line Driver
Compact magnetic encoder
Stainless steel housing
IP67 protection with sealed circuits (option)
Stainless steel housing
IP67 protection with sealed circuits (option)
Download
(103 Kb)
(423 Kb)
Certifications
I40-I41
Technical data
Dimension
Ø 40 mm
Shaft Ø max
8 mm
Resolution
up to 5000 PPR
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit
Compact industrial encoders
Preferential versions on stock
Universal output circuit
Up to 5000 PPR
Preferential versions on stock
Universal output circuit
Up to 5000 PPR
Download
(274 Kb)
(516 Kb)
Certifications
IQ36
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
programmable from 1 to 16384 PPR
Output circuit
Universal output
Programmable incremental encoder
Compact size & rugged design
Resolution from 1 to 16384 PPR
Selectable Index length 90 or 180° el.
Counting direction cw, ccw
Push-Pull + Line Driver compatible output
Programmable via USB cable
Compact size & rugged design
Resolution from 1 to 16384 PPR
Selectable Index length 90 or 180° el.
Counting direction cw, ccw
Push-Pull + Line Driver compatible output
Programmable via USB cable
Download
(476 Kb)
(2235 Kb)
(419 Kb)
(9100 Kb)
Certifications
I58-I58S
Technical data
Dimension
Ø 58 mm
Shaft Ø max
12 mm
Resolution
up to 10000 PPR
Output circuit
NPN, PNP, 1Vpp, Push-Pull, Line Driver, Universal Circuit
Standard encoder for general industrial application
Pulse rates up to 10000 PPR (real)
Servo or clamp flange mounting
High operating temperature range (optional)
Line Driver, HTL and sine/cosine output circuits
Pulse rates up to 10000 PPR (real)
Servo or clamp flange mounting
High operating temperature range (optional)
Line Driver, HTL and sine/cosine output circuits
Download
(346 Kb)
(636 Kb)
Certifications
I58SK
Technical data
Dimension
Ø 58 mm
Shaft Ø max
12 mm
Resolution
up to 10000 PPR
Output circuit
NPN, PNP, 1Vpp, Push-Pull, Line Driver, Universal Circuit
Stainless steel encoder for food industry
IP67 washdown protection
Clamp flange mounting
Cable or M23 connector output
HTL, TTL and sine/cosine output
IP67 washdown protection
Clamp flange mounting
Cable or M23 connector output
HTL, TTL and sine/cosine output
Download
(296 Kb)
(636 Kb)
Certifications
IX58 - IX58S
Technical data
Dimension
Ø 58 mm
Shaft Ø max
6, 8, 9.52, 10, 12 mm
Resolution
10000 PPR max.
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit, Sine/cosine
Solid shaft mounting
Pulse rates up to 10000 PPR
Universal output circuit
ATEX cat. 3 certification for zones 2, 22
Pulse rates up to 10000 PPR
Universal output circuit
ATEX cat. 3 certification for zones 2, 22
Download
(232 Kb)
(3666 Kb)
Certifications
IP58-IP58S
Technical data
Dimension
Ø 58 mm
Shaft Ø max
12 mm
Resolution
programmable from 1 to 65536 PPR
Output circuit
Universal Circuit
Programmable incremental encoder
Resolution from 1 to 65536 PPR
Freely programmable index (push-button)
Counting direction cw and ccw
Resolution from 1 to 65536 PPR
Freely programmable index (push-button)
Counting direction cw and ccw
Download
(492 Kb)
(2235 Kb)
(521 Kb)
(9100 Kb)
Certifications
IQ58 - IQ58S
Technical data
Dimension
Ø 58 mm
Shaft Ø max
12 mm
Resolution
programmable from 1 to 16384 PPR
Output circuit
Universal output
Programmable incremental encoder
Resolution from 1 to 16384 PPR
Resolution from 1 to 16384 PPR
Selectable Index length 90 or 180° el.
Counting direction cw, ccw
Push-Pull + Line Driver compatible output
Push-Pull + Line Driver compatible output
Programmable via USB cable
Download
(590 Kb)
(2235 Kb)
(521 Kb)
(9100 Kb)
Certifications
CB60
Technical data
Dimension
Ø 58 mm
Shaft Ø max
1:10 taper
Resolution
2048 + Z-track
Output circuit
1Vpp
Feedback encoder for servo- and gearless motors
Absolute sine/cosine track for rotor position
Absolute sine/cosine track for rotor position
Download
(220 Kb)
(1043 Kb)
(458 Kb)
Certifications
MI58-MI58S
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 12 mm
Resolution
10000 PPR max.
Output circuits
Push-Pull, Line Driver, Universal Circuit
Magnetic sensing, incremental
Exceptional shock resistance
IP67, sealed circuits
Resolution up to 10000 pulses/rev.
Exceptional shock resistance
IP67, sealed circuits
Resolution up to 10000 pulses/rev.
Download
(297 Kb)
(636 Kb)
Certifications
I65-IT65
Technical data
Dimension
Ø 65 mm
Shaft Ø max
up to 12 mm
Resolution
10000 PPR max.
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit
Robust die cast housing
High shaft load
Protection up to IP66 (shaft side)
Clamp flange
Square flange, US size
Preferential encoder on stock
High shaft load
Protection up to IP66 (shaft side)
Clamp flange
Square flange, US size
Preferential encoder on stock
Download
(461 Kb)
(636 Kb)
Certifications
IT68
Technical data
Dimension
Ø 68 mm
Shaft Ø max
15 mm with keyway
Resolution
10000 PPR max.
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit
Popular machine tool encoder with increased reliability and performance
Resolution up to 10000 PPR
NPN, Push-Pull, Line Driver or Universal circuit
Extended temperature range -40°C +100°C & IP66
Resolution up to 10000 PPR
NPN, Push-Pull, Line Driver or Universal circuit
Extended temperature range -40°C +100°C & IP66
Download
(289 Kb)
(1226 Kb)
Certifications
I115
Technical data
Dimension
Ø 115 mm
Shaft Ø max
11 mm
Resolution
5000 PPR max.
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit
Heavy-duty encoder for harsh environments
"Tachogeneretor" design, B10 Euro-flange
Orientable connections with screw terminals
High shaft load
Power output circuit for long distance transmissions
Corrosion resistant housing
"Tachogeneretor" design, B10 Euro-flange
Orientable connections with screw terminals
High shaft load
Power output circuit for long distance transmissions
Corrosion resistant housing
Download
(103 Kb)
(559 Kb)
Certifications
I116
Technical data
Dimension
Ø 115 mm
Shaft Ø max
11 mm
Resolution
5000 PPR max.
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit, Power Push-Pull
Double encoder with single housing design
Heavy-duty construction for harsh environments
Orientable connections with screw terminals
High shaft load
Power output circuit for long distance transmissions
Corrosion resistant housing
Heavy-duty construction for harsh environments
Orientable connections with screw terminals
High shaft load
Power output circuit for long distance transmissions
Corrosion resistant housing
Download
(106 Kb)
(559 Kb)
Certifications
I105
Technical data
Dimension
Ø 105 mm
Shaft Ø max
10 mm
Resolution
18000 PPR max.
Output circuit
Push-Pull, Line Driver, Universal Circuit
High resolution encoder
18000 pulses/rev.
For rotary and index tables
IP65 protection
18000 pulses/rev.
For rotary and index tables
IP65 protection
Download
(92 Kb)
Certifications
ICS
Technical data
Dimension
172 x 80 x 53 mm
Shaft Ø max
12 mm
Resolution
1068 PPR max.
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit
Robust aluminium housing
Spring loaded shaft
For linear measurements with pinion + racks or metric wheels
Spring loaded shaft
For linear measurements with pinion + racks or metric wheels
Download
(286 Kb)
Certifications
MC36
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
up to 2048 PPR
Output circuits
NPN, Push-Pull, Line Driver
Compact magnetic incremental encoder
Resolution up to 2048 pulses/rev.
IP67 with sealed circuits (optional)
Resolution up to 2048 pulses/rev.
IP67 with sealed circuits (optional)
Download
(115 Kb)
(423 Kb)
Certifications
MC36K
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
2048 PPR max.
Output circuit
NPN, Push-Pull, Line Driver
Compact magnetic encoder
Stainless steel housing
IP67 protection with sealed circuits (option)
Download
(103 Kb)
(423 Kb)
Certifications
CK41
Technical data
Dimension
Ø 41 mm
Shaft Ø max
up to 6,35 mm
Resolution
5000 PPR max.
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit
Compact hollow shaft encoder
Preferential versions on stock
Universal output circuit
Resolution up to 5000 PPR
Preferential versions on stock
Universal output circuit
Resolution up to 5000 PPR
Download
(311 Kb)
(447 Kb)
Certifications
CK46
Technical data
Dimension
Ø 46 mm
Shaft Ø max
up to 6,35 mm
Resolution
5000 PPR max.
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit
Compact hollow shaft encoder
Preferential versions on stock
Universal output circuit
Resolution up to 5000 PPR
Preferential versions on stock
Universal output circuit
Resolution up to 5000 PPR
Download
(311 Kb)
(447 Kb)
Certifications
C50
Technical data
Dimension
Ø 50 mm
Shaft Ø max
up to 10 mm
Resolution
4096 PPR max.
Output circuit
Push-Pull, Line Driver, Universal Circuit
Best selling small size hollow shaft encoder
Ideal for motor feedback applications
Extended standard operating temperature from -40°C to 100°C
Preferential version on stock
Universal output circuit TTL/HTL 5-30Vdc
Ideal for motor feedback applications
Extended standard operating temperature from -40°C to 100°C
Preferential version on stock
Universal output circuit TTL/HTL 5-30Vdc
Download
(313 Kb)
(431 Kb)
Certifications
C51
Technical data
Dimension
Ø 50 mm
Shaft Ø max
up to 10 mm
Resolution
2500 PPR max.
Output circuit
Push-Pull, Line Driver, Universal Circuit
Small size incremental encoder with high resolution
DC and AC motor feedback
DC and AC motor feedback
Download
(91 Kb)
(755 Kb)
Certifications
CB50
Technical data
Dimension
Ø 50 mm
Shaft Ø max
up to 10 mm
Resolution
2500/8 poles
Output circuit
Push-Pull, Line Driver
Brushless motor (BLDC) feedback encoder
UVW commutation signals
Easy installation with PCB connector
Compact through hollow shaft encoder
UVW commutation signals
Easy installation with PCB connector
Compact through hollow shaft encoder
Download
(108 Kb)
(706 Kb)
Certifications
CX58 - CX59
Technical data
Dimension
Ø 58 mm
Shaft Ø max
14, 15 mm
Resolution
10000 PPR max.
Output circuit
NPN, PNP, Push-Pull, Line Driver, Universal Circuit, Sine/cosine
Hollow shaft mounting
Pulse rates up to 10000 PPR
Universal output circuit
ATEX cat. 3 certification for zones 2, 22
Pulse rates up to 10000 PPR
Universal output circuit
ATEX cat. 3 certification for zones 2, 22
Download
(232 Kb)
(3666 Kb)
Certifications
CKQ36
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
programmable from 1 to 16384 PPR
Output circuit
Universal Circuit
Programmable incremental encoder
Compact size & rugged design
Resolution from 1 to 16384 PPR
Selectable Index length 90 or 180° el.
Counting direction cw, ccw
Push-Pull + Line Driver compatible output
Programmable via USB cable
Compact size & rugged design
Resolution from 1 to 16384 PPR
Selectable Index length 90 or 180° el.
Counting direction cw, ccw
Push-Pull + Line Driver compatible output
Programmable via USB cable
Download
(476 Kb)
(2235 Kb)
(419 Kb)
(9100 Kb)
Certifications
CKP58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
15 mm
Resolution
programmable from 1 to 65536 PPR
Output circuit
Universal Circuit
Programmable incremental encoder
Resolution from 1 to 65536 PPR
Freely programmable index (push-button)
Counting direction cw and ccw
Resolution from 1 to 65536 PPR
Freely programmable index (push-button)
Counting direction cw and ccw
Download
(492 Kb)
(1840 Kb)
(532 Kb)
(9100 Kb)
Certifications
CKQ58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
15 mm
Resolution
programmable from 1 to 16384 PPR
Output circuit
Universal output
Programmable incremental encoder
Resolution from 1 to 16384 PPR
Selectable Index length 90 or 180° el.
Counting direction cw, ccw
Push-Pull + Line Driver compatible output
Programmable via USB cable
Resolution from 1 to 16384 PPR
Selectable Index length 90 or 180° el.
Counting direction cw, ccw
Push-Pull + Line Driver compatible output
Programmable via USB cable
Download
(590 Kb)
(1840 Kb)
(532 Kb)
(9100 Kb)
Certifications
CH59
Technical data
Dimension
58 mm
Shaft Ø max
12 mm
Resolution
204800 PPR max.
Output circuit
Line Driver RS422
Compact through hollow shaft encoder
Resolution up to 204800 PPR
Designed for electro-medical applications, analysis and laboratory equipment, motor testbeds
Resolution up to 204800 PPR
Designed for electro-medical applications, analysis and laboratory equipment, motor testbeds
Download
(92 Kb)
(706 Kb)
Certifications
C58 • C59 • C60
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
5000 PPR max.
Output circuit
Push-Pull, Line Driver, Universal Circuit
Compact through hollow shaft encoders
M23, M12 connector or cable output
ø 15 or 14 mm shaft, other diameters with reduction sleeves
M23, M12 connector or cable output
ø 15 or 14 mm shaft, other diameters with reduction sleeves
Download
(143 Kb)
(504 Kb)
Certifications
C58A • C58R
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
5000 PPR max.
Output circuit
Push-Pull, Line Driver, Universal Circuit
Compact design
Through hollow shaft encoder
Resolution up to 5000 pulses/rev.
Feedback encoder for DC/AC motors
C58A: fixing collar on front side
C58R: fixing collar on back side
Through hollow shaft encoder
Resolution up to 5000 pulses/rev.
Feedback encoder for DC/AC motors
C58A: fixing collar on front side
C58R: fixing collar on back side
Download
(142 Kb)
Certifications
CB59
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
2048 PPR + Z track
Output circuit
1Vpp
Feedback encoder for servo- and gearless motors
Absolute sine/cosine track for rotor position
Absolute sine/cosine track for rotor position
Download
(220 Kb)
(1043 Kb)
(458 Kb)
Certifications
CK58 • CK59 • CK60
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
10000 PPR max.
Output circuit
NPN, PNP, 1Vpp, Push-Pull, Line Driver, Universal Circuit
Standard encoder for heavy industrial applications
Blind hollow shaft up to ø 15 mm
AB0 or sine/cosine signals
Connector or cable output
Blind hollow shaft up to ø 15 mm
AB0 or sine/cosine signals
Connector or cable output
Download
(327 Kb)
(1438 Kb)
Certifications
CK61
Technical data
Dimension
Ø 58 mm
Shaft Ø max
12 mm
Resolution
5000 PPR max.
Output circuit
Line Driver, Universal circuit
Hollow shaft encoder with integrated shaft coupling
Expansion shaft for precise mounting
M23 connector or cable output
Expansion shaft for precise mounting
M23 connector or cable output
Download
(334 Kb)
(417 Kb)
Certifications
MC58 • MC59 • MC60
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
10000 PPR max.
Output circuits
Push-Pull, Line Driver, Universal Circuit
Magnetic sensing, incremental
Exceptional shock resistance
IP67, sealed circuits
Through hollow shaft encoder
Resolution up to 10000 pulses/rev.
Exceptional shock resistance
IP67, sealed circuits
Through hollow shaft encoder
Resolution up to 10000 pulses/rev.
Download
(297 Kb)
(1438 Kb)
Certifications
XC77
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
10000 PPR max.
Output circuit
PNP, Push-Pull, Line Driver, Universal Circuit
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Universal cable output (radial + axial)
For use in areas 1, 2, 21 and 22
Universal cable output (radial + axial)
For use in areas 1, 2, 21 and 22
Download
(380 Kb)
(9542 Kb)
Certifications
C80
Technical data
Dimension
Ø 80 mm
Shaft Ø max
up to 30 mm
Resolution
4096 PPR max.
Output circuit
Push-Pull, Line Driver, Universal Circuit
Feedback encoder for big sized motors
Very flat design
Through hollow shaft up to Ø 30 mm
Robust die cast housing with IP65 protection
Very flat design
Through hollow shaft up to Ø 30 mm
Robust die cast housing with IP65 protection
Download
(333 Kb)
(528 Kb)
Certifications
C81
Technical data
Dimension
Ø 80 mm
Shaft Ø max
up to 44 mm
Resolution
4096 PPR max.
Output circuit
1Vpp, Push-Pull, Line Driver, Universal Circuit
Encoder for elevator motors
Internal structure made of steel
Resolution up to 4096 pulses/rev.
Internal structure made of steel
Resolution up to 4096 pulses/rev.
Download
(273 Kb)
(528 Kb)
Certifications
C82
Technical data
Dimension
Ø 80 mm
Shaft Ø max
up to 44 mm
Resolution
8192 PPR max.
Output circuit
Push-Pull, Line Driver, Universal Circuit
Encoder for elevator motors
Operating temperature -40°C +100°C available
Resolution up to 8192 pulses/rev.
Operating temperature -40°C +100°C available
Resolution up to 8192 pulses/rev.
Download
(288 Kb)
(528 Kb)
Certifications
C100
Technical data
Dimension
Ø 100 mm
Shaft Ø max
16 mm, 17 mm tapered
Resolution
2500 PPR max.
Output circuit
Power Push-Pull, Power Line Driver
Heavy-duty hollow shaft encoder
Corrosion resistant, robust housing
High shaft load and environmental protection
Power outputs for long distance trasmission
M23 connector or screw terminals
Electrical shaft insulation
Corrosion resistant, robust housing
High shaft load and environmental protection
Power outputs for long distance trasmission
M23 connector or screw terminals
Electrical shaft insulation
Download
(450 Kb)
(461 Kb)
Certifications
C101
Technical data
Dimension
Ø 100 mm
Shaft Ø max
16 mm
Resolution
2048 PPR max.
Output circuit
Push-Pull, Line Driver
Heavy industry & windgenerator applications
Electrical shaft insulation up to 2.5 kV
2 galvanically separated outputs
Electrical shaft insulation up to 2.5 kV
2 galvanically separated outputs
Download
(427 Kb)
(525 Kb)
Certifications
EM58 PL • HS58 PL • HM58 PL
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Ethernet Powerlink
Single & multi turn Powerlink encoders
Fast and precise optical sensing
Resistant against magnetic fields
100 Mbit/s half duplex operation
Integrated hub
M12 connections
Fast and precise optical sensing
Resistant against magnetic fields
100 Mbit/s half duplex operation
Integrated hub
M12 connections
Download
(382 Kb)
(8266 Kb)
(1109 Kb)
(88 Kb)
Certifications
MS36 • MSC36
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
8192 counts/rev. max.
Interface
SSI
Magnetic sensing
Absolute single-turn encoder
Resolution 8192 counts/rev, SSI interface
Axial cable output
Protection up to IP67
MS36: solid shaft version
MSC36: blind hollow shaft version, Ø 6mm
Absolute single-turn encoder
Resolution 8192 counts/rev, SSI interface
Axial cable output
Protection up to IP67
MS36: solid shaft version
MSC36: blind hollow shaft version, Ø 6mm
Download
(122 Kb)
(418 Kb)
Certifications
MM36 • MMC36
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
8192 counts/rev. x 65536 rev. max.
Interface
SSI
Absolute multi-turn magnetic encoder
Very compact and robust housing
Resolution up to 4096 counts/rev and up to 32768 rev, SSI interface
Zero setting and counting direction function
Axial cable output
MM36: solid shaft version
MMC36: blind hollow shaft version, Ø 6mm
Very compact and robust housing
Resolution up to 4096 counts/rev and up to 32768 rev, SSI interface
Zero setting and counting direction function
Axial cable output
MM36: solid shaft version
MMC36: blind hollow shaft version, Ø 6mm
Download
(282 Kb)
(418 Kb)
Certifications
MS40 • MSC40 SSI
Technical data
Dimension
Ø 40 mm
Shaft Ø max
6 mm
Resolution
up to 12 bit
Interface
SSI
Compact & robust absolute encoders
Resolution up to 12 bit
SSI, Bit parallel & analogue
IP65 protection
Tool turret version with LED for zero position
Resolution up to 12 bit
SSI, Bit parallel & analogue
IP65 protection
Tool turret version with LED for zero position
Download
(406 Kb)
(497 Kb)
Certifications
AS36 • ASC36
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
1048576 counts/rev. max.
Interface
SSI, BiSS
Miniature optical single turn encoder
Resolution up to 1048576 cpr (20 bit)
High degree of protection, IP67
M12 inline connector
Resolution up to 1048576 cpr (20 bit)
High degree of protection, IP67
M12 inline connector
Download
(270 Kb)
(1662 Kb)
(439 Kb)
(2 Kb)
Certifications
AM36-AMC36
Technical data
Dimension
Ø 36 mm
Shaft Ø max
6 mm
Resolution
524288 counts/rev. x 4096 turns
Interface
SSI, BiSS
Miniature optical multi turn encoder
Resolution up to 524288 cpr (19 bit) x 4096 turns (12 bit)
High degree of protection, IP67
Cable output or M12 inline plug
Resolution up to 524288 cpr (19 bit) x 4096 turns (12 bit)
High degree of protection, IP67
Cable output or M12 inline plug
Download
(260 Kb)
(1196 Kb)
(418 Kb)
(2 Kb)
Certifications
ES58 • ES58S • ESC58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
8192 counts/rev.
Interface
SSI
Compact optical single turn encoder
Resolution up to 8192 cpr
Additional incremental track
High degree of protection, IP67
Resolution up to 8192 cpr
Additional incremental track
High degree of protection, IP67
Download
(213 Kb)
(1977 Kb)
Certifications
EM58 • EM58S • EMC58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
8192 counts/rev. x 16384 turns max.
Interface
SSI
Compact optical multi turn encoder
Resolution up to 8192 cpr and 16384 turns
Additional incremental track
High degree of protection, IP67
Resolution up to 8192 cpr and 16384 turns
Additional incremental track
High degree of protection, IP67
Download
(190 Kb)
(1977 Kb)
Certifications
ESC61 • EMC61
Technical data
Dimension
Ø 58 mm
Shaft Ø max
20 mm
Resolution
single turn: 8192 cpr max.
multi turn: 8192 cpr x 16384 turns
multi turn: 8192 cpr x 16384 turns
Interface
SSI
Compact encoder with ø20 mm hollow shaft
Single turn up to 8192 cpr
True multi turn (without battery backup)
Cable and connector output
Rugged design with IP67 protection and fixing clamp
Download
(281 Kb)
(346 Kb)
Certifications
HS58 • HS58S • HSC58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
524288 counts/rev. + 2048 sin/cos max.
Interface
SSI, BiSS
For motor feedback applications
Resolution up to 19 bit
Additional incremental track, 2048 PPR sin/cos
Resolution up to 19 bit
Additional incremental track, 2048 PPR sin/cos
Download
(468 Kb)
(1070 Kb)
(2 Kb)
Certifications
HM58 • HM58S • HMC58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
65536 counts/rev x 16384 rev. + 2048 sin/cos max.
Interface
SSI, BiSS
For motor feedback applications
Resolution up to 16 + 14 bit
Additional incremental track, 2048 PPR sin/cos
Resolution up to 16 + 14 bit
Additional incremental track, 2048 PPR sin/cos
Download
(484 Kb)
(1070 Kb)
(2 Kb)
Certifications
HSCT • HMCT
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
Single turn version up to 262144 counts/rev
Multi turn version up to 65536 counts/rev x 4096 rev.
Multi turn version up to 65536 counts/rev x 4096 rev.
Interface
SSI, BiSS
Compact design, through hollow shaft
Industrial & feedback applications
Single turn version up to 18 bit
Multi turn version, 16 x 12 bit
Incremental resolution up to 8192 PPR or 2048 sin/cos
Industrial & feedback applications
Single turn version up to 18 bit
Multi turn version, 16 x 12 bit
Incremental resolution up to 8192 PPR or 2048 sin/cos
Download
(404 Kb)
(524 Kb)
(2 Kb)
Certifications
MH58S
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 10 mm
Resolution
4096 counts/rev. x 4096 rev.
Interface
SSI, Analogue output
Compact heavy-duty encoder
IP67 protection & extended temperature range
High shaft load
Confortable presetting by push-button
Suitable for outdoor and offshore installations
IP67 protection & extended temperature range
High shaft load
Confortable presetting by push-button
Suitable for outdoor and offshore installations
Download
(109 Kb)
(693 Kb)
Certifications
MM58 • MM58S • MMC58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
4096 counts/rev. x 65536 rev.
Interface
SSI
Magnetic sensing, absolute
Very shock-proof
Through hollow shaft
Very shock-proof
Through hollow shaft
Download
(432 Kb)
(1977 Kb)
Certifications
HM58 P • HM58S P • HMC58 P
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
262144 counts/rev. x 16384 rev.
Interface
SSI, Bit Parallel
Compact programmable encoder
Singleturn resolution up to 18 bit, multiturn up to 14 bit
SSI or Bit parallel output
Programmable SSI protocol, clock rate and timing
Singleturn resolution up to 18 bit, multiturn up to 14 bit
SSI or Bit parallel output
Programmable SSI protocol, clock rate and timing
Download
(187 Kb)
(5552 Kb)
(1648 Kb)
(6953 Kb)
Certifications
AMR58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 12 mm
Resolution
4096 cpr x 256 turns / 0,09°
Interface
SSI
Absolute encoder with integrated cam switch programmer
SSI position output, Profibus on request
SSI position output, Profibus on request
Download
(149 Kb)
(2478 Kb)
(8999 Kb)
Certifications
AST6 • AMT6
Technical data
Dimension
Ø 65 mm
Shaft Ø max
up to 12 mm
Resolution
Multi turn version up to 65536 counts/rev x 16384 rev.
Interface
SSI
US standard optical encoders
Robust die-cast housing
MIL standard connector
Single turn up to 18 bit (262144 cpr) and multi turn up to 16x14 bit (65536 x 16384)
Robust die-cast housing
MIL standard connector
Single turn up to 18 bit (262144 cpr) and multi turn up to 16x14 bit (65536 x 16384)
Additional incremental track, 1024 PPR available
High degree of protection, IP66
BCD output code on request
High degree of protection, IP66
BCD output code on request
Download
(187 Kb)
(477 Kb)
Certifications
XAC77
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
SSI, Push-Pull, NPN
Absolute single & multiturn encoders
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
SSI or Bit parallel output
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
SSI or Bit parallel output
Download
(292 Kb)
(9542 Kb)
Certifications
AM9 • AMC9
Technical data
Dimension
Ø 88 mm
Shaft Ø max
up to 15 mm
Resolution
8192 cpr x 4096 turns max.
Interface
SSI
Compact and flat multi turn encoders
Resolution up to 8192 cpr x 4096 turns
Radial M23 connector output
AM9 with Ø 10 mm solid shaft
AMC9 with Ø 15 mm through hollow shaft
Resolution up to 8192 cpr x 4096 turns
Radial M23 connector output
AM9 with Ø 10 mm solid shaft
AMC9 with Ø 15 mm through hollow shaft
Download
(115 Kb)
Certifications
AM58 P • AM58S P • AMC58 P
Technical data
Dimension
58 mm
Shaft Ø max
6, 8, 9.52, 10, 12, 14, 15 mm
Resolution
13 x 12 Bit max.
Interface
SSI, NPN, Push-Pull
This product is not recommended for new designs and will be replaced by HM58 P-HM58S P-HMC58 P.
Please contact our customer service (info@lika.it) for spare part inquiries.
Please contact our customer service (info@lika.it) for spare part inquiries.
Download
(185 Kb)
(476 Kb)
(1519 Kb)
Certifications
EM58 EC • HS58 EC • HM58 EC
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
EtherCAT
Single and multi turn EtherCAT encoders
Cycle time only 62,5 μs (position refresh)
Fast and precise optical sensing
Resistant against magnetic fields
Cycle time only 62,5 μs (position refresh)
Fast and precise optical sensing
Resistant against magnetic fields
Download
(268 Kb)
(4708 Kb)
(1063 Kb)
(64 Kb)
Certifications
EM58 PT • HS58 PT • HM58 PT
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
65536 counts/rev x 16384 turns max.
Interface
Profinet IO
Single & multi turn Profinet encoders
Fast and precise optical sensing
Encoder profile PNO No 3.162 V4.1
Dynamically assigned IP address via DCP
Download
(265 Kb)
(7969 Kb)
(1041 Kb)
(5735 Kb)
Certifications
AS58 PB, AS58S PB, ASC58 PB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
8192 counts/rev max.
Interface
Profibus-DP
Optical singleturn encoders
Profibus-DP interface
Profibus-DP interface
Download
(183 Kb)
(2167 Kb)
(2845 Kb)
(34 Kb)
Certifications
AM58 PB-AM58S PB-AMC58 PB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
8192 counts/rev x 4096 rev max.
Interface
Profibus-DP
Optical multiturn encoders
Profibus-DP interface
Profibus-DP interface
Download
(183 Kb)
(2167 Kb)
(2845 Kb)
(34 Kb)
Certifications
AM58K
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 12 mm
Resolution
8192 counts/rev x 4096 rev max.
Interface
Profibus-DP, CANopen
Profibus and CANopen encoder
Stainless steel housing suitable for food industry
Connection cap with M12 connectors
Position & velocity output
Stainless steel housing suitable for food industry
Connection cap with M12 connectors
Position & velocity output
Download
(154 Kb)
(1014 Kb)
Certifications
HS58 FB-HS58S FB-HSC58 FB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
262144 counts/rev max.
Interface
Profibus-DP, CANopen, CANopen LIFT, DeviceNet
High resolution Fieldbus encoders
One encoder fits all Fieldbusses
Cable or connector output
One encoder fits all Fieldbusses
Cable or connector output
Download
(200 Kb)
(2022 Kb)
(2481 Kb)
(41 Kb)
Certifications
HM58 FB-HM58S FB-HMC58 FB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Profibus-DP, CANopen, CANopen LIFT, DeviceNet
High resolution Fieldbus encoders
One encoder fits all Fieldbusses
Cable or connector output
One encoder fits all Fieldbusses
Cable or connector output
Download
(200 Kb)
(2022 Kb)
(2481 Kb)
(41 Kb)
Certifications
XAC77 PB-CB
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Profibus-DP, CANopen
Absolute single & multiturn encoders
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
Point-to-point Profibus, CANopen, DeviceNet communication
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
Point-to-point Profibus, CANopen, DeviceNet communication
Download
(292 Kb)
(5948 Kb)
Certifications
XAC77 FB
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Profibus-DP, CANopen, DeviceNet
Heavy-duty fieldbus encoder
Easy access by removable connection cap
Profibus, CANopen, DeviceNet interfaces
For harsh environment such as steel mills, mobile equipment, construction machinery
Easy access by removable connection cap
Profibus, CANopen, DeviceNet interfaces
For harsh environment such as steel mills, mobile equipment, construction machinery
Download
(142 Kb)
(2379 Kb)
(707 Kb)
(9 Kb)
Certifications
AS58 CB-AS58S CB-ASC58 CB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
8192 counts/rev max.
Interface
CANopen, CANopen LIFT
Optical singleturn encoders
CANbus interface
CANbus interface
Download
(171 Kb)
(1811 Kb)
(1896 Kb)
(13 Kb)
Certifications
AM58 CB-AM58S CB-AMC58 CB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
8192 counts/rev x 4096 rev max.
Interface
CANopen, CANopen LIFT
Optical multiturn encoders
CANbus interface
CANbus interface
Download
(171 Kb)
(1811 Kb)
(1896 Kb)
(13 Kb)
Certifications
AM58K
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
8192 counts/rev x 4096 rev max.
Interface
Profibus-DP, CANopen
Profibus and CANopen encoder
Stainless steel housing suitable for food industry
Connection cap with M12 connectors
Position & velocity output
Stainless steel housing suitable for food industry
Connection cap with M12 connectors
Position & velocity output
Download
(154 Kb)
(1315 Kb)
(1068 Kb)
(6 Kb)
Certifications
ASx58x - AMx58x Easy CANopen
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
Single turn version: 262144 counts/rev
Multi turn version: 65536 counts/rev x 16384 rev
Multi turn version: 65536 counts/rev x 16384 rev
Interface
CANopen, CANopen LIFT
EasyCAN connection with cable or M12 connector
CANopen and CANlift protocols
Compact dimensions
CANopen and CANlift protocols
Compact dimensions
Download
(325 Kb)
(1571 Kb)
(1135 Kb)
(13 Kb)
Certifications
HS58 FB-HS58S FB-HSC58 FB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
262144 counts/rev max.
Interface
Profibus-DP, CANopen, CANopen LIFT, DeviceNet
High resolution Fieldbus encoders
One encoder fits all Fieldbusses
Cable or connector output
One encoder fits all Fieldbusses
Cable or connector output
Download
(200 Kb)
(1789 Kb)
(2497 Kb)
(13 Kb)
Certifications
HM58 FB-HM58S FB-HMC58 FB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Profibus-DP, CANopen, CANopen LIFT, DeviceNet
High resolution Fieldbus encoders
One encoder fits all Fieldbusses
Cable or connector output
One encoder fits all Fieldbusses
Cable or connector output
Download
(200 Kb)
(1789 Kb)
(2497 Kb)
(13 Kb)
Certifications
XAC77 PB-CB
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Profibus-DP, CANopen
Absolute single & multiturn encoders
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
Point-to-point Profibus, CANopen, DeviceNet communication
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
Point-to-point Profibus, CANopen, DeviceNet communication
Download
(292 Kb)
(5948 Kb)
Certifications
XAC77 FB
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Profibus-DP, CANopen, CANopen LIFT, DeviceNet
Heavy-duty fieldbus encoder
Easy access by removable connection cap
Profibus, CANopen, DeviceNet interfaces
For harsh environment such as steel mills, mobile equipment, construction machinery
Easy access by removable connection cap
Profibus, CANopen, DeviceNet interfaces
For harsh environment such as steel mills, mobile equipment, construction machinery
Download
(142 Kb)
(896 Kb)
(727 Kb)
(22 Kb)
Certifications
XAC77 FD
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
DeviceNet
Absolute single & multiturn encoders
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
Point-to-point Profibus, CANopen, DeviceNet communication
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
Point-to-point Profibus, CANopen, DeviceNet communication
Download
(292 Kb)
(5948 Kb)
Certifications
HS58 FB-HS58S FB-HSC58 FB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
262144 counts/rev max.
Interface
Profibus-DP, CANopen, CANopen LIFT, DeviceNet
High resolution Fieldbus encoders
One encoder fits all Fieldbusses
Cable or connector output
One encoder fits all Fieldbusses
Cable or connector output
Download
(200 Kb)
(1836 Kb)
(1110 Kb)
(19 Kb)
Certifications
HM58 FB-HM58S FB-HMC58 FB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Profibus-DP, CANopen, CANopen LIFT, DeviceNet
High resolution Fieldbus encoders
One encoder fits all Fieldbusses
Cable or connector output
One encoder fits all Fieldbusses
Cable or connector output
Download
(200 Kb)
(1836 Kb)
(1110 Kb)
(19 Kb)
Certifications
XAC77 FB
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Profibus-DP, CANopen, DeviceNet
Heavy-duty fieldbus encoder
Easy access by removable connection cap
Profibus, CANopen, DeviceNet interfaces
For harsh environment such as steel mills, mobile equipment, construction machinery
Easy access by removable connection cap
Profibus, CANopen, DeviceNet interfaces
For harsh environment such as steel mills, mobile equipment, construction machinery
Download
(142 Kb)
Certifications
EM58 MT • HS58 MT • HM58 MT
Technical data
Dimension
58 mm
Shaft Ø max
6, 8, 9.52, 10, 12, 14, 15 mm
Resolution
65536 counts/rev x 16384 turns max.
Interface
Modbus TCP/IP
EM58 series: general purpose, multi turn
HS58 series: high accuracy, single turn
HM58 series: high resolution, multi turn
Fast and precise optical sensing
Position and velocity output
Integrated web server for parameter setup
Status information & LED diagnostics
HS58 series: high accuracy, single turn
HM58 series: high resolution, multi turn
Fast and precise optical sensing
Position and velocity output
Integrated web server for parameter setup
Status information & LED diagnostics
Download
(271 Kb)
(991 Kb)
Certifications
EM58 • EM58S • EMC58 MB
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Modbus
Compact optical multi turn encoder
Resolution up to 8192 cpr and 16384 turns
Additional incremental track
High degree of protection, IP67
Resolution up to 8192 cpr and 16384 turns
Additional incremental track
High degree of protection, IP67
Download
(171 Kb)
(1687 Kb)
(1084 Kb)
Certifications
MS40 A • MSC40 A • MS41 A • MSC41 A
Technical data
Dimension
Ø 40 mm
Shaft Ø max
6 mm
Resolution
see description
Interface
Analogue
Compact & robust absolute encoders
Resolution up to 12 bit
SSI, Bit parallel & analogue
IP65 protection
Tool turret version with LED for zero position
Resolution up to 12 bit
SSI, Bit parallel & analogue
IP65 protection
Tool turret version with LED for zero position
Download
(406 Kb)
(479 Kb)
Certifications
MH58S
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 10 mm
Resolution
4096 counts/rev. x 4096 rev.
Interface
SSI, Analogue output
Compact heavy-duty encoder
IP67 protection & extended temperature range
High shaft load
Confortable presetting by push-button
Suitable for outdoor and offshore installations
IP67 protection & extended temperature range
High shaft load
Confortable presetting by push-button
Suitable for outdoor and offshore installations
Download
(109 Kb)
(693 Kb)
Certifications
EM58 TA
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
4096 counts/rev. x 16384 rev. max.
Interface
Analogue output
Compact optical multi turn encoder
Resolution up to 4096 cpr and 16384 turns
Additional incremental track
High degree of protection, IP67
Resolution up to 4096 cpr and 16384 turns
Additional incremental track
High degree of protection, IP67
Download
(169 Kb)
(1584 Kb)
(1071 Kb)
Certifications
AS58 A • AM58 A
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
Single turn version: 4096 counts/rev.
Multi turn version: 4096 counts/rev x 16 rev
Multi turn version: 4096 counts/rev x 16 rev
Interface
Analogue output
Optical absolute encoders
Single and multi turn versions
Analogue output
Single and multi turn versions
Analogue output
Download
(220 Kb)
(1087 Kb)
Certifications
EM58 PA
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
4096 counts/rev x 16384 rev
Interface
Analogue output
Programmable analogue output
0-5V, 0-10V, -5/+5V, -10/+10V, 4-20mA, 0-20mA, 0-24mA
Multiturn up to 16384 rev.
Programmable overrun mode
RS232 for parameter set-up
0-5V, 0-10V, -5/+5V, -10/+10V, 4-20mA, 0-20mA, 0-24mA
Multiturn up to 16384 rev.
Programmable overrun mode
RS232 for parameter set-up
Download
(172 Kb)
(2320 Kb)
(1515 Kb)
(6953 Kb)
Certifications
ASR58-ASR58S
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 12 mm
Resolution
3600 / 0,1°
Interface
Analogue output, Push-Pull
Integrated cam switch programmer
16 digital outputs, freely programmable
Real time output
Resolution 0,1°
For packaging machinery, presses and index tables
16 digital outputs, freely programmable
Real time output
Resolution 0,1°
For packaging machinery, presses and index tables
Download
(149 Kb)
(3896 Kb)
(9067 Kb)
Certifications
XAC77 PA
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
65536 counts/rev x 16384 rev max.
Interface
Analogue output
Absolute single & multiturn encoders
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
Fully programmable analogue output (V/I)
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
Fully programmable analogue output (V/I)
Download
(292 Kb)
(5948 Kb)
Certifications
XAC77
Technical data
Dimension
Ø 77 mm
Shaft Ø max
14 mm
Resolution
65536 counts/rev x 16384 turns max.
Interface
Bit Parallel, SSI
Absolute single & multiturn encoders
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
SSI or Bit parallel output
ATEX II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T85°C Db certification
Installation in zones 1, 2, 21 and 22
SSI or Bit parallel output
Download
(292 Kb)
(9308 Kb)
Certifications
MS40 TT
Technical data
Dimension
Ø 40 mm
Shaft Ø max
6 mm
Resolution
8 -24 positions
Interface
Bit Parallel
Compact & robust absolute encoders
IP65 Protection, IP66 on request
Bit parallel output up to 256 cpr
Tool turret version with LED for zero position
IP65 Protection, IP66 on request
Bit parallel output up to 256 cpr
Tool turret version with LED for zero position
Download
(406 Kb)
Certifications
MS41 • MSC41
Technical data
Dimension
Ø 40 mm
Shaft Ø max
6 mm
Resolution
see description
Interface
Bit Parallel
Compact & robust absolute encoders
Resolution up to 12 bit
SSI, Bit parallel & analogue
IP65 protection
Tool turret version with LED for zero position
Resolution up to 12 bit
SSI, Bit parallel & analogue
IP65 protection
Tool turret version with LED for zero position
Download
(406 Kb)
(451 Kb)
Certifications
ES58 • ES58S • ESC58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
8192 counts/rev.
Interface
Bit Parallel, Push-Pull, NPN
Compact optical single turn encoder
Resolution up to 8192 cpr
Additional incremental track
High degree of protection, IP67
Resolution up to 8192 cpr
Additional incremental track
High degree of protection, IP67
Download
(213 Kb)
(954 Kb)
Certifications
EM58 • EM58S • EMC58
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
8192 counts/rev. x 16384 rev. max.
Interface
Bit Parallel, Push-Pull, NPN
Compact optical multi turn encoder
Resolution up to 8192 cpr and 16384 turns
Additional incremental track
High degree of protection, IP67
Resolution up to 8192 cpr and 16384 turns
Additional incremental track
High degree of protection, IP67
Download
(190 Kb)
(929 Kb)
Certifications
HM58 P • HM58S P • HMC58 P
Technical data
Dimension
Ø 58 mm
Shaft Ø max
up to 15 mm
Resolution
262144 counts/rev. x 16384 rev.
Interface
SSI, Bit Parallel
Compact programmable encoder
Singleturn resolution up to 18 bit, multiturn up to 14 bit
SSI or Bit parallel output
Programmable SSI protocol, clock rate and timing
Singleturn resolution up to 18 bit, multiturn up to 14 bit
SSI or Bit parallel output
Programmable SSI protocol, clock rate and timing
Download
(187 Kb)
(5552 Kb)
(1648 Kb)
(6953 Kb)
Certifications
AST6 • AMT6
US standard optical encoders
Single turn up to 13 bit (8192 cpr) and multi turn up to 13x14 bit (8192 x 16384)
Additional incremental track
High degree of protection, IP67
BCD output code on request
Technical data
Dimension
Ø 65 mm
Shaft Ø max
up to 12 mm
Resolution
Multi turn version up to 8192 counts/rev x 16384 rev.
Interface
Bit Parallel
US standard optical encoders
Single turn up to 13 bit (8192 cpr) and multi turn up to 13x14 bit (8192 x 16384)
Additional incremental track
High degree of protection, IP66
BCD output code on request
Single turn up to 13 bit (8192 cpr) and multi turn up to 13x14 bit (8192 x 16384)
Additional incremental track
High degree of protection, IP66
BCD output code on request
Download
(187 Kb)
(879 Kb)
Certifications
IM30 - IM31 - IM56
Technical data
Low cost encoder modules
Easy assembly and disc alignment
Bearingless design
Easy assembly and disc alignment
Bearingless design
Download
(153 Kb)
Certifications
SGSM - SGSD
Technical data
Shaft Ø max
up to 50 mm
Resolution
1024 pulse/rev
Output circuit
Push-Pull, Line Driver
Low-cost heavy duty solution
Sealed housing, IP68
Redundant version SGSD
Up to 50 mm hollow shaft
Outdoor & mobile equipment applications
Sealed housing, IP68
Redundant version SGSD
Up to 50 mm hollow shaft
Outdoor & mobile equipment applications
Download
(93 Kb)
(1969 Kb)
(1620 Kb)
Certifications
SMG
Technical data
Resolution
Interpolation factor up to 100 (only digital output)
Output circuit
Push-Pull, Line Driver, 1Vpp sine/cosine
High speed gear and tooth sensor
Position & speed feedback
Compact design with IP68 protection
Easy & precise alignment thanks to keyway
Available for module 0,3 and 0,5 & 1, 2, 3 mm tooth structures
Position & speed feedback
Compact design with IP68 protection
Easy & precise alignment thanks to keyway
Available for module 0,3 and 0,5 & 1, 2, 3 mm tooth structures
Download
(173 Kb)
(409 Kb)
Certifications
MIK36
Technical data
Shaft Ø max
10 mm
Resolution
2048 PPR max.
Output circuit
NPN, Push-Pull, Line Driver
Shaftless incremental encoder
Bearingless non contact design
Contactless, compact & high degree of protection IP68 with sealed circuits
Bearingless non contact design
Contactless, compact & high degree of protection IP68 with sealed circuits
Download
(160 Kb)
(925 Kb)
Certifications
MSK36 - MMK36
Technical data
Shaft Ø max
10 mm
Resolution
MSK36 up to 8192 cpr
MMK36 8192 cpr x 65536 rev.
MMK36 8192 cpr x 65536 rev.
Output circuit
SSI
Shaftless absolute encoder
SSI, Binary or Gray code interface
8192 counts per turn with zero setting input
Contactless, compact & high degree of protection IP68 with sealed circuits
SSI, Binary or Gray code interface
8192 counts per turn with zero setting input
Contactless, compact & high degree of protection IP68 with sealed circuits
Download
(179 Kb)
(902 Kb)
Certifications
SMRI2
Technical data
Shaft Ø max
up to 300 mm
Resolution
up to 180000 PPR
Output circuit
Line Driver, Push-Pull
Bearlingless encoder
Resolution up to 180000 PPR
Sensor/ring clearance up to 0,8 mm
IP67 washdown protection (IP69K on request)
Resolution up to 180000 PPR
Sensor/ring clearance up to 0,8 mm
IP67 washdown protection (IP69K on request)
Download
(252 Kb)
(741 Kb)
(399 Kb)
Certifications
SMRI5
Technical data
Shaft Ø max
up to 300 mm
Output circuit
Push-Pull, Line Driver
Hollow shafts from ø 40 mm to ø 300 mm
Reference pulse available
High speed versions for spindle motors
"Round" design for integration into torque motors
Reference pulse available
High speed versions for spindle motors
"Round" design for integration into torque motors
Download
(163 Kb)
(741 Kb)
(399 Kb)
Certifications
SMRA
Technical data
Shaft Ø max
110 mm
Output circuit
SSI, BiSS
Absolute contactless sensing
Hollow shaft up to 110 mm
SSI & BiSS output with alarm bits
Self-fixing ring (no fixing holes required)
IP68 protection
Hollow shaft up to 110 mm
SSI & BiSS output with alarm bits
Self-fixing ring (no fixing holes required)
IP68 protection
Download
(193 Kb)
(1513 Kb)
(549 Kb)
Certifications
SMLA
Technical data
Resolution
16384 cpr
Output circuits
SSI, BiSS-C
Absolute encoder for curved axes.
Contactless sensing.
Detection of arcs and curved axes up to 360°.
Contactless sensing.
Detection of arcs and curved axes up to 360°.
SSI & BiSS output with alarm bits.
IP68 Protection.
IP68 Protection.
Download
(160 Kb)
(2838 Kb)
(832 Kb)
Certifications
SFE-5000 - SFE-10000
Technical data
Measurement length
up to 10000 mm
Resolution
programmable (16384 PPR max.)
Dimensions
see drawing
Integrated programmable encoder
Universal output circuit HTL/TTL
Compact design and easy installation
5000 or 10000 mm measuring length
Resolution up to 16384 PPR (prog.)
Universal output circuit HTL/TTL
Compact design and easy installation
5000 or 10000 mm measuring length
Resolution up to 16384 PPR (prog.)
Download
(234 Kb)
(1738 Kb)
(475 Kb)
(9100 Kb)
Certifications
SFE
Technical data
Measurement length
up to 2000 mm
Resolution
up to 0,05 mm
Dimensions
56 x 55 x 64 mm
Robust and space saving construction
Integrated incremental encoder
Measuring length up to 2000 mm
Integrated incremental encoder
Measuring length up to 2000 mm
Download
(182 Kb)
(482 Kb)
(464 Kb)
Certifications
SF-I
Technical data
Measurement length
up to 6800 mm
Resolution
up to 0,01 mm
Dimensions
125 x 83 x 58 mm
Compact and cost effective draw-wire unit for encoders
Simple and reliable construction
Fits all incremental hollow shaft encoders
Measurement range from 5000 to 6800 mm
Drum circumference 200 mm
Simple and reliable construction
Fits all incremental hollow shaft encoders
Measurement range from 5000 to 6800 mm
Drum circumference 200 mm
Download
(447 Kb)
(422 Kb)
Certifications
SAK
Technical data
Measurement length
up to 15000 mm
Resolution
up to 0,01 mm
Dimensions
233,5 x 128 x 135 mm
10 or 15 m measurement length
Robust aluminium housing with optional anticorrosive surface treatment
Forced wire guidance and one layer winding
ATEX encoder on request
Robust aluminium housing with optional anticorrosive surface treatment
Forced wire guidance and one layer winding
ATEX encoder on request
Download
(226 Kb)
(145 Kb)
Certifications
SBK
Technical data
Measurement length
up to 50000 mm
Resolution
up to 0,01 mm
Dimensions
401 x 190 x 200 mm
From 20 to 50 m measurement length
Robust aluminium housing
Forced wire guidance and one-layer winding
ATEX encoder on request
Fits any encoders with servoflange
Robust aluminium housing
Forced wire guidance and one-layer winding
ATEX encoder on request
Fits any encoders with servoflange
Download
(344 Kb)
(145 Kb)
Certifications
SFA-5000 TA SFA-10000 TA
Technical data
Measurement length
up to 10000 mm
Resolution
65536 steps of output range
Dimensions
see drawing
Integrated absolute encoder
Programmable analogue output
5000 & 10000 mm measuring length
Teach-in of travel length by push buttons
Programmable analogue output
5000 & 10000 mm measuring length
Teach-in of travel length by push buttons
Output 0-5V, 0-10V & 4-20mA
Cable or M12 connector
Cable or M12 connector
Download
(256 Kb)
(1504 Kb)
(461 Kb)
Certifications
SFA-5000 - SFA-10000
Technical data
Measurement length
up to 10000 mm
Resolution
0.1, 0.05, 0.024 mm
Dimensions
see drawing
Integrated absolute encoder
SSI interface, gray or binary coded
Compact design & easy installation
5000 & 10000 mm measuring length
Resolution 0.1, 0.05, 0.024 mm (other on request)
SSI interface, gray or binary coded
Compact design & easy installation
5000 & 10000 mm measuring length
Resolution 0.1, 0.05, 0.024 mm (other on request)
Download
(221 Kb)
(1380 Kb)
(400 Kb)
Certifications
SFA
Technical data
Measurement length
up to 2000 mm
Resolution
0,012 mm max.
Dimensions
56 x 56 x 79 mm
Absolute draw-wire encoder
Robust and compact design
Resolution from 0.1 to 0.012 mm
Measuring range 1000 and 2000 mm
Robust and compact design
Resolution from 0.1 to 0.012 mm
Measuring range 1000 and 2000 mm
Download
(136 Kb)
(753 Kb)
(489 Kb)
Certifications
SF-A
Technical data
Measurement length
up to 6800 mm
Resolution
up to 0,025 mm
Dimensions
125 x 83 x 58 mm
Compact and cost effective draw-wire unit for encoders
Simple and reliable construction
Fits incremental, absolute, analogue & fieldbus encoder
Measurement range from 5000 to 6800 mm
Drum circumference 204,8 mm for absolute encoder
Also available with: MODBUS, BISS, DEVICENET
Simple and reliable construction
Fits incremental, absolute, analogue & fieldbus encoder
Measurement range from 5000 to 6800 mm
Drum circumference 204,8 mm for absolute encoder
Also available with: MODBUS, BISS, DEVICENET
Download
(447 Kb)
(422 Kb)
Certifications
SAK
Technical data
Measurement length
up to 15000 mm
Resolution
up to 0,01 mm
Dimensions
233,5 x 128 x 135 mm
10 or 15 m measurement length
Robust aluminium housing with optional anticorrosive surface treatment
Forced wire guidance and one layer winding
ATEX encoder on request
Robust aluminium housing with optional anticorrosive surface treatment
Forced wire guidance and one layer winding
ATEX encoder on request
Also available with: MODBUS, BISS, DEVICENET
Download
(226 Kb)
(145 Kb)
Certifications
SBK
Technical data
Measurement length
up to 50000 mm
Resolution
up to 0,01 mm
Dimensions
401 x 190 x 200 mm
From 20 to 50 m measurement length
Robust aluminium housing
Forced wire guidance and one-layer winding
ATEX encoder on request
Fits any encoders with servoflange
Also available with: MODBUS, BISS, DEVICENET
Robust aluminium housing
Forced wire guidance and one-layer winding
ATEX encoder on request
Fits any encoders with servoflange
Also available with: MODBUS, BISS, DEVICENET
Download
(344 Kb)
(145 Kb)
Certifications
SFP
Technical data
Measurement length
up to 2000 mm
Resolution
virtually infinite
Dimensions
56 x 56 x 79 mm
Robust and space saving construction
Integrated potentiometer
Measuring length up to 2000 mm
Integrated potentiometer
Measuring length up to 2000 mm
Download
(134 Kb)
(643 Kb)
(375 Kb)
Certifications
SMP
Technical data
Resolution
12,5 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
Magnetic sensor for linear guides
Gap clearance up to 2 mm
Gap clearance up to 2 mm
Lika hi-flex sensor cable
Lateral tape detection
Lateral tape detection
Download
(67 Kb)
(896 Kb)
(651 Kb)
Certifications
SME51
Technical data
Resolution
5 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
Standard sensor for linear and rotary axis.
Gap clearance up to 2 mm.
Lika Hi-flex sensor cable.
Status LED for clearance error.
Optional reference mark LKM1309/5 to be installed along the magnetic tape.
Optional tape cleaning wipers.
Gap clearance up to 2 mm.
Lika Hi-flex sensor cable.
Status LED for clearance error.
Optional reference mark LKM1309/5 to be installed along the magnetic tape.
Optional tape cleaning wipers.
Download
(94 Kb)
(1165 Kb)
(420 Kb)
Certifications
SME52
Technical data
Resolution
5 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
Standard sensor for linear and rotary axis.
Gap clearance up to 2 mm.
Lika Hi-flex sensor cable.
Status LED for clearance error.
Optional reference mark LKM1309/5 to be installed along the magnetic tape.
Optional tape cleaning wipers.
Gap clearance up to 2 mm.
Lika Hi-flex sensor cable.
Status LED for clearance error.
Optional reference mark LKM1309/5 to be installed along the magnetic tape.
Optional tape cleaning wipers.
Download
(96 Kb)
(1295 Kb)
(419 Kb)
Certifications
SME21
Technical data
Resolution
1 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
High resolution sensor for linear and angular measurements.
High speed and protection degree.
Speed proportional output signals.
Resolution up to 1 µm.
High speed and protection degree.
Speed proportional output signals.
Resolution up to 1 µm.
Download
(95 Kb)
(1165 Kb)
(420 Kb)
Certifications
SME22
Technical data
Resolution
1 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
2 integrated limit switch sensors
High resolution sensor for linear measurements
High speed and protection degree
Speed proportional output signals
Resolution up to 1 μm
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
High resolution sensor for linear measurements
High speed and protection degree
Speed proportional output signals
Resolution up to 1 μm
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
Download
(96 Kb)
(1295 Kb)
(419 Kb)
Certifications
SME11
Technical data
Resolution
0,5 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
High performance sensor for linear motors.
Lika Hi-flex sensor cable.
Status LED for clearance error.
Optional tape cleaning wipers.
Lika Hi-flex sensor cable.
Status LED for clearance error.
Optional tape cleaning wipers.
Download
(94 Kb)
(1165 Kb)
(420 Kb)
Certifications
SME12
Technical data
Resolution
0,5 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
2 integrated limit switch sensors
High performance sensor for linear motors
Lika hi-flex sensor cable
Status LED for clearance error
Reference and limit switch marks to be installed along the magnetic tape
Resolution up to 0,5 µm
Optional tape cleaning wipers
High performance sensor for linear motors
Lika hi-flex sensor cable
Status LED for clearance error
Reference and limit switch marks to be installed along the magnetic tape
Resolution up to 0,5 µm
Optional tape cleaning wipers
Download
(96 Kb)
(1295 Kb)
(419 Kb)
Certifications
SMB2 • SMB5
Technical data
Resolution
5 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
Compact sensors with in-line external interpolator
IP67 protection
Resolution up to 5 µm
IP67 protection
Resolution up to 5 µm
Download
(136 Kb)
Certifications
SMI2 • SMI5
Technical data
Resolution
2 µm to 50 µm selectable
Measuring length
5 m max.
Output circuits
Push-Pull, Line Driver
Resolution selector from 50 to 2 µm
Compact reading head with IP68 protection
Power-on and Error LEDs
Automatic output signal performance control
Ideal for linear motors and pick & place axes
Compact reading head with IP68 protection
Power-on and Error LEDs
Automatic output signal performance control
Ideal for linear motors and pick & place axes
Download
(93 Kb)
(1015 Kb)
(430 Kb)
Certifications
SMK
Technical data
Resolution
10 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
Robust magnetic sensor for linear applications
Gap clearance up to 4.0 mm
IP67 protection
Resolution up to 0.01 mm
Special resolutions possible
Gap clearance up to 4.0 mm
IP67 protection
Resolution up to 0.01 mm
Special resolutions possible
Download
(68 Kb)
(754 Kb)
(378 Kb)
Certifications
SML • SMH
Technical data
Resolution
100 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
Robust sensor for linear and rotary applications
Gap clearance up to 2.0 mm
IP67 protection
Resolution up to 0.1 mm
Gap clearance up to 2.0 mm
IP67 protection
Resolution up to 0.1 mm
Download
(68 Kb)
(754 Kb)
(378 Kb)
Certifications
SMX2 • SMX5
Technical data
Resolution
5 mm; 2 mm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
Heavy-duty magnetic sensor
Quadrature output
AB signals
Universal output circuit (Push-Pull & Line Driver)
M10 steel case
Gap clearance up to 3.0 mm
Quadrature output
AB signals
Universal output circuit (Push-Pull & Line Driver)
M10 steel case
Gap clearance up to 3.0 mm
Download
(64 Kb)
(383 Kb)
Certifications
SMIG
Technical data
Resolution
5 µm
Measuring length
650 mm max.
Output circuits
Push-Pull, Line Driver
Incremental ruler
Easy installation
Resolution up to 5 μm
Unaffected by dust, debris or liquids
Easy installation
Resolution up to 5 μm
Unaffected by dust, debris or liquids
Download
(76 Kb)
(552 Kb)
(1025 Kb)
Certifications
SMS11
Technical data
Resolution
1000 µm max.
Travel speed
16 m/s max.
Output circuit
1Vpp
Magnetic sensor for linear and torque motors.
Sine-Cosine 1Vpp real-time output.
Unaffected by dust, debris or liquids, IP67.
Status LED for clearance error and A, B signals.
Optional tape cleaning wipers.
Lika Hi-flex cable.
Sine-Cosine 1Vpp real-time output.
Unaffected by dust, debris or liquids, IP67.
Status LED for clearance error and A, B signals.
Optional tape cleaning wipers.
Lika Hi-flex cable.
Download
(89 Kb)
(1133 Kb)
(421 Kb)
Certifications
SMS12
Technical data
Resolution
1000 µm max.
Travel speed
16 m/s max.
Output circuit
1Vpp
2 integrated limit switch sensors
Magnetic sensor for linear motors
Sine-cosine 1Vpp real-time output
Unaffected by dust, debris or liquids, IP67
Status LED for clearance error and A, B signals
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
Magnetic sensor for linear motors
Sine-cosine 1Vpp real-time output
Unaffected by dust, debris or liquids, IP67
Status LED for clearance error and A, B signals
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
Download
(90 Kb)
(1276 Kb)
(417 Kb)
Certifications
SMSR
Technical data
Travel speed
10 m/s max.
Output circuit
1Vpp
Miniature magnetic sensor for linear motors and pick & place applications
Real-time 1Vpp sine/cosine
High performance output signals
Real-time 1Vpp sine/cosine
High performance output signals
Download
(64 Kb)
(725 Kb)
(373 Kb)
Certifications
SME52
Technical data
Resolution
5 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
2 integrated limit switch sensors
Standard sensor for linear axis
Gap clearance up to 2.0 mm
Lika hi-flex sensor cable
Status LED for clearance error
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
Standard sensor for linear axis
Gap clearance up to 2.0 mm
Lika hi-flex sensor cable
Status LED for clearance error
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
Download
(96 Kb)
(1295 Kb)
(419 Kb)
Certifications
SME22
Technical data
Resolution
1 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
2 integrated limit switch sensors
High resolution sensor for linear measurements
High speed and protection degree
Speed proportional output signals
Resolution up to 1 μm
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
High resolution sensor for linear measurements
High speed and protection degree
Speed proportional output signals
Resolution up to 1 μm
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
Download
(96 Kb)
(1295 Kb)
(419 Kb)
Certifications
SME12
Technical data
Resolution
0,5 µm
Measuring length
100 m max.
Output circuits
Push-Pull, Line Driver
2 integrated limit switch sensors
High performance sensor for linear motors
Lika Hi-flex sensor cable
Status LED for clearance error
Reference and limit switch marks to be installed along the magnetic tape
Resolution up to 0,5 µm
Optional tape cleaning wipers
High performance sensor for linear motors
Lika Hi-flex sensor cable
Status LED for clearance error
Reference and limit switch marks to be installed along the magnetic tape
Resolution up to 0,5 µm
Optional tape cleaning wipers
Download
(96 Kb)
(1295 Kb)
(419 Kb)
Certifications
SMS12
Technical data
Resolution
1000 µm
Measuring length
100 m max.
Output circuits
1Vpp
2 integrated limit switch sensors
Magnetic sensor for linear motors
Sine-cosine 1Vpp real-time output
Unaffected by dust, debris or liquids, IP67
Status LED for clearance error and A, B signals
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
Magnetic sensor for linear motors
Sine-cosine 1Vpp real-time output
Unaffected by dust, debris or liquids, IP67
Status LED for clearance error and A, B signals
Reference and limit switch marks to be installed along the magnetic tape
Optional tape cleaning wipers
Download
(90 Kb)
(1276 Kb)
(417 Kb)
Certifications
SMIG
Technical data
Resolution
5 µm
Measuring length
570 mm max.
Output circuits
Push-Pull, Line Driver
Incremental ruler
Easy installation
Resolution up to 5 μm
Unaffected by dust, debris or liquids
Easy installation
Resolution up to 5 μm
Unaffected by dust, debris or liquids
Download
(76 Kb)
(552 Kb)
(1025 Kb)
Certifications
MT
Technical data
Type
Incremental
Length
1, 2, 4, 10, 20, 30, 50, 100 m
Flexible magnetic scale with adhesive tape and cover strip
Resistant to debris, liquids and oils
Resistant to debris, liquids and oils
Download
(67 Kb)
(1783 Kb)
Certifications
MTS
Technical data
Type
Incremental
Length
1, 2, 4, 10, 20, 30 m
Flexible magnetic scale with adhesive tape and cover strip
Resistant to debris, liquids and oils
Resistant to debris, liquids and oils
Download
(67 Kb)
(1783 Kb)
Certifications
MTIG
Technical data
Type
Incremental
Length
160, 220, 290, 570 mm
Incremental ruler
Uneffected by dust, debris or liquids
Uneffected by dust, debris or liquids
Download
(76 Kb)
(552 Kb)
Certifications
SMA5
Technical data
Measuring length
5,1 m max.
Interface
SSI
Resolution
5 µm
Compact absolute magnetic sensor
SSI interface
Resolution up to 5 μm
Unaffected by dust, debris or liquids
SSI interface
Resolution up to 5 μm
Unaffected by dust, debris or liquids
Download
(75 Kb)
(795 Kb)
(412 Kb)
Certifications
SMA1
Technical data
Measuring length
5,1 m max.
Interface
SSI, BiSS
Resolution
5 µm
Compact absolute magnetic sensor
BiSS and sine/cosine interface
Resolution programmable up to 5 μm
Unaffected by dust, debris or liquids
BiSS and sine/cosine interface
Resolution programmable up to 5 μm
Unaffected by dust, debris or liquids
Download
(78 Kb)
(1248 Kb)
(427 Kb)
(2 Kb)
Certifications
SMA2
Technical data
Measuring length
8,1 m max.
Interface
Absolute: SSI, BiSS-C
Incremental: NPN o.c., AB
Incremental: NPN o.c., AB
Resolution
1 µm
High performance absolute linear encoder
Resolution up to 1 µm
BiSS, SSI interfaces; additional incremental track for speed feedback.
Measuring length up to 8100 mm
Large mounting tolerances
Uneffected by dust, debris or liquids
Resolution up to 1 µm
BiSS, SSI interfaces; additional incremental track for speed feedback.
Measuring length up to 8100 mm
Large mounting tolerances
Uneffected by dust, debris or liquids
Download
(76 Kb)
(1345 Kb)
(447 Kb)
(2 Kb)
Certifications
SMAG
Technical data
Measuring length
570 mm max.
Interface
SSI, CANopen
Resolution
5 µm
Absolute guided encoder
SSI and CANopen interface
Resolution up to 5 μm
Unaffected by dust, debris or liquids
SSI and CANopen interface
Resolution up to 5 μm
Unaffected by dust, debris or liquids
Download
(87 Kb)
(2388 Kb)
(1552 Kb)
(12 Kb)
Certifications
SMAX - SMAZ
Technical data
Measuring length
1250 mm max.
Interface
SSI, RS485, Analogue
Resolution
100 µm
Cost effective non-contacting absolute sensor
IP68 protection degree for harsh environments, IP69K on request
Modbus/RS485, SSI and Analogue output
Programmable resolution
Self-diagnostic on tape distance & integrity
IP68 protection degree for harsh environments, IP69K on request
Modbus/RS485, SSI and Analogue output
Programmable resolution
Self-diagnostic on tape distance & integrity
Download
(93 Kb)
(4929 Kb)
(923 Kb)
Certifications
SMAL
Technical data
Measuring length
100 m max.
Interface
SSI, RS485, Profibus, CANopen, CANlift
Resolution
1 mm
Magnetic sensor for long distances
Elevators
Elevators
Download
(267 Kb)
(2185 Kb)
(19 Kb)
Certifications
SMAL2
Technical data
Measuring length
100 m max.
Interface
SSI, RS485, Profibus, CANopen, CANlift
Resolution
0,1 mm
Magnetic sensor for long distances
Elevators
Elevators
Download
(208 Kb)
(271 Kb)
Certifications
MTAX
Technical data
Type
Absolute
Length
200, 300, 600 mm
Self-diagnostics on tape distance & integrity
Measuring length up to 600 mm
Download
(75 Kb)
(1783 Kb)
Certifications
MTA5
Technical data
Type
Absolute
Length
5,1 m max.
Absolute coded magnetic scale with adhesive tape
Resistant to debris, liquids and oils
Resistant to debris, liquids and oils
Download
(75 Kb)
(1783 Kb)
Certifications
MTA1
Technical data
Type
Absolute
Length
5,1 m max.
Absolute coded magnetic scale with adhesive tape
Resistant to debris, liquids and oils
Resistant to debris, liquids and oils
Download
(75 Kb)
(1783 Kb)
Certifications
MTAG
Technical data
Type
Absolute
Length
160, 220, 290, 570 mm
Absolute ruler
Uneffected by dust, debris or liquids
Uneffected by dust, debris or liquids
Download
(87 Kb)
(1552 Kb)
Certifications
SFE-5000 - SFE-10000
Technical data
Measurement length
up to 10000 mm
Resolution
programmable (16384 PPR max.)
Dimensions
see drawing
Integrated programmable encoder
Universal output circuit HTL/TTL
Compact design and easy installation
5000 or 10000 mm measuring length
Resolution up to 16384 PPR (prog.)
Universal output circuit HTL/TTL
Compact design and easy installation
5000 or 10000 mm measuring length
Resolution up to 16384 PPR (prog.)
Download
(234 Kb)
(1619 Kb)
(490 Kb)
(6890 Kb)
Certifications
SFE
Technical data
Measurement length
up to 2000 mm
Resolution
up to 0,05 mm
Dimensions
56 x 55 x 64 mm
Robust and space saving construction
Integrated incremental encoder
Measuring length up to 2000 mm
Integrated incremental encoder
Measuring length up to 2000 mm
Download
(182 Kb)
(482 Kb)
(464 Kb)
Certifications
SF-I
Technical data
Measurement length
up to 6800 mm
Resolution
up to 0,01 mm
Dimensions
125 x 83 x 58 mm
Compact and cost effective draw-wire unit for encoders
Simple and reliable construction
Fits all incremental hollow shaft encoders
Measurement range from 5000 to 6800 mm
Drum circumference 200 mm
Simple and reliable construction
Fits all incremental hollow shaft encoders
Measurement range from 5000 to 6800 mm
Drum circumference 200 mm
Download
(447 Kb)
(422 Kb)
Certifications
SAK
Technical data
Measurement length
up to 15000 mm
Resolution
up to 0,01 mm
Dimensions
233,5 x 128 x 135 mm
10 or 15 m measurement length
Robust aluminium housing with optional anticorrosive surface treatment
Forced wire guidance and one layer winding
ATEX encoder on request
Robust aluminium housing with optional anticorrosive surface treatment
Forced wire guidance and one layer winding
ATEX encoder on request
Download
(226 Kb)
(145 Kb)
Certifications
SBK
Technical data
Measurement length
up to 50000 mm
Resolution
up to 0,01 mm
Dimensions
401 x 190 x 200 mm
From 20 to 50 m measurement length
Robust aluminium housing
Forced wire guidance and one-layer winding
ATEX encoder on request
Fits any encoders with servoflange
Robust aluminium housing
Forced wire guidance and one-layer winding
ATEX encoder on request
Fits any encoders with servoflange
Download
(344 Kb)
(145 Kb)
Certifications
SFA-5000 TA SFA-10000 TA
Technical data
Measurement length
up to 10000 mm
Resolution
65536 steps of output range
Dimensions
see drawing
Integrated absolute encoder
Programmable analogue output
5000 & 10000 mm measuring length
Teach-in of travel length by push buttons
Programmable analogue output
5000 & 10000 mm measuring length
Teach-in of travel length by push buttons
Output 0-5V, 0-10V & 4-20mA
Cable or M12 connector
Cable or M12 connector
Download
(256 Kb)
(1504 Kb)
(461 Kb)
Certifications
SFA-5000 - SFA-10000
Technical data
Measurement length
up to 10000 mm
Resolution
0.1, 0.05, 0.024 mm
Dimensions
see drawing
Integrated absolute encoder
SSI interface, gray or binary coded
Compact design & easy installation
5000 & 10000 mm measuring length
Resolution 0.1, 0.05, 0.024 mm (other on request)
SSI interface, gray or binary coded
Compact design & easy installation
5000 & 10000 mm measuring length
Resolution 0.1, 0.05, 0.024 mm (other on request)
Download
(221 Kb)
(1380 Kb)
(400 Kb)
Certifications
SFA
Technical data
Measurement length
up to 2000 mm
Resolution
0,012 mm max.
Dimensions
56 x 55 x 79 mm
Absolute draw-wire encoder
Robust and compact design
Resolution from 0.1 to 0.012 mm
Measuring range 1000 and 2000 mm
Robust and compact design
Resolution from 0.1 to 0.012 mm
Measuring range 1000 and 2000 mm
Download
(136 Kb)
(753 Kb)
(489 Kb)
Certifications
SF-A
Technical data
Measurement length
up to 6800 mm
Resolution
up to 0,025 mm
Dimensions
125 x 83 x 58 mm
Compact and cost effective draw-wire unit for encoders
Simple and reliable construction
Fits incremental, absolute, analogue & fieldbus encoder
Measurement range from 5000 to 6800 mm
Drum circumference 204,8 mm for absolute encoder
Also available with: MODBUS, BISS, DEVICENET
Simple and reliable construction
Fits incremental, absolute, analogue & fieldbus encoder
Measurement range from 5000 to 6800 mm
Drum circumference 204,8 mm for absolute encoder
Also available with: MODBUS, BISS, DEVICENET
Download
(447 Kb)
(422 Kb)
Certifications
SAK
Technical data
Measurement length
up to 15000 mm
Resolution
up to 0,01 mm
Dimensions
233,5 x 128 x 135 mm
10 or 15 m measurement length
Robust aluminium housing with optional anticorrosive surface treatment
Forced wire guidance and one layer winding
ATEX encoder on request
Also available with: MODBUS, BISS, DEVICENET
Robust aluminium housing with optional anticorrosive surface treatment
Forced wire guidance and one layer winding
ATEX encoder on request
Also available with: MODBUS, BISS, DEVICENET
Download
(226 Kb)
(145 Kb)
Certifications
SBK
Technical data
Measurement length
up to 50000 mm
Resolution
up to 0,01 mm
Dimensions
401 x 190 x 200 mm
From 20 to 50 m measurement length
Robust aluminium housing
Forced wire guidance and one-layer winding
ATEX encoder on request
Fits any encoders with servoflange
Also available with: MODBUS, BISS, DEVICENET
Robust aluminium housing
Forced wire guidance and one-layer winding
ATEX encoder on request
Fits any encoders with servoflange
Also available with: MODBUS, BISS, DEVICENET
Download
(344 Kb)
(145 Kb)
Certifications
SFP
Technical data
Measurement length
up to 2000 mm
Resolution
virtually infinite
Dimensions
56 x 55 x 79 mm
Robust and space saving construction
Integrated potentiometer with 1,5,10,20 kΩ
Measuring length up to 2000 mm
Integrated potentiometer with 1,5,10,20 kΩ
Measuring length up to 2000 mm
Download
(134 Kb)
(643 Kb)
(375 Kb)
Certifications
RD6
Technical data
Torque
1.5 or 2.4 Nm
Shaft rotational speed
3000 rpm
Interface
Profibus-DP,
CANopen (DS301),
Modbus RTU (RS485),
EtherCAT, Powerlink
CANopen (DS301),
Modbus RTU (RS485),
EtherCAT, Powerlink
All-in-one rotary actuator
Integrated drive and position controller absolute multiturn
Closed loop position control
150 and 250W bldc motors, size 70
Real absolute multiturn encoder (4096 x 65536)
Integrated drive and position controller absolute multiturn
Closed loop position control
150 and 250W bldc motors, size 70
Real absolute multiturn encoder (4096 x 65536)
Download
(338 Kb)
(9389 Kb)
(7806 Kb)
Certifications
RD1A
Technical data
Torque
1.2, 2.5 or 5 Nm
Shaft rotational speed
60, 120 or 240 rpm
Interface
Profibus-DP, CANopen, Modbus RTU, RS232
Integrated positioning unit
High performance brushless motor
RS232 service interface for easy setup
Real absolute multi turn encoder
Additional jog +/- buttons for easy calibration
High performance brushless motor
RS232 service interface for easy setup
Real absolute multi turn encoder
Additional jog +/- buttons for easy calibration
Download
(181 Kb)
(7553 Kb)
(7634 Kb)
Certifications
RD12A
Technical data
Torque
1.2, 2.5 or 5 Nm
Shaft rotational speed
60, 120 or 240 rpm
Interface
Profibus-DP, CANopen, Modbus RTU, RS232
Integrated positioning unit
High performance brushless motor
RS232 service interface for easy setup
Real absolute multi turn encoder
Integrated motor brake for enhanced halt functions
Additional jog +/- buttons for easy calibration
High performance brushless motor
RS232 service interface for easy setup
Real absolute multi turn encoder
Integrated motor brake for enhanced halt functions
Additional jog +/- buttons for easy calibration
Download
(172 Kb)
(7553 Kb)
(7634 Kb)
Certifications
RD5
Technical data
Torque
5 Nm
Shaft rotational speed
60 rpm
Interface
Profibus-DP, CANopen, Modbus RTU
Compact positioning unit for secondary axes
Integrated drive, position controller & encoder
Closed loop position control
Absolute multi turn encoder
M12 connections
Boot loader via CAN
Integrated drive, position controller & encoder
Closed loop position control
Absolute multi turn encoder
M12 connections
Boot loader via CAN
Download
(197 Kb)
(5823 Kb)
(7635 Kb)
Certifications
RD53
Technical data
Torque
5 Nm
Shaft rotational speed
60 rpm
Interface
Profibus-DP, CANopen, Modbus RTU
Compact rotary actuator
Quick change-over & positioning on secondary axes
All-in-one gearmotor-drive-position controller & encoder
Closed loop position control
Absolute multiturn encoder
RD53 with integrated halt-brake
Boot loader via CANopen
Quick change-over & positioning on secondary axes
All-in-one gearmotor-drive-position controller & encoder
Closed loop position control
Absolute multiturn encoder
RD53 with integrated halt-brake
Boot loader via CANopen
Download
(197 Kb)
(5823 Kb)
(7635 Kb)
Certifications
RD4
Technical data
Torque
10, 15 Nm
Shaft rotational speed
63, 94 rpm
Interface
Profibus-DP, CANopen, Modbus RTU
Rugged high torque positioning unit
Up to 24 Nm starting torque
Real 20 bit multiturn encoder
Closed loop control
Woodworking, packaging, bottling & labelling machines
Up to 24 Nm starting torque
Real 20 bit multiturn encoder
Closed loop control
Woodworking, packaging, bottling & labelling machines
Download
(205 Kb)
(5037 Kb)
(7619 Kb)
Certifications
LD112
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and angular display mode
Panel mount housing
Reading distance sensor/tape up to 1 mm
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and angular display mode
Panel mount housing
Reading distance sensor/tape up to 1 mm
Download
(105 Kb)
(861 Kb)
Certifications
LD111
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
Download
(130 Kb)
(861 Kb)
Certifications
LD141
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display, 14 mm height
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Download
(146 Kb)
(376 Kb)
Certifications
LD140
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display, 14 mm height
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Download
(121 Kb)
(376 Kb)
Certifications
LD142
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display, 14 mm height
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Download
(121 Kb)
(376 Kb)
Certifications
LD200
Technical data
Display
LED 8 digit
Input
AB0, SSI, 1Vpp, Magnetic sensor
Outputs
3 x 24V @ 23mA
Universal display with multiple input
Works with HTL, TTL, SSI and sine/cosine encoders
High luminosity LEDs, 8 digits, 10 mm
RS232 interface
Dedicated menus for angular & linear encoders
mm, inch & fractional inch display
Works with HTL, TTL, SSI and sine/cosine encoders
High luminosity LEDs, 8 digits, 10 mm
RS232 interface
Dedicated menus for angular & linear encoders
mm, inch & fractional inch display
Download
(179 Kb)
(679 Kb)
(956 Kb)
Certifications
LD250
Technical data
Display
LED 6 digits
Input
3 digital inputs (PNP, NPN o Namur)
Outputs
LD251: analogue 0/4-20 mA, 0± 10V;
LD252: digital PNP 2 x 35V - 150 mA
LD252: digital PNP 2 x 35V - 150 mA
Multi-function display for SSI encoders
LD253 SSI display with serial interface
Position display, linear and angular mode
Programmable bit blanking
Digital or analogue outputs
Multivoltage supply 24Vdc, 115/230Vac
LD250 SSI display
LD251 SSI display with analogue output
LD252 SSI display with digital I/O
LD253 SSI display with serial interface
Position display, linear and angular mode
Programmable bit blanking
Digital or analogue outputs
Multivoltage supply 24Vdc, 115/230Vac
LD250 SSI display
LD251 SSI display with analogue output
LD252 SSI display with digital I/O
Download
(108 Kb)
(1066 Kb)
(389 Kb)
Certifications
LD300
Technical data
Display
LCD 6 digit
Input
PNP o NPN (HTL);
TTL
TTL
Outputs
LD301: analogue 0/4-20 mA, 0± 10V;
LD302: digital PNP 2 x 30V - 150 mA
LD302: digital PNP 2 x 30V - 150 mA
Multi-function display for incremental encoders
Position display, tachometer, start/stop speed display, event counter
Digital or analogue outputs
Multivoltage supply 24Vdc, 115/230Vac
LD300 display
LD301 display with analogue output
LD302 preset display with digital outputs
LD303 display with serial interface
Position display, tachometer, start/stop speed display, event counter
Digital or analogue outputs
Multivoltage supply 24Vdc, 115/230Vac
LD300 display
LD301 display with analogue output
LD302 preset display with digital outputs
LD303 display with serial interface
Download
(77 Kb)
(1056 Kb)
Certifications
MC150
Technical data
Display
LCD 6 digit
Input
AB0
Outputs
2 digital outputs 24V, 600 mA
Programmable position display for encoders
Counting frequency up to 1 MHz
Large range power supplies
Counting frequency up to 1 MHz
Large range power supplies
Download
(101 Kb)
(366 Kb)
Certifications
MC111
Technical data
Display
LCD 6 digit
Input
AB0, AB0 /AB0
2 x analogue 12 bit
2 x analogue 12 bit
Outputs
2 digital outputs 24V, 600 mA
Position display for encoders
Encoder or potentiometer input
Low-cost version
Encoder or potentiometer input
Low-cost version
Download
(109 Kb)
(241 Kb)
Certifications
MC221
Technical data
Display
2 x LED 6 digit
Input
2 x AB0, AB0 /AB0
Outputs
2 digital outputs 24V, 600 mA
PNP
PNP
Two axes position display for incremental encoders
Compact housing
3 axes version available on request
Compact housing
3 axes version available on request
Download
(224 Kb)
(478 Kb)
Certifications
LD112
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and angular display mode
Panel mount housing
Reading distance sensor/tape up to 1 mm
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and angular display mode
Panel mount housing
Reading distance sensor/tape up to 1 mm
Download
(105 Kb)
(861 Kb)
Certifications
LD111
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
Download
(130 Kb)
(861 Kb)
Certifications
LD141
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display, 14 mm height
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Download
(146 Kb)
(376 Kb)
Certifications
LD140
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display, 14 mm height
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Download
(121 Kb)
(376 Kb)
Certifications
LD142
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display, 14 mm height
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Download
(121 Kb)
(376 Kb)
Certifications
LD120
Technical data
Display
LED 5 digit
Input
Magnetic sensor
Compact 5 digit LED display
Max. display accuracy 0,01 mm
Actual value memory
Panel mount housing
Reading distance sensor/tape up to 2 mm
RS485 interface
5V backup input
Works with SM5 magnetic sensors
Max. display accuracy 0,01 mm
Actual value memory
Panel mount housing
Reading distance sensor/tape up to 2 mm
RS485 interface
5V backup input
Works with SM5 magnetic sensors
Download
(115 Kb)
(185 Kb)
Certifications
LD112
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and angular display mode
Panel mount housing
Reading distance sensor/tape up to 1 mm
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and angular display mode
Panel mount housing
Reading distance sensor/tape up to 1 mm
Download
(105 Kb)
(861 Kb)
Certifications
LD111
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear and Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
Download
(130 Kb)
(861 Kb)
Certifications
LD141
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display, 14 mm height
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Compact OEM version without housing
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Download
(146 Kb)
(376 Kb)
Certifications
LD140
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display, 14 mm height
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Download
(121 Kb)
(376 Kb)
Certifications
LD142
Technical data
Display
LCD 6 digit
Input
Magnetic sensor
Quasi-absolute LCD display, 14 mm height
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Max. display accuracy 0,01 mm or 1/64 inch
Actual value memory
Linear & Angular display mode
Panel mount housing
Fixed or pluggable sensor
Reading distance sensor/tape up to 1 mm
RS232 interface (optional)
Download
(121 Kb)
(376 Kb)
Certifications
LD200
Technical data
Display
LED 8 digit
Input
AB0, 1Vpp, SSI, Magnetic sensor
Outputs
3 x 24V @ 23mA
Universal display with multiple input
Works with HTL, TTL, SSI and sine/cosine encoders
High luminosity LEDs, 8 digits, 10 mm
RS232 interface
Dedicated menus for angular & linear encoders
mm, inch & fractional inch display
Works with HTL, TTL, SSI and sine/cosine encoders
High luminosity LEDs, 8 digits, 10 mm
RS232 interface
Dedicated menus for angular & linear encoders
mm, inch & fractional inch display
Download
(179 Kb)
(679 Kb)
(956 Kb)
Certifications
IF55
Technical data
Input
single turn: 18 bit max.
multi turn: 16x16 bit, 30 bit max.
linear sensors: 30 bit max., res. 1µm÷5000µm
code: binary or gray, LSB or MSB aligned protocol, 32 clock max.
multi turn: 16x16 bit, 30 bit max.
linear sensors: 30 bit max., res. 1µm÷5000µm
code: binary or gray, LSB or MSB aligned protocol, 32 clock max.
Outputs
CANopen: device profile for encoders class 2 (DS301, DS406)
Profibus: Profibus-DP slave class 1, class 2
EtherCAT: ETG.1000, CoE, FoE, EtherCAT state machine
Profibus: Profibus-DP slave class 1, class 2
EtherCAT: ETG.1000, CoE, FoE, EtherCAT state machine
SSI linear & rotary encoder gateway
CANopen, Profibus & EtherCAT output
All typical encoder functions available
Position output
IP65 protection
CANopen, Profibus & EtherCAT output
All typical encoder functions available
Position output
IP65 protection
Download
(548 Kb)
(7748 Kb)
(3589 Kb)
(23 Kb)
Certifications
IFS-10
Technical data
Input
2 x HTL/PNP + 10 +30Vdc (AB /AB)
max. 150mA, 250 kHz (if used as encoder input)
1 kHz (if used as control input)
max. 150mA, 250 kHz (if used as encoder input)
1 kHz (if used as control input)
Outputs
see datasheet
Monitors overspeed, underspeed, standstill and counting direction
Safety function acc. to EN61800-5-2 (SS1, SS2, SOS, SLS, SDI, SSM)
SIL3 / PLe certified
Inputs for 2 standard encoders (HTL/PNP, RS422 or sin/cos)
Safety outputs (1 x relays, 1x analogue, 4x HTL)
Encoder signal splitter function, for sin/cos and RS422
Removable programming display IFS10-PM
USB setup interface
DIN rail mounting
Safety function acc. to EN61800-5-2 (SS1, SS2, SOS, SLS, SDI, SSM)
SIL3 / PLe certified
Inputs for 2 standard encoders (HTL/PNP, RS422 or sin/cos)
Safety outputs (1 x relays, 1x analogue, 4x HTL)
Encoder signal splitter function, for sin/cos and RS422
Removable programming display IFS10-PM
USB setup interface
DIN rail mounting
Download
(290 Kb)
(4958 Kb)
Certifications
IF10
Technical data
Input
Encoder, 2 x HTL or TTL; RS422
Outputs
RS422, 2 transistor
Encoder splitter and signal divider
splits (divides) encoder output signals
signal level converter HTL/TTL > TTL/HTL
signal levels individually adjustable
regenerates signal levels as a repeater
cross switch function
DIN rail mounting
splits (divides) encoder output signals
signal level converter HTL/TTL > TTL/HTL
signal levels individually adjustable
regenerates signal levels as a repeater
cross switch function
DIN rail mounting
Download
(72 Kb)
(395 Kb)
(389 Kb)
Certifications
IF20
Technical data
Input
Encoder, HTL or TTL; RS422
Outputs
HTL or TTL, RS422
Signal converter for incremental encoder
AB0 /AB0 Line Driver to Push-Pull converter
DIN rail mounting
AB0 /AB0 Line Driver to Push-Pull converter
DIN rail mounting
Download
(73 Kb)
(376 Kb)
(389 Kb)
Certifications
IF30
Technical data
Input
1Vpp
Outputs
HTL (AB0) or RS422 (AB0 /AB0)
Sine/Cosine signal interpolator
DIN rail mounting
DIN rail mounting
Download
(82 Kb)
(1121 Kb)
(389 Kb)
Certifications
IF50
Technical data
Input
HTL or TTL, RS422
Outputs
±10V, 0-10V, 0-20mA, 4-20mA
Signal converter for incremental encoders
Converts from LD (RS422), TTL or HTL to analogue
Selectable output ±10V, 0-10V, 0-20mA, 4-20mA
Linearization curves, scaling factors and Teach-in function
DIN rail mounting
Converts from LD (RS422), TTL or HTL to analogue
Selectable output ±10V, 0-10V, 0-20mA, 4-20mA
Linearization curves, scaling factors and Teach-in function
DIN rail mounting
Download
(117 Kb)
(3961 Kb)
(5867 Kb)
Certifications
IF51
Technical data
Input
SSI
Outputs
±10V, 0-10V, 0-20mA, 4-20mA
Absolute encoder converter from SSI to Analogue and RS232/RS485
accept all SSI protocols
from 6 to 25 bit
converts SSI to ±10 V, 0-10V, 0-20 mA or 4-20 mA
programmable scaling factor, output linearization, bit blanking
RS232/RS485 for encoder position readout
Master or Slave operation mode
DIN rail mounting
accept all SSI protocols
from 6 to 25 bit
converts SSI to ±10 V, 0-10V, 0-20 mA or 4-20 mA
programmable scaling factor, output linearization, bit blanking
RS232/RS485 for encoder position readout
Master or Slave operation mode
DIN rail mounting
Download
(142 Kb)
(5679 Kb)
(5867 Kb)
Certifications
IF52
Technical data
Input
SSI
Outputs
Push-Pull
Conversion interface for absolute encoders
From SSI to Bit parallel
DIN rail mounting
From SSI to Bit parallel
DIN rail mounting
Download
(109 Kb)
(4425 Kb)
(5867 Kb)
Certifications
IF60-IF61
Technical data
Input
HTL or TTL / RS422
Outputs
Optical signal
Encoder signals transmitter (IF60) and receiver (IF61) through optical fibers
Suitable for use with Line Driver (RS-422) and Push-Pull (HTL) incremental encoders and sensors
Immune to electromagnetic (EMI) and radio frequency (RFI) interference
Safe transmission of encoder signals up to 2000 m
Suitable for use with Line Driver (RS-422) and Push-Pull (HTL) incremental encoders and sensors
Immune to electromagnetic (EMI) and radio frequency (RFI) interference
Safe transmission of encoder signals up to 2000 m
Download
(57 Kb)
(251 Kb)
Certifications
IF62-IF63
Technical data
Input
SSI (clock +/-, data +/-)
Outputs
Optical signal
Optical transmission modules for absolute encoders
Download
(86 Kb)
(340 Kb)
Certifications
MFB
Technical data
Bore diameter
from Ø 3 mm to Ø 14 mm
For encoders.
Constant response even under misalignment.
Identical cw and ccw rotational characteristics.
Spring action bellows configuration absorbs parallel, angular misalignments and shaft end play.
MFBS: stainless steel version. Clean wash services available.
Constant response even under misalignment.
Identical cw and ccw rotational characteristics.
Spring action bellows configuration absorbs parallel, angular misalignments and shaft end play.
MFBS: stainless steel version. Clean wash services available.
Download
(1055 Kb)
Certifications
MSX
Technical data
Bore diameter
from Ø 5 mm to Ø 22 mm
For Servomotors
Metallic spring coupling
Extremely high torsional stiffness, low inertia & excellent response time
Made of Duralumin
Identical cw and ccw rotational characteristics
Metallic spring coupling
Extremely high torsional stiffness, low inertia & excellent response time
Made of Duralumin
Identical cw and ccw rotational characteristics
Download
(1339 Kb)
Certifications
MST
Technical data
Bore diameter
from Ø 2 mm to Ø 35 mm
For Stepping motors
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Download
(2581 Kb)
Certifications
MWS
Technical data
Bore diameter
from Ø 4 mm to Ø 16 mm
For Stepping motors.
Metallic spring coupling.
High torsional stiffness and response.
Made of Aluminium Alloy.
Identical cw and ccw rotational characteristics.
Compact design
Metallic spring coupling.
High torsional stiffness and response.
Made of Aluminium Alloy.
Identical cw and ccw rotational characteristics.
Compact design
Download
(1787 Kb)
Certifications
PAN
Technical data
Bore diameter
from Ø 6 mm to Ø 12 mm
Flexible coupling for universal usage
Machined from a single-piece
Vibration absorbing
Machined from a single-piece
Vibration absorbing
Download
(469 Kb)
(120 Kb)
Certifications
PGF
Technical data
Bore diameter
from Ø 6 mm to Ø 10 mm
Metal hubs & polymer element
High misalignments allowed
Electrical shaft insulation
High misalignments allowed
Electrical shaft insulation
Download
(469 Kb)
(120 Kb)
Certifications
XGT-XGS
Technical data
Bore diameter
from Ø 3 mm to Ø 28 mm
High vibration absorption.
High torque and excellent response time
High torque and excellent response time
Download
(1493 Kb)
Certifications
MJT
Technical data
Bore diameter
from Ø 3 mm to Ø 45 mm
For Servomotors & Stepping Motors
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Download
(2803 Kb)
Certifications
MOL
Technical data
Bore diameter
from Ø 3 mm to Ø 25 mm
Modular coupling
High parallel and angular misalignment allowed
Minimized load on derived from misalignment on shafts
Electrical insulation
Operational temp. -20°C +80°C
High parallel and angular misalignment allowed
Minimized load on derived from misalignment on shafts
Electrical insulation
Operational temp. -20°C +80°C
Download
(1299 Kb)
Certifications
MOS
Technical data
Bore diameter
from Ø 1 mm to Ø 14 mm
Modular coupling.
High parallel and angular misalignment allowed.
Minimized load on derived from misalignment on shafts.
Electrical insulation.
Operational temp. -20°C +80°C.
Compact design
High parallel and angular misalignment allowed.
Minimized load on derived from misalignment on shafts.
Electrical insulation.
Operational temp. -20°C +80°C.
Compact design
Download
(1002 Kb)
Certifications
MOHS
Technical data
Bore diameter
from Ø 5 mm to Ø 14 mm
All cleaning and packaging performed in a clean room environment
This coupling can be used for production of goods requiring high standard cleanliness
This coupling can be used for production of goods requiring high standard cleanliness
Download
(1324 Kb)
Certifications
MOP
Technical data
Bore diameter
from Ø 5 mm to Ø 14 mm
All cleaning and packaging performed in a clean room environment
This coupling can be used for production of goods requiring high standard cleanliness
This coupling can be used for production of goods requiring high standard cleanliness
Download
(1282 Kb)
Certifications
MSXP
Technical data
Bore diameter
from Ø 6 mm to Ø 16 mm
All cleaning and packaging performed in a clean room environment
Download
(1627 Kb)
Certifications
MSF
Technical data
Bore diameter
from Ø 3 mm to Ø 15 mm
Simply structured modular coupling
Easy attachment on shafts by setscrews
Resistance to oil and electrical insulation
Excellent flexibility
Easy attachment on shafts by setscrews
Resistance to oil and electrical insulation
Excellent flexibility
Download
(789 Kb)
Certifications
XGT-XGS
Technical data
Bore diameter
from Ø 3 mm to Ø 28 mm
High vibration absorption.
High torque and excellent response time
High torque and excellent response time
Download
(1493 Kb)
Certifications
MJT
Technical data
Bore diameter
from Ø 3 mm to Ø 45 mm
For Servomotors & Stepping Motors
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Download
(2803 Kb)
Certifications
MST
Technical data
Bore diameter
from Ø 2 mm to Ø 35 mm
For Stepping motors
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Download
(2581 Kb)
Certifications
XUT
Technical data
Bore diameter
from Ø 3 mm to Ø 20 mm
For servomotors
Flexible coupling for high torque applications
Absorb angular misalignment and excellent response
Flexible coupling for high torque applications
Absorb angular misalignment and excellent response
Download
(1434 Kb)
Certifications
MWS
Technical data
Bore diameter
from Ø 4 mm to Ø 16 mm
For Stepping motors
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Compact design
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Compact design
Download
(1787 Kb)
Certifications
MJT
Technical data
Bore diameter
from Ø 3 mm to Ø 45 mm
For Servomotors & Stepping Motors
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Download
(2803 Kb)
Certifications
MOL
Technical data
Bore diameter
from Ø 3 mm to Ø 25 mm
Modular coupling
High parallel and angular misalignment allowed
Minimized load on derived from misalignment on shafts
Electrical insulation
Operational temp. -20°C +80°C
High parallel and angular misalignment allowed
Minimized load on derived from misalignment on shafts
Electrical insulation
Operational temp. -20°C +80°C
Download
(1299 Kb)
Certifications
MOS
Technical data
Bore diameter
from Ø 1 mm to Ø 14 mm
Modular coupling.
High parallel and angular misalignment allowed.
Minimized load on derived from misalignment on shafts.
Electrical insulation.
Operational temp. -20°C +80°C.
Compact design
High parallel and angular misalignment allowed.
Minimized load on derived from misalignment on shafts.
Electrical insulation.
Operational temp. -20°C +80°C.
Compact design
Download
(1002 Kb)
Certifications
MLR
Technical data
Bore diameter
from Ø 6 mm to Ø 15 mm
Rigid coupling
Stainless steel versions
Stainless steel versions
Download
(1663 Kb)
Certifications
MOHS
Technical data
Bore diameter
from Ø 5 mm to Ø 14 mm
All cleaning and packaging performed in a clean room environment.
This coupling can be used for production of goods requiring high standard cleanliness.
This coupling can be used for production of goods requiring high standard cleanliness.
Download
(1324 Kb)
Certifications
MOP
Technical data
Bore diameter
from Ø 5 mm to Ø 14 mm
All cleaning and packaging performed in a clean room environment.
This coupling can be used for production of goods requiring high standard cleanliness.
This coupling can be used for production of goods requiring high standard cleanliness.
Download
(1282 Kb)
Certifications
MSXP
Technical data
Bore diameter
from Ø 6 mm to Ø 16 mm
All cleaning and packaging performed in a clean room environment.
Download
(1627 Kb)
Certifications
XBWS
Technical data
Bore diameter
from Ø 3 mm to Ø 28 mm
High torque capacity, torsional stiffness and excellent response
Stainless steel
Stainless steel
Download
(1770 Kb)
Certifications
XBSS
Technical data
Bore diameter
from Ø 3 mm to Ø 28 mm
For servomotors
High torsional stiffness
All stainless steel version
High torsional stiffness
All stainless steel version
Download
(2322 Kb)
Certifications
MSTS
Technical data
Bore diameter
from Ø 5 mm to Ø 30 mm
For Stepping motors
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Stainless steel versions
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Stainless steel versions
Download
(2581 Kb)
Certifications
MWSS
Technical data
Bore diameter
from Ø 4 mm to Ø 16 mm
For Stepping motors
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Compact design
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Compact design
Download
(1787 Kb)
Certifications
MFBS
Technical data
Bore diameter
from Ø 3 mm to Ø 14 mm
For encoders
Constant response even under misalignment
Identical cw and ccw rotational characteristics
Spring action bellows configuration absorbs parallel, angular misalignments and shaft end play
Stainless steel version. Clean wash services available.
Constant response even under misalignment
Identical cw and ccw rotational characteristics
Spring action bellows configuration absorbs parallel, angular misalignments and shaft end play
Stainless steel version. Clean wash services available.
Download
Certifications
XRP
Technical data
Bore diameter
from Ø 5 mm to Ø 18 mm
For servomotors and encoders
Coupling at high torsional stiffness and high precision
Light weight
Coupling at high torsional stiffness and high precision
Light weight
Download
(1005 Kb)
Certifications
MRG MRGS
Technical data
Bore diameter
from Ø 3 mm to Ø 16 mm
Light weight, minimum moment of inertia, and high response
Also available in aluminium alloy and stainless steel
Available in 3 types: setscrew type, clamp type and split type
Also available in aluminium alloy and stainless steel
Available in 3 types: setscrew type, clamp type and split type
Download
(1507 Kb)
Certifications
MLR MLRS
Technical data
Bore diameter
from Ø 6 mm to Ø 15 mm
Long type rigid coupling
Can be used as a joint to connect shafts
Available in aluminium alloy and stainless steel
Clamp type and semi-split type also available
Can be used as a joint to connect shafts
Available in aluminium alloy and stainless steel
Clamp type and semi-split type also available
Download
(1663 Kb)
Certifications
XGT-XGS
Technical data
Bore diameter
from Ø 3 mm to Ø 28 mm
High vibration absorption.
High torque and excellent response time
High torque and excellent response time
Download
(1493 Kb)
Certifications
MJT
Technical data
Bore diameter
from Ø 3 mm to Ø 45 mm
For Servomotors & Stepping Motors
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Download
(2803 Kb)
Certifications
MST
Technical data
Bore diameter
from Ø 2 mm to Ø 35 mm
For Stepping motors
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Download
(2581 Kb)
Certifications
XUT
Technical data
Bore diameter
from Ø 3 mm to Ø 20 mm
For servomotors
Flexible coupling for high torque applications
Absorb angular misalignment and excellent response
Flexible coupling for high torque applications
Absorb angular misalignment and excellent response
Download
(1434 Kb)
Certifications
MWS
Technical data
Bore diameter
from Ø 4 mm to Ø 16 mm
For Stepping motors
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Compact design
Metallic spring coupling
High torsional stiffness and response
Made of Aluminium Alloy
Identical cw and ccw rotational characteristics
Compact design
Download
(1787 Kb)
Certifications
MJT
Technical data
Bore diameter
from Ø 3 mm to Ø 45 mm
For Servomotors & Stepping Motors
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Download
(2803 Kb)
Certifications
MOL
Technical data
Bore diameter
from Ø 3 mm to Ø 25 mm
Modular coupling
High parallel and angular misalignment allowed
Minimized load on derived from misalignment on shafts
Electrical insulation
Operational temp. -20°C +80°C
High parallel and angular misalignment allowed
Minimized load on derived from misalignment on shafts
Electrical insulation
Operational temp. -20°C +80°C
Download
(1299 Kb)
Certifications
MOS
Technical data
Bore diameter
from Ø 1 mm to Ø 14 mm
Modular coupling.
High parallel and angular misalignment allowed.
Minimized load on derived from misalignment on shafts.
Electrical insulation.
Operational temp. -20°C +80°C.
Compact design
High parallel and angular misalignment allowed.
Minimized load on derived from misalignment on shafts.
Electrical insulation.
Operational temp. -20°C +80°C.
Compact design
Download
(1002 Kb)
Certifications
MLR
Technical data
Bore diameter
from Ø 6 mm to Ø 15 mm
Rigid coupling
Stainless steel versions
Stainless steel versions
Download
(1663 Kb)
Certifications
MJT
Technical data
Bore diameter
from Ø 3 mm to Ø 45 mm
For Servomotors & Stepping Motors
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Flexible coupling for high torque applications
Absorbs torsional vibrations
3 different hardness sleeves available
Download
(2803 Kb)
Certifications
MDS
Technical data
Bore diameter
from Ø 4 mm to Ø 30 mm
For servomotors
High torque, high torsional stiffness and response
Zero backlash
High torque, high torsional stiffness and response
Zero backlash
Indentical cw and ccw rotational characteristics
Download
(839 Kb)
Certifications
MDW
Technical data
Bore diameter
from Ø 4 mm to Ø 30 mm
For servomotors
Double stainless steel disks absorb parallel, angular misalignments and shaft end-play
Indentical cw and ccw rotational characteristics
Double stainless steel disks absorb parallel, angular misalignments and shaft end-play
Indentical cw and ccw rotational characteristics
Download
(983 Kb)
Certifications
MSX
Technical data
Bore diameter
from Ø 5 mm to Ø 22 mm
For Servomotors
Metallic spring coupling
Extremely high torsional stiffness, low inertia & excellent response time
Made of Duralumin
Identical cw and ccw rotational characteristics
Metallic spring coupling
Extremely high torsional stiffness, low inertia & excellent response time
Made of Duralumin
Identical cw and ccw rotational characteristics
Download
(1339 Kb)
Certifications
XUT
Technical data
Bore diameter
from Ø 3 mm to Ø 20 mm
For servomotors
Flexible coupling for high torque applications
Absorb angular misalignment and excellent response
Flexible coupling for high torque applications
Absorb angular misalignment and excellent response
Download
(1434 Kb)
Certifications
XGT-XGS
Technical data
Bore diameter
from Ø 3 mm to Ø 28 mm
High vibration absorption.
High torque and excellent response time
High torque and excellent response time
Download
(1493 Kb)
Certifications
XBS
Technical data
Bore diameter
from Ø 3 mm to Ø 15 mm
For servomotors
High torsional stiffness
All stainless steel version
High torsional stiffness
All stainless steel version
Download
(2322 Kb)
Certifications
XBW
Technical data
Bore diameter
from Ø 3 mm to Ø 15 mm
For servomotors
High torque capacity, torsional stiffness and excellent responseStainless steel
High torque capacity, torsional stiffness and excellent responseStainless steel
Download
(1770 Kb)
Certifications
XRP
Technical data
Bore diameter
from Ø 5 mm to Ø 18 mm
For servomotors and encoders
Coupling at high torsional stiffness and high precision
Light weight
Coupling at high torsional stiffness and high precision
Light weight
Download
(1005 Kb)
Certifications
MRG MRGS
Technical data
Bore diameter
from Ø 3 mm to Ø 16 mm
Light weight, minimum moment of inertia, and high response
Also available in aluminium alloy and stainless steel
Available in 3 types: setscrew type, clamp type and split type
Also available in aluminium alloy and stainless steel
Available in 3 types: setscrew type, clamp type and split type
Download
(1507 Kb)
Certifications
MLR MLRS
Technical data
Bore diameter
from Ø 6 mm to Ø 15 mm
| Long type rigid coupling |
| Can be used as a joint to connect shafts |
| Available in aluminium alloy and stainless steel |
| Clamp type and semi-split type also available |
Download
(1663 Kb)
Certifications
IXA1 • IXA2
Technical data
Resolution
0,05% of measurement range
Measurement range
IXA1: 0-360 deg
IXA2: ±10 deg, ±30 deg ±60 deg
IXA2: ±10 deg, ±30 deg ±60 deg
Output circuit
0,5 ÷ 4,5V, 4 ÷ 20mA
Analogue voltage or current output
1 axis operation, 0-360 deg
2 axes operation, ±10 / ±30 / ±60 deg
Measurement accuracy ±0.2 deg
Zero setting input
Robust metal housing with IP67 protection
MTTF value = 102 years
1 axis operation, 0-360 deg
2 axes operation, ±10 / ±30 / ±60 deg
Measurement accuracy ±0.2 deg
Zero setting input
Robust metal housing with IP67 protection
MTTF value = 102 years
Download
(207 Kb)
(459 Kb)
Certifications
IXB
Technical data
Resolution
programmable from 1.0 to 0,001°
Measurement range
1 axis mode: 0-360 deg or ±180 deg
2 axes mode: from ±5 to ±60 deg
2 axes mode: from ±5 to ±60 deg
Output circuit
CANopen DS301, DSP410
Resolution up to 0,001°
High accuracy, ±0.05 deg
Programmable 1 or 2 axes operation
Programmable anti-vibration filter
Integrated software diagnostic
MTTF value = 102 years
Robust die cast housing with IP67
High accuracy, ±0.05 deg
Programmable 1 or 2 axes operation
Programmable anti-vibration filter
Integrated software diagnostic
MTTF value = 102 years
Robust die cast housing with IP67
Download
(233 Kb)
(459 Kb)
(4 Kb)
Certifications
IXC1 • IXC2
Technical data
Resolution
programmable from 1.0 to 0,001°
Measurement range
IXC1: 0-360 deg or ±180 deg
IXC2: from ±5 deg to ±60 deg
IXC2: from ±5 deg to ±60 deg
Output circuit
CANopen DS301, DSP410
Programmable resolution from 1 to 0,001°
Accuracy up to ±0.2 deg
1 or 2 axes version
Programmable anti-vibration filter
Integrated software diagnostic
MTTF value = 102 years
Robust die cast housing with IP67
Accuracy up to ±0.2 deg
1 or 2 axes version
Programmable anti-vibration filter
Integrated software diagnostic
MTTF value = 102 years
Robust die cast housing with IP67
Download
(235 Kb)
(459 Kb)
(4 Kb)
Certifications
IR01
Technical data
Dimension
see drawing
Resolution
5000 PPR max.
Output circuit
NPN, Push-Pull, Universal Circuit
Measuring wheel encoder
Metric & US/imperial wheel sizes
1 channel output with anti-jitter & rollback functions
Universal output circuit with quadrature signals (AB)
Spring loaded arm with up to 30 mm deflection
Conveyor speed control, cut-to-length & object positioning applications
Metric & US/imperial wheel sizes
1 channel output with anti-jitter & rollback functions
Universal output circuit with quadrature signals (AB)
Spring loaded arm with up to 30 mm deflection
Conveyor speed control, cut-to-length & object positioning applications
Download
(227 Kb)
(474 Kb)
Certifications
I70
Technical data
Dimension
Ø 54 mm
Resolution
up to 500 PPR
Output circuit
Push-Pull
Belt pulley with integrated encoder
Download
(101 Kb)
Certifications
Group items by:
| Optical singleturn and multiturn encoderThrough hollow shaft | |||
| Magnetic multiturn For wind generators, steel mills & mobile equipment | |||
| Programmable encoder with analogue output Teach-in buttons | |||
| EM58 PA - EM58S PA EMC58 PA | Optical multiturn encoder Programmable analogue output | ||
| Optical singleturn and multiturn encoders Integrated cam switch programmer | |||
| Optical singleturn and multiturn encoder Square flange, US size | |||
| Optical multiturn encoder ATEX II 2GD Ex d IIC T6 Areas 1, 2, 21, 22 | |||
| Optical singleturn and multiturn encoders Profibus-DP interface | |||
| Optical singleturn and multiturn encoders CANbus interface | |||
| Optical multiturn encoders Profibus, CANbus interface Stainless steel version | |||
| ASx58x - AMx58x CANopen | Direct connection Single & multiturn | ||
| EM58 PT - HS58 PT HM58 PT | |||
| SAK-10000 SAK-15000 | Draw wire unit Reinforced winding mechanism | ||
| SBK-20000, SBK-30000 SBK-40000, SBK-50000 | Draw wire unit Reinforced winding mechanism | ||
| Magnetic tape Incremental coding | |||
| Magnetic sensor Status LED, wipers | |||
| High performance sensor for linear motors Status LED, wipers | |||
| High performance sensor for linear motors Status LED, wipers Limit switches | |||
| Universal incremental encoder signal splitter, converter & switcher DIN rail mounting | |||
| Signal converter for incremental encoder DIN rail mounting | |||
| Sine/Cosine signal interpolator DIN rail mounting | |||
| Incremental signal to Analogue converter DIN rail mounting | |||
| Absolute SSI to Analogue converter DIN rail mounting | |||
| Absolute SSI to Bit parallel converter DIN rail mounting | |||
| Gateway for Lika encoders From SSI to EtherCAT, Profibus, CANopen | |||
| Fibre-optic signal converters for incremental encoders IF60 transmitter IF61 receiver | |||
| Fibre-optic signal converters for absolute encoders IF62 transmitter |
- là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay
Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.
< SALE & TECHNICAL SUPPORT >
< PROJECT SUPPORT >
Email :
-------------------------------------------------------------------
Pelco Vietnam | Solvac Vietnam | Citizen Vietnam | | Renishaw Vietnam | Di-soric Vietnam | | | | Bacharach Vietnam | | Showa Denki Vietnam | S | | | | Tetra-K Electronic Vietnam | | | | | | Mitsubishi Vietnam | Siemens Vietnam | Omron Viet Nam | TPM Vietnam | Tecsis Vietnam | Wise Control Vietnam | Micro Process Controls Vietnam | Wika Vietnam | Asahi Gauge Vietnam | TemPress Vietnam | Itec Vietnam | Konics Vietnam | Ashcroft Vietnam | Ametek Vietnam – Afriso Vietnam | LS Industrial Vietnam | RS Automation Vietnam | Balluff Vietnam | Baumer Vietnam | Kuppler Vietnam | Pulsotronics Vietnam | Leuze Vietnam | Microsonic Vietnam | AST Vietnam | Tempsen Vietnam | STS Vietnam | Micro Dectector Vietnam | Proxitron Vietnam | Microsens Vietnam | Towa Seiden Vietnam | Promesstec Vietnam | Ski Vietnam | Eltra Vietnam | Hohner Vietnam | Posital Vietnam | Elap Vietnam | Beisensors Vietnam | Newall Vietnam | Dotech Vietnam | Watlow Vietnam | Bihl Weidemann Vietnam | Prosoft Vietnam | ICP DAS Vietnam | Beckhoff Vietnam | Keller M S R Vietnam | IRCON Vietnam | Raytek Vietnam | Kimo Vietnam | YSI Vietnam | Jenco Vietnam | Tekhne Vietnam | Atago Vietnam | E Instrument Vietnam | IMR Vietnam | Netbiter Viêt Nam | FMS Vietnam | Unipulse Vietnam | Migun Vietnam | Sewha Vietnam | HBM Vietnam | Pilz Vietnam | Dold Vietnam | | Puls Vietnam | Microsens Vietnam | Controller Sensor Vietnam | Mark|10 Vietnam | Schmidt Vietnam | Bernstein Vietnam | Celduc Vietnam | Univer Vietnam | Waicom Vietnam | Aignep Vietnam | Top Air Vietnam | Burket Vietnam | | JJ Automation Vietnam | Somas Vietnam | Delta Elektrogas Vietnam | Pentair Vietnam | Auma Vietnam | Sipos Artorik Vietnam | Flowserve Vietnam | Sinbon Vietnam | Setra Vietnam | Yottacontrok Vietnam | Sensor Tival Vietnam | Vaisala Vietnam | Crouzet Vietnam | RheinTacho Vietnam | Cityzen Seimitsu Vietnam | Flowserve Vietnam | Greatork Vietnam | PS Automation Vietnam | Bettis Vietnam | Sinbon Vietnam | Setra Vietnam | Laurel Vietnam | Datapaq Vietnam | EE Electronik Vietnam | Banico Vietnam | Sinfonia Vietnam | Digmesa Vietnam | Alia Vietnam | Flowline Vietnam | Brook Instrument Vietnam | Dakota Instrument Vietnam | Diehl Metering Vietnam | Stego Vietnam | Rotronic Vietnam | Hopeway Vietnam | Beko Vietnam | Matsui Vietnam | Westec Vietnam | Sometech Vietnam | Offshore Vietnam | DCbox Vietnam | Fanuc Vietnam | KollMorgen Vietnam | Endress & Hauser Vietnam | Metso Automation Vietnam | MKS Instruments Vietnam | Teledyne Instruments Vieatnam | Badger Meter Vietnam | Hirschmann Vietnam | Servo Mitsubishi Vietnam | SCR SA Việt Nam | Biotech Flow Meter Việt Nam | Thermo Electric Việt Nam | Siko Việt Nam | Klinger Việt Nam | HK Instrument Việt Nam | Magnetrol Viet Nam | Lika Viet Nam | Setra Viet Nam | Kistler Viet Nam | Renishaw Viet Nam | Mindmen Vietnam | | Gimatic Vietnam | Monarch Instrument Vietnam | Stauff Vietnam | Burster Vietnam | SDT International Vietnam | MTI Instrument Vietnam | Zhuzhou CRRC Vietnam | Sensorex Vietnam | TWK Elektronik Vietnam | ASC Vietnam | Ronds Vietnam | Klaschka Vietnam
-------------------------------------------------------------------
Bình luận
Sản phẩm cùng loại
