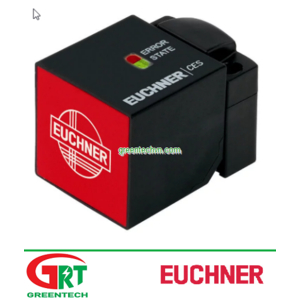

CES-AR-C01-AH-SA | Euchner CES-AR-C01-AH-SA | ORDER NO. 098941 | Euchner Việt Nam
CES-AR-C01-AH-SA
Eucher Vietnam | Greentech Vietnam
12 tháng
.
- electronics
- Up to 20 switches in series
- Short circuit monitoring
- 2 safety outputs (semiconductor outputs)
- Category 4/PL e according to EN ISO 13849-1
- Unicode
Approach direction
Can be adjusted in 90° steps
Short circuit monitoring
The switch generates its own clock signal on the output lines OA/OB. Pay attention to this aspect when connecting to control systems and relays.
Unicode evaluation
Each actuator is unique. The switch detects only taught-in actuators. Additional actuators can be taught-in.
Only the last actuator taught-in is detected.
Category according to EN 13849-1
Due to two redundantly designed semiconductor outputs (safety outputs) with internal monitoring suitable for:
- Category 4/PL e according to EN 13849-1
Important: To achieve the stated category in accordance with EN ISO 13849-1, both safety outputs (OA and OB) must be evaluated.
LED indicator
| STATE | Status LED |
| DIA | Diagnostic LED |
Additional connections
| OUT | Monitoring output (semiconductor) |
| RST | Reset input |
Connector assignment
| Plug connector (view of connection side) | Pin | Designation | Function | Conductor coloring of connecting cable |
|---|---|---|---|---|
| 1 | IB | Enable input for channel 2 | WH |
| 2 | UB | Power supply, DC 24 V | BN | |
| 3 | OA | Safety output, channel 1 | GN | |
| 4 | OB | Safety output, channel 2 | YE | |
| 5 | OUT | Monitoring output | GY | |
| 6 | IA | Enable input for channel 1 | PK | |
| 7 | 0V | Ground, DC 0 V | BU | |
| 8 | RST | Reset input | RD |
Approvals
Mechanical values and environment
| Shock and vibration resistance | In acc. with EN 60947-5-3 |
| Housing material | |
| Housing | Plastic, PBT |
| Weight | |
| Net | 0,12 kg |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP67 |
| Mounting distance | min.40 mm |
| Installation orientation | Any |
| Tightening torque | |
| Fixing screws | max.1 Nm |
| Ready delay | 10 s |
| Switching frequency | max.1 Hz |
| Connection | M12 plug connector, 8-pin |
Electrical connection ratings
| Extension of risk time according to EN 60947-5-3 per device | max.5 ms |
| Operating voltage DC | |
| UB | 24 V DC 15% ... 15% Reverse polarity protected, regulated, residual ripple < 5%, PELV |
| Current consumption | |
| No load on outputs | max.50 mA |
| Fusing | |
| External (operating voltage) | 0,25 ... 8 A |
| Rated insulation voltage Ui | 300 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| EMC protection requirements | In acc. with EN IEC 60947-5-3 |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Turn-on time | |
| Safety outputs | max.400 ms |
| Safety class | III |
| Risk time according to EN 60947-5-3 | |
| Single device | max.260 ms |
| Monitoring output OUT | |
| Type of output | p-switching, short circuit-proof |
| Switching current | max.200 mA |
| Output voltage | 0,8 x UB ... UB V DC |
| Safety outputs OA/OB | |
| Test pulses | max.1 ms |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Switching current | |
| per safety output | 1 ... 400 mA |
| Output voltage | |
| HIGH U(OA) / U(OB) | UB-1,5 ... UB V DC |
| LOW U(OA) / U(OB) | 0 ... 1 V DC |
| Utilization category acc. to EN 60947-5-2 | |
| DC-13 | 24V 400mA |
| Rated conditional short-circuit current | max.100 A |
| Off-state current Ir | max.0,25 mA |
| Discrepancy time | max.10 ms |
Work area
| Repeat accuracy R | |
| According to EN 60947-5-2 | ≤ 10 |
Other
| For the approval acc. to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures |
Reliability values according to EN ISO 13849-1
| Monitoring of the safety guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 2.1 x 10-9 |
| Mission time | 20 |
In combination with Actuator CES-A-BPA
Actuating range
| Operating distance | 22 mm |
| Assured release distance Sar | max.58 mm |
| Assured operating distance Sao | min.18 mm |
| Switching hysteresis | min.1 mm |
In combination with Actuator CES-A-BRN-100251
Actuating range
| Operating distance | 27 mm |
| Assured release distance Sar | max.75 mm |
| Assured operating distance Sao | min.20 mm |
| Switching hysteresis | 3 mm |
In combination with Actuator CES-A-BBA
Actuating range
| Operating distance | 18 mm |
| Assured release distance Sar | max.45 mm |
| Assured operating distance Sao | min.15 mm |
| Switching hysteresis | min.1 mm |
In combination with Actuator CES-A-BDA-18-156935
Actuating range
| Operating distance | 19 mm |
| Assured release distance Sar | max.45 mm |
| Assured operating distance Sao | min.10 mm |
| Switching hysteresis | min.1 mm |
