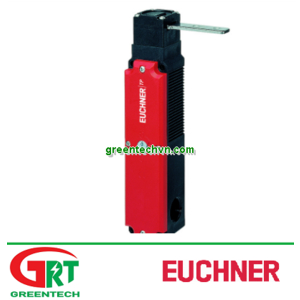

TP4-4141A024M | Safety Switch | Công tắc an toàn TP4-4141A024M | Euchner Vietnam
TP4-4141A024M
Eucher Vietnam | Greentech Vietnam
12 tháng
.
Features
- Auxiliary release on the front
- With door monitoring contact
- Increased horizontal overtravel
Approach direction
Horizontal and vertical
Can be adjusted in 90° steps
Increased overtravel for horizontal approach direction
Solenoid operating voltage
- AC/DC 24 V +10%, -15%
Guard locking type
| TP4 | Open-circuit current principle, guard locking by applying voltage to the guard locking solenoid. Release by spring force. |
Switching element
| 4141 | Slow-action switching contact 2 NC
+ 2 NC
(door monitoring contacts) |
Auxiliary release
Is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer
- pprovals
Mechanical figures and environment
Housing material Reinforced thermoplastic Ground Net 0,5 kg Ambient temperature -20 ... 55 °C Degree of protection IP67 Mechanical life 1 x 106 Contact material Silver alloy, gold flashed Switching principle Slow-action switching contact Installation position Any Number of door position positively driven contacts 4 Connection 3 x M20 x 1.5 Approach speed max. 20 m/min Actuation frequency 1200 1/h Guard locking principle Open-circuit current principle Locking force Fmax 1300 N Locking force FZh(in accordance with GS-ET-19) 1000 N Retention force 10 N Extraction force 20 N Actuating force 10 N Electrical connection ratings
Thermal rated current Ith 4 A Utilization category acc. to EN 60947-5-1 AC-15 4A 230V DC-13 4A 24V Solenoid operating voltage AC/DC 24 V -15% ... +10% Short circuit protection according to IEC 60269-1 (Fuse) 4A gG Rated insulation voltage Ui 250 V Rated impulse withstand voltage Uimp 2,5 kV switching voltage Min. at 10mA 12 V Switching current Min. at 24V 1 mA Power consumption 8 W Solenoid duty cycle 100 % Connection cross-section 0,34 ... 1,5 mm² Reliability values according to EN ISO 13849-1
Monitoring of guard locking and the safety guard position B10d 3 x 106 In combination with Actuator BETAETIGER-P-GT
Mechanical figures and environment
Overtravel A B C D E 2 mm Overtravel K L M N 1,5 mm In combination with Actuator BETAETIGER-P-GNT
Mechanical figures and environment
Overtravel A B C D E 7 mm
