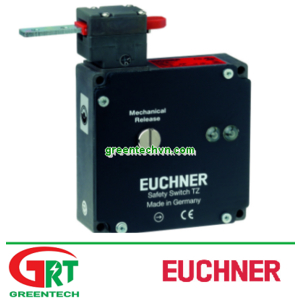

TZ1RE024MVAB | Euchner | Công tắc cửa an toàn TZ1RE024MVAB | Euchner Vietnam

TZ1RE024MVAB

Eucher Vietnam | Greentech Vietnam

12 tháng

TZ1RE024MVAB | Euchner | Công tắc cửa an toàn TZ1RE024MVAB | Euchner Vietnam

Features

  • Auxiliary release on the front
  • Two LED indicators, red and green
  • Actuating head fitted right

Approach direction

Horizontal

Can be adjusted in 90° steps

Solenoid operating voltage and LED function display

  • 24 V AC/DC -15%, +10%

Guard locking type

TZ1 Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the solenoid.

Switching elements

SK For monitoring the door/actuator position
ÜK For monitoring the guard locking (built-in solenoid)
2131H Slow-action switching contact 3 NCFigure + 1 NO
3131H Slow-action switching contact 2 NCFigure + 2 NO

Auxiliary release

Is used for releasing the guard locking with the aid of a tool. A sealing wire can be fitted to protect against tampering. Lead seal kit and tool included (already pre-assembled on versions with plug connectors).

  • Approvals

    Zulassung DGUVZulassung c_UL_us LISTEDZulassung SIBEZulassung CCC

    Mechanical figures and environment

    Housing material Reinforced thermoplastic
    Ground
    Net 0,5 kg
    Ambient temperature -20 ... 55 °C
    Degree of protection IP67
    Mechanical life 1 x 106
    Contact material Silver alloy, gold flashed
    Switching principle Slow-action switching contact
    Installation position Any
    Number of door position positively driven contacts 2
    Number of NC contacts 1
    Number of NO contacts 1
    Connection
    3 x M20 x 1.5
    Approach speed
    max. 20 m/min
    Actuation frequency 1200 1/h
    Guard locking principle Closed-circuit current principle
    Locking force Fmax 1300 N
    Locking force FZh(in accordance with GS-ET-19) 1000 N
    Retention force 10 N
    Extraction force 20 N
    Actuating force 10 N

    Electrical connection ratings

    Thermal rated current Ith 4 A
    Utilization category acc. to EN 60947-5-1
    AC-15 4A 230V
    DC-13 4A 24V
    Solenoid operating voltage
    AC/DC 24 V  -15% ... +10%
    Short circuit protection according to IEC 60269-1
    (Fuse) 4A gG
    Rated insulation voltage Ui 250 V
    Rated impulse withstand voltage Uimp 2,5 kV
    switching voltage
    Min. at 10mA 12 V
    Switching current
    Min. at 24V 1 mA
    Power consumption 8 W
    Solenoid duty cycle 100 %
    Connection cross-section 0,34 ... 1,5 mm²

    Reliability values according to EN ISO 13849-1

      Monitoring of guard locking and the safety guard position
    B10d 3 x 106
      Control of the guard locking
    Category Depending on external control of guard locking
    Performance Level Depending on external control of guard locking
    PFHd Depending on external control of guard locking

    In combination with Actuator BETAETIGER-P-GT

    Mechanical figures and environment

    Overtravel A B C D E 2 mm
    Overtravel K L M N 1,5 mm

    In combination with Actuator BETAETIGER-P-GNT

    Mechanical figures and environment

    Overtravel A B C D E 7 mm
