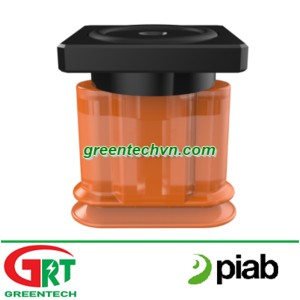

Piab OBF15x35P H PE6 ren trong 3/8" | Núm hút chân không | Giác hút chân không | Piab Vietnam
OBF15x35P H
Piab Vietnam | Greentech Vietnam
12 tháng
.
General
Specification Oily metal sheet Curve radius 20 mm Movement, vertical max. 2.9 mm Application Oily sheet metal Material Polyurethane (PU60), Brass Suction cup model OBF Suction cup shape Oval Bellows Volume 1.8 cm³ Weight 38 g Fitting
Fitting size 3/8" Fitting style T-slot Fitting type NPT-thread Fitting option None Material Brass Dimension
Height 43.4 mm Length 36 mm Length, actuated 36.5 mm Width 15 mm Width, actuated 15 mm Performance — lifting forces, Oily metal sheet
60 -kPa 19 N 5 N 90 -kPa 24 N 6 N Performance — lifting forces, Dry metal sheet
60 -kPa 25 N 21 N 90 -kPa 31 N 25 N Material
Polyurethane (PU60) Colour Orange Hardness 60 °Shore A Temperature 10 – 50 °C Material resistance
Dimensional drawingsPolyurethane (PU60) Alcohol N/A Concentrated acids + Ethanol + Hydrolysis + Methanol - Oil +++ Oxidation - Petrol + Wear resistance +++ Weather and ozone +++ Values specified in the data sheet are tested at:
Room temperature (20⁰C [68⁰F] ± 3⁰C [5.5⁰F]) Standard atmosphere (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg]) Relative humidity 0-100% Compressed air quality DIN ISO 8573-1 class 4
- Cốc ma sát được thiết kế đặc biệt cho các bề mặt dầu, chẳng hạn như các tấm trong quá trình tạo hình kim loại.
Mặc bình thường trên cốc ma sát sẽ không ảnh hưởng đến hiệu suất lực cắt dài hạn.
Lựa chọn tốt nhất nếu sử dụng dầu ép> 0,1g / m2 trên tấm.
Nhờ có độ bám chắc trên bề mặt dầu, các ống hút có thể chịu được lực cắt cao, thường gấp 2 lần 4 lần so với các ống hút thông thường tương ứng.
Cốc "OBF" nhỏ phù hợp cho các vật thể hẹp có bề mặt cong hoặc phẳng và các khu vực kẹp nhỏ, chẳng hạn như những vật thể gặp phải với các bộ phận cơ thể trong ngành công nghiệp ô tô.
Có thể xử lý các đối tượng với sự khác biệt chiều cao nhỏ.
Có sẵn ở phiên bản cao (H), thích hợp để chọn trên các bề mặt ngập nước hẹp, nơi phù hợp rộng hơn nếu không sẽ gây trở ngại cho đối tượng. Ví dụ là khung và các bộ phận kết cấu cho xe.
Cốc hút DURAFLEX® được sản xuất trong một vật liệu được phát triển đặc biệt có tính đàn hồi của cao su và chống mài mòn của polyurethane. Các vật liệu không để lại bất kỳ dấu vết trên các đối tượng xử lý.
- Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
- Normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0,1g/m2 press oil is used on the sheet.
- Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
- The small "OBF" cups are suitable for narrow objects with curved or flat surfaces and small gripping areas, such as those encountered with body parts in the automotive industry.
- Can handle objects with minor height differences.
- Available in a high (H) version, suitable for picking on narrow submerged surfaces, where a wider fitting otherwise will interfere with the object. Examples are frames and structural parts for the car.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Suction cup OBF15x35P H Polyurethane 60, G1/4" femaleItem no.: 0207579 | Compare | |
Suction cup OBF15x35P H Polyurethane 60, G1/4" male Item no.: 0207581 | Compare | |
Suction cup OBF15x35P H Polyurethane 60, G3/8" female Item no.: 0207577 | Compare | |
Suction cup OBF15x35P H Polyurethane 60, G3/8" female plastic Item no.: 0207587 | Compare | |
Suction cup OBF15x35P H Polyurethane 60, G3/8" male Item no.: 0207585 | Compare | |
Suction cup OBF15x35P H Polyurethane 60, G3/8" fem 17mm Item no.: 0209500 | Compare | |
Suction cup OBF15x35P H Polyurethane 60, M10x1.5 male Item no.: 0207583 | Compare | |
Suction cup OBF15x35P H Polyurethane 60, NPT3/8" female Item no.: 0207571 | Compare | |
Suction cup OBF15x35P H Polyurethane 60, T-slot Item no.: 0207575 |
Suction cup OBF15x35P L Polyurethane 60, G1/4" femaleItem no.: 0207594 | Compare | |
Suction cup OBF15x35P L Polyurethane 60, G1/4" male Item no.: 0207595 | Compare | |
Suction cup OBF15x35P L Polyurethane 60, G3/8" female Item no.: 0207593 | Compare | |
Suction cup OBF15x35P L Polyurethane 60, G3/8" female plastic Item no.: 0207598 | Compare | |
Suction cup OBF15x35P L Polyurethane 60, G3/8" male Item no.: 0207597 | Compare | |
Suction cup OBF15x35P L Polyurethane 60, G3/8" fem 17mm Item no.: 0209501 | Compare | |
Suction cup OBF15x35P L Polyurethane 60, M10x1.5 male Item no.: 0207596 | Compare | |
Suction cup OBF15x35P L Polyurethane 60, NPT3/8" female Item no.: 0207589 | Compare | |
Suction cup OBF15x35P L Polyurethane 60, T-slot Item no.: 0207592 |
Suction cup OBF15x65P Polyurethane 60, G1/4" femaleItem no.: 0207607 | Compare | |
Suction cup OBF15x65P Polyurethane 60, G1/4" male Item no.: 0207609 | Compare | |
Suction cup OBF15x65P Polyurethane 60, G3/8" female Item no.: 0207605 | Compare | |
Suction cup OBF15x65P Polyurethane 60, G3/8" female plastic Item no.: 0207615 | Compare | |
Suction cup OBF15x65P Polyurethane 60, G3/8" male Item no.: 0207613 | Compare | |
Suction cup OBF15x65P Polyurethane 60, G3/8" fem 17mm Item no.: 0209502 | Compare | |
Suction cup OBF15x65P Polyurethane 60, M10x1.5 male Item no.: 0207611 | Compare | |
Suction cup OBF15x65P Polyurethane 60, NPT3/8" female Item no.: 0207599 | Compare | |
Suction cup OBF15x65P Polyurethane 60, T-slot Item no.: 0207603 |
Suction cup OBF30x60P Polyurethane 60, G3/8" female plasticItem no.: 0207617 | Compare | |
Suction cup OBF30x60P Polyurethane 60, T-slot Item no.: 0207733 | Compare | |
Suction cup OBF30x60P Polyurethane 60, G3/8" female Item no.: 0207734 | Compare | |
Suction cup OBF30x60P Polyurethane 60, G3/8" male Item no.: 0207735 | Compare | |
Suction cup OBF30x60P Polyurethane 60, NPT3/8" female Item no.: 0207736 | Compare | |
Suction cup OBF30x60P Polyurethane 60, G1/4" female Item no.: 0207737 | Compare | |
Suction cup OBF30x60P Polyurethane 60, G1/4" male Item no.: 0207738 | Compare | |
Suction cup OBF30x60P Polyurethane 60, M10x1.5 male Item no.: 0207739 | Compare | |
Suction cup OBF30x60P Polyurethane 55/60/30 G3/8" female with mesh filter, 17 mm thread Item no.: 0209490 |
Suction cup OBF35X90P Polyurethane 55/60, 3/8" NPT femaleItem no.: 0122287 | Compare | |
Suction cup OBF35x90P Polyurethane 55/60, G3/8" male, with mesh filter Item no.: 0119121 | Compare | |
Suction cup OBF35x90P Polyurethane 55/60, M10x1.5 male Item no.: 0121436 | Compare | |
Suction cup OBF35x90P Polyurethane 55/60, G3/8" female, 17 mm thread Item no.: 0200694 | Compare | |
Suction cup OBF35x90P Polyurethane 55/60, G3/8" female Item no.: 0119123 |
Suction cup OBF40X80P Polyurethane 60, 3/8" NPT femaleItem no.: 0212799 | Compare | |
Suction cup OBF40X80P Polyurethane 60, M10x1.5 male Item no.: 0212801 | Compare | |
Suction cup OBF40X80P Polyurethane 60, G3/8" female, 17 mm thread Item no.: 0212802 | Compare | |
Suction cup OBF40X80P Polyurethane 60, G3/8" female Item no.: 0212792 | Compare | |
Suction cup OBF40X80P Polyurethane 60, G3/8" male, with mesh filter Item no.: 0211404 |
Suction cup OBF50X140P Polyurethane 55/60, 3/8" NPT femaleItem no.: 0122288 | Compare | |
Suction cup OBF50x140P Polyurethane 55/60, G3/8" male, with mesh filter Item no.: 0119125 | Compare | |
Suction cup OBF50x140P Polyurethane 55/60, M10x1.5 male Item no.: 0121437 | Compare | |
Suction cup OBF50x140P Polyurethane 55/60, G3/8" female Item no.: 0119127 |
Suction cup OBF65X170P Polyurethane 55/60, 3/8" NPT femaleItem no.: 0122289 | Compare | |
Suction cup OBF65x170P Polyurethane 55/60, G3/8" female Item no.: 0119131 | Compare | |
Suction cup OBF65x170P Polyurethane 55/60, G3/8" male, with mesh filter Item no.: 0119129 | Compare | |
Suction cup OBF65x170P Polyurethane 55/60, M10x1.5 male Item no.: 0121438 |
Glass handling
Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capability to handle tilted or standing glass/metal sheets.
![teaser_pigrip_configurable](https://www.piab.com/globalassets/inriver/resources/teaser_pigrip_configurable.jpg)
piGRIP® Configurable suction cups
The piGRIP® is a unique configurable suction cup concept with individually optimized parts for gripping, lifting and height compensation. Also a large selection of fittings makes it ready to fit new machines and easy to retrofit existing cups. The fittings available are both threaded and push on fittings.![teaser_B_Bellows_DURAFLEX](https://www.piab.com/globalassets/inriver/resources/teaser_b_bellows_duraflex.jpg)
B - Bellows DURAFLEX® (10–110 mm)
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items.![teaser_B_HNBR](https://www.piab.com/globalassets/inriver/resources/teaser_b_hnbr.jpg)
B - Bellows HNBR (10–110 mm)
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Material used is HNBR.![teaser_b-mf--bellows_mark_free](https://www.piab.com/globalassets/inriver/resources/teaser_b-mf--bellows_mark_free.jpg)
B-MF - Bellows Mark Free (15–50 mm)
The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when the lifting force is parallel to the surface.![teaser_bf-bellows_flat](https://www.piab.com/globalassets/inriver/resources/teaser_bf-bellows_flat.jpg)
BF-P DURAFLEX®
Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.![teaser_hnbr](https://www.piab.com/globalassets/inriver/resources/teaser_hnbr.jpg)
F - Flat HNBR (50–110 mm)
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.![teaser_U_HNBR](https://www.piab.com/globalassets/inriver/resources/teaser_u_hnbr.jpg)
U - Universal HNBR (10–20 mm)
For handling objects with flat or slightly curved surfaces.![teaser_xlf-extra_large_flat](https://www.piab.com/globalassets/inriver/resources/teaser_xlf-extra_large_flat.jpg)
XLF - Extra Large Flat (150–300 mm)
Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capability to handle tilted or standing glass/metal sheets.GREENTECH Việt Nam - Công ty TNHH TM DV GREENTECH là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay
