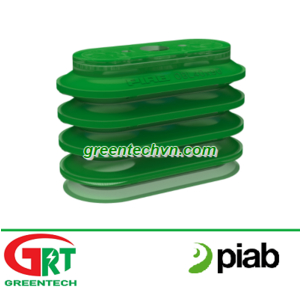

Piab OBL40x90P PE 70 | Núm hút chân không hình oval đa tầng | Giác hút chân không | Piab Vietnam
Piab OBL40x90P | Nú
Piab Vietnam | Greentech Vietnam
12 tháng
.
General
Curve radius 28 mm Movement, vertical max. 31 mm Application Glass handling Material Polyurethane (PU70) Suction cup model OBL Suction cup shape Oval Bellows Volume 105 cm³ Weight 77 g Fitting
Fitting size 3/8" Fitting style Male Fitting type G-thread Fitting option None Dimension
Height 73 mm Outer diameter 92.59 mm Performance — lifting forces
20 -kPa 49 N 45 N 60 -kPa 117 N 97 N 90 -kPa 178 N 135 N Material
Polyurethane (PU70) Colour Black Hardness 70 °Shore A Temperature 10 – 50 °C Material resistance
Dimensional drawingsPolyurethane (PU70) Alcohol N/A Concentrated acids + Ethanol + Hydrolysis + Methanol - Oil +++ Oxidation - Petrol + Wear resistance +++ Weather and ozone +++ Values specified in the data sheet are tested at:
Room temperature (20⁰C [68⁰F] ± 3⁰C [5.5⁰F]) Standard atmosphere (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg]) Relative humidity 0-100% Compressed air quality DIN ISO 8573-1 class 4
- Chất liệu silicon tuân thủ FDA 21 CFR 177.2600 và EU 1935/2004.
Chất liệu silicon cao cấp bền lâu
Một phụ gia kim loại (Fe) tỷ lệ thấp được trộn với vật liệu cao su để làm cho nó có thể được phát hiện.
Thích hợp cho thực phẩm đông lạnh và sống.
Độ bám tuyệt vời trên các phần thuôn có bề mặt không đều và độ cao khác nhau, ngay cả ở tốc độ và gia tốc nhanh
Có sẵn với các phụ kiện bằng thép không gỉ có ren và tích hợp axit.
Dễ dàng vệ sinh với thiết kế hợp vệ sinh. Không có túi bụi / bụi bẩn.
Mức chân không thấp cần thiết để sụp đổ ống thổi. Giảm rủi ro làm hỏng sản phẩm thực phẩm được xử lý
Glass handling
Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capability to handle tilted or standing glass/metal sheets.
piGRIP® Configurable suction cups
The piGRIP® is a unique configurable suction cup concept with individually optimized parts for gripping, lifting and height compensation. Also a large selection of fittings makes it ready to fit new machines and easy to retrofit existing cups. The fittings available are both threaded and push on fittings.
B - Bellows DURAFLEX® (10–110 mm)
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items.
B - Bellows HNBR (10–110 mm)
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Material used is HNBR.
B-MF - Bellows Mark Free (15–50 mm)
The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when the lifting force is parallel to the surface.
BF-P DURAFLEX®
Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.
F - Flat HNBR (50–110 mm)
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
U - Universal HNBR (10–20 mm)
For handling objects with flat or slightly curved surfaces.
XLF - Extra Large Flat (150–300 mm)
Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capability to handle tilted or standing glass/metal sheets.GREENTECH Việt Nam - Công ty TNHH TM DV GREENTECH là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay
