Standard El | Omron Standard | Que điện cực | Electrodes and Accessories | Omron Vietnam

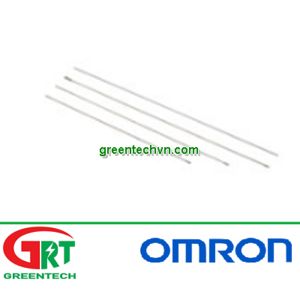

Standard Electrodes
Omron Vietnam | Greentech Vietnam
Standard El | Omron Standard | Que điện cực | Electrodes and Accessories | Omron Vietnam
.
SUS316 Electrodes can be used in applications where resistance to corrosion is required. Titanium and HAS Electrodes can be used in applications where resistance to acid is required.
For applications where long electrodes are required, a connection nut and two Lock Nuts can be used to extend the electrodes 1 m at a time.
Material indications are provided on all OMRON electrodes, connection nuts, and Lock Nuts.
Electrodes
Select an electrode appropriate for the type of liquid. Refer to Technical Guide for Level Controllers.
| Model | Material | Weight (g) | Material indication lines | |
|---|---|---|---|---|
| F03-01 SUS304 | SUS304 | Approx. 170 | 1 line |
|
| F03-01 SUS316 | SUS316 | 2 lines | ||
| F03-01 HAS B | N10665 * | Approx. 195 | 3 lines | |
| F03-01 HAS C | N10276 * | Approx. 190 | 4 lines | |
| F03-01 TITANIUM | Titanium | Approx. 100 | 5 lines | |
* UNS No. (Unified Numbering System No.) is an international metal designation system that specifies a unique number
for each material.
for each material.
Insulated Electrodes
Electrodes are insulated with a plastic sheath to prevent them from touching each other and to isolate them from debris in the liquid.
Before application, strip back about 10 cm of the sheath at the end to ensure sufficient conductivity.
| Model | |
|---|---|
| F03-01 SUS304 | Vinyl Tubing |
| F03-01 SUS304 | Fluororesin Tubing |
| F03-01 SUS316 | Vinyl Tubing |
| F03-01 SUS316 | Fluororesin Tubing |
Note: Tubing comes in 1-m lengths with a sheath thickness of 0.5 mm.
Connecting Nuts
| Model | Material | Weight (g) | Material indication |
|---|---|---|---|
| F03-02 SUS304 *1 | SUS303 (Equivalent to SUS304) | Approx. 12 | Blank |
| F03-02 SUS316 *1 | SUS316 | 6 | |
| F03-02 HAS B | N10665 *2 | Approx. 20 | B |
| F03-02 HAS C | N10276 *2 | C | |
| F03-02 TITANIUM | Titanium | Approx. 6 | T |
*1. Spring washers made of the same material are included with the F03-02 SUS304 and F03-02 SUS316.
Spring washers are not included with the other models.
OMRON does not sell spring washers by themselves.
*2. UNS No. (Unified Numbering System No.) is an international metal designation system that specifies a unique
number for each material.
Spring washers are not included with the other models.
OMRON does not sell spring washers by themselves.
*2. UNS No. (Unified Numbering System No.) is an international metal designation system that specifies a unique
number for each material.
Electrode Sets
An Electrode Set consists of an electrode, a connecting nut, and two Lock Nuts.
| Set model | Components | No. of parts in an set | Weight (g) |
|---|---|---|---|
| F03-60 SUS304 | F03-01 SUS304 | 1 | Approx. 190 |
| F03-02 SUS304 | 1 | ||
| F03-03 SUS304 | 2 | ||
| F03-60 SUS316 | F03-01 SUS316 | 1 | |
| F03-02 SUS316 | 1 | ||
| F03-03 SUS316 | 2 |
Note: HAS and titanium Electrodes do not come in sets.
Lock Nuts
| Model | Material | Weight (g) | Material indication |
|---|---|---|---|
| F03-03 SUS304 *1 | SUS303 (Equivalent to SUS304) | Approx. 2 | Blank |
| F03-03 SUS316 *1 | SUS316 | 6 | |
| F03-03 HAS B | N10665 *2 | Approx. 5 | B |
| F03-03 HAS C | N10276 *2 | C | |
| F03-03 TITANIUM | Titanium | Approx. 2 | T |
*1. Only SUS304 and SUS316 Lock Nuts come with spring washers made of the same material. HAS B, HAS C and
TITANIUM don't come with spring washer.
*2. UNS No. (Unified Numbering System No.) is an international metal designation system that specifies a unique
number for each material.
TITANIUM don't come with spring washer.
*2. UNS No. (Unified Numbering System No.) is an international metal designation system that specifies a unique
number for each material.
Electrode Separators
When long electrodes are required, use Separators at each joint (every 1 m) to prevent the Electrodes from touching each other.
Use a 1-pole Separator with BF Electrode Holders. The five-pole model can be used with PS-5S and PS-4S Electrode Holders.
Separators cannot be used with PS-31 Electrode Holders.
| Model | No. of Electrodes | Dimensions | Applicable Electrode Holder | Weight (g) | Material | Operating Temperature |
|---|---|---|---|---|---|---|
| F03-14 1P | 1 |
| BF-[](R) | Approx. 15 | Ceramic | 250 ° C max. |
| F03-14 3P | 3 |
| PS-3S(R) | Approx. 30 | ||
| F03-14 5P | 5 |
| PS-4S(R) PS-5S(R) |
Note: The Electrode Separators cannot be used unless the Electrodes are coupled.
![F03-[] Lineup 18](https://www.ia.omron.com/Images/257_lu_6_413-109327.gif)
Note: When using two or more Separators, be careful with the mounting direction of the connecting nut screws which connect electrodes. Avoid the screws from touching each other.
Accessories (Order Separately)
| Application | Model |
|---|---|
| Protective Cover (for PS-[]S and BF-3/-5) | F03-11 |
| Mounting Frame (for PS-[]S) | F03-12 |
| Mounting Frame for Installing in Concrete (for PS-[]S) | F03-13 |
| Dust-proof Rubber Cap (for PS-31) | F03-31 |
Caution: All units are in millimeters unless otherwise indicated.
Electrode
F03-01
![F03-[] Dimensions 2](https://www.ia.omron.com/Images/257_dm_113-109329.gif)
Lock Nut
F03-03
SUS304
SUS316
Titanium
![F03-[] Dimensions 4](https://www.ia.omron.com/Images/257_dm_213-109330.gif)
F03-03
HAS B
HAS C
![F03-[] Dimensions 5](https://www.ia.omron.com/Images/257_dm_313-109332.gif)
Connecting nut
F03-02
SUS304
SUS316
![F03-[] Dimensions 7](https://www.ia.omron.com/Images/257_dm_413-109334.gif)
F03-02
HAS B
HAS C
![F03-[] Dimensions 8](https://www.ia.omron.com/Images/257_dm_513-109336.gif)
F03-02
Titanium
![F03-[] Dimensions 9](https://www.ia.omron.com/Images/257_dm_613-109338.gif)
Note: 1. Dimension when mounting Electrodes.
2. Clamp screws are not provided for HAS B, HAS C, or titanium models. F03-03 Lock Nuts are used to
mount Electrodes.
2. Clamp screws are not provided for HAS B, HAS C, or titanium models. F03-03 Lock Nuts are used to
mount Electrodes.
| Catalog Name | Catalog Number | Last Update | Download |
|---|---|---|---|
| F03-[] Data Sheet | - | Apr 21, 2016 | [469KB] |
| Safety Precautions for Electrodes and Electrode Holders | - | Nov 21, 2008 | [121KB] |
