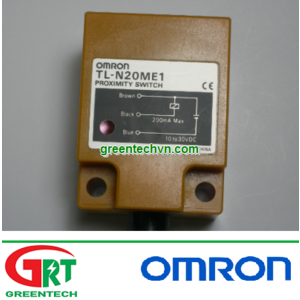

TL-N20ME1 | Omron TL-N20ME1 | Cảm biến tiệm cận | Proximity Sensor TL-N20ME1 | Omron Vietnam
TL-N20ME1
Omron Vietnam | Greentech Vietnam
.
| Type | Unshielded |
|---|---|
| Sensing method | Inductive type |
| Sensing distance | 20 mm-10% to +10% |
| Setting distance | 0 to 16 mm |
| Differential distance | 15% Max. of sensing distance |
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object | Iron 50 x 50 x 1 mm |
| Power supply voltage | 12 to 24 VDC ripple(p-p) 10% Max. |
| Operating voltage range | 10 to 30 VDC |
| Current consumption | 8 mA max.(at 12 VDC)15 mA max. (at 24 VDC) |
| Control output (Output type) | NPN voltage-current output |
| Control output (Switching capacity) | 0 to 100 mA(at 12 VDC)0 to 200 mA(at 24 VDC) |
| Control output (Residual voltage) | 1 V Max.(under load current) |
| Indicator | Detection indicator (red) |
| Operation mode | NO |
| Sensitivity setting | - |
| Self-diagnostic output | - |
| Protective circuit | Surge suppressorPower supply reverse polarity protection |
| Standard or Different frequency | Standard |
| Ambient temperature | Operating: -25 to 70 ℃Storage: -25 to 70 ℃ |
| Ambient humidity | Operating: 35 to 95%RHStorage: 3595%RH |
| Temperature influence | +/- 10% Max. of sensing distance in temperature range of -25 to +70 CEL(As the basis for sensing distance of 23 CEL) |
| Voltage influence | +/- 2.5% Max. of sensing distance in rated voltage range +/- 10%.(As the basis for sensing distance at standard power voltage) |
| Insulation resistance | 50 MOhm Min. at 500 VDC between charged parts and the case |
| Dielectric strength | 1000 VAC 50/60 Hz for 1 minute between charged parts and the case |
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | 500 m/s**2 for 10 times each in X, Y, and Z directions |
| Degree of protection | IEC60529: IP67Company standard: Oil-proof |
| Connection method | Pre-wired models(Cable length: 5 m) |
| Material (case) | Heat-resistant ABS resin |
| Material (sensing surface) | Heat-resistant ABS resin |
| Accessories | Instruction manual, Mounting bracket |
