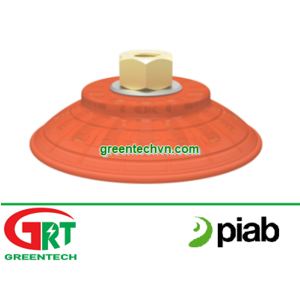

FCF100P.5R.G75W , 0206938 | Núm hút chân không | Suction Cup | Piab Vietnam

(0 đánh giá)

P6010.AT.LB.52

Piab Vietnam | Greentech Vietnam

12 tháng

FCF100P.5R.G75W , 0206938 | Núm hút chân không | Suction Cup | Piab Vietnam

  • Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
  • Normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet.
  • Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
  • The "FCF" design is suitable for slightly domed and flat surfaces, e.g., such as those encountered when handling metal sheets in press lines.
  • The suction cups have support cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
General
Curve radius 5.91 in
Movement, vertical max. 0.24 in
Application Oily sheet metal
Material Polyurethane (PU55), Polyurethane (PU60)
Suction cup model FCF
Suction cup shape Flat Concave
Volume 4.27 in³
Weight 4.22 oz
Fitting
Fitting size 1/4"
Fitting style Female
Fitting type G-thread
Dimension
Height 1.52 in
Outer diameter 3.94 in
Outer diameter, actuated 4.12 in
Performance — lifting forces, Dry metal sheet
  Vertical lifting force Parallel lifting force
18 -inHg 78 lbf 75.8 lbf
27 -inHg 110 lbf 109 lbf
Performance — lifting forces, Oily steel plate
  Vertical lifting force Parallel lifting force
18 -inHg 53.1 lbf 31.2 lbf
27 -inHg 67 lbf 46.1 lbf
Material
  Polyurethane (PU55) Polyurethane (PU60)
Color Orange Green transparent
Hardness 55 °Shore A 60 °Shore A
Temperature 50 – 122 °F 50 – 122 °F
Material resistance
  Polyurethane (PU55) Polyurethane (PU60)
Alcohol N/A N/A
Concentrated acids + +
Ethanol + +
Hydrolysis + +
Methanol - -
Oil +++ +++
Oxidation - -
Gasoline + +
Wear resistance +++ +++
Weather and ozone +++ +++



Values specified in the data sheet are tested at:
Room temperature (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
Standard atmosphere (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
Relative humidity 0-100%
Compressed air quality DIN ISO 8573-1 class 4

Shape


  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

Application


  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •




Suction cup accessories





The mounting element programme consists of mounting brackets, height adjusters, level compensators and suction cup extensions. The parts are designed to fit together for different sizes and applications. The parts are easily mounted on several standard extruded profile systems, not just suitable for one brand of profile. All parts of the same size-category fit perfectly together and thereby create an easy-to-use, compact and flexible/adjustable mounting “assembly kit” for cups.




Adjust differences in levels, for example on lifting devices with several suction cups. There is then less demand for exact positioning of vacuum handling device. Level compensators will also provides a certain degree of shock and vibration absorption.




To avoid bending stress, a suction cup can be fitted with a ball joint.




Our suction cup valves are a group of products that serve to save energy in various applications at the suction cup.




A variety of fittings for suction cups.




Angle adaptors, t-slot adaptors etc.
