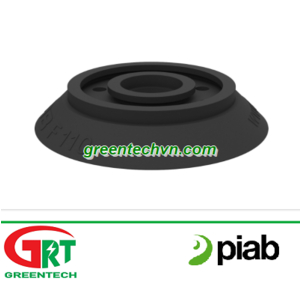

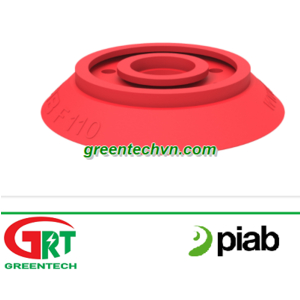

Núm hút chân không F110 Nitrile-PVC Item no.: 3150132P
F110
Piab Vietnam | Greentech Vietnam
12 tháng
.
General
Curve radius 250 mm Movement, vertical max. 4 mm Application Dry sheet metal Material Silicone (SIL) Suction cup model F Suction cup shape Flat Volume 70 cm³ Weight 66 g Fitting
Fitting size None Fitting style None Fitting type None Fitting option None Dimension
Height 20 mm Outer diameter 112 mm Outer diameter, actuated 115.3 mm Performance — lifting forces
20 -kPa 140 N 140 N 60 -kPa 420 N 250 N 90 -kPa 560 N 300 N Material
Silicone (SIL) Colour Red Hardness 50 °Shore A Temperature -40 – 200 °C Material resistance
Dimensional drawingsSilicone (SIL) Alcohol ++ Concentrated acids - Ethanol N/A Hydrolysis + Methanol N/A Oil - Oxidation +++ Petrol - Wear resistance ++ Weather and ozone +++ Values specified in the data sheet are tested at:
Room temperature (20⁰C [68⁰F] ± 3⁰C [5.5⁰F]) Standard atmosphere (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg]) Relative humidity 0-100% Compressed air quality DIN ISO 8573-1 class 4
- Thích hợp cho các đối tượng phẳng.
Ổn định tốt và ít chuyển động vốn có.
Khuyến nghị khi lực nâng song song với bề mặt của vật.
Cleats ngăn các vật mỏng, nhạy cảm khỏi bị biến dạng và tạo thêm ma sát khi lực nâng song song.
Suction cup F110 Silicone, G3/8" female, with mesh filterItem no.: 0101908 Compare Suction cup F110 Silicone, 3/8" NPSF female, with mesh filter Item no.: 0101909
Compare Suction cup F110 Silicone, G1/2" female, with mesh filter Item no.: 0101910
Compare Suction cup F110 Silicone, G1/2" female, with cone valve Item no.: 0101914
Compare Suction cup F110 Nitrile-PVC, G3/8" female, with mesh filter Item no.: 0101915
Compare Suction cup F110 Nitrile-PVC, 3/8" NPSF female, with mesh filter Item no.: 0101916
Compare Suction cup F110 Nitrile-PVC, G1/2" female, with mesh filter Item no.: 0101917
Compare Suction cup F110 Nitrile-PVC, G1/2" female, with cone valve Item no.: 0101921
Compare Suction cup F110 HNBR, G3/8" female, with mesh filter Item no.: 0108188
Compare Suction cup F110 HNBR, 3/8" NPSF female, with mesh filter Item no.: 0108189
Compare Suction cup F110 HNBR, G1/2" female, with mesh filter Item no.: 0108190
Compare Suction cup F110 Nitrile-PVC Item no.: 3150132P
Compare Suction cup F110 Silicone Item no.: 3150132S
Compare Suction cup F110 HNBR Item no.: 3150132T
Glass handling
Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capability to handle tilted or standing glass/metal sheets.
piGRIP® Configurable suction cups
The piGRIP® is a unique configurable suction cup concept with individually optimized parts for gripping, lifting and height compensation. Also a large selection of fittings makes it ready to fit new machines and easy to retrofit existing cups. The fittings available are both threaded and push on fittings.
B - Bellows DURAFLEX® (10–110 mm)
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items.
B - Bellows HNBR (10–110 mm)
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Material used is HNBR.
B-MF - Bellows Mark Free (15–50 mm)
The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when the lifting force is parallel to the surface.
BF-P DURAFLEX®
Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.
F - Flat HNBR (50–110 mm)
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
U - Universal HNBR (10–20 mm)
For handling objects with flat or slightly curved surfaces.
XLF - Extra Large Flat (150–300 mm)
Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capability to handle tilted or standing glass/metal sheets.GREENTECH Việt Nam - Công ty TNHH TM DV GREENTECH là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay
