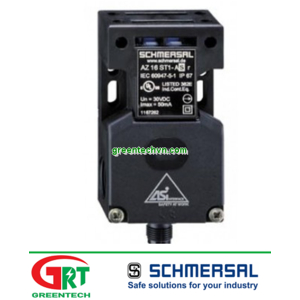

AZ16-ST1-AS-R | Schmersal | Công tắc, cảm biến cửa an toàn | Schmersal Việt Nam
AZ16-ST1-AS-R
Schmersal Vietnam | Greentech Vietnam
12 tháng
.
| Ordering details | |
| Product type description | AZ 16 ST1-AS R |
| Article number | 101167262 |
| EAN code | 4030661218427 |
| eCl@ss | 27-27-26-02 |
| Approval | |
| Approval |
TÜV
USA/CAN
AS-i |
| Classification | |
| Basically suitable up to | |
| Standards | EN ISO 13849-1, IEC 61508 |
| PL | up c |
| Control category | 1 |
| PFH | 1.14 x 10-6 / h |
| - notice | up to max. 100.000 switching cycles/year |
| SIL | up 1 |
| Mission time | 20 Years |
| If a fault exclusion for hazardous damage of the 1-channel mechanics is authorized and an adequate protection against tampering is ensured, suitable for use up to: | |
| PL | up d |
| Control category | 3 |
| PFH value | 1.01 x 10-7 / h |
| - notice | up to max. 100.000 switching cycles/year |
| SIL | up 2 |
| Mission time | 20 Years |
| Global Properties | |
| Product name | AZ 16 AS |
| Standards | EN 60947-5-1, EN 50295, EN ISO 13849-1, IEC 61508 |
| Compliance with the Directives (Y/N)
| Yes |
| Materials | |
| - Material of the housings | glass-fibre reinforced thermoplastic, self-extinguishing |
| Housing coating | None |
| Weight | 115 g |
| Response time | < 100 ms |
| Mechanical data | |
| Design of electrical connection | connector plug M12, 4-pole |
| connector | bottom |
| Mechanical life | > 1.000.000 operations |
| higher Latching force (Y/N) | Yes |
| Latching force | 30 N |
| With ejection force (Y/N) | No |
| Ambient conditions | |
| Ambient temperature | |
| - Min. environmental temperature | −25 °C |
| - Max. environmental temperature | +60 °C |
| Storage and transport temperature | |
| - Min. Storage and transport temperature | −25 °C |
| - Max. Storage and transport temperature | +85 °C |
| Protection class | IP67 to IEC/EN 60529 |
| Protection rating | II
|
| Air clearances and creepage distances To IEC/EN 60664-1 | |
| - Rated impulse withstand voltage Uimp | 0,8 kV |
| - Rated insulation voltage Ui | 32 VDC |
| - Overvoltage category | III |
| - Degree of pollution | 3 |
| Electrical data - AS interface | |
| AS-i Supply voltage | 26.5 ... 31.6 VDC, Protection against polarity reversal |
| AS-i operating current | ≤ 50 mA |
| AS-i Device insulation | internally short-circuit proof |
| AS-i Specification | |
| - version | V 2.1 |
| - Profile | S-0.B.F.E |
| - IO-Code | 0x0 |
| - ID-Code | 0xB |
| - ID-Code1 | 0xF |
| - ID-Code2 | 0xE |
| AS-i Inputs | |
| - Channel 1 | Data bits DI 0/DI 1= dynamic code transmission |
| - Channel 2 | Data bits DI 2/DI 3= dynamic code transmission |
| AS-i Parameter bits | P0....P3 not used |
| - Set the parameter outputs to "1111" (0xF) | |
| AS-i input module address | 0 |
| - Default on address 0, programmable via the AS-Interface Master or Hand-held programming device | |
| LED switching conditions display | |
| LED switching conditions display (Y/N) | Yes |
| AS-i LED switching conditions display | |
| (1) green LED | Supply voltage |
| (2) red LED | Communication error / slave address = 0 |
| (3) yellow LED | Enabling status |
| ATEX | |
| Explosion protection categories for gases | None |
| Explosion protected category for dusts | None |
| Dimensions | |
| Dimensions of the sensor | |
| - Width of sensor | 52 mm |
| - Height of sensor | 30 mm |
| - Length of sensor | 90 mm |
| Pin assignment | |
| 1 | AS-i + |
| 2 | None |
| 3 | AS-i − |
| 4 | None |
| Included in delivery | |
| Actuators must be ordered separately. | |
| K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 12.08.2017 - 05:44:23h Kasbase 3.2.7.F.64I | |
